7Semi 0.5mm FFC FPC Connector Breakout Board (30 Pin)
Delivery & Pickup Options
Pick up today from our store.
Estimated delivery: 2-5 business days

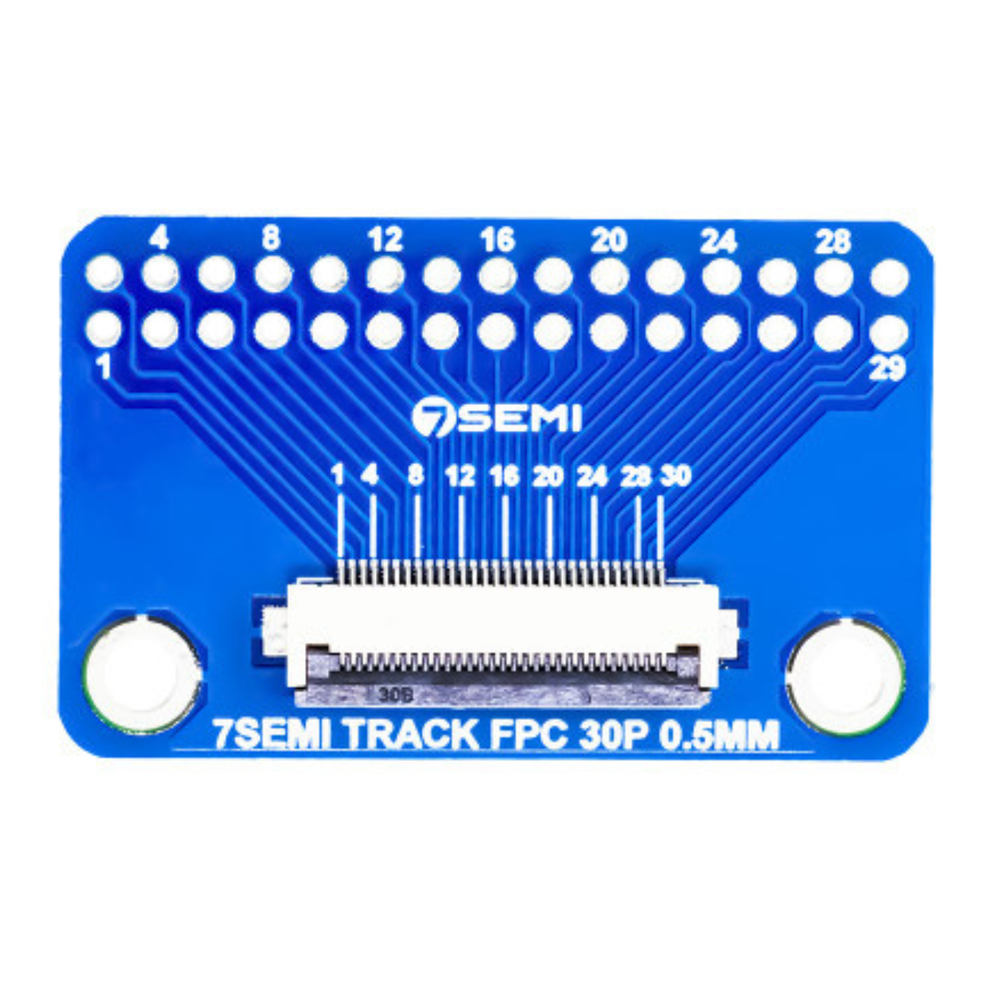

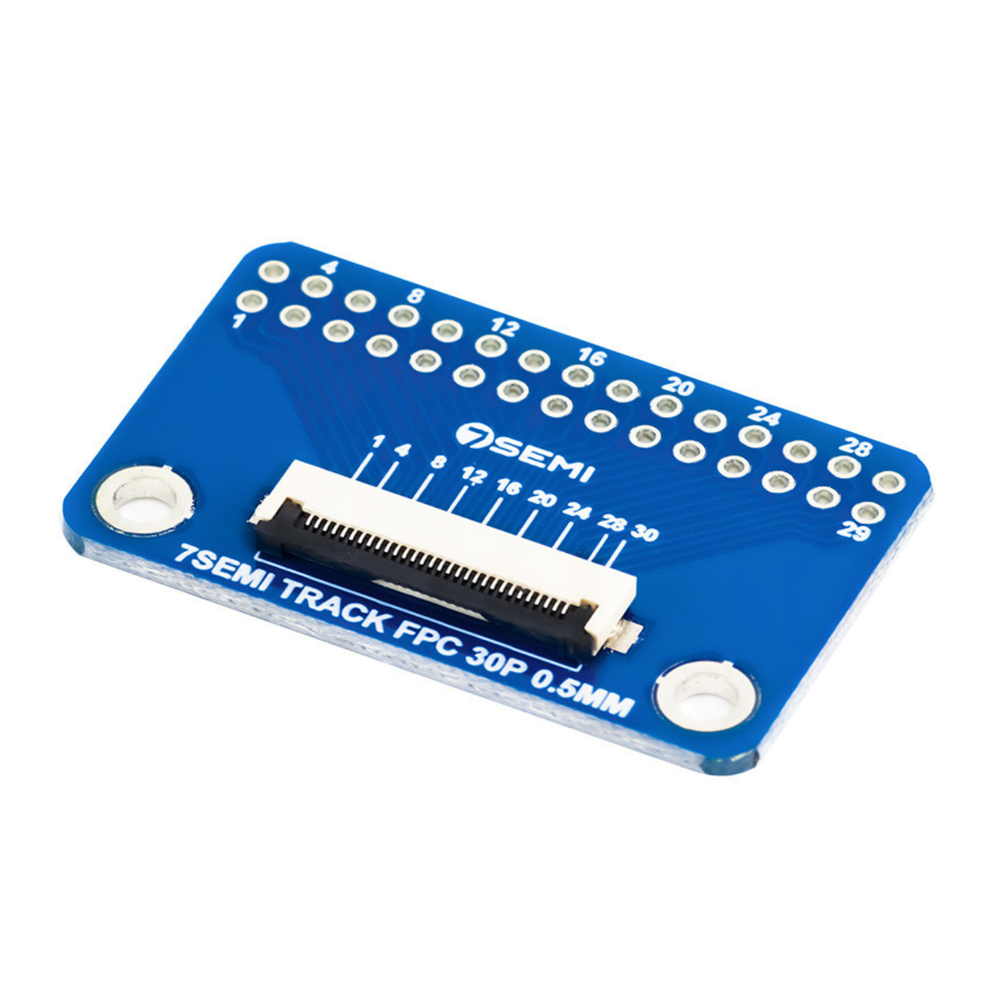

7Semi 0.5mm FFC FPC Connector Breakout Board (30 Pin) The 7Semi 0.5mm FFC FPC Connector Breakout Board (30 Pin) is engineered to simplify interfacing fine-pitch flat cables with standard prototyping setups. Built around a 30-pin, 0.5mm pitch ffc fpc connector, this board features a front-flip, bottom-contact SMT connector with a precise 2mm height, ensuring secure cable insertion and stable signal transmission. The breakout converts the fine-pitch FFC/FPC signals into 0.1″ spaced dual-row output pins, making it fully compatible with breadboards and development boards. With clearly marked pin numbers and reliable PCB soldering, this breakout board is ideal for prototyping, testing, and integrating LCDs, touch panels, embedded systems, and custom electronic interfaces where accuracy and connection reliability are critical. Features: 0.5mm pitch FPC FFC connector with 30 pins and a 2mm front flip bottom contact. speeds up the prototyping process. Out pins with traces leading to double rows of 0.1" spaced holes. Compatible pin spacing for breadboard application. Easily recognizable pin numbers Size: 40 x 25 mm
- 30-Pin 0.5mm Pitch Connector: Designed with an exact 0.5mm pitch FFC FPC connector supporting 30 pins for precise signal routing
- SMT Front Flip Connector: Bottom-contact SMT ffc fpc connector securely soldered for stable and reliable connections
- Breadboard Friendly Design: Dual-row 0.1″ spaced breakout pins for quick prototyping on standard breadboards
- Clear Pin Markings: Clearly labeled pin numbers reduce wiring errors and speed up development
- Compact & Reliable: 2mm connector height ensures space-efficient integration in compact electronic designs
- Body Size 18.3mm × 5.7mm
- Pitch 0.5mm
- Connector Support / Mounting PAD 1 3.6mm × 2.2mm
- Connector Support / Mounting PAD 2 16.5mm × 2.2mm

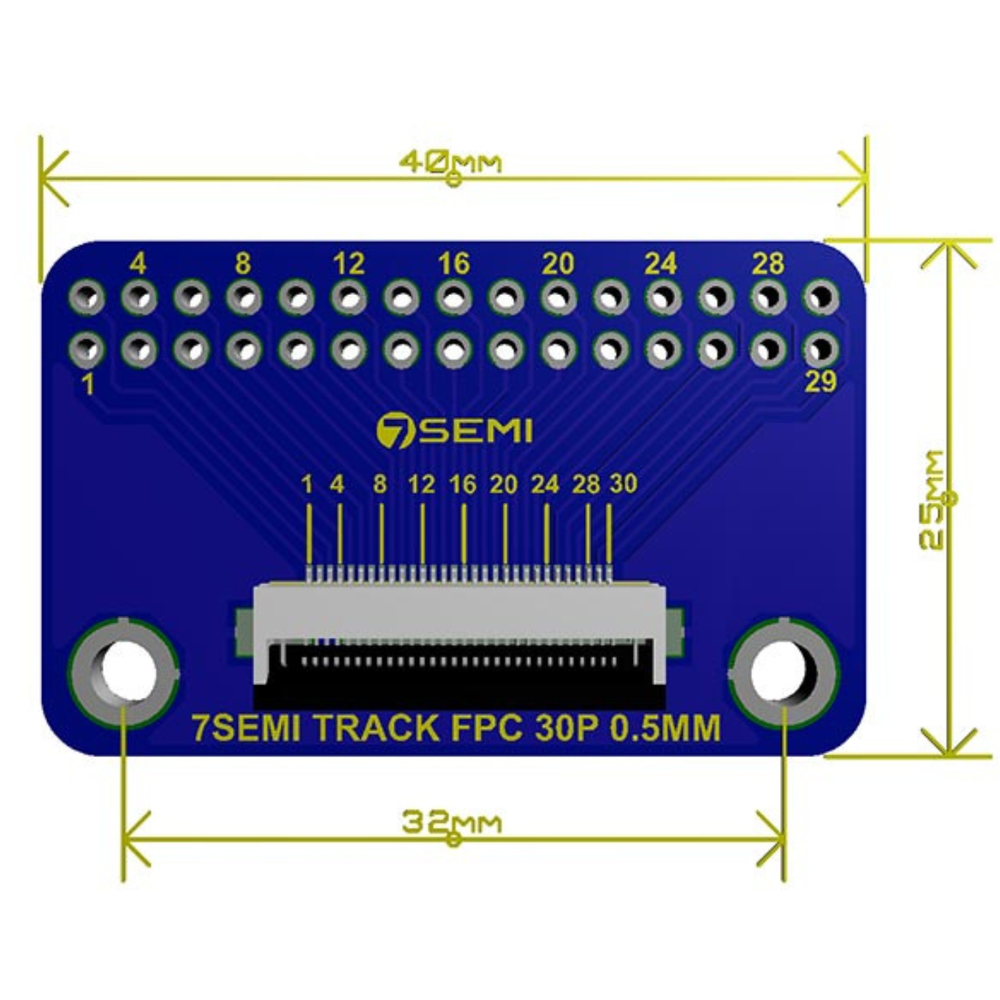

- Board Size (L × W) 40mm × 25mm
- Board Thickness 1.6mm
- Through Hole Spacing (X Axis) 2.54mm (40mil)
- Through Hole Spacing (Y Axis) 2.54mm (40mil)
- Side Hole & PAD 1mm (Drill) / 2mm (Pad)
- PCB Mounting Through Hole 3.2mm (Drill) / 5mm (Pad)
- PCB Copper Layers 2 Layers
- Surface Finish HAL
- PCB Material FR4
- Finished Copper Thickness 1 oz (35µm)
- Maximum Trace Length < 21mm
- Number of Pins / Through-Holes 30
