7Semi ADS1015 I2C 4-Channel 12bit ADC Breakout Board
Delivery & Pickup Options
This item is not available right now. Please check back later or contact us for availability.

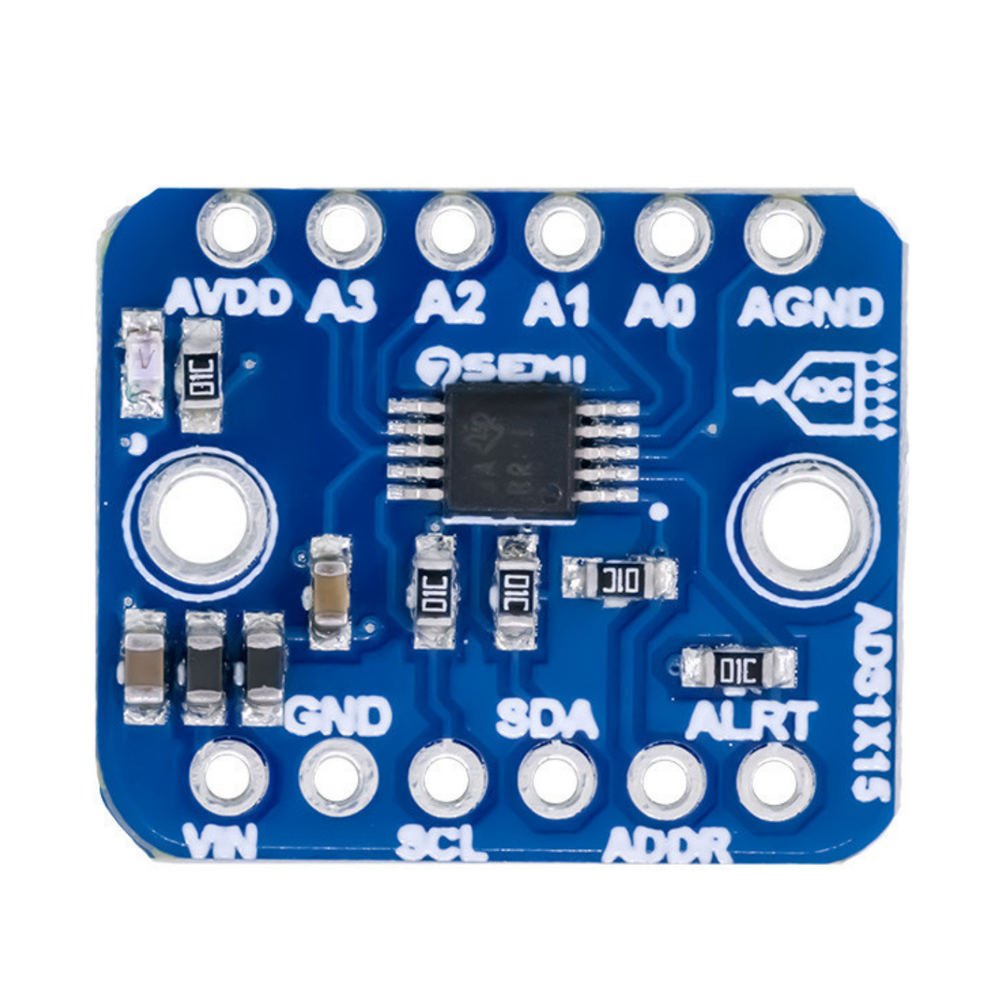

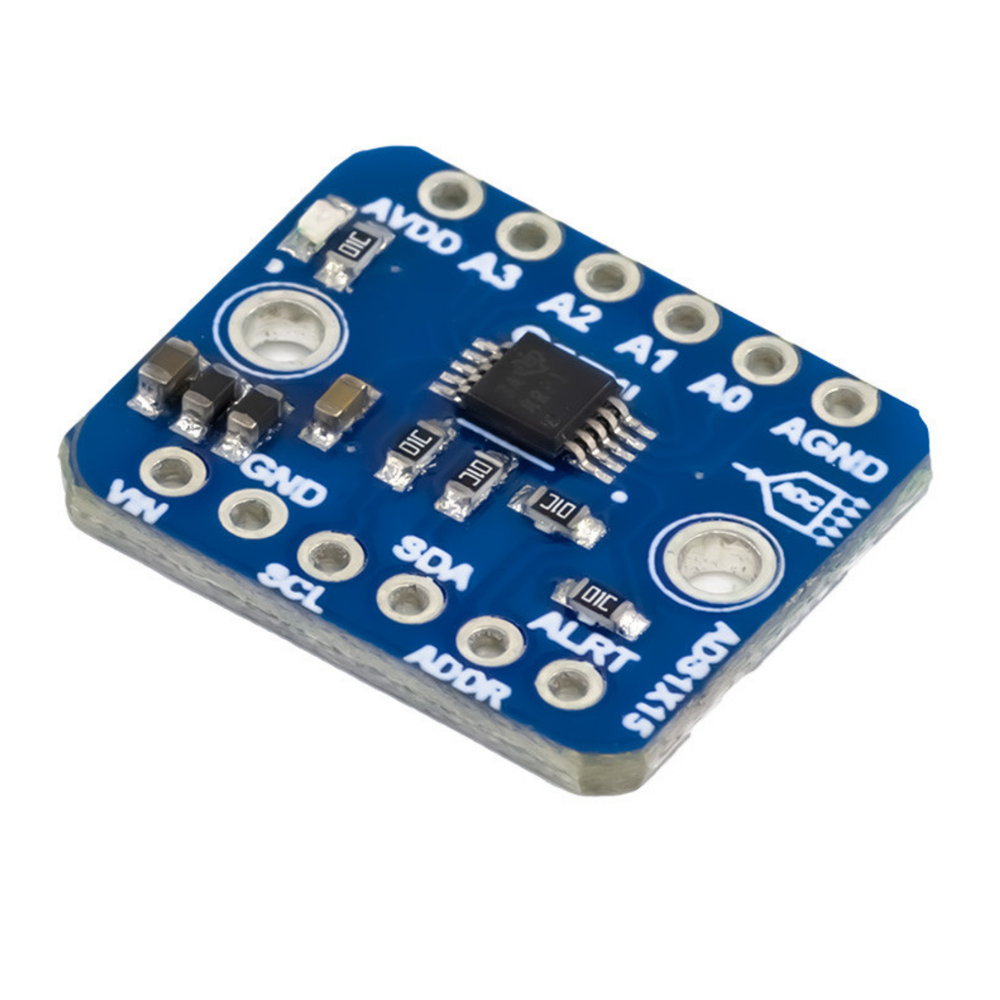

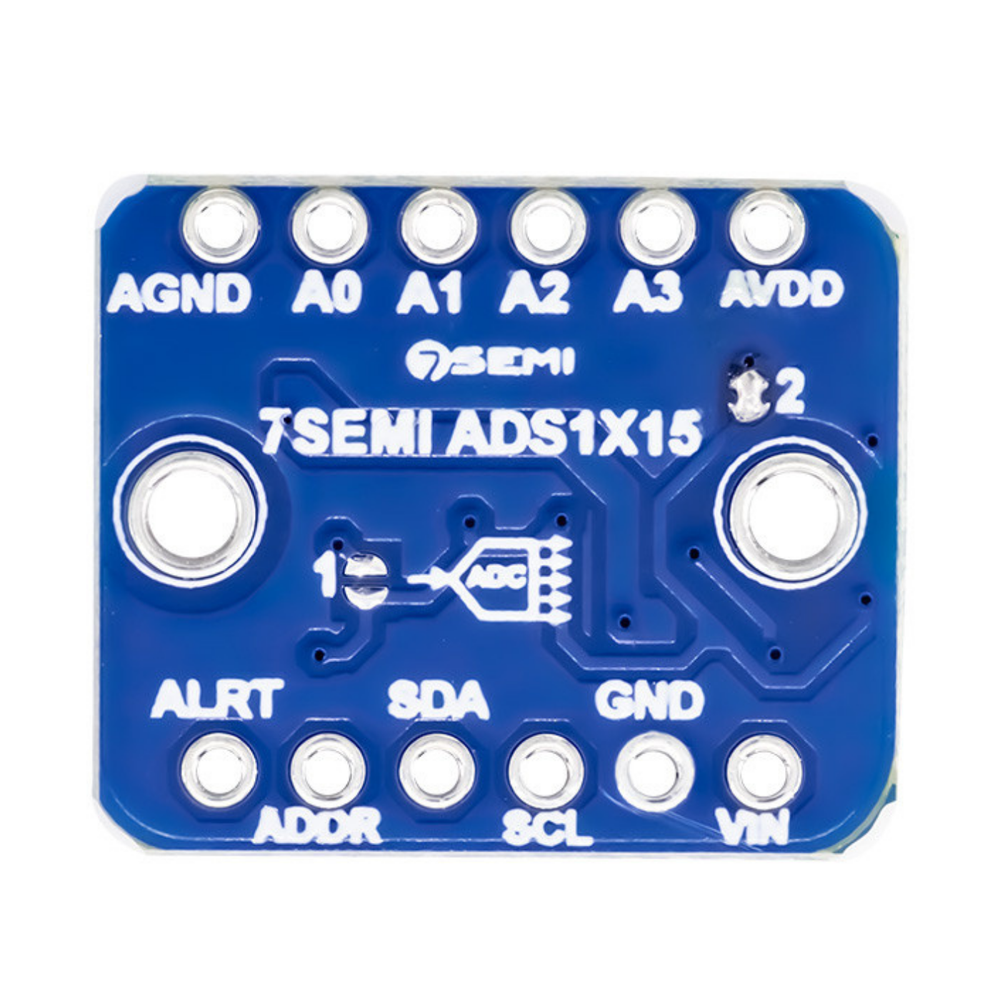

7Semi ADS1015 I2C 4-Channel 12bit ADC Breakout Board The 7Semi ADS1015 I2C 4-Channel 12bit ADC Breakout Board is built around the Texas Instruments ADS1015, offering high-precision 12-bit analog-to-digital conversion at speeds up to 3.3 kSPS. With its i2c ADC 4 channel interface, the board allows seamless integration with microcontrollers and single-board computers. The onboard programmable gain amplifier (PGA) ensures accurate readings across a range of sensor signals. Operating on a versatile 2.0V to 5.5V supply, this ADS1015 12-bit ADC board is perfect for electronics enthusiasts, IoT projects, and any application requiring reliable analog signal measurement. Features: 12-Bit Noise-Free Resolution: Achieve higher precision with little noise interference, resulting in exact readings under all settings. Wide Supply Range (2.0 V to 5.5 V): This board's flexible voltage options make it compatible with a variety of power sources. Low Power Consumption: Continuous conversion mode consumes only 150 µA, making it ideal for battery-powered applications with high energy efficiency. Programmable Data Rate: Change the sampling speed from 128 SPS to 3.3 kSPS to suit your measurement requirements. Internal low-drift voltage reference and oscillator: Provides stable and consistent performance throughout time, which is critical for long-term projects. I2C Interface with Four Pin-Selectable Addresses: Makes integration easier and enables multiple devices to connect seamlessly within your system. Four single-ended or two differential inputs provide diverse input possibilities for various measurement combinations. Programmable Gain Amplifier (PGA): Improves signal processing, allowing for precise readings over a wide range of input levels. Compact and Space-Saving Design: Ideal for applications with limited space, without sacrificing functionality. Connection Diagram with Arduino:
- High-precision ADS1015 12-bit ADC for accurate analog-to-digital conversion.
- Supports I2C ADC 4 channel communication for easy microcontroller integration.
- 12-bit resolution with up to 3.3 kSPS sampling rate.
- Built-in Programmable Gain Amplifier (PGA) for flexible signal scaling.
- Operates on 2.0V to 5.5V supply voltage, compatible with various sensors.
- Ideal for electronics, IoT projects, and sensor measurement applications.
- ADC Resolution 12-bit
- Number of Channels 4 (Differential/Single-Ended)
- Communication Interface I2C
- Sampling Rate Up to 3.3 kSPS
- Programmable Gain Amplifier (PGA) Yes
- Supply Voltage 2.0V – 5.5V
- Operating Temperature -40°C to 85°C
- Compatible With Arduino, Raspberry Pi, ESP32, other MCUs
