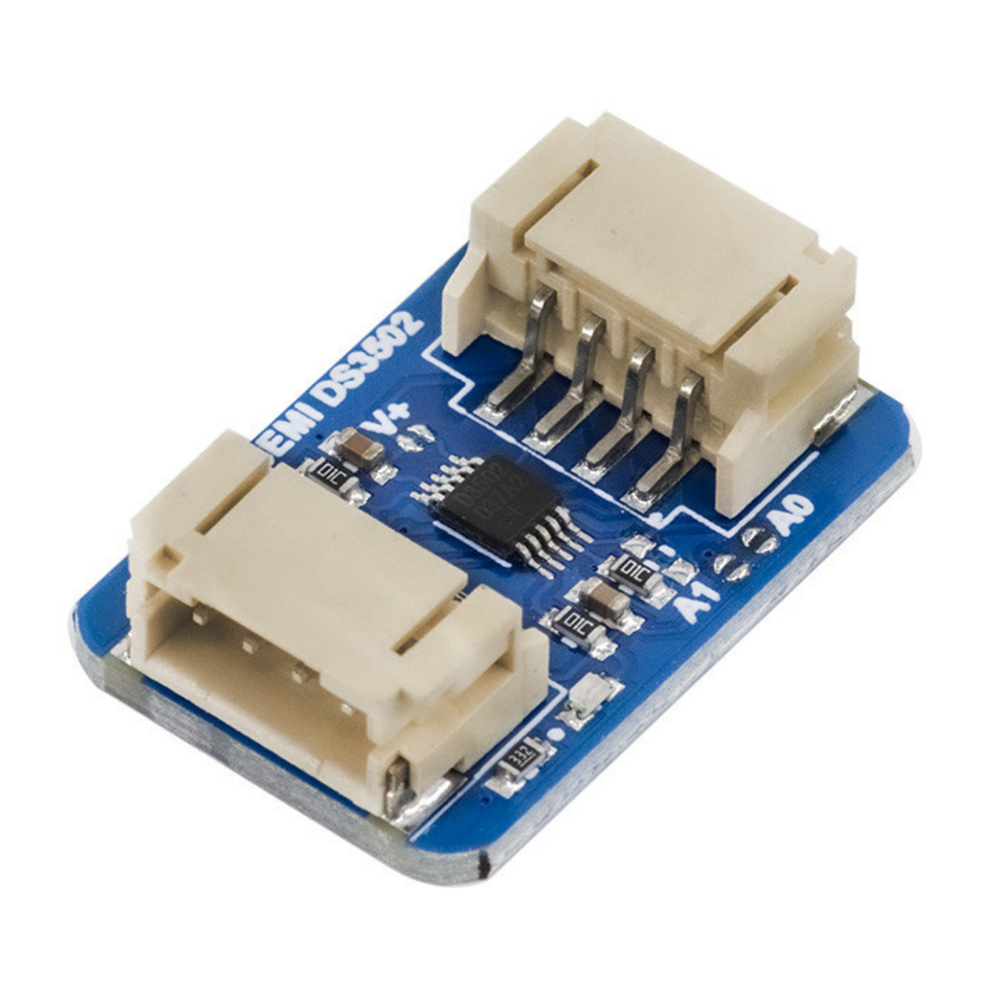

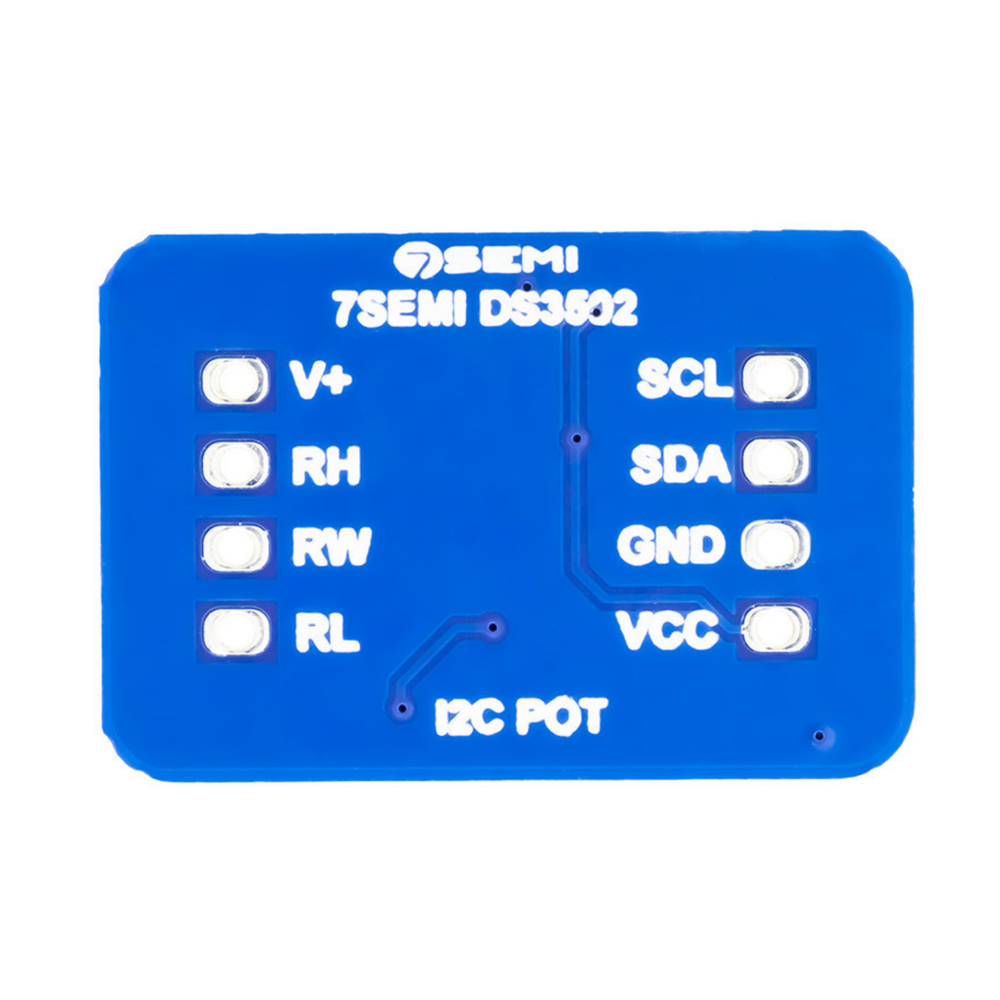

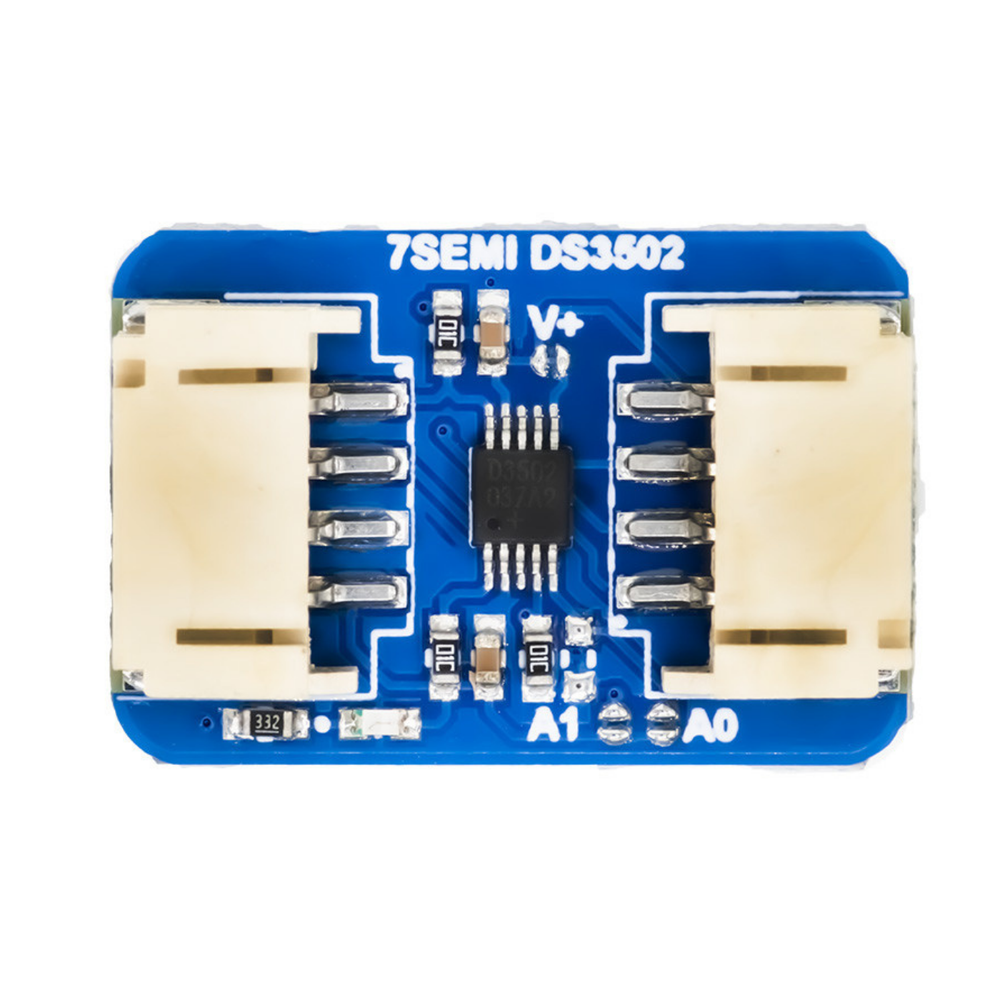

7Semi DS3502 I2C Digital 10K Potentiometer Breakout Module
Delivery & Pickup Options
This item is not available right now. Please check back later or contact us for availability.
7Semi DS3502 I2C Digital 10K Potentiometer Breakout Module The 7Semi DS3502 I2C Digital 10K Potentiometer Breakout Module is a compact DS3502 digital potentiometer designed for accurate and repeatable resistance control using a microcontroller. This digital potentiometer 10k provides 128 discrete resistance steps across a full 0Ω to 10kΩ range, allowing fine-tuned analog voltage adjustment through the I2C interface. With support for both 3.3V and 5V logic levels and an analog voltage operating range of 4.5V to 15.5V, it is well-suited for signal conditioning, calibration, audio control, and IoT or embedded electronics projects where precise resistance tuning is required. Features: High-precision control: Includes 128 wiper tap points for fine-tuning your circuit's functionality. Supports a full-scale resistance of 10kΩ and an analog working voltage of 4.5V to 15.5V. I2C-Compatible Interface: Works seamlessly with I²C busses and can run at speeds up to 400kHz. Address pins allow up to four DS3502 devices to share a single I²C bus, providing more control choices. Easy Integration: 4 pin 2.0 mm pitch JST connector for trouble-free integration. Robust Design: Operates reliably throughout a wide temperature range of -40°C to +100°C, making it suited for a variety of settings.
- DS3502 digital potentiometer breakout module for precise, software-controlled resistance adjustment
- Digital potentiometer 10k with 128-step resolution, adjustable from 0Ω to 10kΩ
- Controlled via I2C interface, ideal for microcontroller-based applications
- Supports 3.3V and 5V logic levels for wide board compatibility
- Handles analog voltage range from 4.5V to 15.5V for stable signal control
- Parameter Specification
- IC Used DS3502
- Potentiometer Type Digital Potentiometer
- Resistance Value 10kΩ
- Resolution 128 Steps
- Interface I2C
- Logic Level Support 3.3V / 5V
- Analog Voltage Range 4.5V – 15.5V
- Operating Mode Software Controlled
