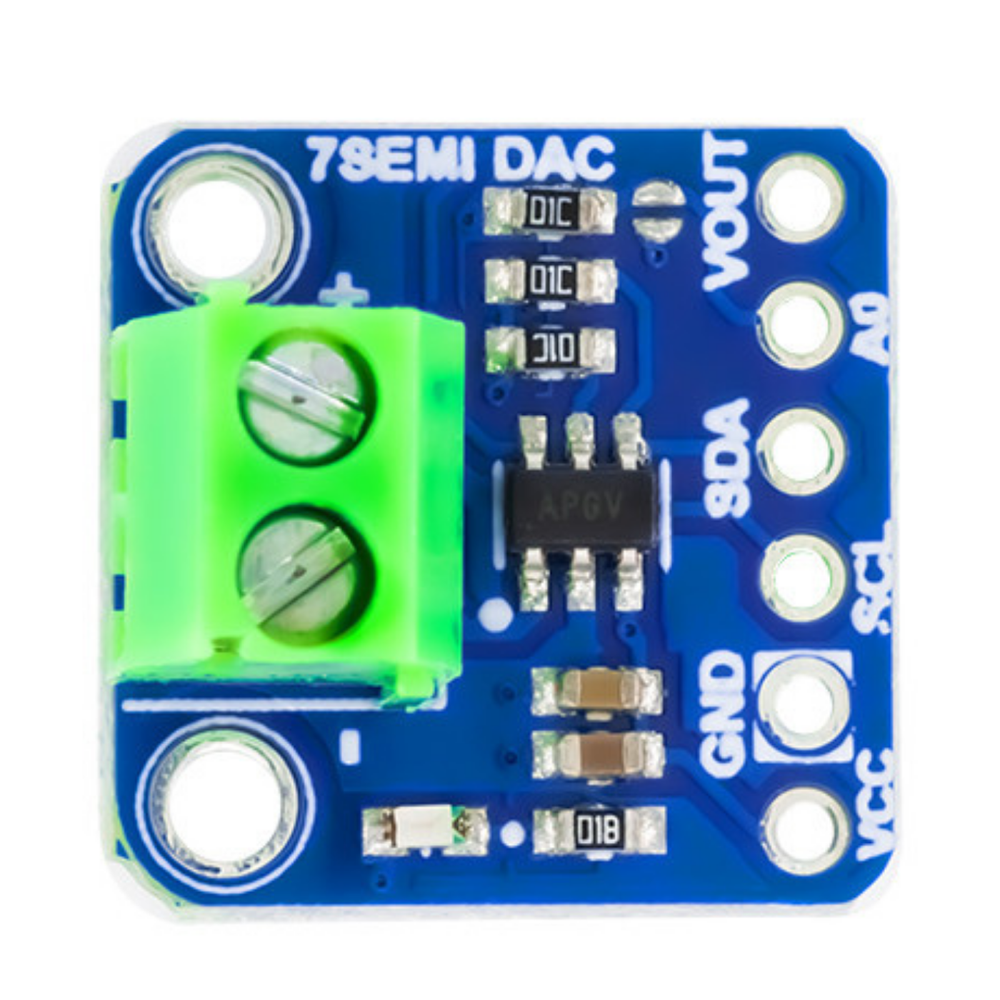

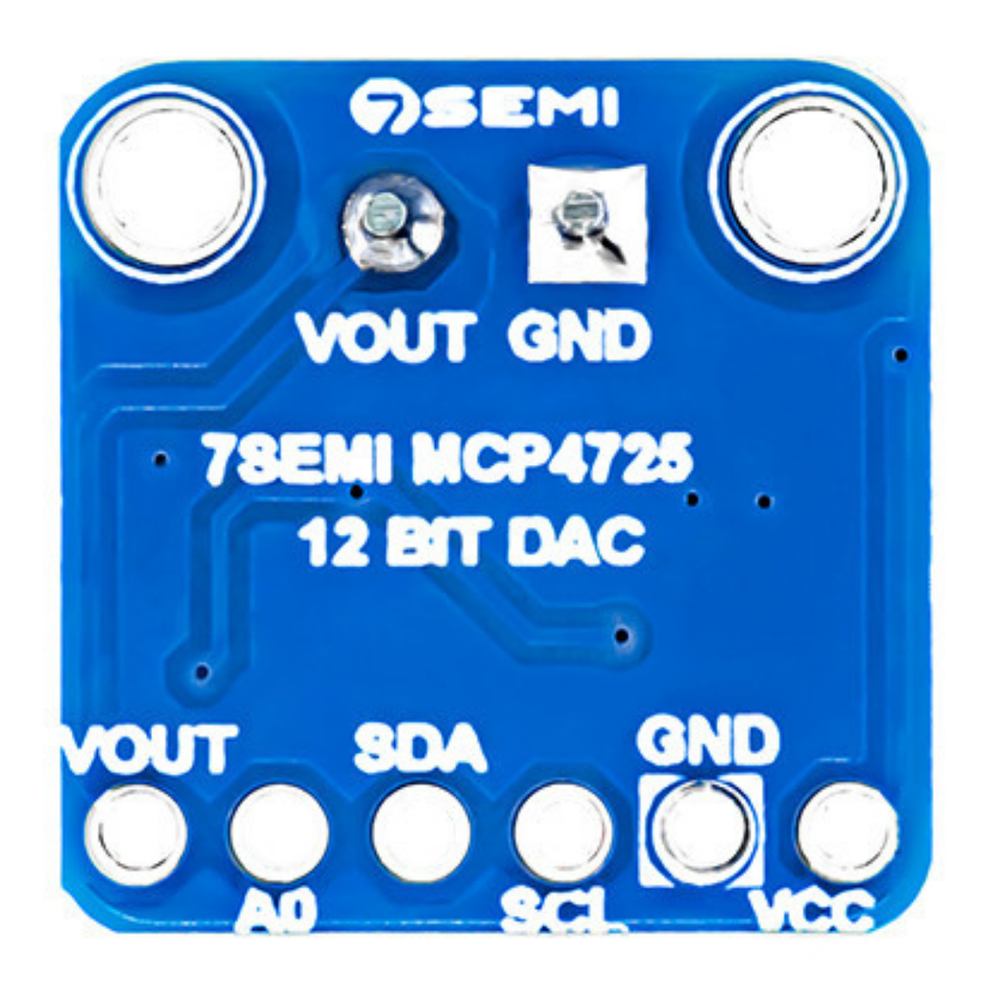

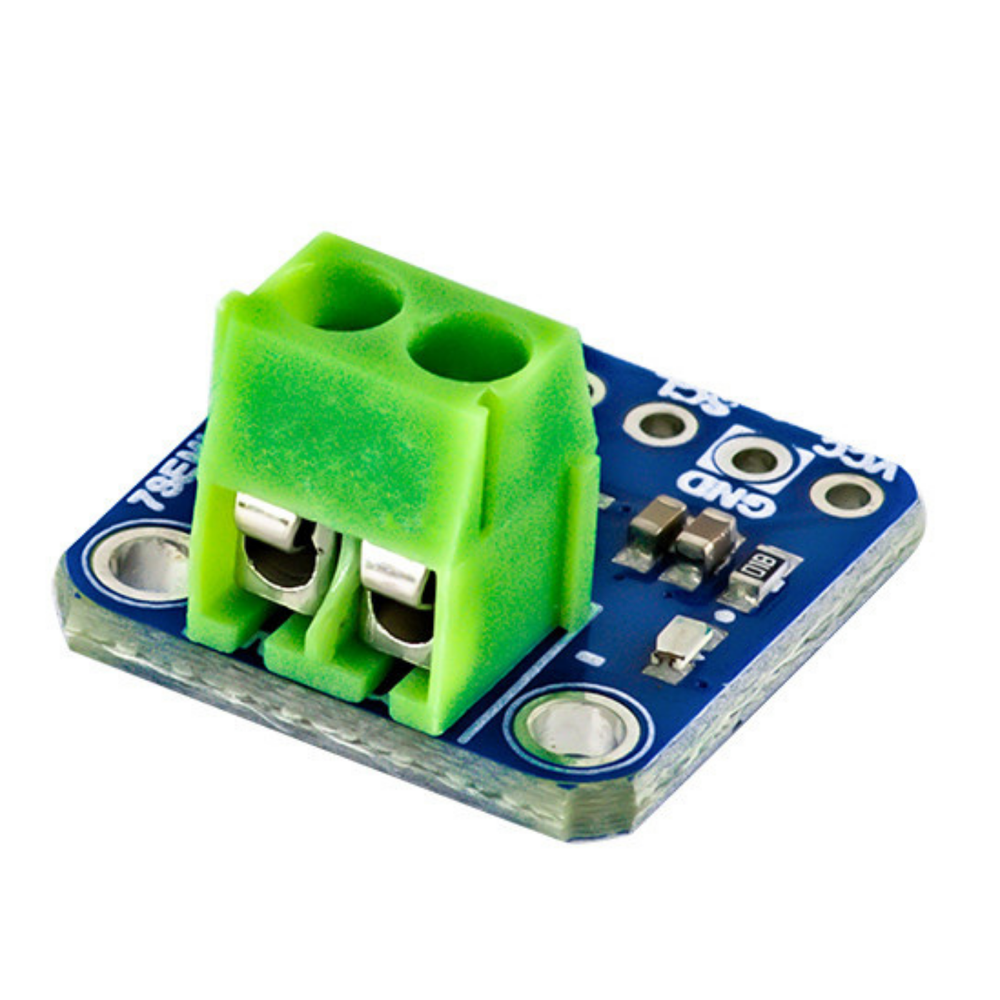

7Semi MCP4725 12bit Digital to Analog I2C Breakout Module
Delivery & Pickup Options
Pick up today from our store.
Estimated delivery: 2-5 business days
7Semi MCP4725 12bit Digital to Analog I2C Breakout Module The 7Semi MCP4725 12bit Digital-to-Analog I2C Breakout Module is a compact and reliable MCP4725 DAC module designed for accurate analog voltage generation in embedded and IoT projects. This single-channel digital-to-analog converter delivers true 12-bit resolution with a buffered rail-to-rail output, ensuring stable and precise voltage control. Operating on a 2.7V to 5.5V supply, it communicates via the I2C interface supporting standard, fast, and high-speed modes up to 3.4 Mbps. With an onboard non-volatile EEPROM, the module retains its last configured output even after power-off, making it ideal for automation systems, signal generation, and microcontroller-based applications where consistent analog output is critical. Features: 12-bit resolution provides high-precision output for precise analog signal representation. On-Board Nonvolatile Memory (EEPROM): Configuration settings are retained even when the power is turned off, ensuring speedy power-up and project continuity. Low power consumption: Ideal for battery-powered applications, which extends device life. I2C Interface: Supports three modes: Standard (100 kbps), Fast (400 kbps), and High-Speed (3.4 Mbps), with eight addresses available for flexible communication. Rail-to-Rail Output: Expands the output voltage range, increasing versatility in a variety of applications. Fast Settling Time: With an average settling time of only 6 µs, you can analyze signals quickly and accurately.
- 12-bit resolution MCP4725 DAC module for precise analog voltage output
- Single-channel digital-to-analog converter with buffered, rail-to-rail output
- I2C interface support at 100 kbps, 400 kbps, and up to 3.4 Mbps high-speed mode
- Non-volatile EEPROM stores output settings even when power is removed
- Wide operating voltage range: 2.7V to 5.5V for flexible system integration
- Fast settling time: typically 6 µs for stable and accurate signal generation
- Parameter Specification
- DAC Resolution 12-bit
- DAC Type Digital-to-Analog Converter
- Number of Channels 1 (Single Channel)
- Communication Interface I2C
- I2C Speed Modes 100 kbps / 400 kbps / 3.4 Mbps
- Operating Voltage 2.7V – 5.5V
- Output Type Buffered, Rail-to-Rail
- Non-Volatile Memory Onboard EEPROM
- Typical Settling Time 6 µs
