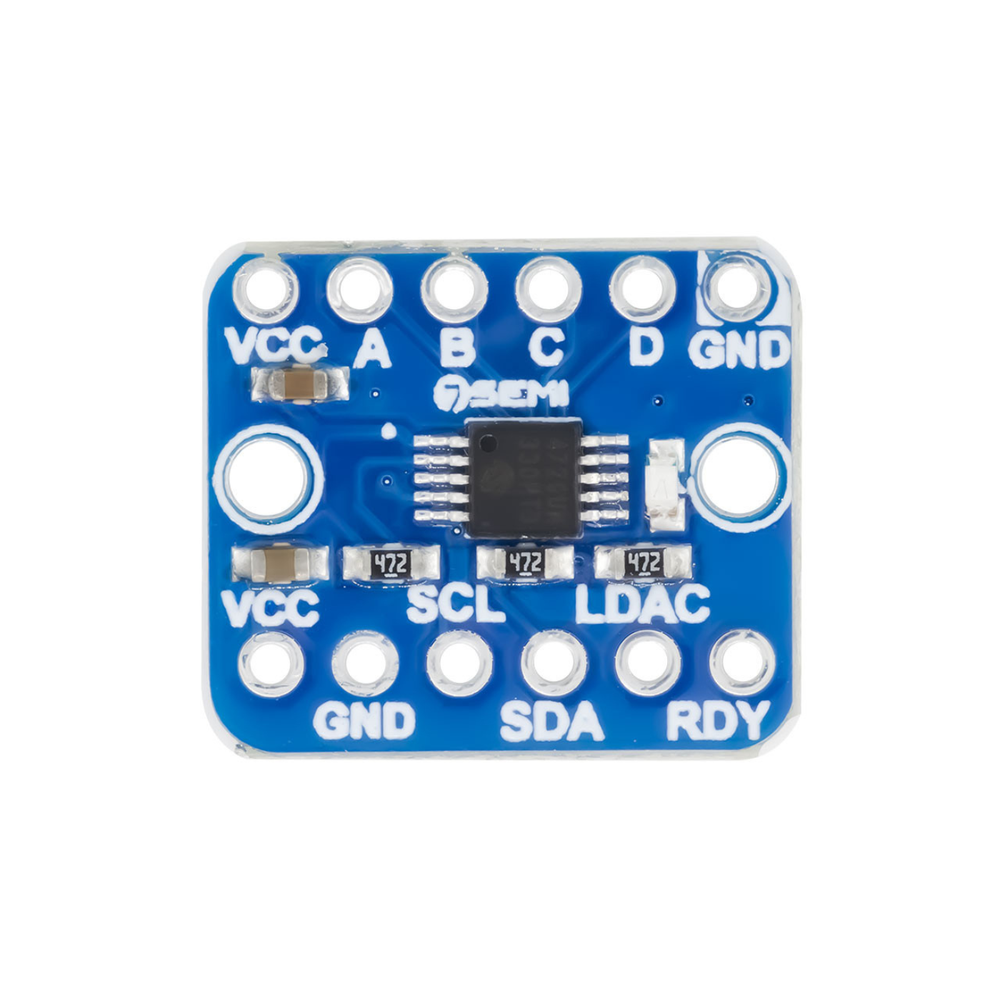

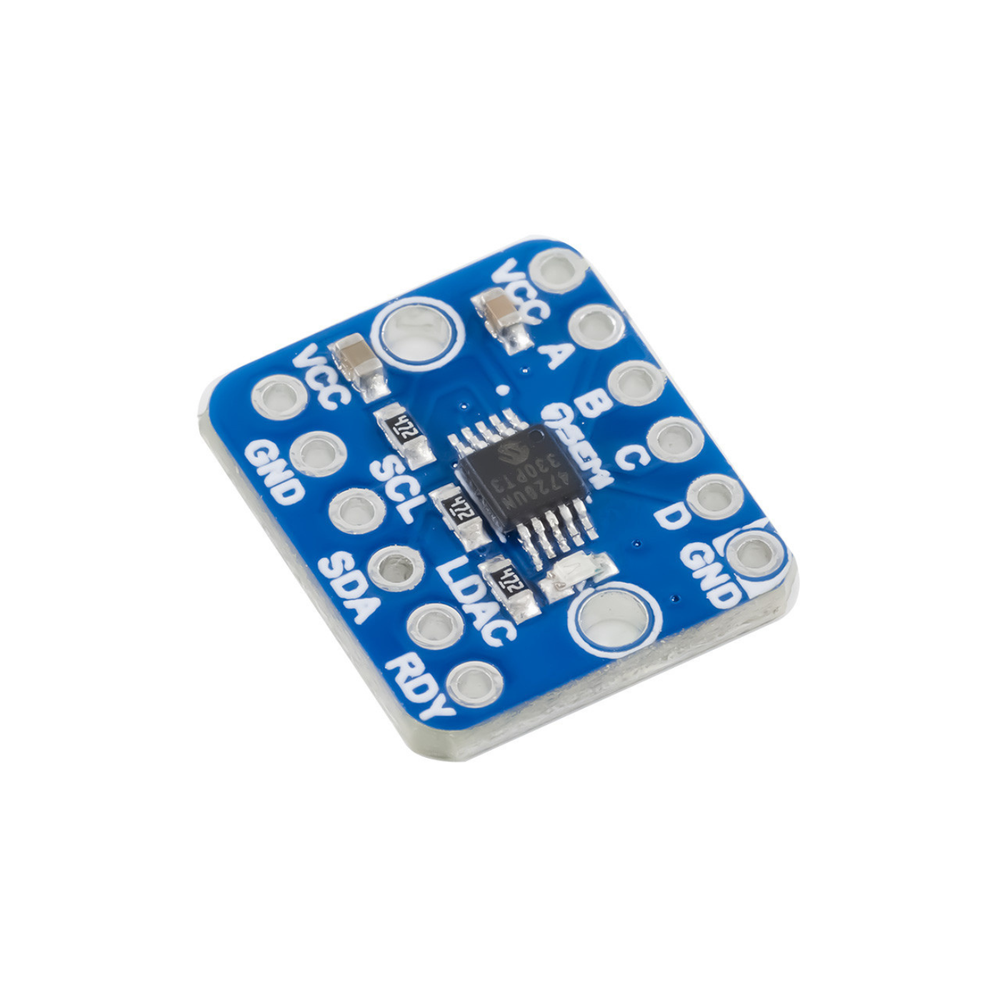

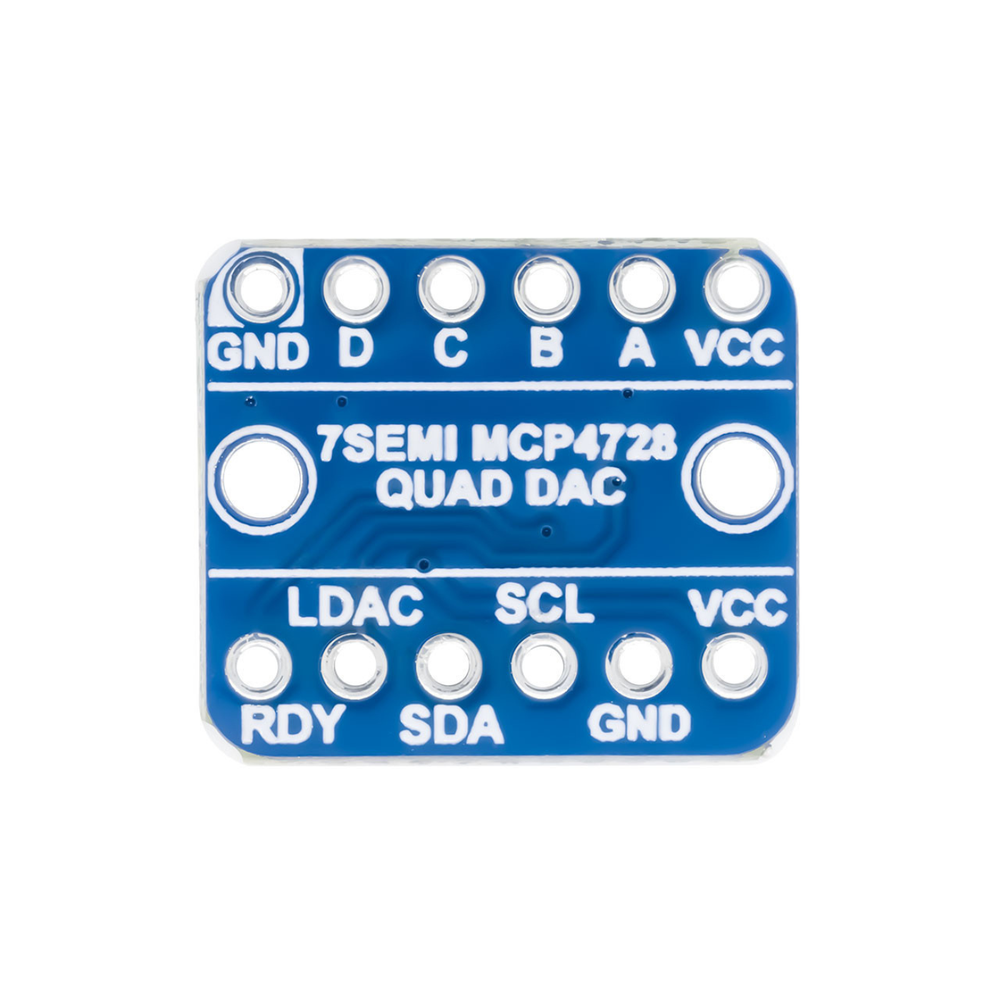

7Semi MCP4728 Quad DAC Module The 7Semi MCP4728 Quad DAC Module is a compact and reliable DAC module designed to convert digital signals into precise analog voltage outputs. Based on the MCP4728 IC, this digital-to-analog converter breakout board allows users to generate up to four independent analog outputs using simple I²C communication, making it an efficient solution for applications where microcontrollers lack sufficient analog output pins or require higher accuracy. This module offers easy integration with popular microcontrollers, stable performance, and flexible voltage output control, making it ideal for signal generation, sensor simulation, audio control, and calibration tasks. With its user-friendly design and dependable operation, it is well suited for students learning embedded systems, hobbyists building DIY electronics, and professionals developing prototypes or compact analog control systems. Features: Powered by the Microchip MCP4728 Quad DAC IC 12-bit resolution on all four DAC output channels (A–D) Onboard non-volatile EEPROM retains DAC settings after power-off I²C interface with Fast Mode support up to 400 kHz Low-power operation, ideal for battery-powered projects Compact 7Semi breakout with clearly labeled pinouts Supports LDAC and RDY pins for real-time DAC updates and monitoring Applications: Signal generation (sine, square, and triangle waveforms) Audio voltage control for synthesizers and mixers Programmable and adjustable reference voltage sources Lab instruments, testing, and control systems Industrial automation and process control applications Multi-channel analog and neural interface testing
- Quad-channel DAC module based on the MCP4728 IC
- Provides 12-bit digital-to-analog conversion
- Supports I²C communication for easy microcontroller control
- Onboard EEPROM stores output settings after power-off
- Low-power design suitable for portable and battery projects
- Ideal for signal generation, audio control, and analog output applications
- Parameter Specification
- Product Type DAC Module / Digital-to-Analog Converter Breakout Board
- DAC IC MCP4728
- Number of Channels 4 (Quad DAC)
- Resolution 12-bit
- Interface I²C (Fast Mode up to 400 kHz)
- Non-Volatile Memory Yes (Onboard EEPROM)
- Operating Voltage 2.7V – 5.5V
- Power Consumption Low Power
- Control Pins LDAC, RDY
