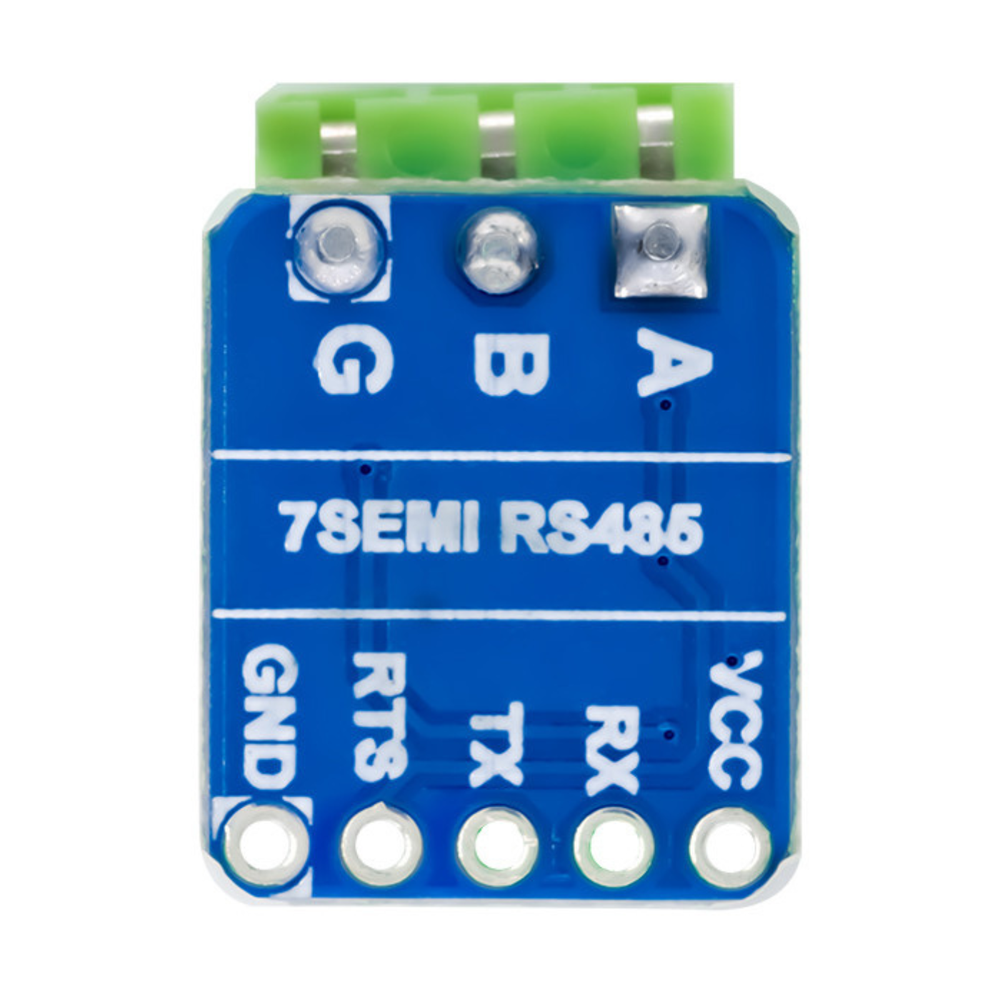

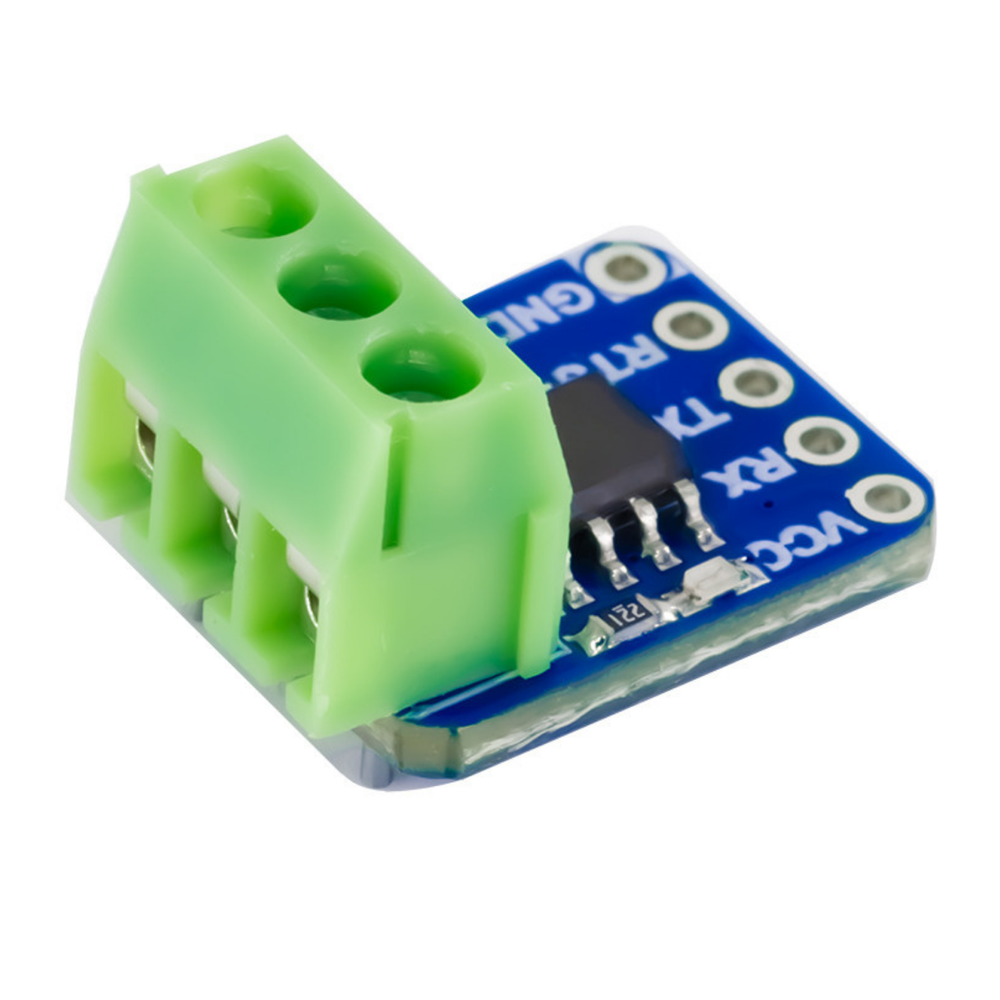

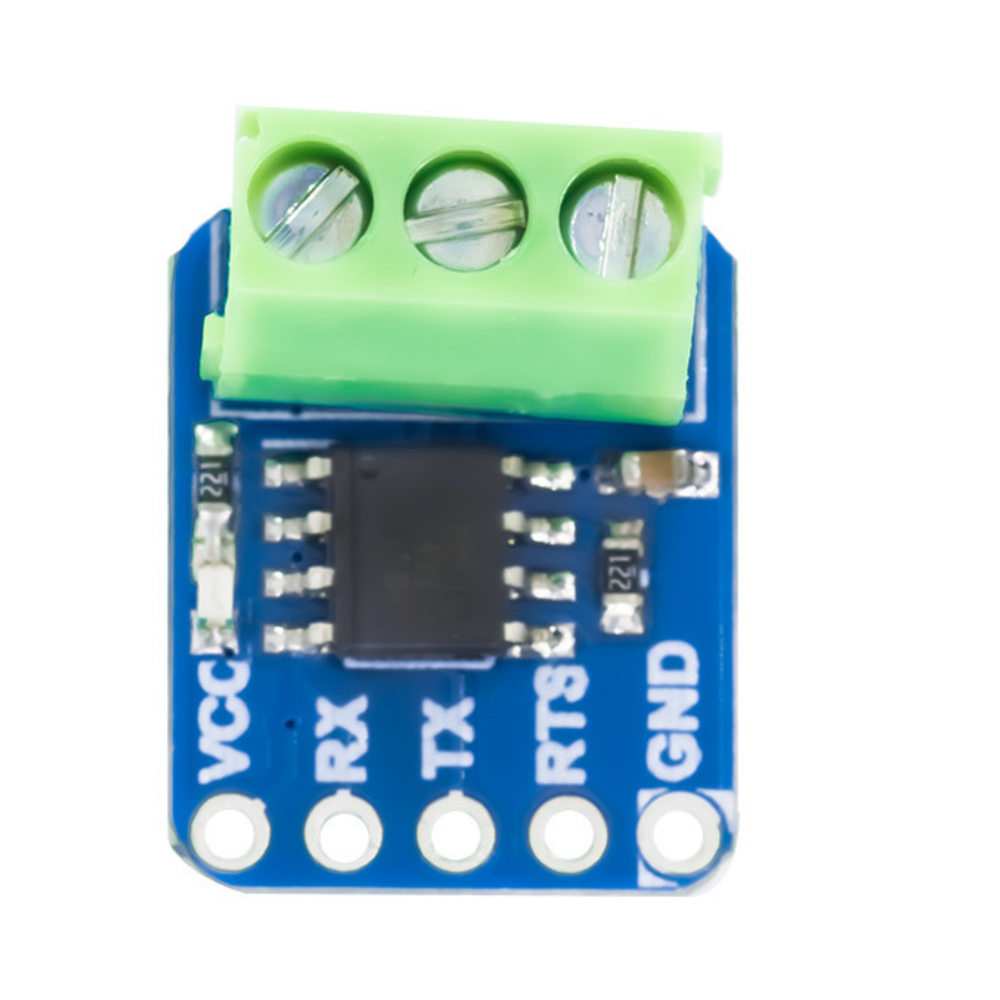

7Semi RS485 to UART Transceiver Breakout Board - BL3085A
Delivery & Pickup Options
This item is not available right now. Please check back later or contact us for availability.
7Semi RS485 to UART Transceiver Breakout Board - BL3085A The 7Semi RS485 to UART Transceiver Breakout Board – BL3085A is a compact and efficient solution for reliable serial communication, designed to convert UART signals to RS-485 with high stability and low power consumption. This RS485 to UART Transceiver supports data rates up to 250 kbps and features a slew-rate-controlled driver that minimizes electromagnetic interference and prevents signal reflections, even with improper cable termination. As a Low Power RS485 Module, it allows up to 256 devices to communicate on a single RS-485 bus thanks to its high receiver input impedance. The board is built for durability with ±10 kV ESD protection and offers flexible connectivity through a 3-pin terminal block and standard 2.54 mm pin header, making it a dependable choice for industrial automation, building management systems, embedded networking, and IoT communication applications. Features: High-Speed Data Transmission: Enables reliable data transfer at rates of up to 250kbps, eliminating communication mistakes. Electromagnetic Interference Reduction: The slew-rate-limited driver reduces EMI and signal reflections for increased stability. Multiple Transceiver Support: The high input impedance allows for flawless operation with up to 256 transceivers on the same RS-485 bus. Built-in electrostatic discharge prevention (±10kV) protects components against voltage spikes. Flexible Connectivity: Includes a 3-pin terminal block and 2.54mm pin headers for simple integration into breadboards and wiring systems. Compact and Sturdy Design: A durable yet lightweight design suitable for industrial and embedded applications. Applications: Industrial Automation & Control Systems Building Management & HVAC Controls Data Acquisition & Monitoring Systems Embedded Networking Solutions IoT & Smart Device Communication
- High-performance RS485 to UART Transceiver based on the reliable BL3085A IC
- Supports data transmission speeds up to 250 kbps for stable serial communication
- Low Power RS485 Module with slew-rate-limited driver to reduce EMI and signal reflections
- Supports up to 256 transceivers on a single RS-485 bus with high input impedance
- Built-in ±10 kV ESD protection for improved reliability in industrial environments
- Easy integration using 3-pin terminal block and 2.54 mm pin header
- Ideal for industrial automation, IoT devices, and embedded communication systems
- Parameter Specification
- Operating Voltage 5V
- Operating Current 800 µA
- Communication / Interface RS485 / UART
- Dimensions 17.52 × 12.83 mm
- Weight 2 g
- Operating Temperature -40°C to +85°C
