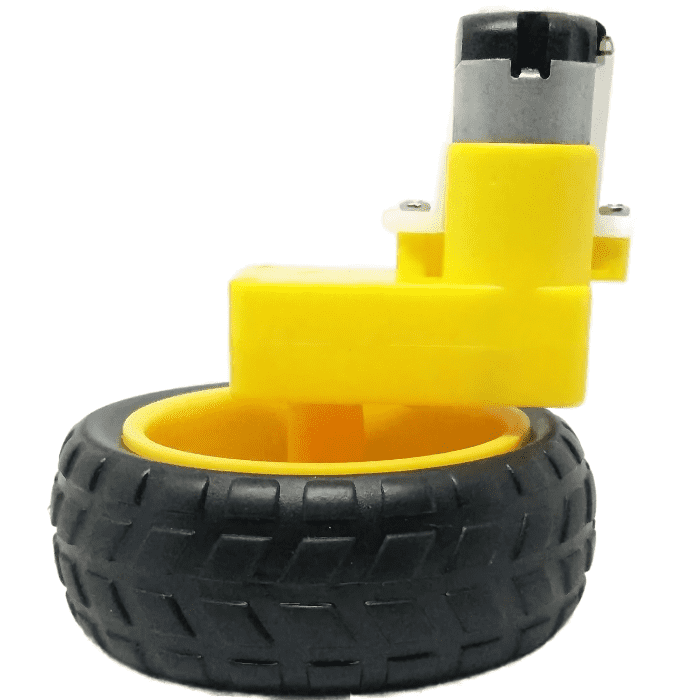

100 RPM- STRAIGHT SINGLE SHAFT BO motor
100 RPM- Straight Single Shaft BO motor This is the 100 rpm straight single shaft BO motor, which gives good torque and rpm at lower operating voltages, It is the biggest advantage of these BO motors. Small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & light weight makes it suitable for in-circuit placement. This BO motor is the low-cost geared DC Motor. It is an alternative to our metal gear DC motors. It comes with an operating voltage of 3-12V and is perfect for building small and medium robots. This BO motor is ideal for DIY enthusiasts. This motor set is inexpensive, small, easy to install, and ideally suited for use in a mobile robot car. If you want to use this 100 rpm straight single shaft BO motor in your projects , for that you will need few essential components like batteries , switches , wires , soldering tools and wheels. check out : 60 RPM- STRAIGHT SINGLE SHAFT Package Includes: 1 x 100 RPM- Straight Single Shaft BO motor Specifications: Operating Voltage (VDC) 3 ~ 12 Shaft Length (mm) 8.5 Shaft Diameter (mm) (Double D-type)5.5 No Load Current (mA) 40-180mA. Rated Speed After Reduction (RPM) 100 Rated Torque (Kg-Cm) 1 Weight (gm) 30
- This is the 100 RPM single shaft BO motor
- This BO motor capability to absorb shock and vibration as a result of elastic compliance.
- This BO motor ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- The Operating Voltage is 3V to 12V
- Rated Speed(After Reduction): 100 RPM
- This single-shaft BO motor is lightweight
- 1 x 100 RPM- Straight Single Shaft BO motor
- Operating Voltage (VDC) 3 ~ 12
- Shaft Length (mm) 8.5
- Shaft Diameter (mm) (Double D-type)5.5
- No Load Current (mA) 40-180mA.
- Rated Speed After Reduction (RPM) 100
- Rated Torque (Kg-Cm) 1
- Weight (gm) 30
