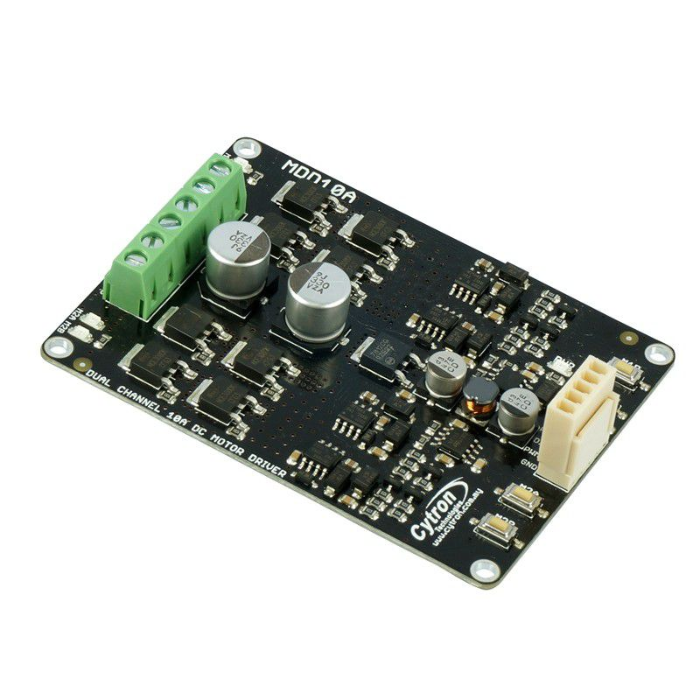

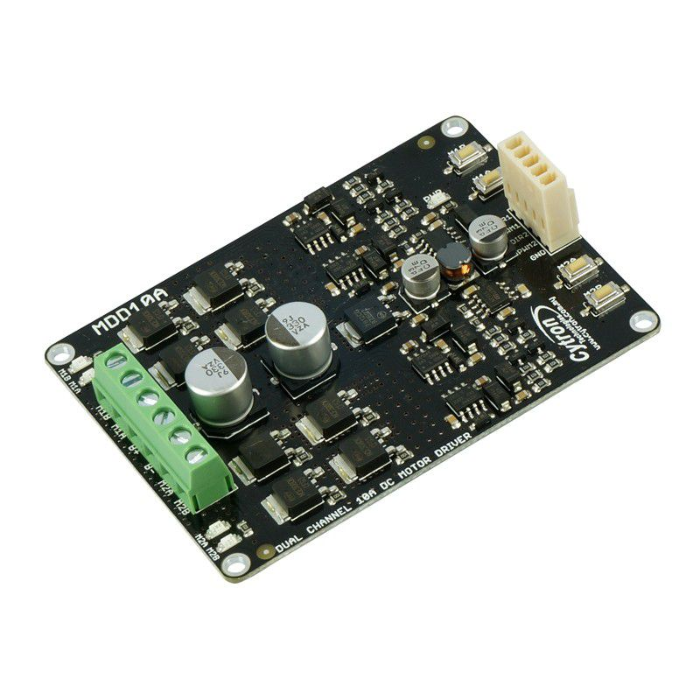

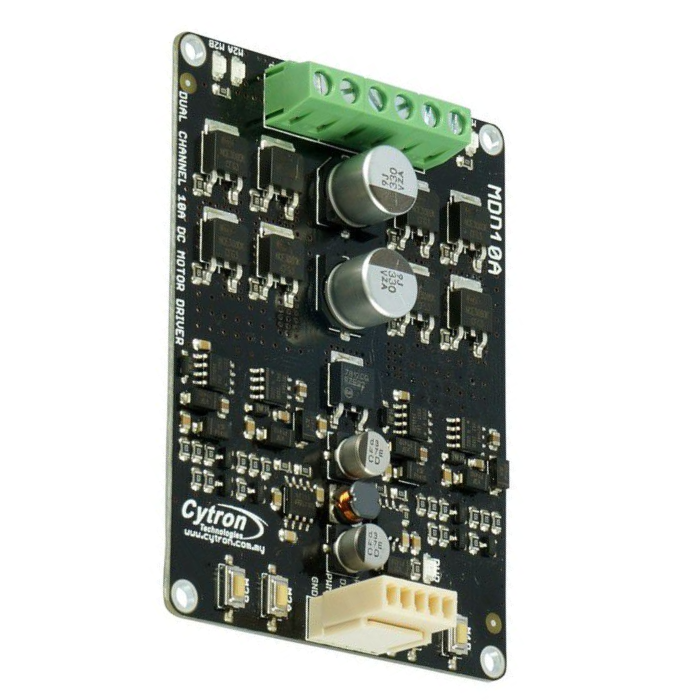

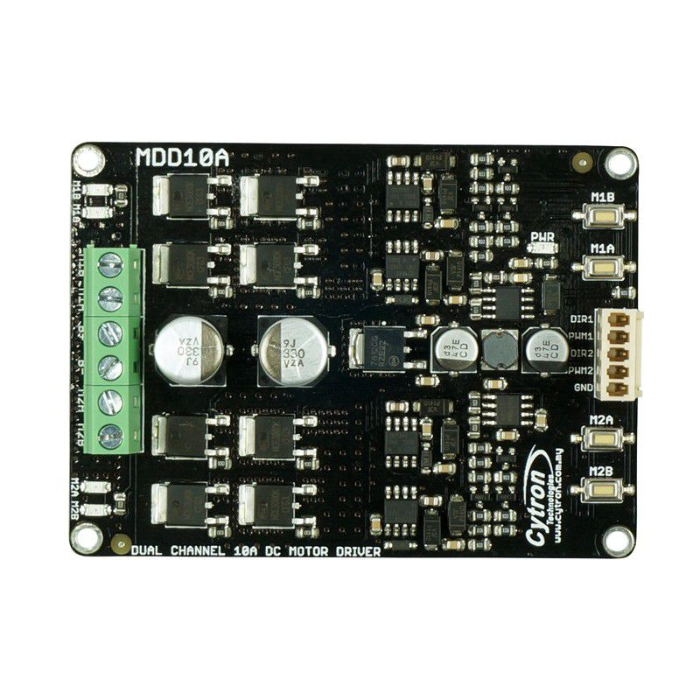

Cytron 10Amp 5V-30V Dual Channel DC Motor Driver The Cytron 10A motor driver (MDD10A) is a robust and user-friendly dual channel motor driver designed to control two brushed DC motors independently. Supporting a wide operating voltage range of 5V-30V, this 10A DC motor driver delivers a continuous current of up to 10A per channel, making it suitable for high-power applications. As a part of Cytron's reliable motor driver lineup, the Cytron motor driver 2 channels model MDD10A features solid-state components that ensure fast response and long-term reliability by eliminating the wear associated with mechanical relays. It supports both locked-antiphase and sign-magnitude PWM signals, offering flexible control for various motor operations. With presoldered terminals and built-in test buttons, it can even be operated without a microcontroller, making it an ideal choice for beginners and advanced users alike looking for a dependable 5V-30V DC motor driver. Features: Bidirectional control for two brushed DC motors. Support motor voltages ranging from 5V to 30VDC (Rev2.0). There is no reverse polarity protection at Vmotor, so please double-check the polarity before powering up. Each channel can handle a maximum current of 10A continuous and 30A peak (10 seconds). Supports 3.3V and 5V logic level inputs (for PWM and DIR), and is compatible with Arduino and the Raspberry Pi. Solid-state components have a faster response time and eliminate the wear and tear of mechanical relays. For increased efficiency, a fully NMOS H-Bridge is used, with no heat sink required. Regenerative braking. Speed control PWM frequency up to 20KHz (output frequency equals input frequency). PWM operations can be Locked-Antiphase or Sign-Magnitude. On each channel, there are two activation buttons for manual or quick testing.

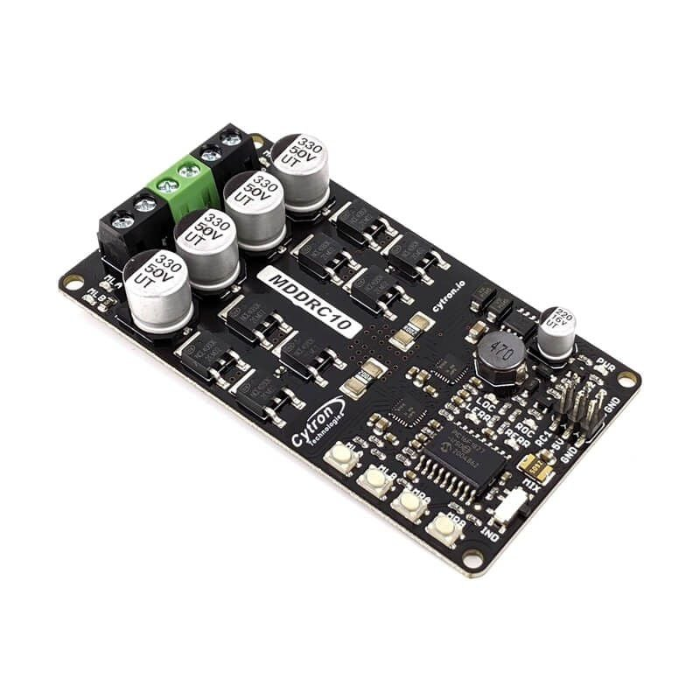

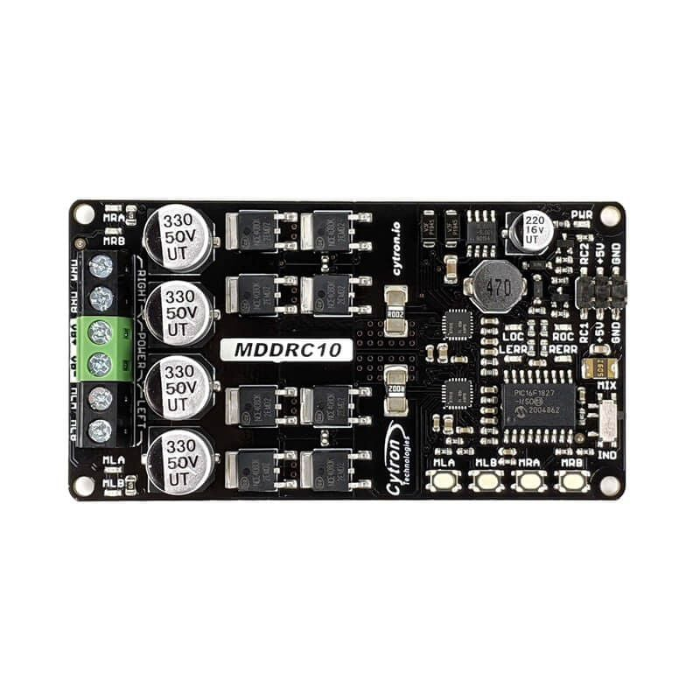

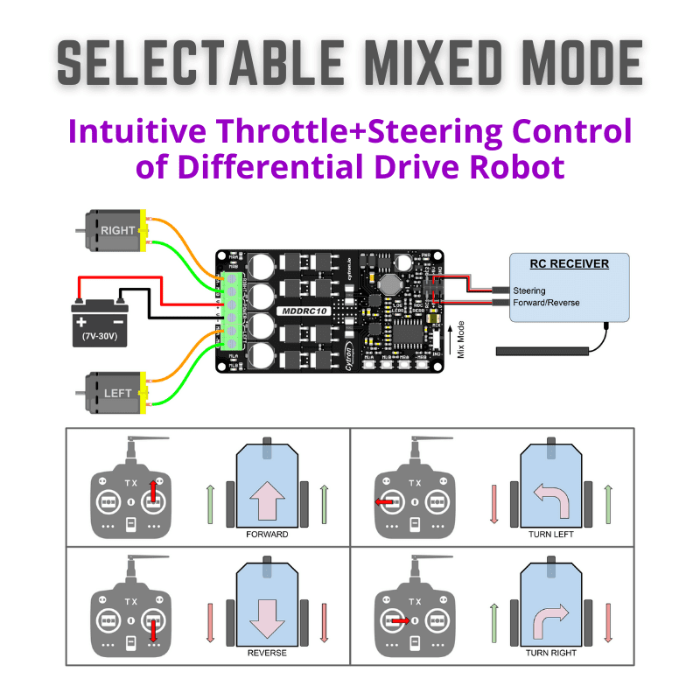

Cytron 10Amp 7V-30V Dual Channel DC Motor Driver for R/C The Cytron 10Amp 7V-30V Dual Channel DC Motor Driver for R/C (MDDRC10) is a high-performance RC motor driver dual channel solution ideal for R/C vehicles or mobile robots, especially where no microcontroller is used. Fully plug-and-play, the Cytron motor driver 10A 7V-30V can connect directly to an RC receiver, eliminating the need for coding or setup. It features a selectable mixed mode that allows differential control of two motors via throttle and steering inputs, making it perfect for remote-controlled driving. With a built-in 5V switching regulator, it also powers the RC receiver without needing an external BEC. Designed using discrete NMOS H-Bridge circuitry, the Cytron 10A motor driver delivers up to 10 Amps per channel continuously without additional cooling. It includes onboard test buttons and LEDs for fast diagnostics and supports overcurrent and thermal protection to ensure safe operation under load. Whether you're developing an advanced robot or a custom RC car, this dual channel DC motor driver offers a robust, reliable solution. Features: Plug-and-play, with direct control via RC. Upon power-up, the system automatically calibrates. You can choose between mixed and independent input modes. Bidirectional control for two brushed DC motors. Onboard To power the RC receiver, use a 5V switching regulator (maximum current 500mA). Buttons allow for quick testing. LEDs indicate the motor output state. The motor output PWM frequency is 20kHz. Overcurrent protection includes active current limiting. Temperature protection. Undervoltage shutdown.

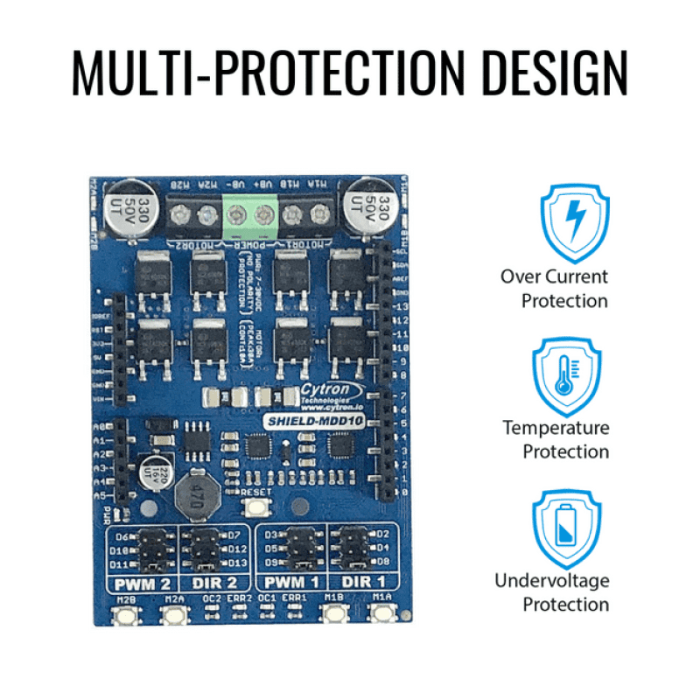

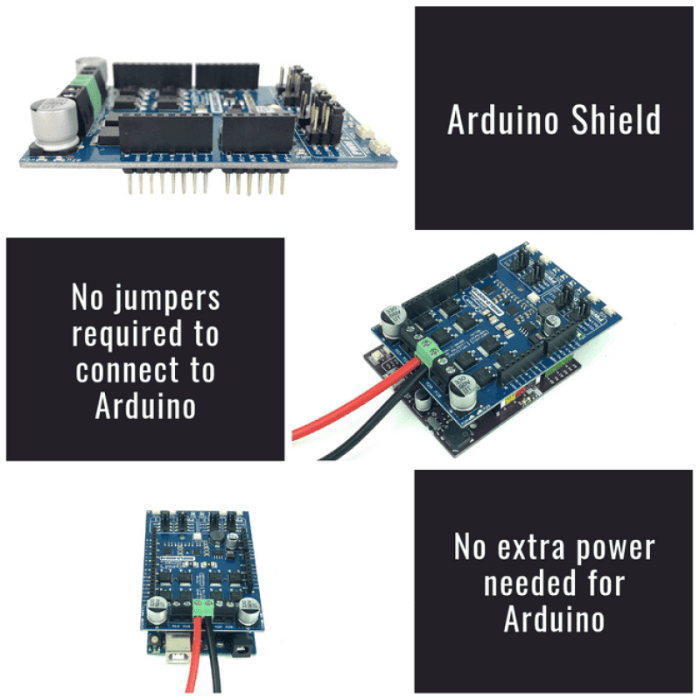

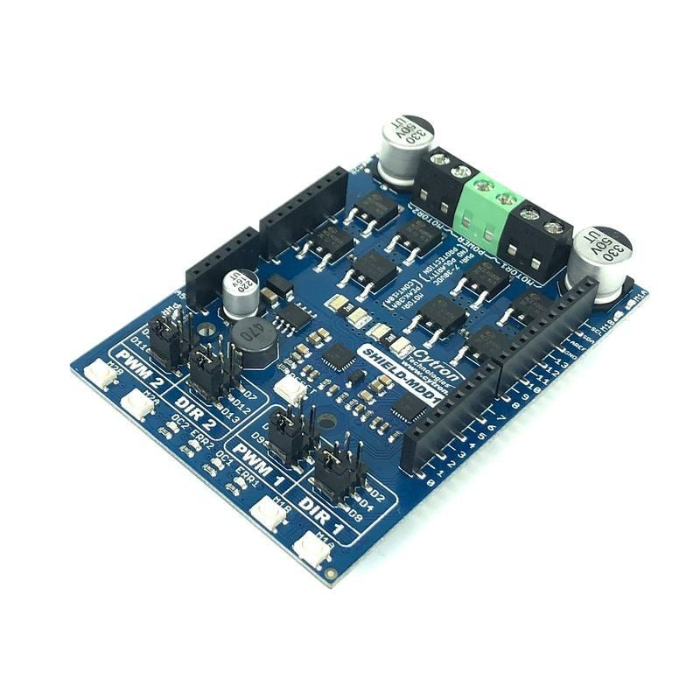

Cytron 10Amp 7V-30V Dual Channel DC Motor Driver Shield for Arduino The Cytron 10Amp 7V-30V Dual Channel DC Motor Driver Shield for Arduino is a powerful and versatile Cytron motor driver designed to simplify motor control in robotics and automation projects. As a 10A motor driver Arduino shield, it supports dual channel output for controlling two brushed DC motors or a single bipolar/unipolar stepper motor within a 7V to 30V range. The discrete NMOS H-Bridge design ensures reliable performance with up to 10A continuous current per channel without requiring additional heatsinks. Ideal for building mobile robots, the dual channel motor driver features onboard test buttons and LEDs for quick diagnostics, and a built-in 5V buck regulator to power your Arduino board directly. With configurable PWM and DIR inputs via jumpers, it offers flexible pin assignments to suit various Arduino applications. Advanced protection mechanisms like overcurrent and thermal protection safeguard the board, making the SHIELD-MDD10 an efficient and durable solution for high-power motor control. Note: Power input does not have reverse-voltage protection. Connecting the battery in reverse polarity will damage the motor driver instantaneously. Motor Driver Shield Pinout Diagram: Applications: Mobile Robot, Automated Guided Vehicle (AGV), Solar Tracker, Game Simulator, Automation Machine Features: Shield for the Arduino form factor. Bidirectional control of two brushed DC motors. Control a single unipolar/bipolar stepper motor. Operating voltage: DC. 7V to 30V Maximum Motor Current: 10A constant; 30A peak. Buck regulator capable of producing a 5V output (maximum current 500mA). Buttons allow for quick testing. LEDs indicate the motor output state. Selectable Arduino pins for PWM/DIR inputs. PWM/DIR inputs are compatible with 1.8V, 3.3V, and 5V circuitry. PWM frequency up to 20 kHz (output frequency equals input frequency). Overcurrent protection includes active current limiting. Temperature protection. Undervoltage shutdown.

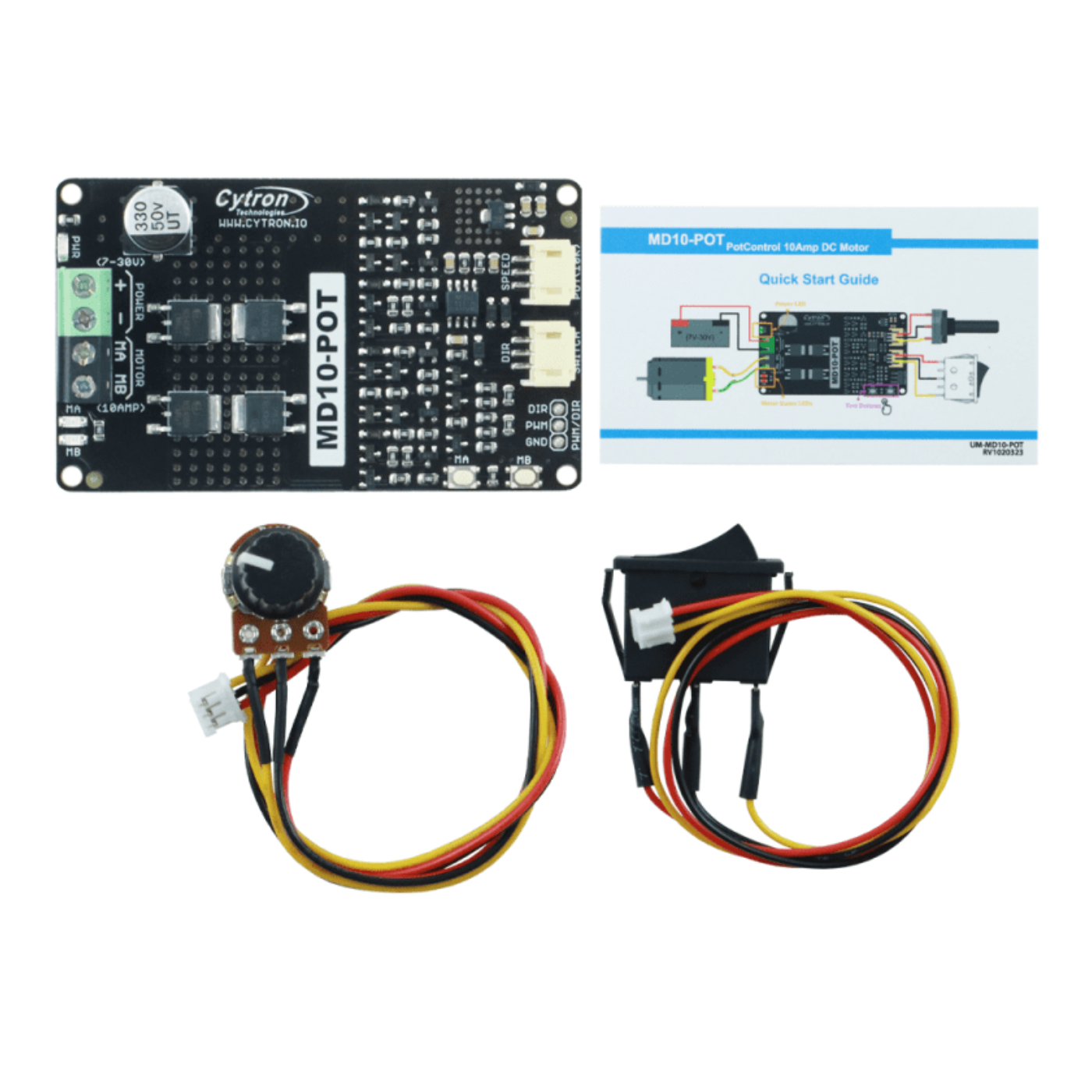

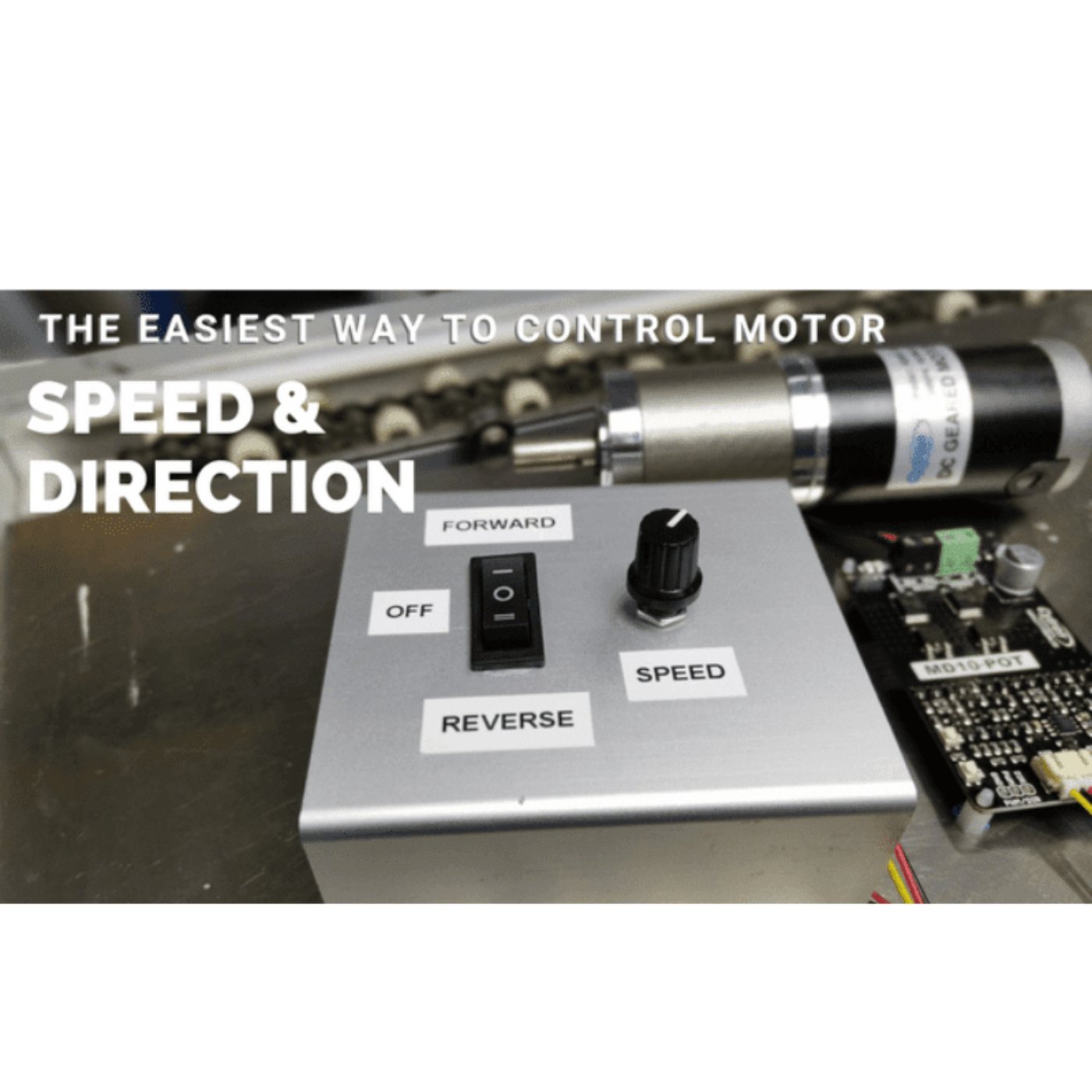

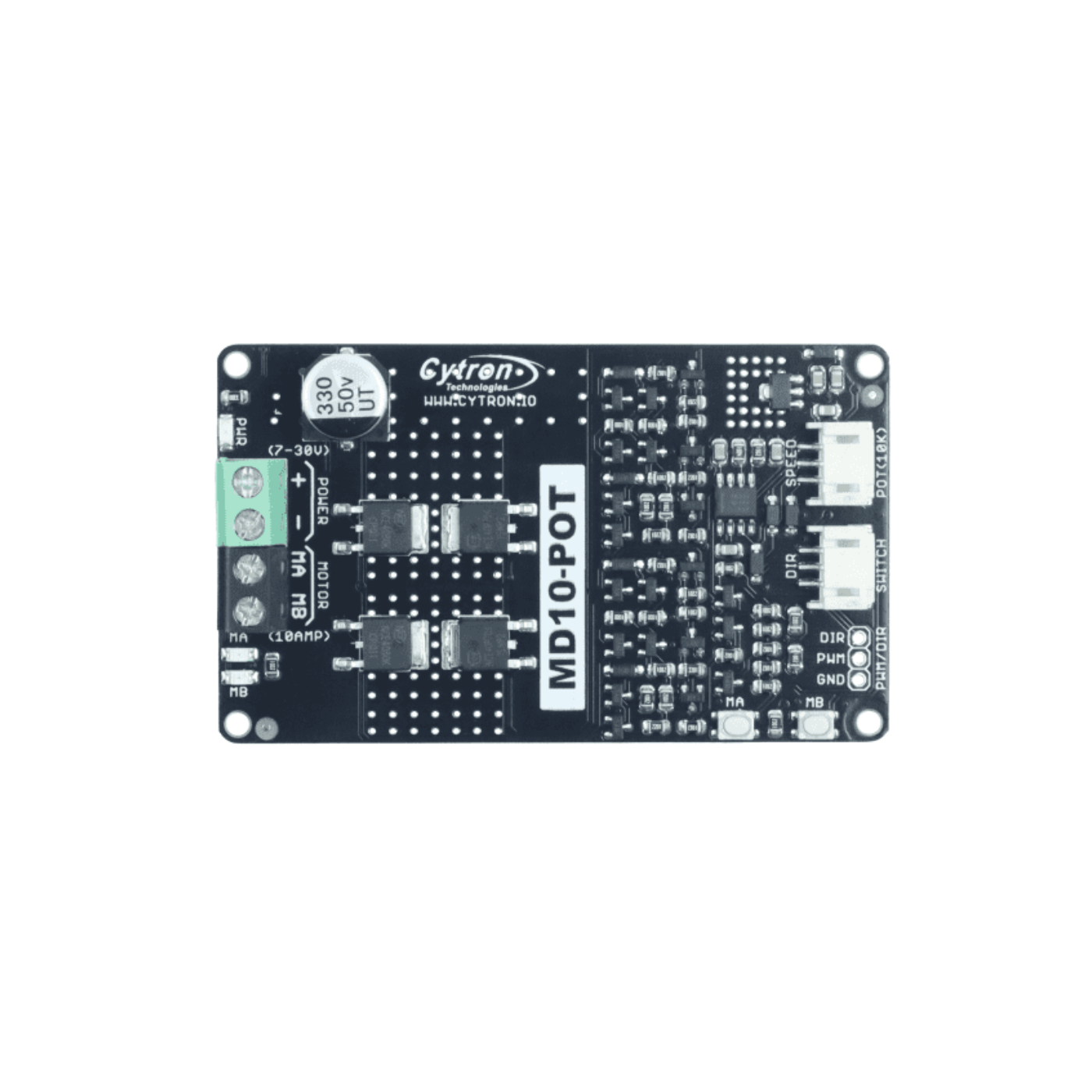

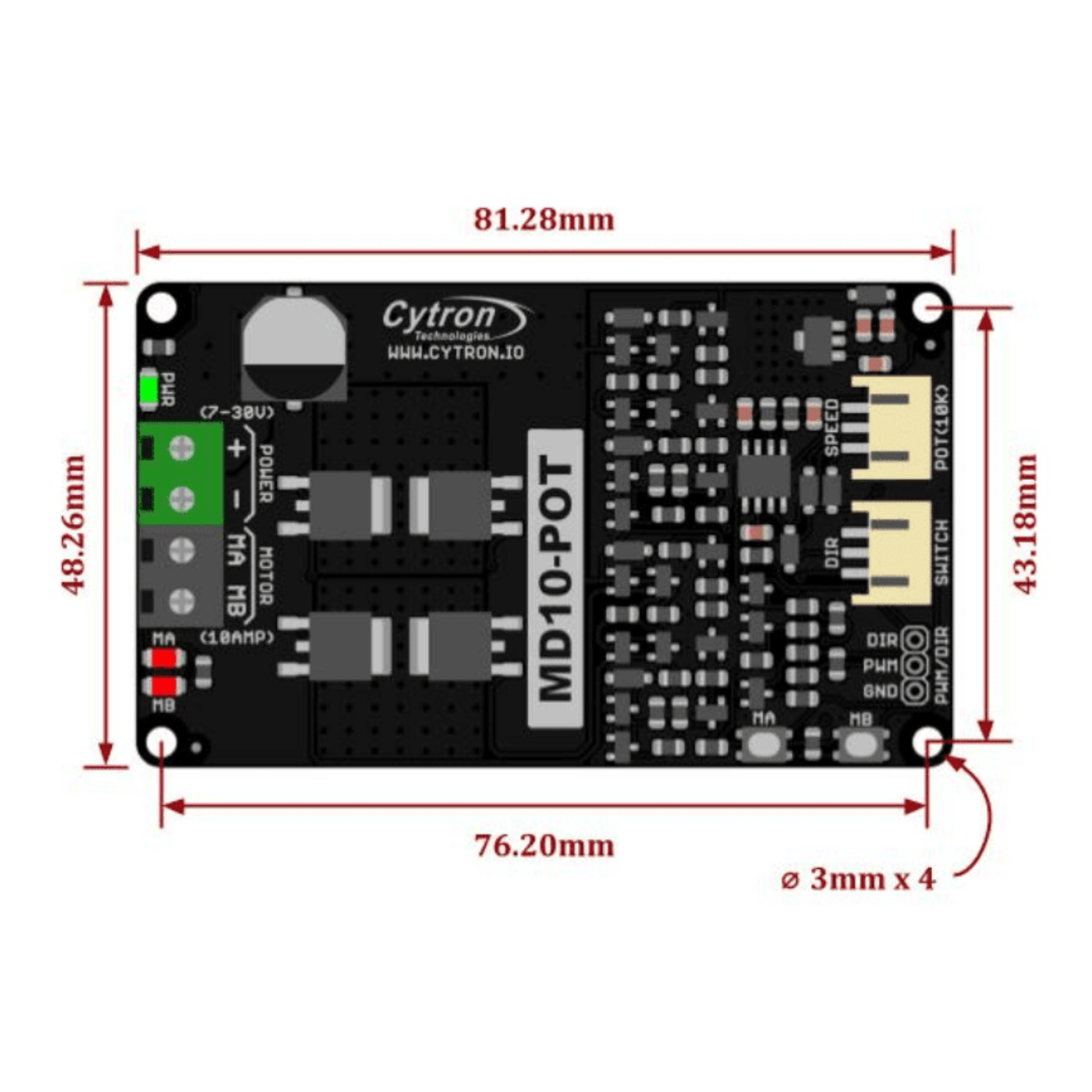

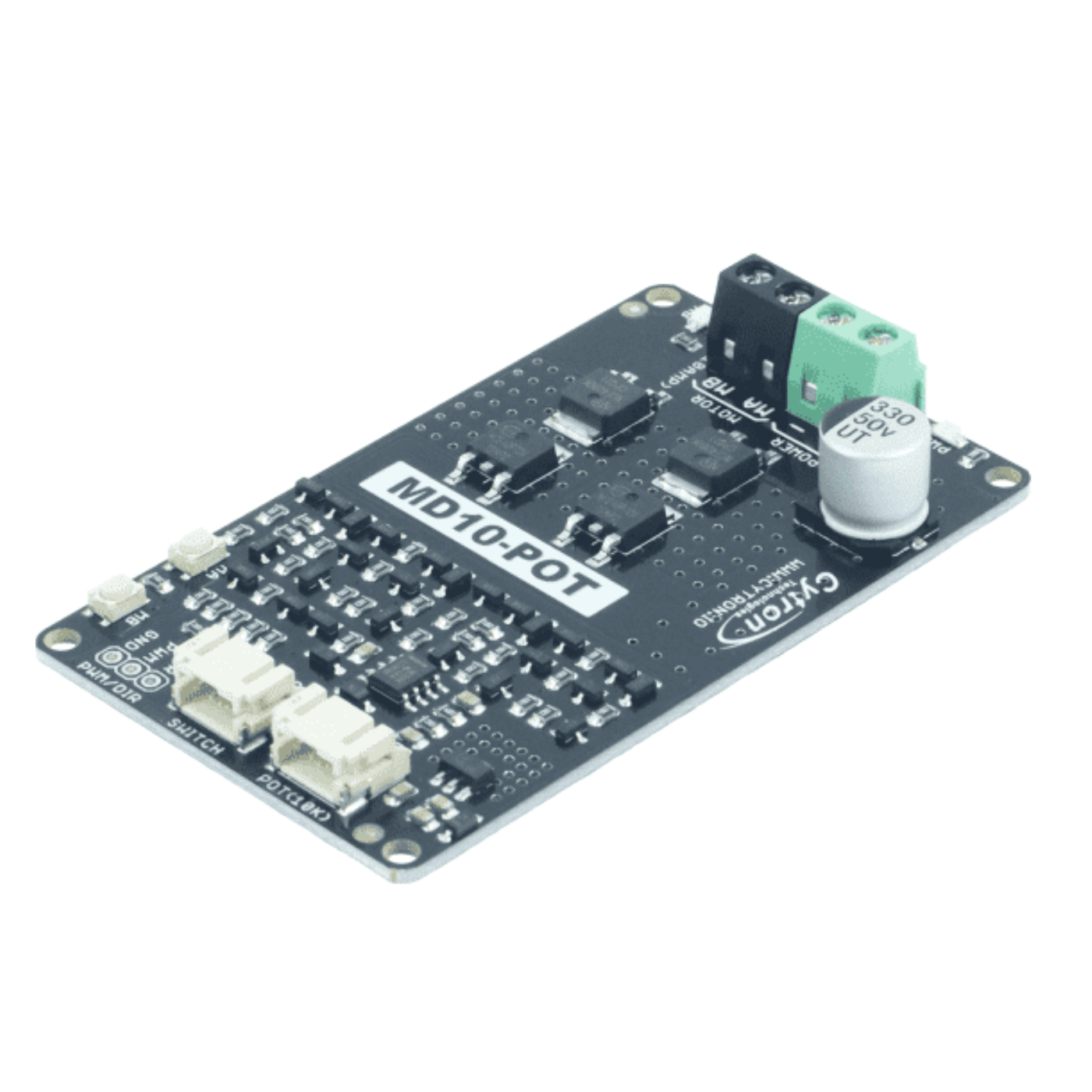

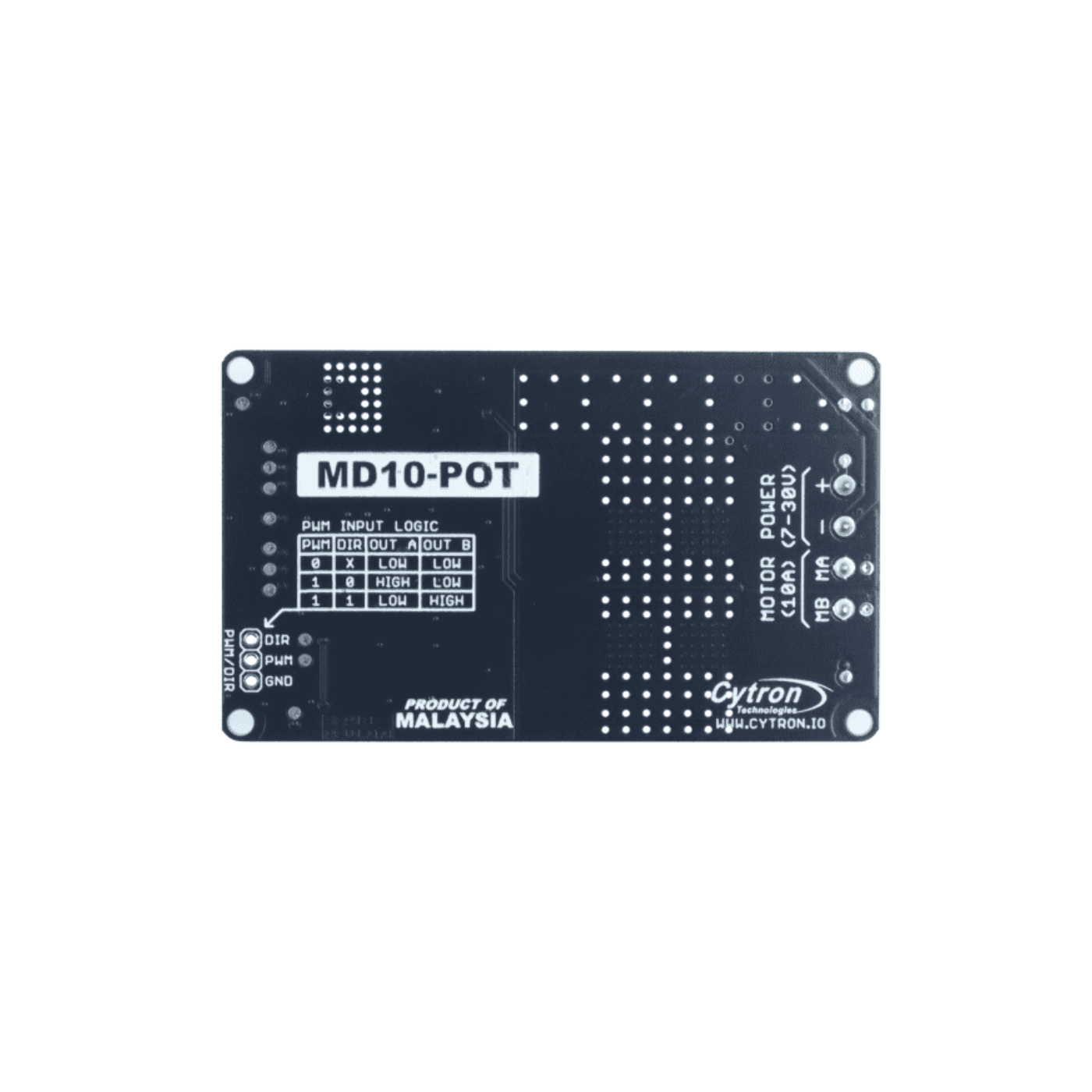

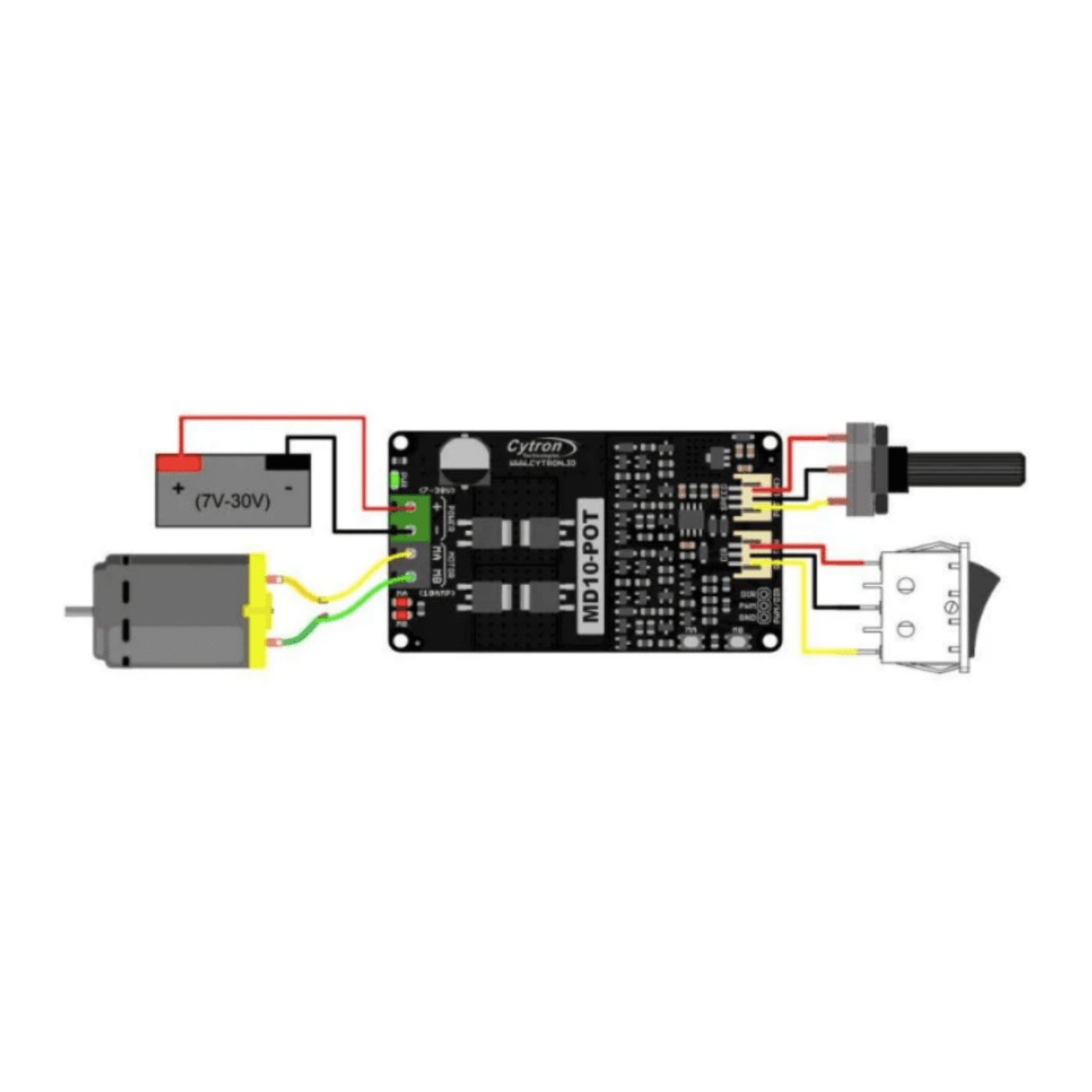

Cytron 10Amp 7V-30V Switch Control Potentiometer with DC Motor Driver The Cytron MD10-POT 10A DC motor driver is a user-friendly motor speed controller designed for hassle-free operation without any microcontroller or programming. Operating within a voltage range of 7V to 30V, this 10A motor driver allows direct control of a brushed DC motor using the onboard switches for activation and direction, along with a potentiometer to adjust speed. Whether you're building a basic automation setup or experimenting with DIY robotics, the Cytron 10A DC motor controller simplifies the process with its plug-and-play functionality. It's an excellent choice for applications that demand reliable switch control motor driver performance without the complexity of coding. Pinout Diagram: Features: Bidirectional control for a single brushed DC motor. A three-way rocker switch (included in the package) controls the motor's run/brake and direction. A potentiometer (included in the package) controls the speed of the motor's spinning. Operating voltage: DC. 7V to 30V Maximum motor current: 10A continuous; 30A peak. Buttons allow for quick testing. LEDs indicate the motor output state. PWM and DIR inputs. Compatible with sign-magnitude and locked-antiphase PWM operation. Regenerative braking. No reverse polarity protection.

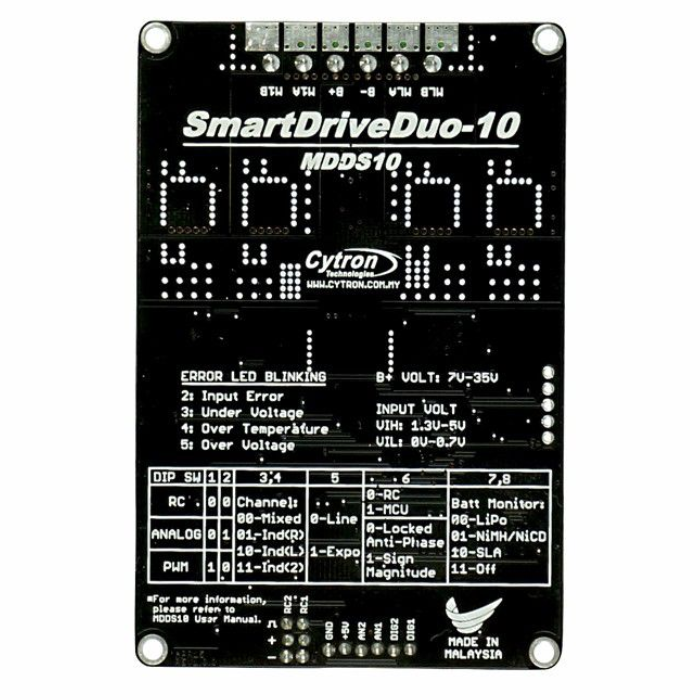

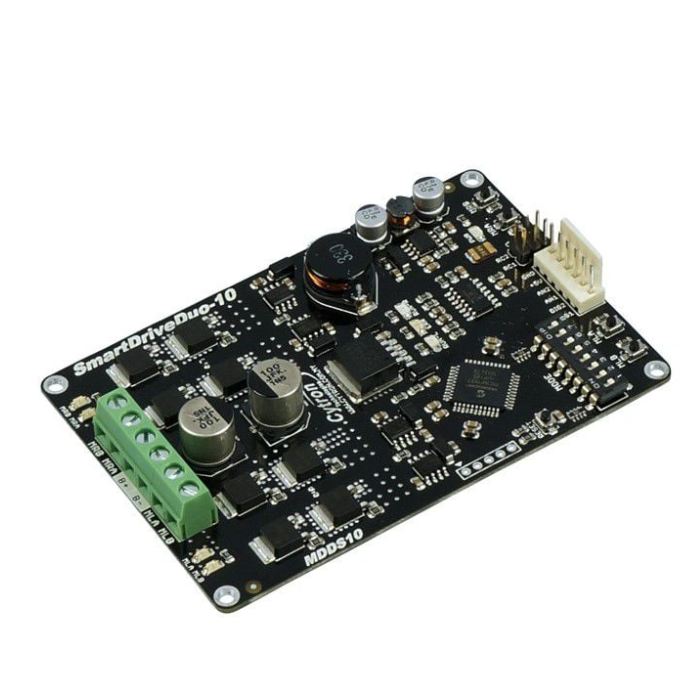

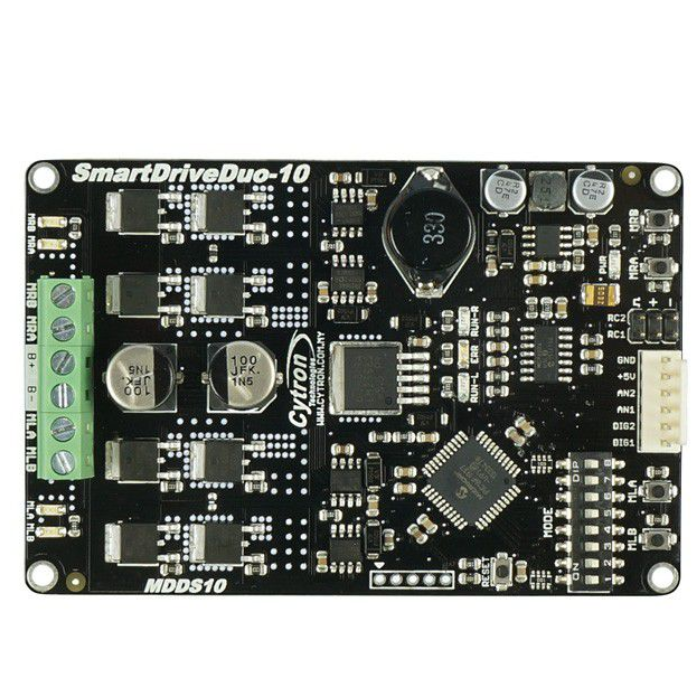

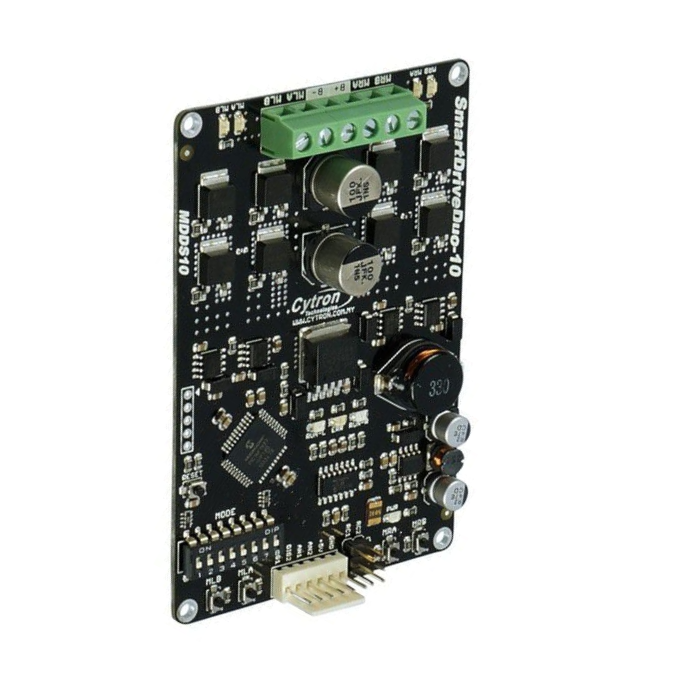

Cytron 10Amp 7V-35V SmartDrive Dual Channel DC Motor Driver The Cytron 10Amp 7V-35V SmartDrive Dual Channel DC Motor Driver is a versatile and powerful Cytron motor driver designed for dual brush motor control, delivering a continuous 10 Amp current per channel. This 10 Amp motor driver supports a wide DC voltage input range from 7V to 35V, making it compatible with common SLA and LiPo battery packs. The SmartDrive motor controller offers multiple control modes including RC signal input, analog potentiometer voltage, PWM from microcontrollers, and UART commands, configurable via DIP switches for flexible operation. Equipped with MOSFETs switching at 16KHz, it ensures quiet motor control while the onboard temperature sensor actively protects the driver by limiting current to prevent overheating. The driver also features a battery low voltage warning system and supports peak currents up to 50A for short durations, ideal for demanding robotics applications. It's simple two RC extension cable wiring design makes it extremely user-friendly for quick setup. This dual channel motor driver is perfect for building combat robots, sumo robots, or any project requiring precise, reliable dual motor control. Note: The driver has NO polarity protection, please double check the polarity of connection before power On. Features: Single-power operation Dual Channels means it can run two brush motors separately or together. Operating modes include RC (RC servo signal), Analog, PWM, and simplified/packetized UART. Support Signed magnitude and locked anti-phase in PWM mode. There are two manual/test buttons for each channel. There are two output indicator LEDs for each channel. Power, error indicator, run status (left and right) LEDs The on-board reset button is used to restart the MCU after changing operation mode. Temperature feedback to regulate current and prevent MOSFET overheating. Suitable for fighting or sumo robots. The switching frequency is 16KHz, allowing for quiet operation. An onboard switching voltage regulator improves power efficiency. Battery low voltage monitoring mode. We tested this driver with a single power window motor at 24V, full load, and no smoke came out.

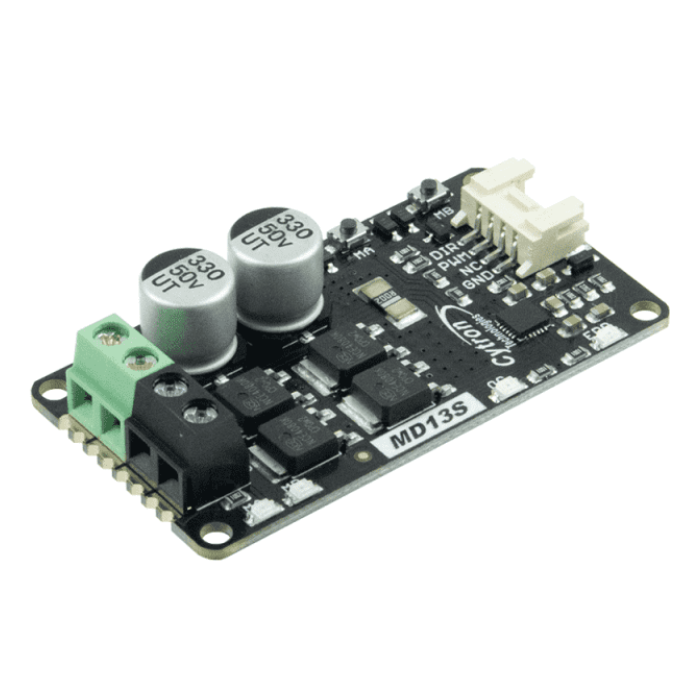

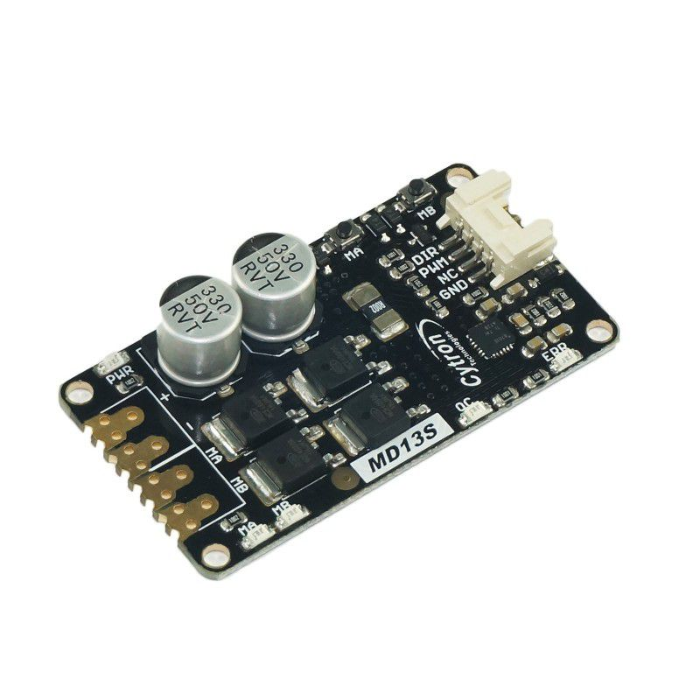

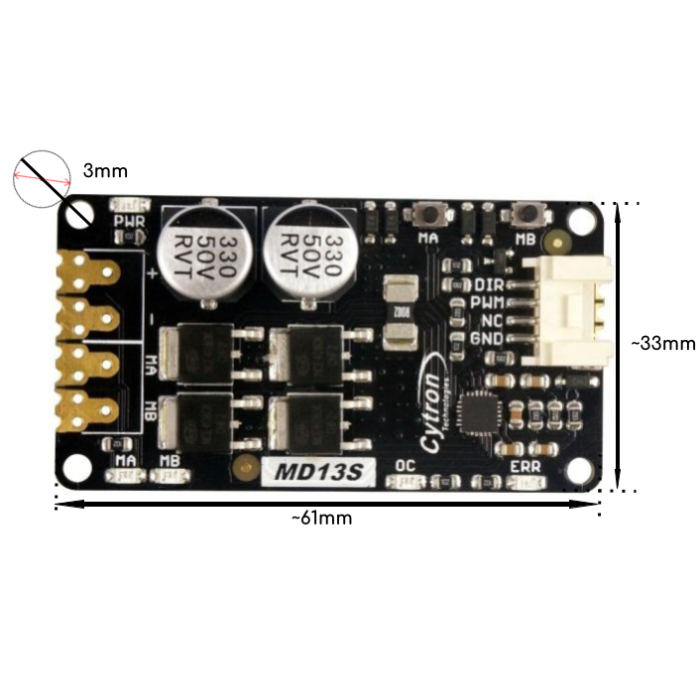

Cytron 13Amp 6V-30V DC Motor Driver (MD13S) The Cytron 13A 6V-30V DC Motor Driver (MD13S) is a robust and enhanced motor driver module designed to deliver continuous current of up to 13A, with peak current handling up to 30A. An upgraded version over the MD10C, the MD13S offers improved current protection and efficiency. This 13A DC motor driver supports a wide voltage range of 6V-30V, making it versatile for various DC brush motor applications. Ideal as a DC motor controller 13A, it enables precise control of speed and direction when interfaced with a microcontroller. The 13A motor driver module is perfect for DIY robotics, automation projects, and industrial applications where reliable motor control is crucial. Features: Bidirectional control for a single brushed DC motor. Motor voltage ranges from 6V to 30V. Maximum current is 13A continuous and 30A peak (10 seconds). GROVE compatible. Logic level inputs are 3.3V and 5V. Solid-state components have a faster response time and eliminate the wear and tear of mechanical relays. For increased efficiency, a fully NMOS H-Bridge is used, with no heat sink required. Speed control PWM frequency up to 20KHz (actual output frequency equals input frequency). Supports both locked-antiphase and sign-magnitude PWM operation, but not RC (Radio Control) PWM. SMD compatible.

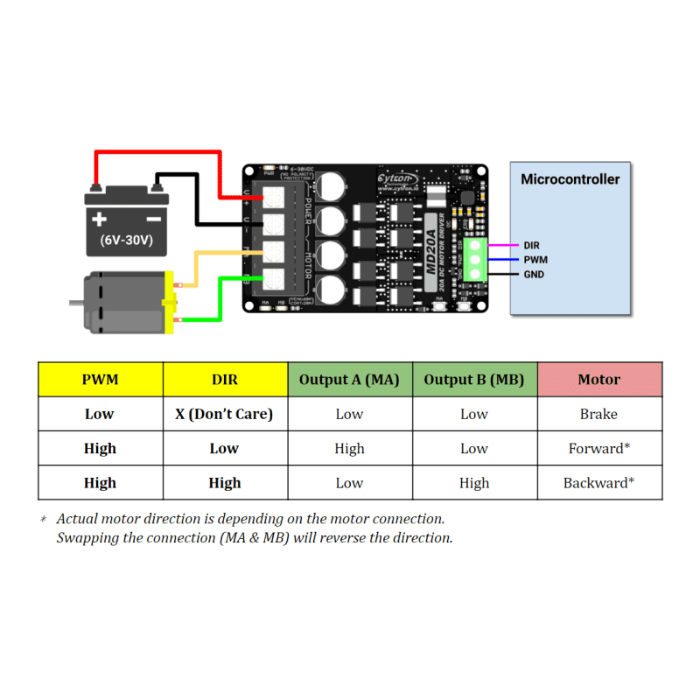

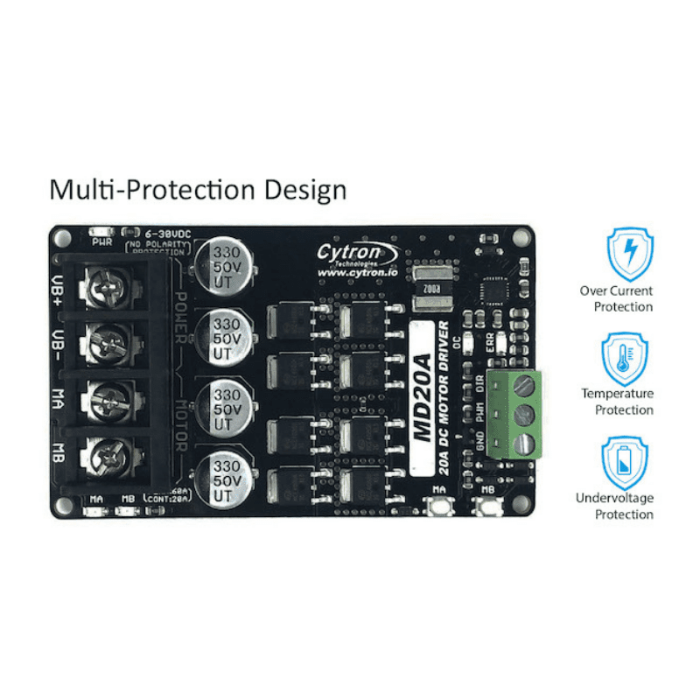

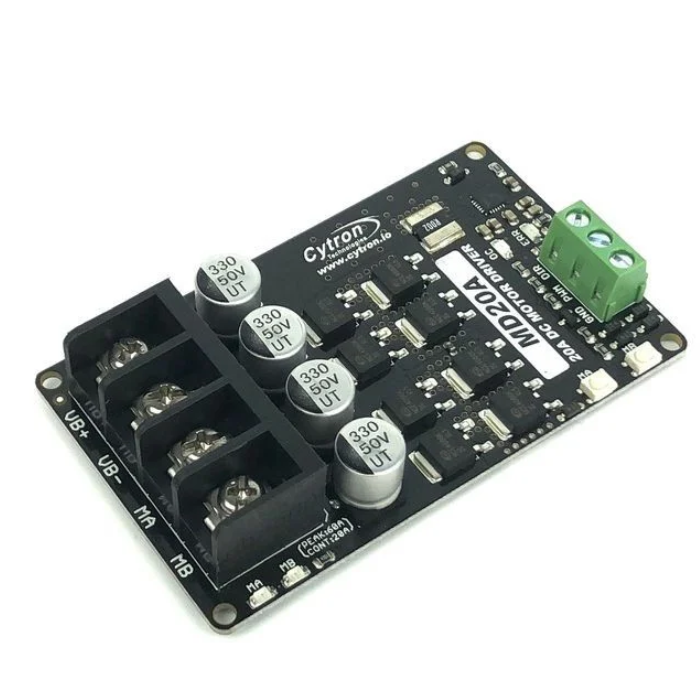

Cytron 20Amp 6V-30V DC Motor Driver The Cytron 20A 6V-30V DC Motor Driver (MD20A) is a robust and efficient DC motor driver designed for high-power applications. Built around a discrete NMOS H-Bridge architecture, this 20A motor driver can continuously handle 20A current without requiring an external heatsink, making it a compact and reliable choice for your motor control needs. This high current motor driver 20A model features onboard test buttons and motor output LEDs, enabling quick functional testing without a controller. With an input logic voltage range of 1.8V to 12V, the MD20A is fully compatible with various host systems including Arduino, Raspberry Pi, and PLCs. It supports simple control via PWM and DIR inputs. Integrated protection features such as overcurrent and temperature-based current limiting safeguard the driver and connected motor, ensuring dependable operation even under demanding conditions. Whether you are working on robotics, automation, or other motor control projects, the Cytron MD20A is a powerful and reliable solution. Note : Power input does not have reverse-voltage protection. Connecting the battery in reverse polarity will damage the motor driver instantaneously. Features: Bidirectional control for a single brushed DC motor. Operating Voltage: DC 6V to 30V. Maximum Motor current: 20A continuous; 60A peak. Buttons allow for quick testing. LEDs indicate the motor output state. PWM and DIR inputs. Inputs support 1.8V, 3.3V, 5V, and 12V logic (Arduino, Raspberry Pi, PLC, etc.). PWM frequency up to 20kHz (output frequency equals input frequency). Compatible with sign-magnitude and locked-antiphase PWM operation. Overcurrent protection includes active current limiting. Temperature protection. Undervoltage shutdown.

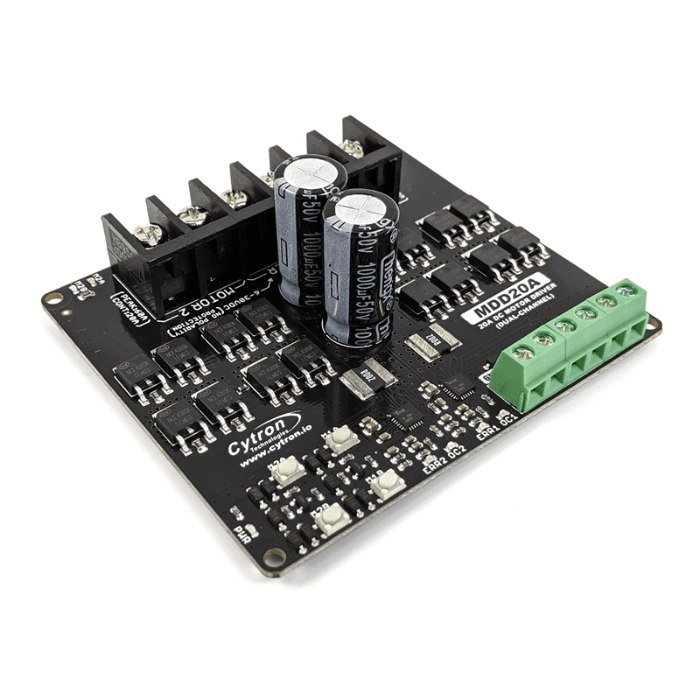

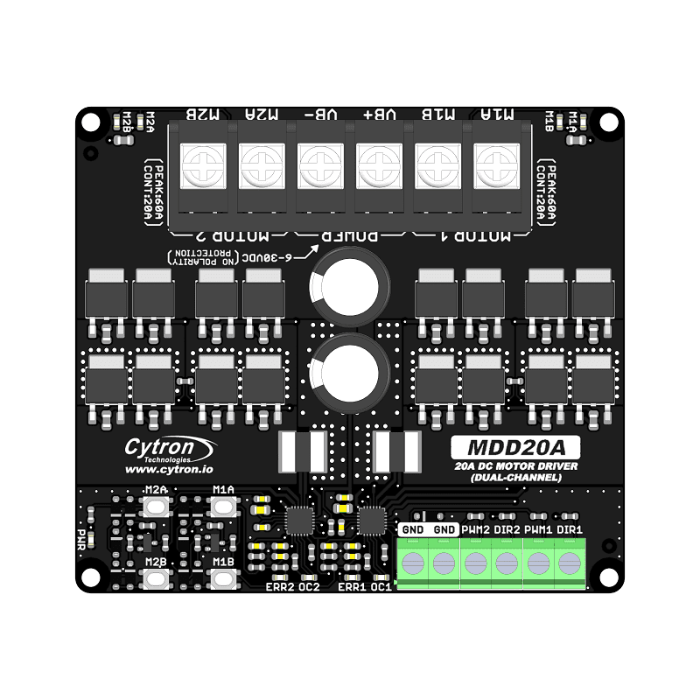

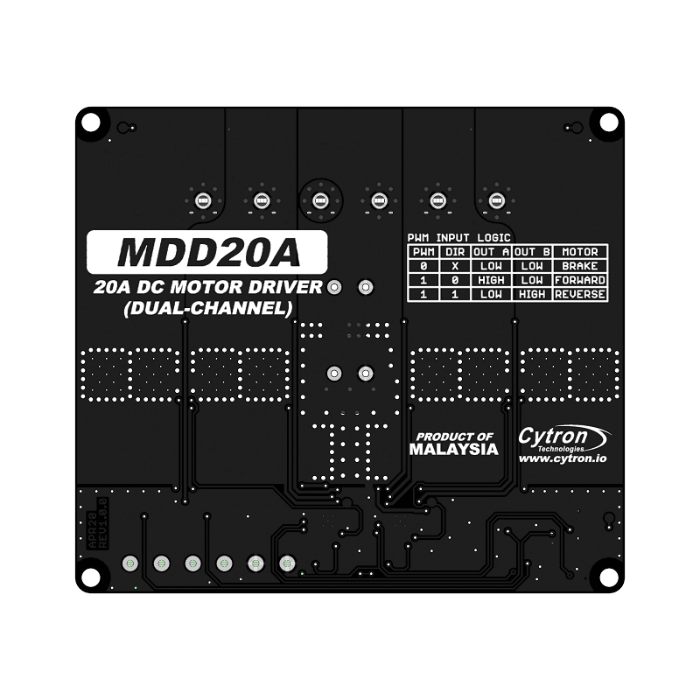

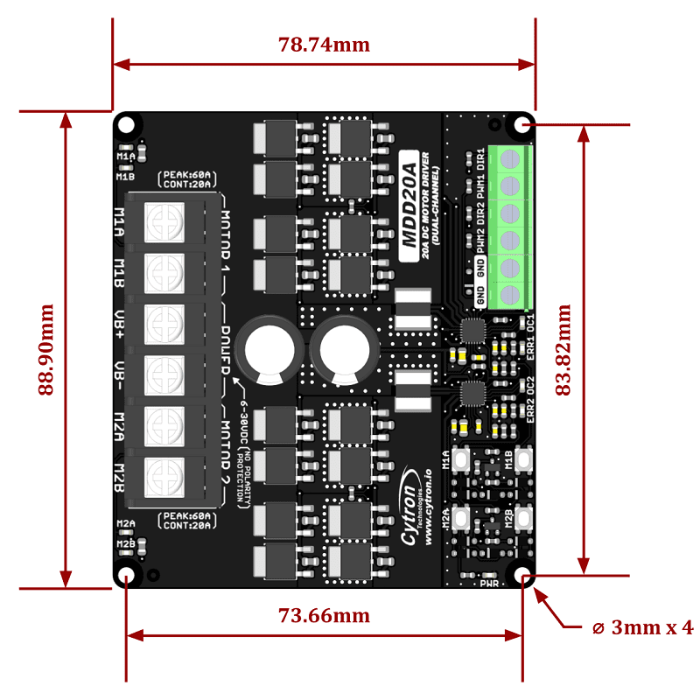

Cytron 20Amp 6V-30V Dual Channel DC Motor Driver The Cytron 20A 6V-30V DC Motor Driver (2 Channels) is a high-performance solution for controlling two brushed DC motors with impressive efficiency and safety. Designed with a full discrete NMOS H-Bridge architecture, this Cytron DC Motor Driver 20A delivers up to 20A continuous current per motor channel without needing a heatsink. Unlike other drivers that exaggerate current ratings based solely on MOSFET specs, the MDD20A is engineered for real-world reliability, taking into account factors like switching frequency and PCB design. Compatible with logic levels from 1.8V to 12V, this Cytron 6V-30V Motor Driver works seamlessly with various host controllers. It supports both PWM and DIR inputs for versatile motor control and includes overcurrent protection to safeguard against stalls and overloads. Whether you're building a robot or a high-torque application, this DC Motor Driver offers robust, consistent performance. 20Amp 6V-30V DC Motor Driver Pinout Diagram: Features: Bidirectional control for two brushed DC motors. Operating Voltage: DC 6V to 30V. Maximum motor current (per channel): 20A continuous, 60A peak. Buttons allow for quick testing. LEDs indicate the motor's output state. PWM and DIR inputs. Inputs support 1.8V, 3.3V, 5V, and 12V logic (Arduino, Raspberry Pi, PLC, etc.). PWM frequency up to 20 kHz (output frequency equals input frequency). Compatible with sign-magnitude and locked-antiphase PWM operation. Overcurrent protection includes active current limiting. Temperature protection. Undervoltage shutdown. Package Includes: 1 x Cytron 20A 6V-30V DC Motor Driver (2 Channels)

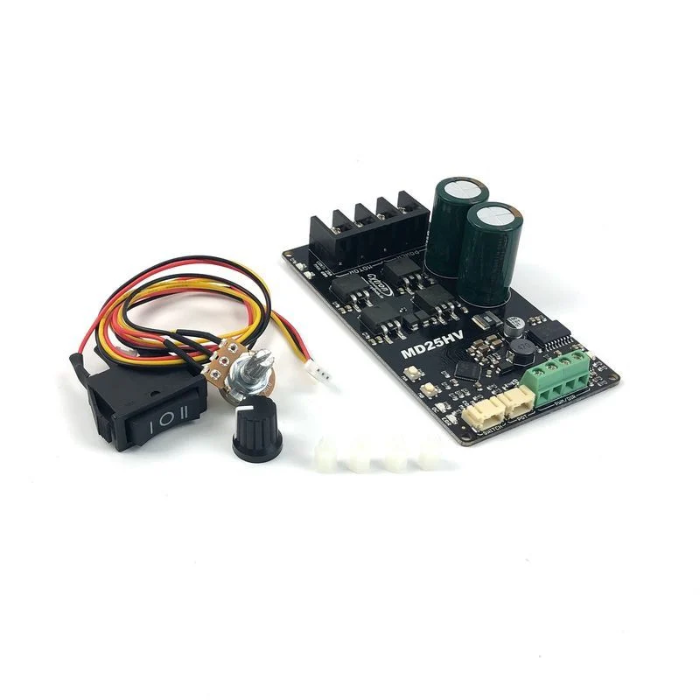

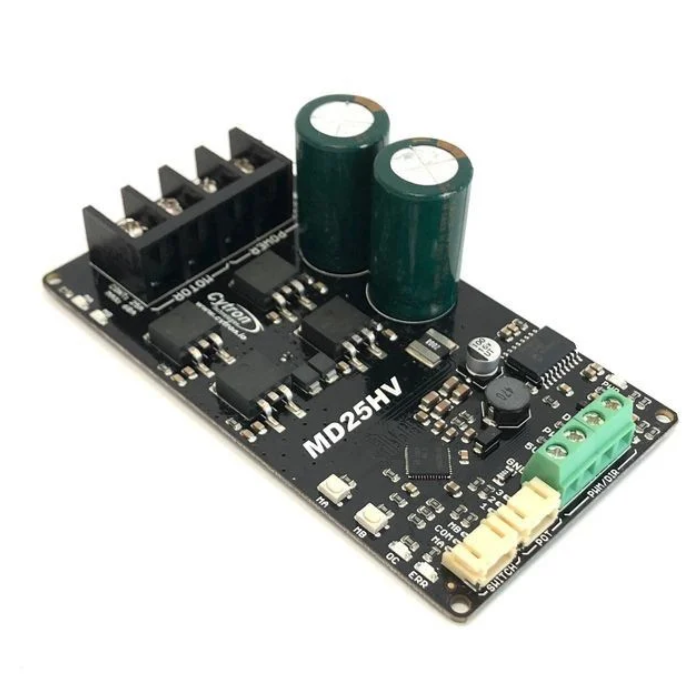

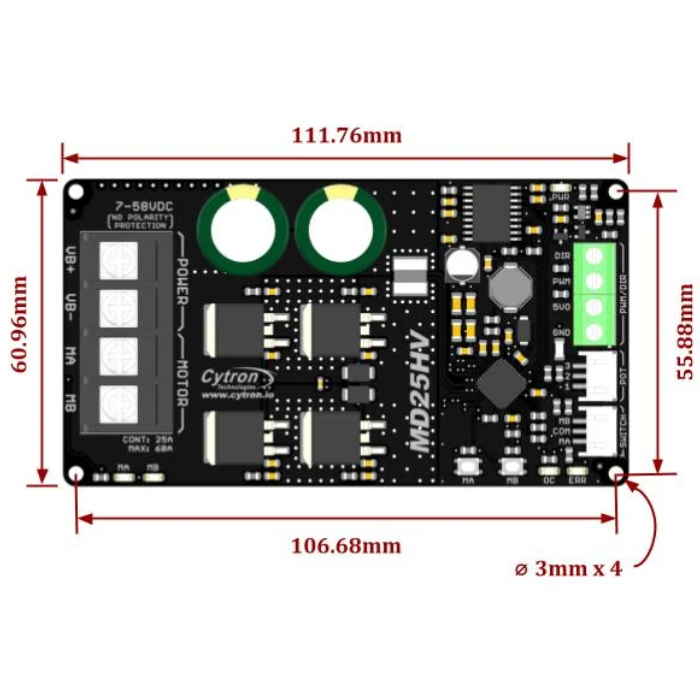

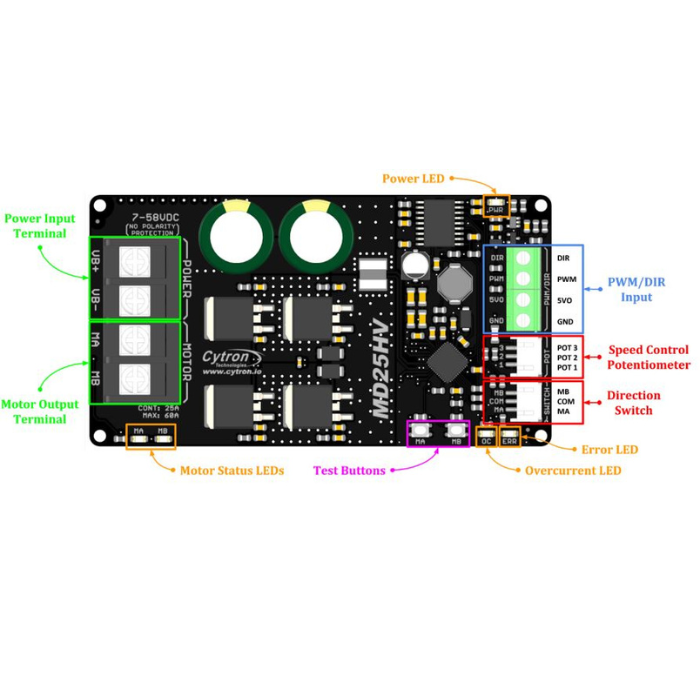

Cytron 25Amp 7V-58V High Voltage DC Motor Driver The Cytron 25Amp 7V-58V High Voltage DC Motor Driver (MD25HV POT) is a powerful 25A Motor Controller designed for high-performance applications. Supporting a wide voltage range from 7V to 58V, this 7V-58V Motor Driver delivers up to 25A of continuous current using a robust NMOS H-Bridge design—no heatsink required. Engineered for versatility, it offers both manual and programmable control options, including PWM and DIR signals compatible with logic levels from 1.8V to 30V, making it perfect for integration with Arduino, Raspberry Pi, or PLCs. The motor driver also features onboard test buttons, status LEDs for quick diagnostics, and a built-in 5V buck regulator to conveniently power external host controllers. For users seeking straightforward motor control without coding, the MD25HV can also operate using a potentiometer for speed adjustment and a switch for direction. This High Voltage DC Motor Driver is ideal for hobbyists and industrial users alike who need reliable and flexible motor control in demanding environments. Note: Power input does not have reverse-voltage protection. Connecting the battery in reverse polarity will damage the motor driver instantaneously. Pinout Diagram: Applications: Automated Guided Vehicle (AGV). Mobile Robot. Automation Machine. Electric Vehicle. Features: Bidirectional control for a single brushed DC motor. Maximum motor current is 25A continuous and 60A peak, with a 5V output for the host controller (up to 250mA). Buttons allow for quick testing. LEDs indicate the motor output state. Dual input modes include PWM/DIR and Potentiometer/Switch Input. The PWM/DIR inputs are compatible with 1.8V, 3.3V, 5V, 12V, and 24V logic (Arduino, Raspberry Pi, PLC, etc.). PWM frequency up to 40kHz (the output frequency is fixed at 16kHz). Overcurrent protection includes active current limiting. Temperature protection. Undervoltage shutdown.

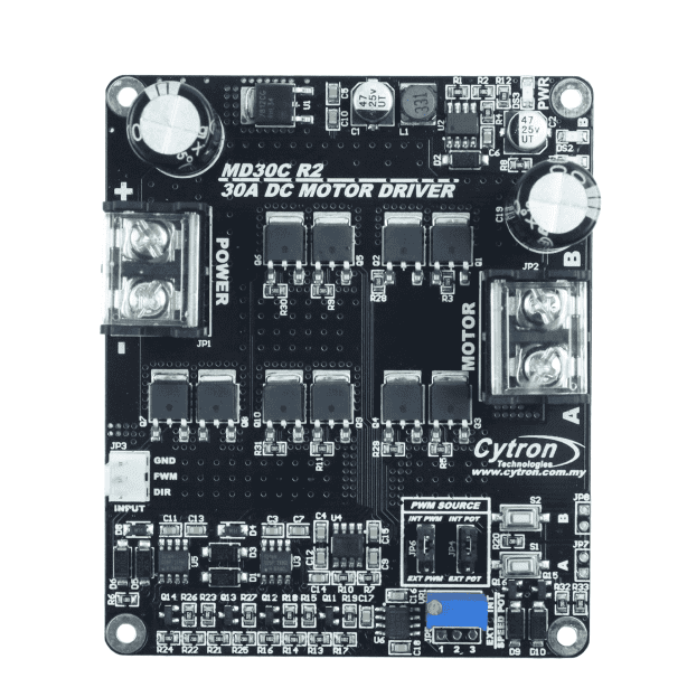

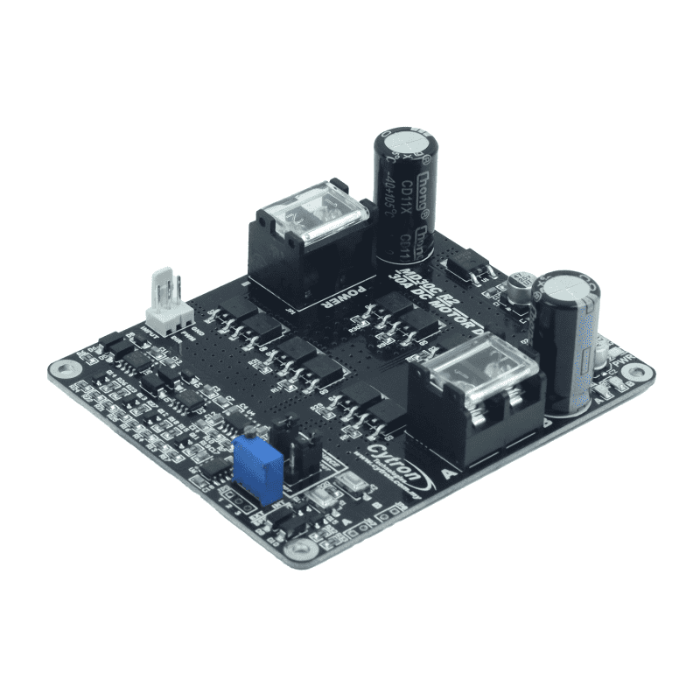

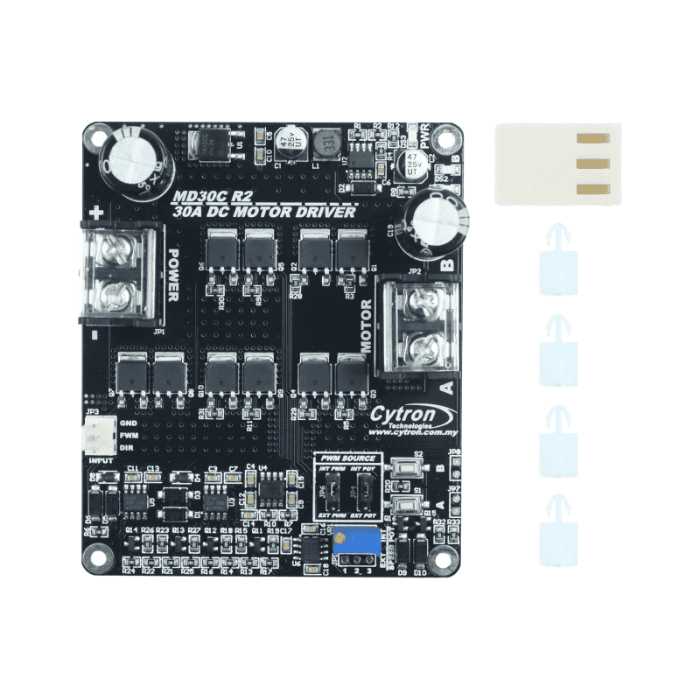

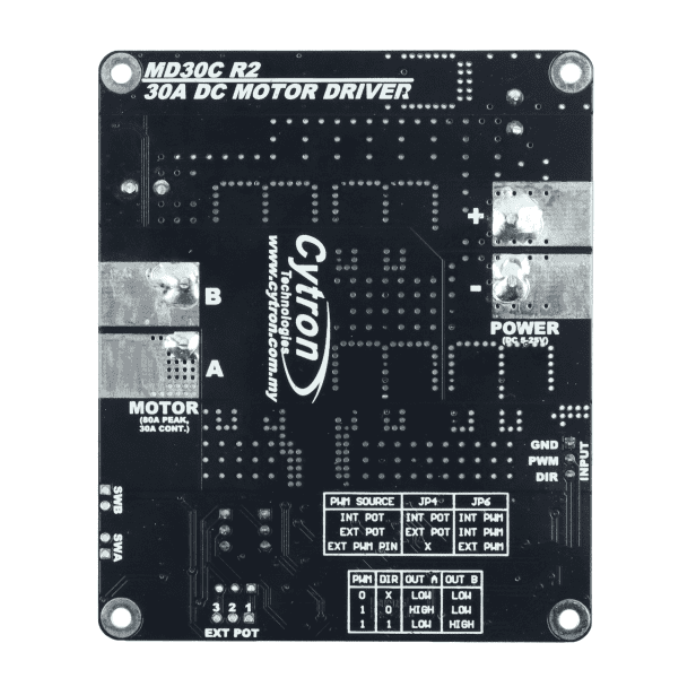

Cytron 30Amp 5V-30V DC Motor Driver The Cytron 30Amp DC Motor Driver (MD30C) is a high-performance upgrade to the MD30B, engineered for powering medium to high power brushed DC motors. This Cytron DC motor driver 30A handles a continuous current of 30A and can peak up to 80A, making it ideal for demanding applications. Operating across a voltage range of 5V to 30V, it qualifies as a versatile 30A motor driver 5V to 30V solution. The fully NMOS-based architecture ensures higher efficiency and faster switching speeds without requiring additional cooling systems like fans or heatsinks. As a Cytron single channel motor driver, it offers built-in features such as reverse polarity protection and an onboard PWM generator, enabling operation even without a microcontroller. Users can control motor direction and speed via onboard or external switches and potentiometers, making it a flexible and user-friendly choice for your next robotics or automation project. Features: Reverse polarity protection. Logic level inputs are 3.3V and 5V. For increased efficiency, a fully NMOS H-Bridge is used, with no heat sink required. Speed control PWM frequency up to 20KHz. Standalone operation is enabled by an onboard PWM generator with switches and a potentiometer. External PWM operation now supports both locked-antiphase and sign-magnitude modes. For more information, see the User Manual in Attachments and Links.
