74HC32 - Quad 2-Input OR Gate…

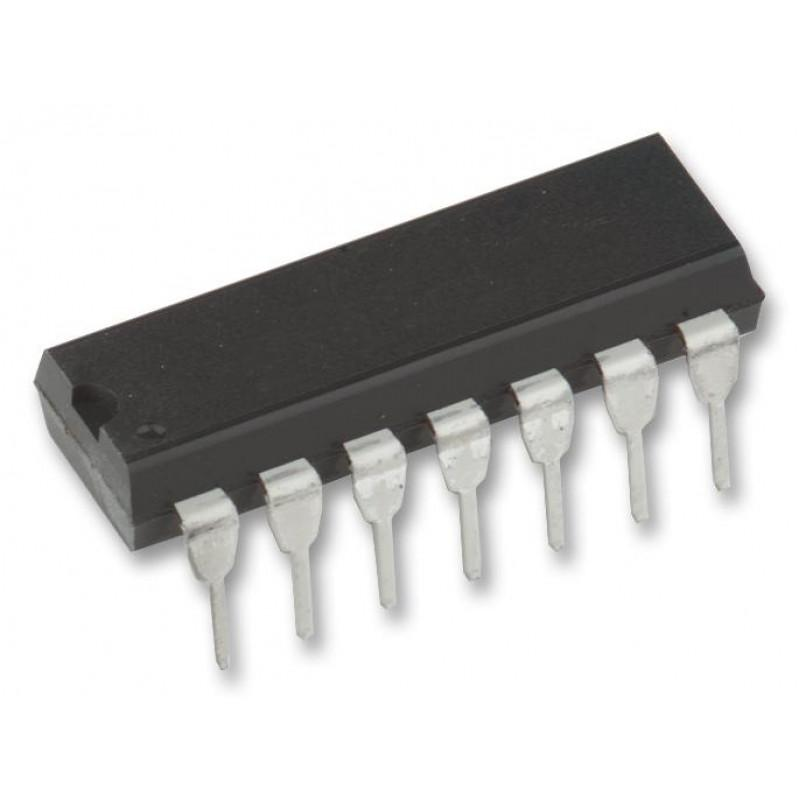

74HC32 - Quad 2-Input OR Gate IC
The
74HC Series's
74HC32 IC is a 14 Pin Quad 2-Input OR Gate IC. The 74HC32 provides four independent 2-input OR gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V. Inputs include clamp diodes. This enables the use of current-limiting resistors to interface inputs to voltages in excess of VCC.
Pinout:
Pinout of
74HC32 IC
Input Pins
1, 2, 4, 5, 9, 10, 12, 13
Inverting Output Pins
3, 6, 8, 11
Power Supply (
VCC)
14
Ground (GND)
7
Application:
Toys
Musical Instruments
Medical Healthcare and Fitness
Grid Infrastructure
Electronic Point of Sale
Test and Measurement
Factory Automation and Control
Building Automation
₹16.26
MRP. ₹40.60
Incl. GST (No Hidden Charges)
Incl. GST (No Hidden Charges)
74HC32 - Quad 2-Input OR Gate IC
74HC32 - Quad 2-Input OR Gate IC The 74HC Series's 74HC32 IC is a 14 Pin Quad 2-Input OR Gate IC. The 74HC32 provides four independent 2-input OR gates with …
As low as
₹16.26
₹16.26
MRP. ₹40.60
Incl. GST (No Hidden Charges)
74HC74 - Dual D-type Positive…

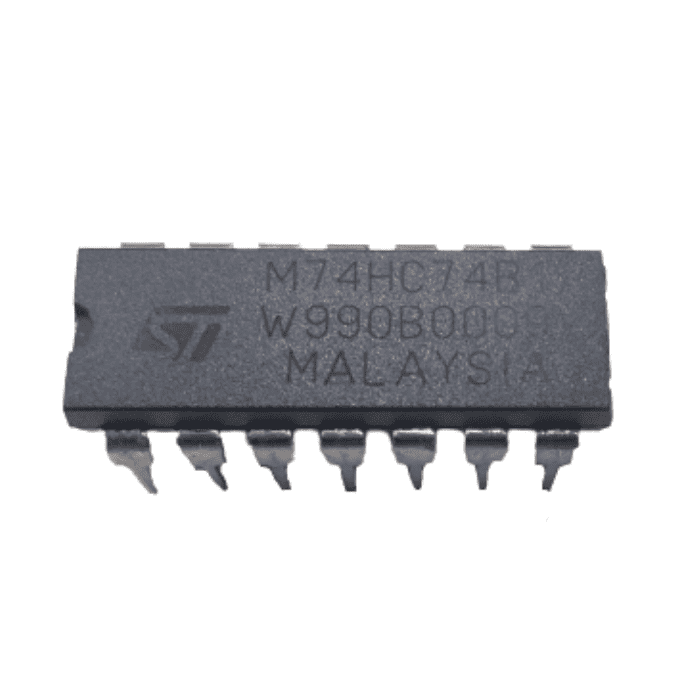

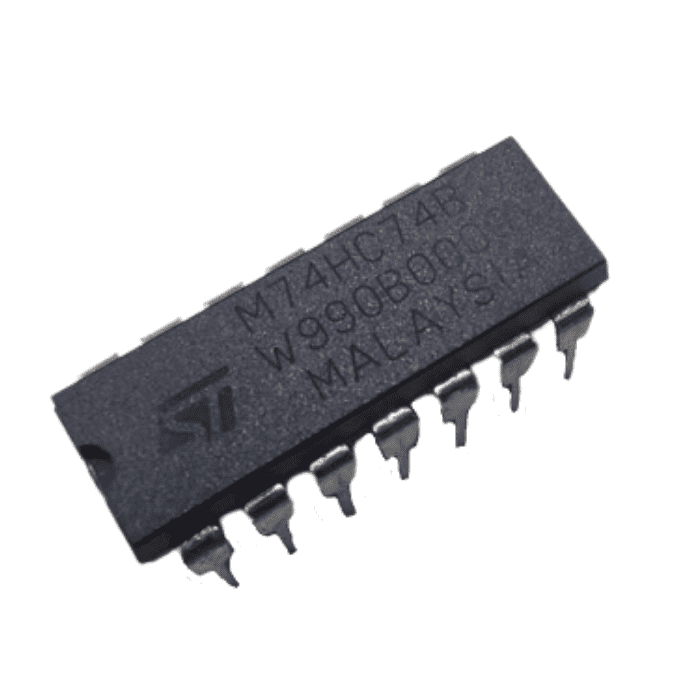

74HC74 - Dual D-type Positive Edge-triggered Flip-Flops IC
The
74HC Series
74HC74 device contains two independent positive-edge-triggered D flip-flops with complementary outputs. The information on the D input is accepted by the flip-flops on the positive-going edge of the clock pulse. The triggering occurs at a voltage level and is not directly related to the transition time of the rising edge of the clock.
The data on the D input may be changed while the clock is LOW or HIGH without affecting the outputs as long as the data setup and hold times are not violated. A low logic level on the preset or clear inputs will set or reset the outputs regardless of the logic levels of the other inputs.
Pinout:
Pinout Of 74HC74 IC
Input (1D, 2D)
2, 12
Inverting Output (1Q', 2Q')
6, 8
Non-Inverting (1Q, 2Q)
5, 9
Clock (1CLK, 2CLK)
3, 11
Enable Pin (ENP, ENT)
4, 10
RESET (R')
1,13
Power Supply (
VCC)
14
Ground (
GND
)
7
Application:
Ultrasound System
Fans
Lab Instrumentation
Vacuum Cleaners
Video Communications System
IP Phone: Wired
₹22.35
MRP. ₹40.60
Incl. GST (No Hidden Charges)
Incl. GST (No Hidden Charges)
74HC74 - Dual D-type Positive Edge-triggered Flip-Flops IC
74HC74 - Dual D-type Positive Edge-triggered Flip-Flops IC The 74HC Series 74HC74 device contains two independent positive-edge-triggered D flip-flops with complementary outputs. The information on the D input is accepted …
As low as
₹22.35
₹22.35
MRP. ₹40.60
Incl. GST (No Hidden Charges)
74HC76 - Dual JK Flip-Flop wi…
74HC76 - Dual JK Flip-Flop with Set and Clear IC
The
74HC Series
74HC76 offers individual J, K, Clock Pulse, Direct Set, and Direct Clear inputs. These dual flip-flops are designed so that when the clock goes HIGH, the inputs are enabled and data will be accepted.
The Logic Level of the J and K inputs will perform according to the Truth Table as long as minimum set-up times are observed. Input data is transferred to the outputs on the HIGH-to-LOW clock transitions.
Pinout:
PIN No
SYMBOL
NAME AND FUNCTION
1, 6
1CK, 2CK
Clock Input(HIGH to LOW edge triggered)
2, 7
1PR, 2PR
Set Inputs (Active LOW)
3, 8
1CLR, 2CLR
Asynchronous Reset Inputs (Active LOW)
4, 9
1J, 2J
Data Inputs: Flip-Flop 1 and 2
10, 14
1Q,2Q
Complement Flip-Flop Outputs
11, 15
1Q,2Q
True Flip-Flop Outputs
16, 12
1K,2K
Data Inputs: Flip-Flop 1 and 2
13
GND
Ground (OV)
5
Vcc
Positive Supply Voltage
₹46.74
MRP. ₹75.60
Incl. GST (No Hidden Charges)
Incl. GST (No Hidden Charges)
74HC76 - Dual JK Flip-Flop with Set and Clear IC
74HC76 - Dual JK Flip-Flop with Set and Clear IC The 74HC Series 74HC76 offers individual J, K, Clock Pulse, Direct Set, and Direct Clear inputs. These dual flip-flops are …
As low as
₹46.74
₹46.74
MRP. ₹75.60
Incl. GST (No Hidden Charges)
74HC86 - Quad 2-Input EXOR Ga…
74HC86 - Quad 2-Input EXOR Gate IC
The
74HC Series
74HC86 is Quad 2-Input EXOR Gate 14 Pin IC. It is an advanced high-speed CMOS 2?input Exclusive?OR gate fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation. The internal circuit is composed of three stages, including a buffer output which provides high noise immunity and stable output.
Inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems. Used for Building Arithmetic Logic Circuits, Computational Logic Comparators, and Error Detection Circuits and True/Complement Elements.
Pinout:
Pinout Of 74HC86 IC
Input Pin
1, 2, 4, 5, 9, 10, 12, 13
Output Pin
3, 6, 8,11
Power Supply (VCC)
14
Ground (GND)
7
₹17.28
MRP. ₹30.80
Incl. GST (No Hidden Charges)
Incl. GST (No Hidden Charges)
74HC86 - Quad 2-Input EXOR Gate IC
74HC86 - Quad 2-Input EXOR Gate IC The 74HC Series 74HC86 is Quad 2-Input EXOR Gate 14 Pin IC. It is an advanced high-speed CMOS 2?input Exclusive?OR gate fabricated with …
As low as
₹17.28
₹17.28
MRP. ₹30.80
Incl. GST (No Hidden Charges)
74LS10 Triple-3-Input NAND Gate
'--
As low as
₹78.23
₹78.23
MRP. ₹133.00
Incl. GST (No Hidden Charges)
74LS109 Dual J-K Positive Edg…

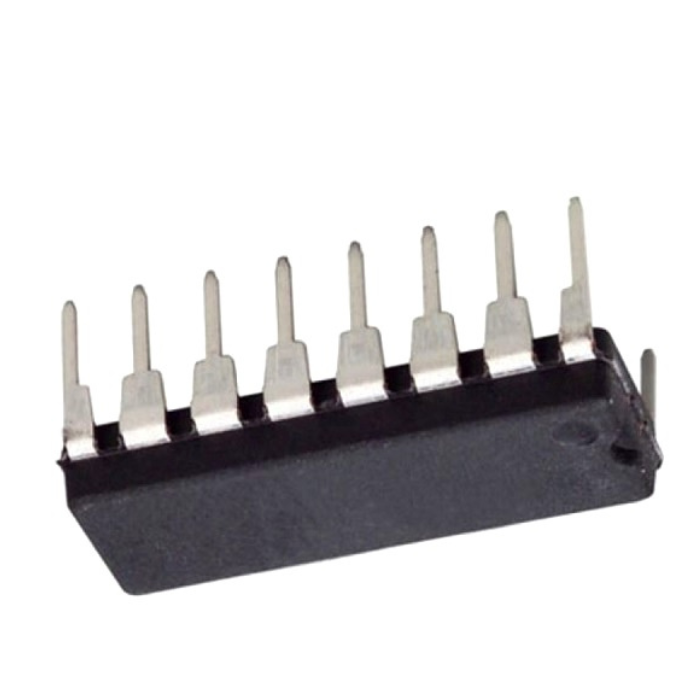

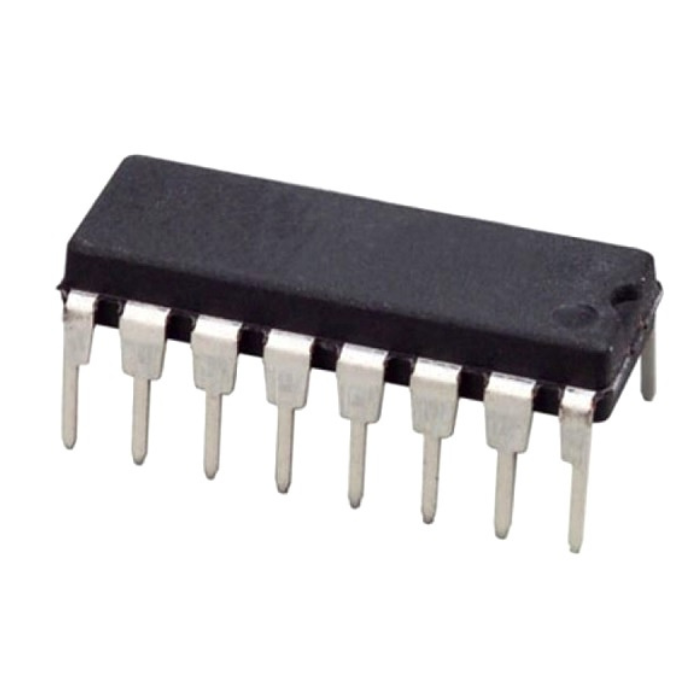

74LS109 Dual J-K Positive Edge-Triggered Flip-Flop IC
The 74LS109 Dual J-K Positive Edge-Triggered Flip-Flop IC, also referred to as the 74109 IC, features two independent flip-flops designed for positive-edge clock triggering.
Each flip-flop includes asynchronous preset and clear inputs that can override all other signals, ensuring reliable reset or set operations.
This JK flip-flop IC allows flexibility in design—it can function as a toggle flip-flop by grounding the K input and tying J high, or as a D-type flip-flop by connecting both J and K inputs.
The 74109 IC is ideal for timing, data storage, and sequential logic applications, supporting a temperature range of 0°C to 70°C. With a variety of packaging options, including plastic and ceramic DIPs, this IC is a trusted choice for TTL-based digital systems.
Features:
Dual J-K positive-edge-triggered flip-flops
Asynchronous preset and clear inputs
Edge-triggered clock input for precise timing
Operates as JK or D-type flip-flop
TTL compatible logic levels
Low power consumption
Noise-immune circuitry
₹35.57
MRP. ₹61.60
Incl. GST (No Hidden Charges)
Incl. GST (No Hidden Charges)
74LS109 Dual J-K Positive Edge-Triggered Flip-Flop IC
74LS109 Dual J-K Positive Edge-Triggered Flip-Flop IC The 74LS109 Dual J-K Positive Edge-Triggered Flip-Flop IC, also referred to as the 74109 IC, features two independent flip-flops designed for positive-edge clock …
As low as
₹35.57
₹35.57
MRP. ₹61.60
Incl. GST (No Hidden Charges)

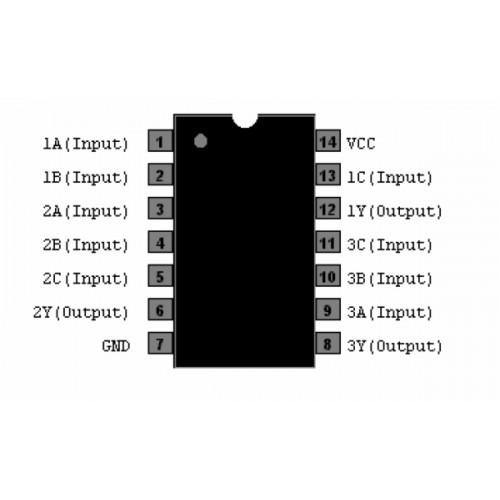

74LS11 Triple 3-Input AND Gate
'--
As low as
₹62.99
₹62.99
MRP. ₹114.80
Incl. GST (No Hidden Charges)
74LS12 NAND Gate IC (Pack of …
74LS12 Triple 3-Input Positive NAND Gates With Collector Outputs
The 74LS12 Triple 3-Input Positive NAND Gates With Collector Outputs contains three 3 input independent gates each of which performs the positive logic NAND function. 74LS12 IC can be soldered directly to the circuit board or can be mounted on a 14 pin IC base. 74LS12 Triple 3-Input Positive NAND Gates With Collector Outputs circuit is designed such that the operation produced on the inputs of pin are (1&2&3&4 NAND 10&11&12&13) is produced on the pin 8 . Operating supply voltages to the IC can vary between 4.5V to 5V and to a maximum of 5.5V and the input logic levels to the device in ‘0’ (LOW) state is max. 0.7V and for ‘1’ (HIGH) state is min 2V.
₹280.42
MRP. ₹508.20
Incl. GST (No Hidden Charges)
Incl. GST (No Hidden Charges)
74LS12 NAND Gate IC (Pack of 5)
74LS12 Triple 3-Input Positive NAND Gates With Collector Outputs The 74LS12 Triple 3-Input Positive NAND Gates With Collector Outputs contains three 3 input independent gates each of which performs the …
As low as
₹280.42
₹280.42
MRP. ₹508.20
Incl. GST (No Hidden Charges)
74LS125 Quad Tri-State Buffer…

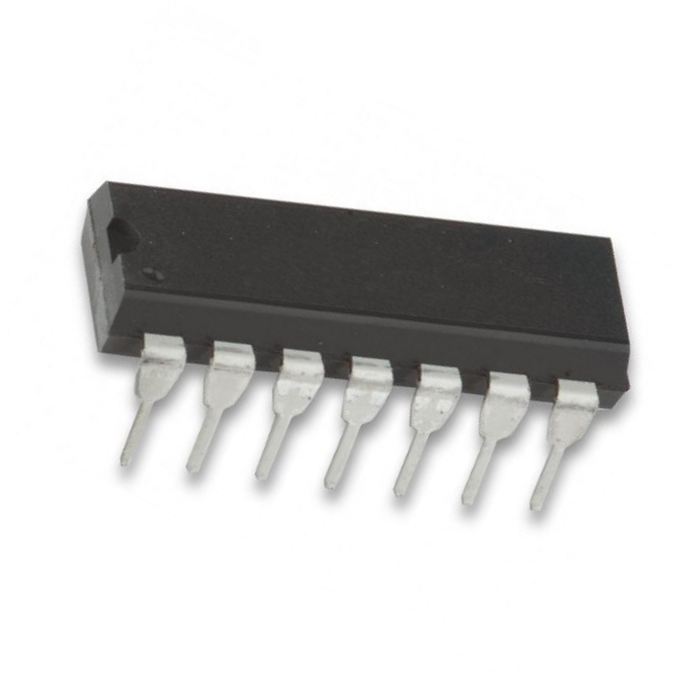

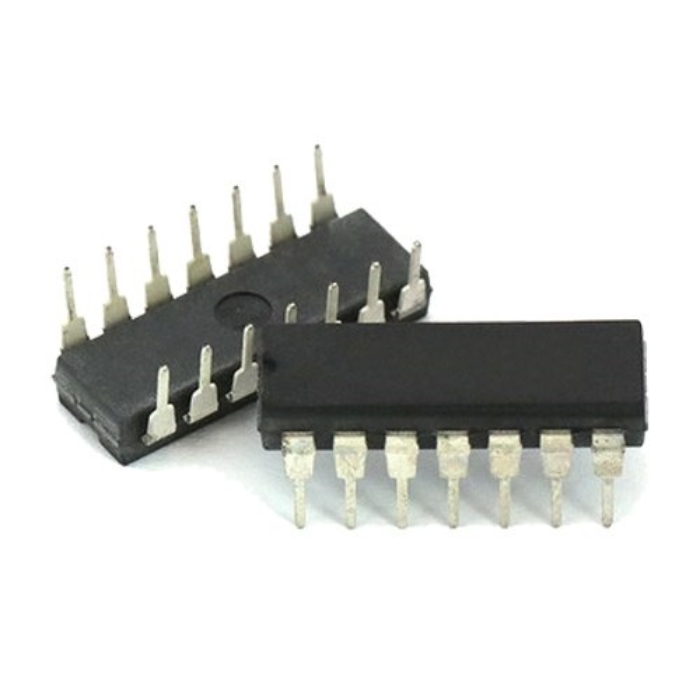

74LS125 Quad Tri-State Buffer IC DIP-14 Package
The 74LS125 Quad Tri-State Buffer IC DIP-14 Package is a versatile logic device that integrates four independent non-inverting buffers, each featuring a 3-STATE output.
As a tri state buffer IC 74125, it delivers low impedance characteristics when enabled, providing strong drive capability to bus lines without the need for external resistors.
When disabled, both output transistors are turned off, presenting a high-impedance state that effectively isolates the device from the bus.
This design minimizes bus contention by ensuring the disable time is shorter than the enable time, making it ideal for high-performance digital systems and bus-oriented applications.
Features:
Quad non-inverting buffer gates
3-state output for bus line applications
High drive capability with low output impedance
High impedance state when disabled
Safe enable/disable timing to prevent bus conflicts
₹25.39
MRP. ₹54.60
Incl. GST (No Hidden Charges)
Incl. GST (No Hidden Charges)
74LS125 Quad Tri-State Buffer IC DIP-14 Package
74LS125 Quad Tri-State Buffer IC DIP-14 Package The 74LS125 Quad Tri-State Buffer IC DIP-14 Package is a versatile logic device that integrates four independent non-inverting buffers, each featuring a 3-STATE …
As low as
₹25.39
₹25.39
MRP. ₹54.60
Incl. GST (No Hidden Charges)
