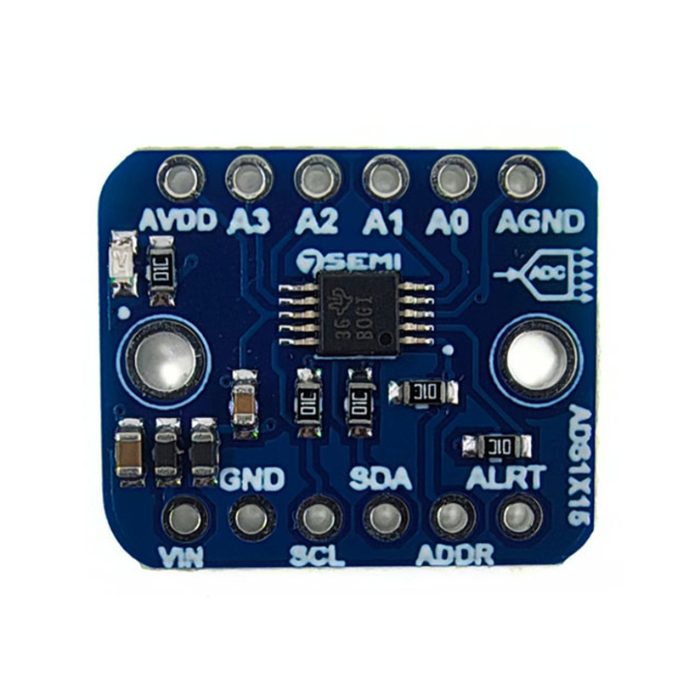

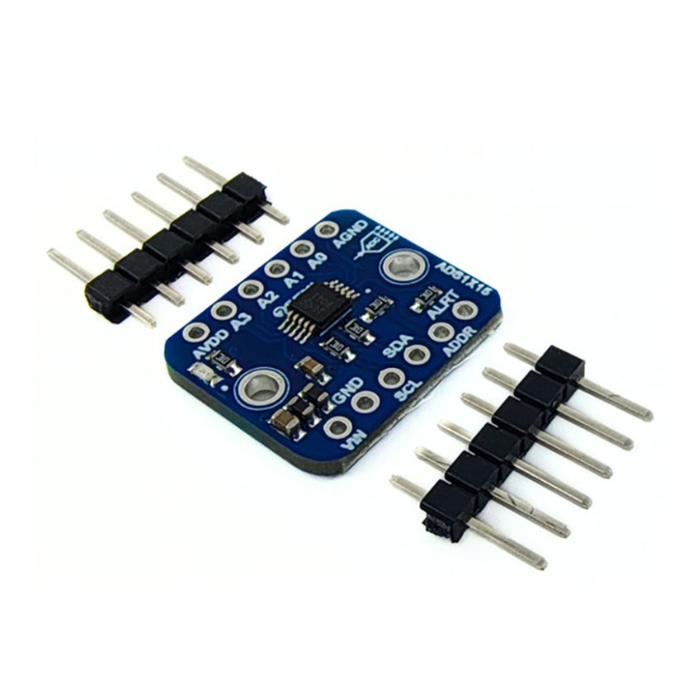

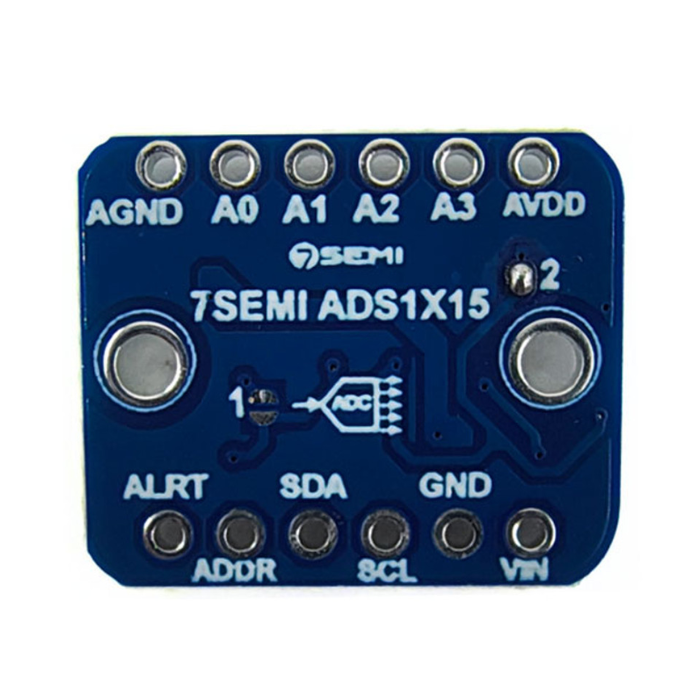

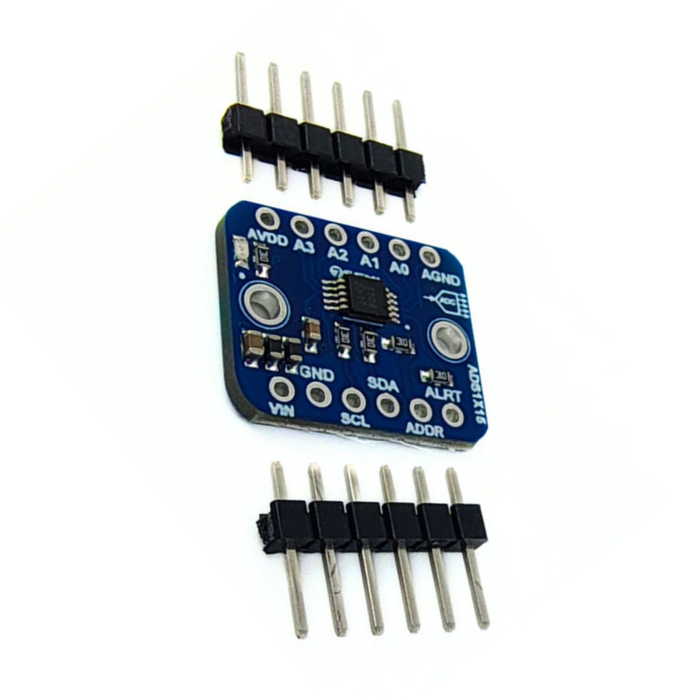

ADS1115 4-Channel 16bit ADC Breakout Board with PGA I2C -7Semi The 7Semi ADS1115 4-Channel 16-bit ADC Breakout Board integrates the high-precision Texas Instruments ADS1115 analog-to-digital converter, featuring a programmable gain amplifier (PGA) for versatile input signal scaling. Designed with an easy-to-use I2C interface, this breakout board operates efficiently over a wide voltage range of 2.0V to 5.5V while maintaining low power consumption. The ADS1115 chip supports flexible data rates between 8 and 860 samples per second, making it an excellent choice for accurate sensor data acquisition in various fields such as industrial automation, automotive systems, and portable electronics. For more technical specifications and application guidance, referring to the ADS1115 datasheet is highly recommended. Features: 16-Bit High-Resolution ADC: Increase measurement precision and accuracy, resulting in high-quality data conversion. Wide Supply Range (2.0 V to 5.5 V): Compatible with a variety of power sources, giving your design flexibility. Low Power Consumption: Operates with only 150 µA in continuous conversion mode, optimizing energy efficiency in battery-powered applications. Programmable Data Rate: You can change your sample speed from 8 SPS to 860 SPS, which is ideal for a variety of applications. Internal Low-Drift Voltage Reference and Oscillator: Provides stable and consistent performance, which is critical for long-term accuracy. I2C Interface with Four Pin-Selectable Addresses: Enables simple integration and communication among numerous devices in your system. Four single-ended or two differential inputs: Flexible input configurations to meet your individual measuring needs. Programmable Gain Amplifier (PGA): Improves signal processing, allowing more precise readings at different input levels. Wide Operating Temperature Range (-40C to +125C): Engineered to work reliably in harsh environments, making it perfect for industrial and automotive applications.

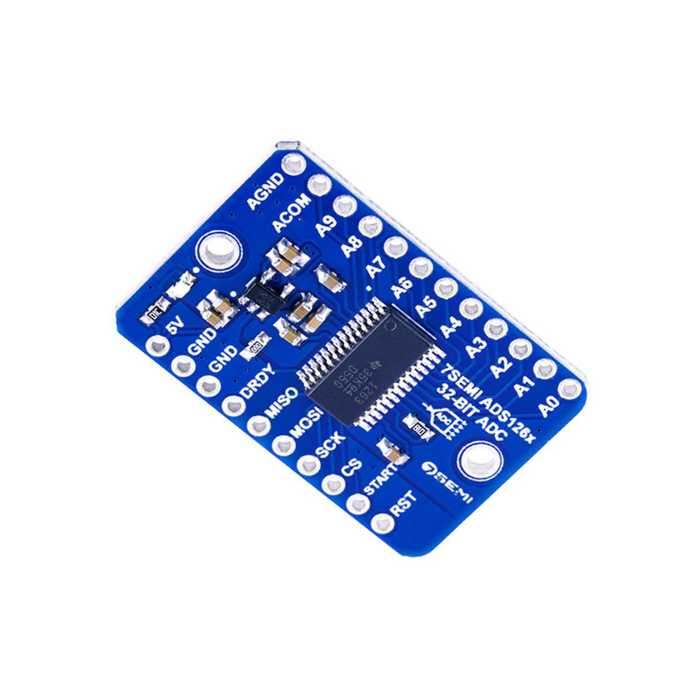

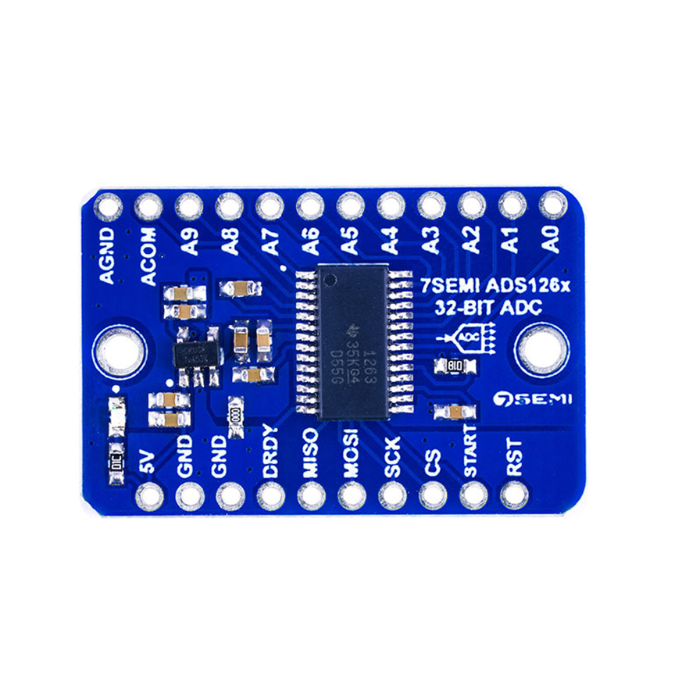

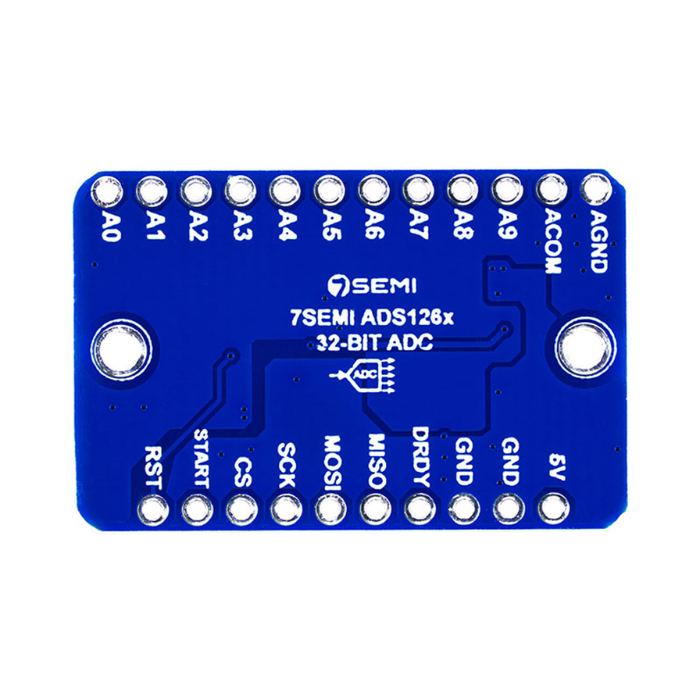

ADS1262 32bit ADC Module with PGA Breakout -7Semi The 7Semi ADS1262 32-bit ADC Module with PGA Breakout is engineered for high-accuracy analog signal conversion, making it ideal for precision applications such as weigh scales, strain gauges, thermocouples, and RTD sensing. At its core is the Texas Instruments ADS1262 ADC, renowned for its ultra-low noise and low-drift characteristics. The module features an integrated programmable gain amplifier (PGA) and internal voltage reference, enabling accurate and flexible signal conditioning. It supports a wide range of data rates, from 2.5 to 38,400 samples per second, and includes a 24-bit auxiliary ADC for concurrent background measurements. With features like a single cycle settling digital filter, dual sensor excitation current sources, and robust fault monitoring, this breakout board offers a complete, reliable solution for demanding analog measurement applications. Features: Precision 32-bit ?? ADC: Provides reliable sensor readings due to its high resolution. Wide Data Rate Range: Supports rates ranging from 2.5 SPS to 38.4 kSPS, allowing for versatile application needs. Integrated CMOS PGA: Gain can be programmed from 1 to 32 to suit different sensor sensitivity levels. Advanced Analog Inputs: Includes 11 multifunction analog inputs for flexible connectivity. High Accuracy: Offset drift of 1 nV/°C and noise levels as low as 7 nVRMS provide greater signal clarity. Internal Voltage Reference: 2.5 volts with a temperature drift of 2 ppm/°C. Effective Line Interference Rejection: Rejects 50-Hz and 60-Hz interference, resulting in reliable, accurate data in industrial environments. Dual sensor excitation sources: Ideal for direct RTD measurement. Built-in Fault Monitoring: Internal fault detection ensures reliable operation.

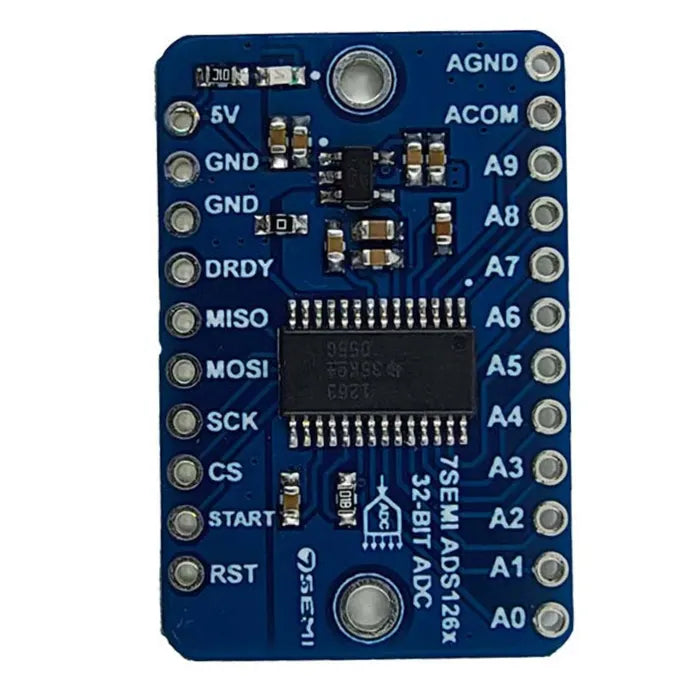

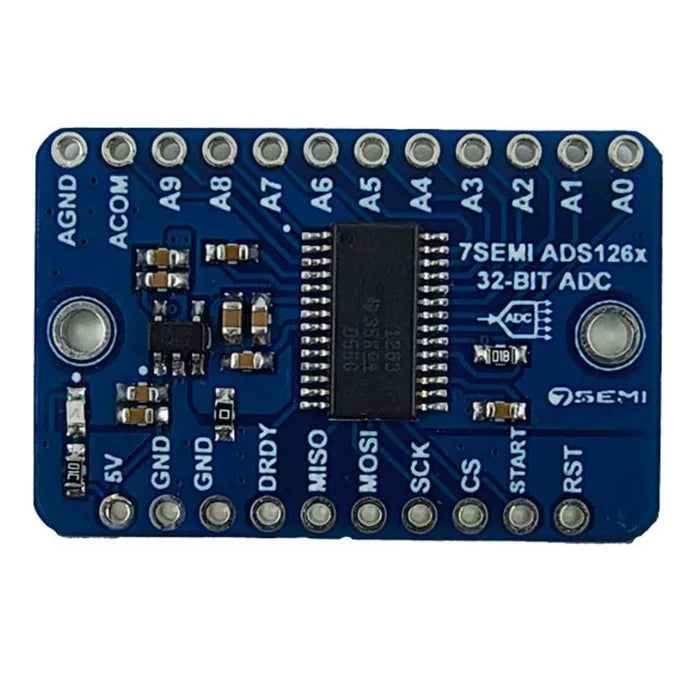

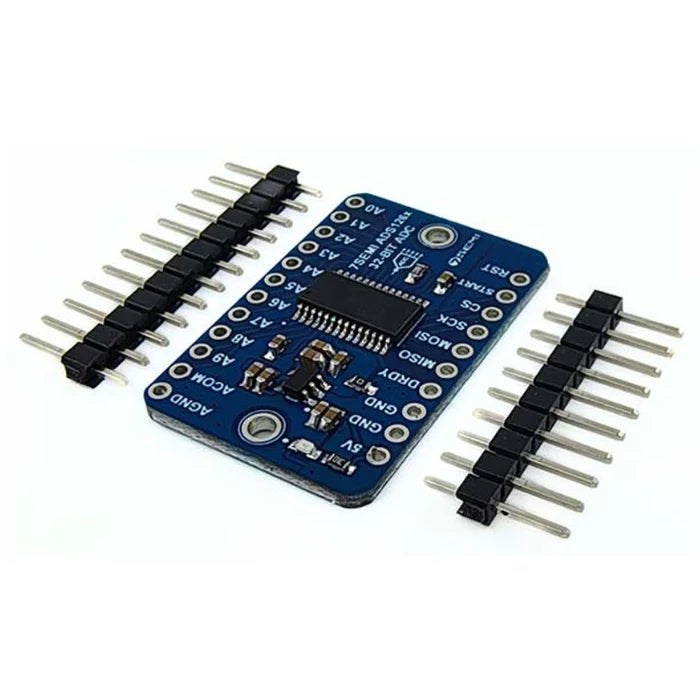

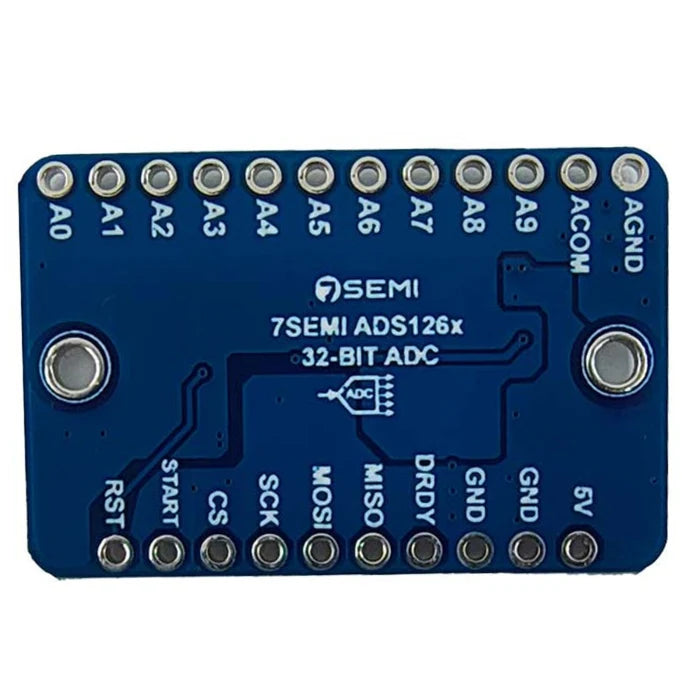

ADS1263 32-bit ADC Module with PGA Breakout - 7Semi The 7Semi ADS1263 32-bit ADC Module with PGA Breakout is a high-accuracy data acquisition solution built around the Texas Instruments ADS1262 chip. Designed for demanding applications like weigh scales, RTDs, thermocouples, and strain-gauge sensors, this module delivers ultra-low noise and minimal drift for reliable performance. It features a built-in Programmable Gain Amplifier (PGA), onboard voltage reference, and dual sensor excitation currents for precision in direct RTD measurements. With a wide range of data rates (2.5 to 38,400 SPS), a 24-bit auxiliary ADC for background tasks, and a single-cycle settling digital filter, it’s ready to handle both fast and highly sensitive measurements. Fault monitoring and flexible interface options make this breakout ideal for industrial and lab-grade applications where accuracy matters most.

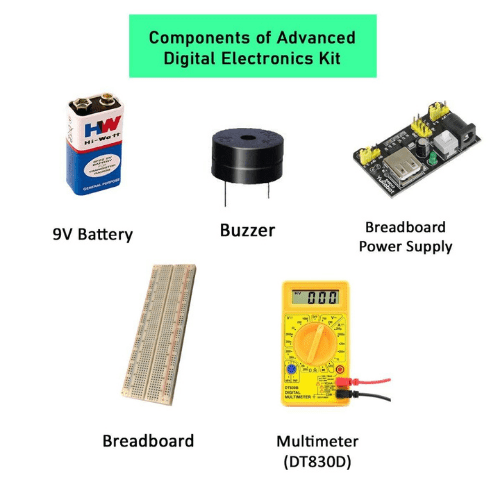

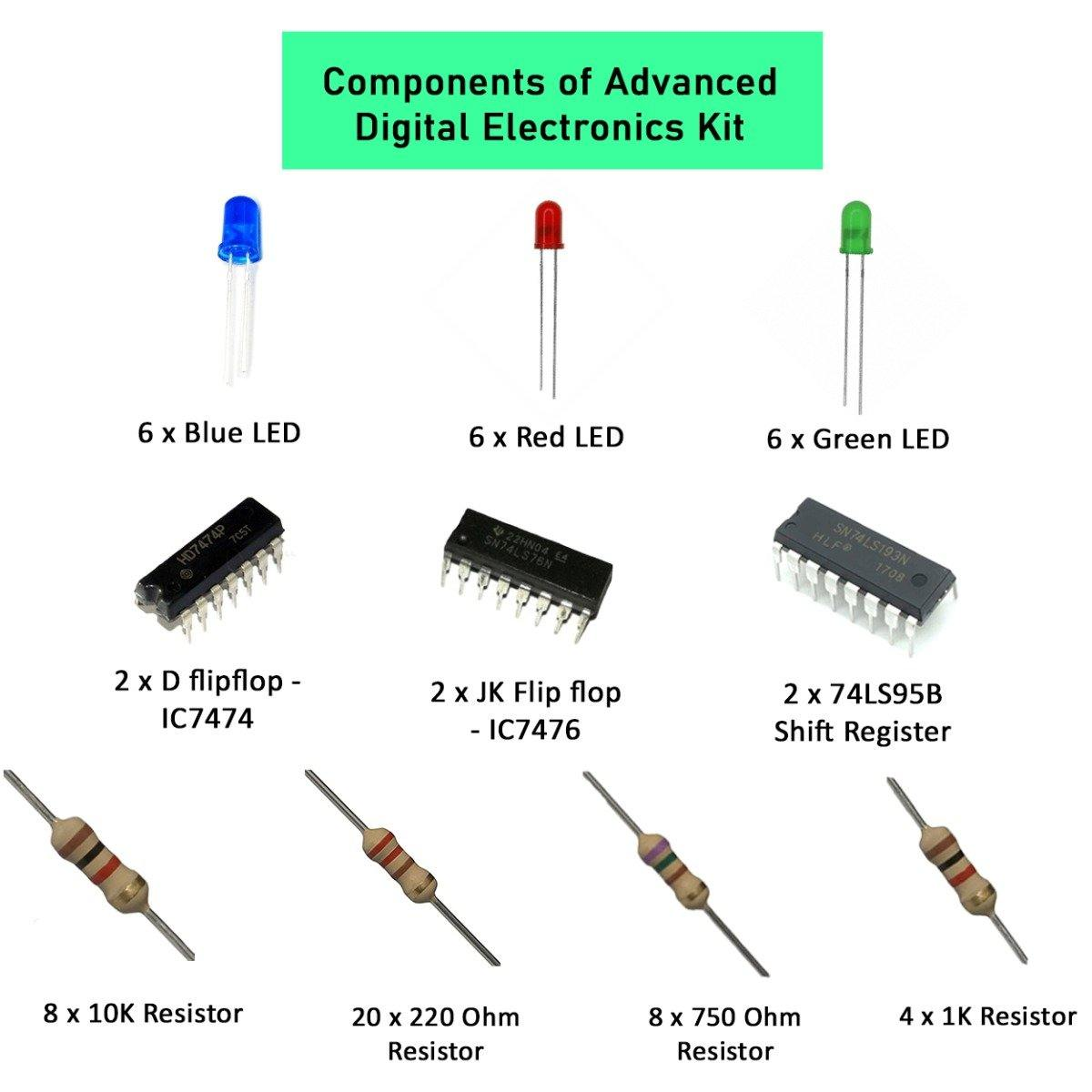

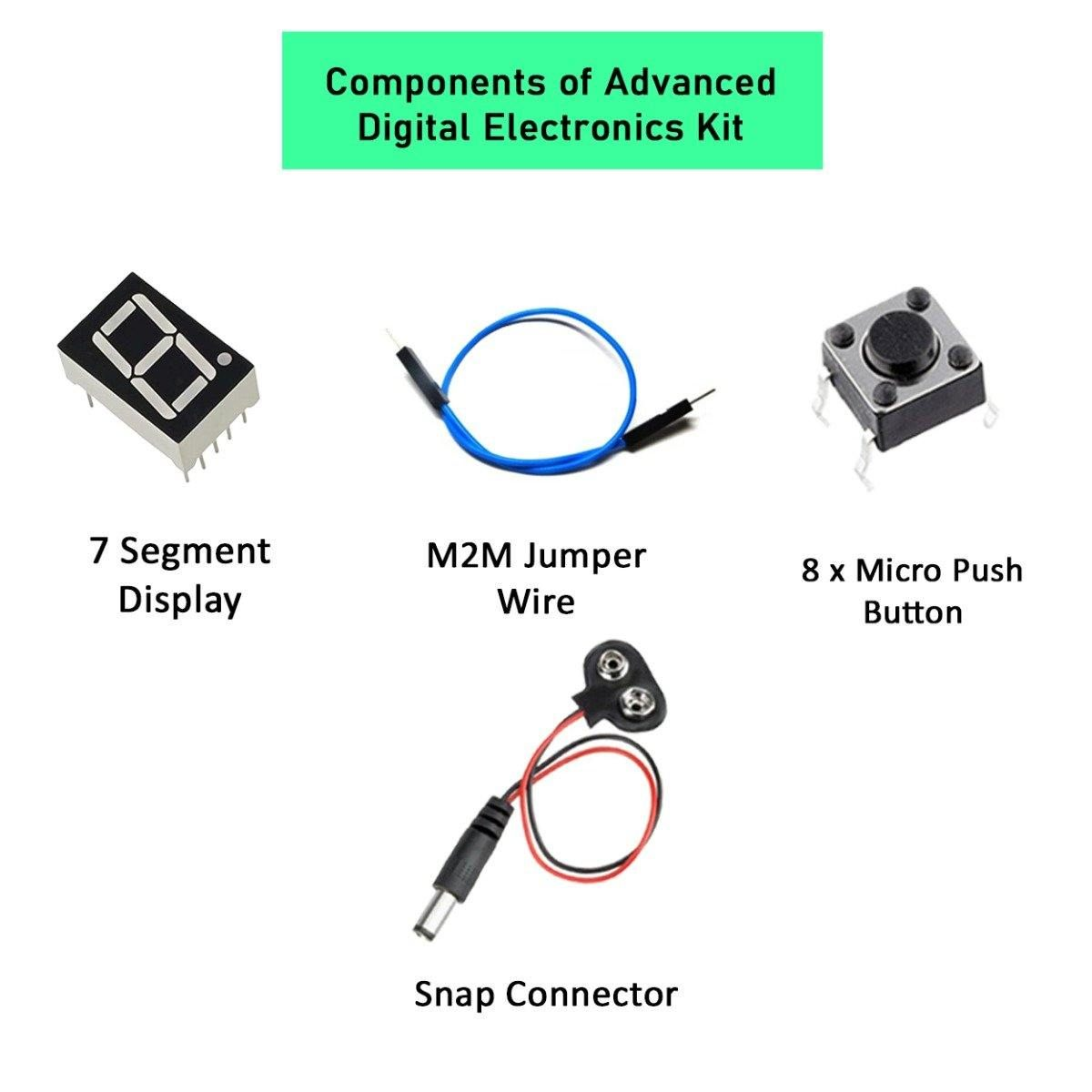

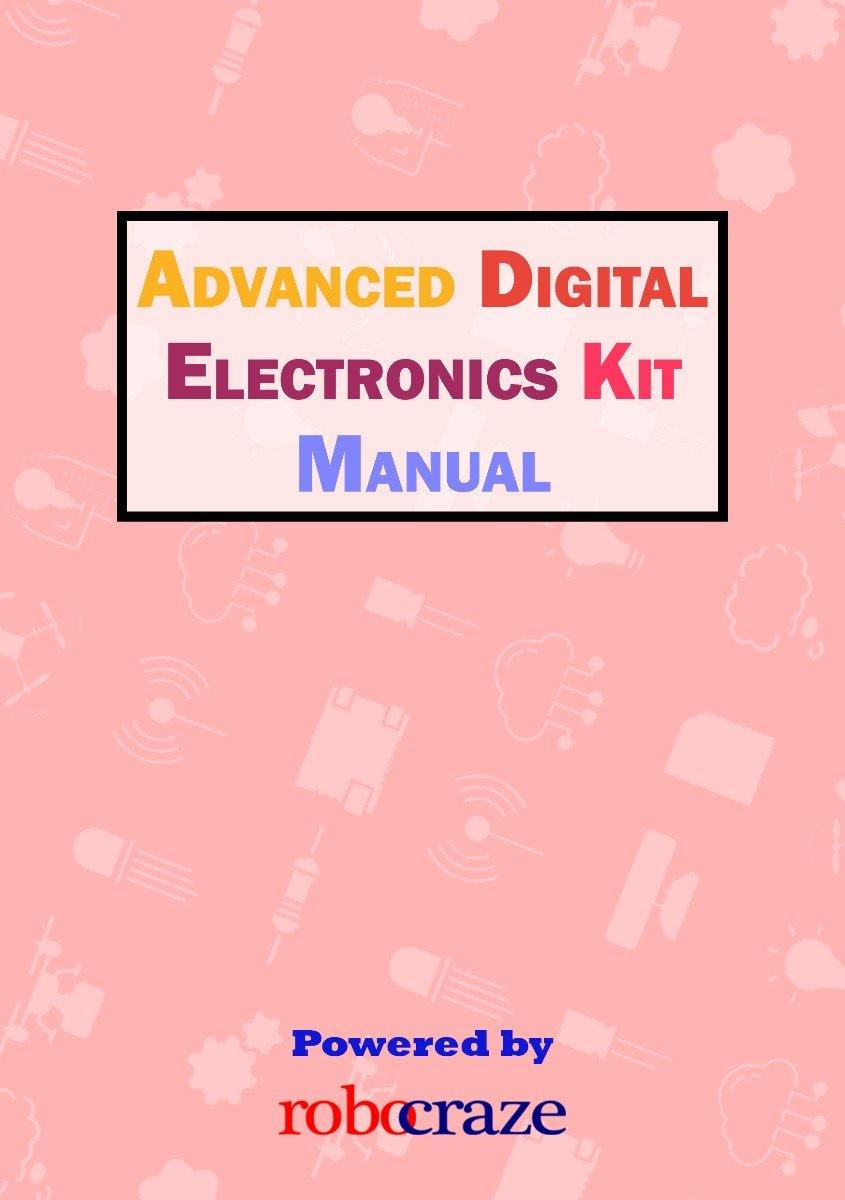

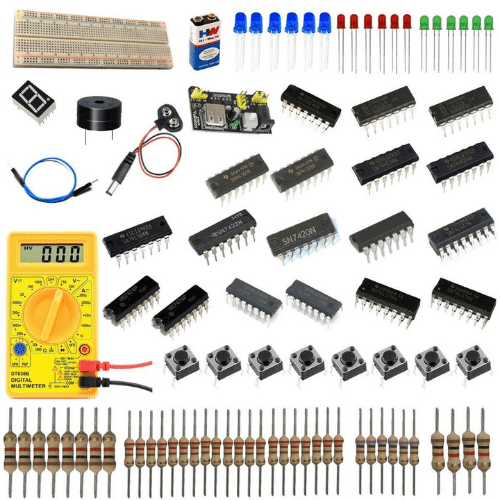

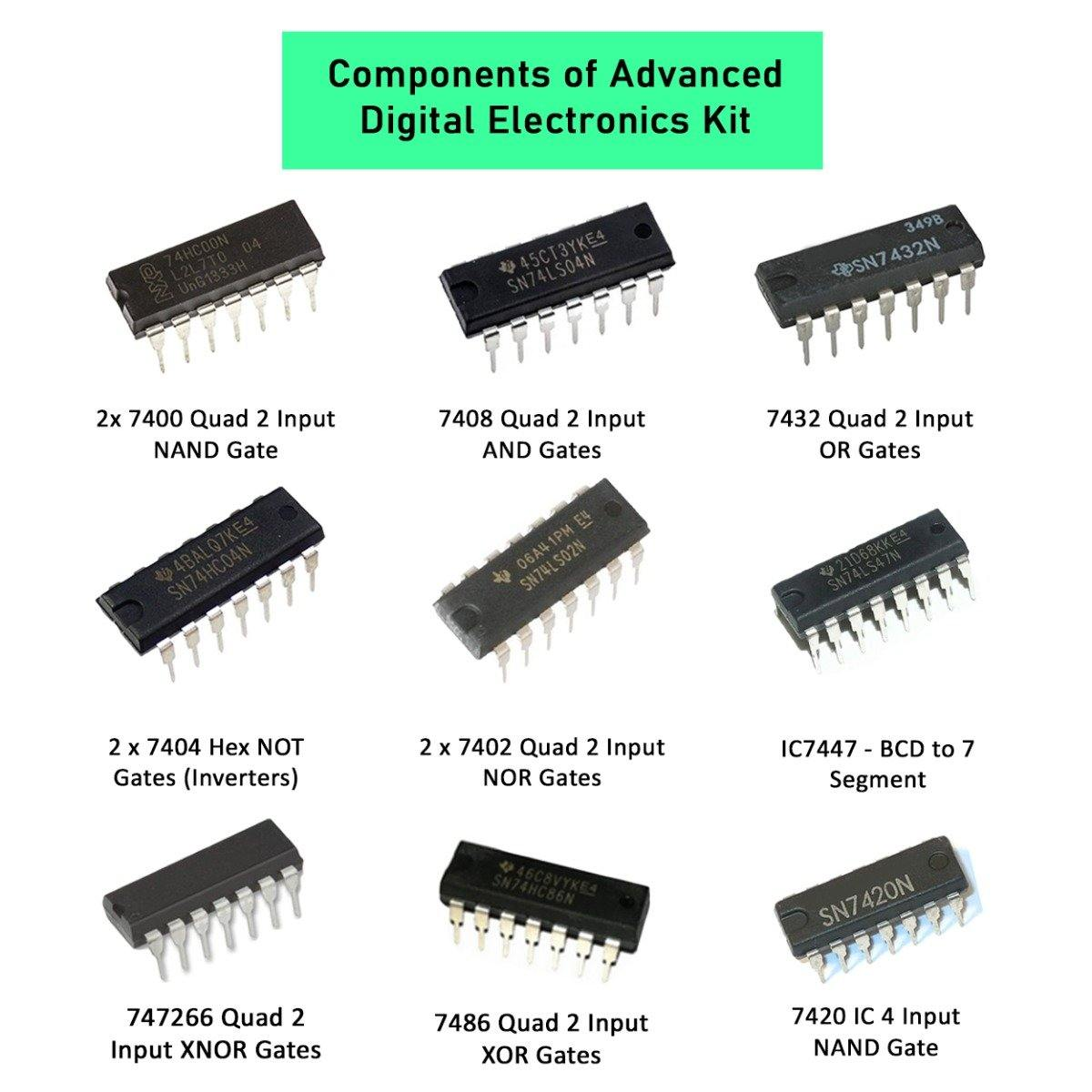

Advanced Digital Electronics Kit Iotcart has curated the Advanced Digital Electronics Kit for those enthusiasts and students who are well versed with the concepts of boolean algebra and can understand the world of 0's and 1's. This advanced kit will dwell deeper into the domain of digital electronics with flip flops, shift registers, counters, 7 segments, multipliers, and more. Along with the kit, you will also get a Manual designed for Advanced Digital Electronics kit to guide you and challenge you with experiments. Led[Light-emitting diode]: LED is an abbreviation for light-emitting diode. LED lighting products use up to 90% less energy than incandescent light bulbs. An electrical current flows through a microchip, illuminating the tiny light sources known as LEDs, resulting in visible light. Breadboard: A breadboard (also known as a plug block) is used to create temporary circuits. It is beneficial to designers because it allows components to be easily removed and replaced. It is useful for someone who wants to build a circuit in order to demonstrate its operation and then reuse the components in another circuit. Breadboard Power Supply: The 3.3V/5V Breadboard Power Supply Module has a multi-purpose female USB socket as well as dual 5 V and 3.3 V power rails. The 3.3V/5V Breadboard Power Supply Module is designed to fit snugly into a standard 400 or 800 tie-point breadboard. Multimeter: ?A multimeter is a measuring device that can measure a variety of electrical properties. A typical multimeter can measure voltage, resistance, and current, and is also known as a volt-ohm-milliammeter (VOM) because it includes a voltmeter, an ammeter, and an ohmmeter. Resistor: A resistor is a component of an electronic circuit that limits or regulates the flow of electrical current. Resistors can also be used to supply a fixed voltage to an active device such as a transistor. IC [Integrated Circuit]: The IC [Integrated Circuit] is a small electronic device made of semiconductor material that contains many microscopic elements like diodes and transistors. Capacitors and resistors. Jumper Wire: A jumper wire is an electric wire used for connecting remote electric circuits on printed circuit boards. It is possible to short-circuit and short-cut (jump) to the electric circuit by connecting a jumper wire to the circuit. 7-segment display: A seven-segment display is a type of electronic display device for displaying decimal numerals that is less complex than dot matrix displays. Hi-Watt 9V Battery: The most common and portable 9V battery is the Hi-Watt 9V Battery . It is non-rechargeable and provides a high-capacity, low-cost solution for a wide range of electronic devices. This battery provides a high-capacity and low-cost solution for a wide range of electronic devices. It is used in conjunction with its own battery snap . The battery clip can be used to power LEDs or other devices using a 9V battery. It's used in electronic toys, clocks, walkie-talkies, smoke alarms, hand-held test equipment, digital instruments, transistor radios, and other applications. Micro Pushbutton: The micro pushbutton is a small and inexpensive single pole single-through switch (SPST) that can be soldered on a printed circuit board (PCB). When pressed, this push button closes a circuit and is typically used as a reset button. Note : The package dimensions are 22x15cms and weigh about 50 grams. Sample Experiment:- Building a Binary Counter using J-K Flip Flop :- Material Required: Breadboard Power Supply 9V Battery DC Barrel Jack Breadboard JK Flip flop - IC7476 Jumper Wires Procedure: A binary counter can be constructed from J-K flip-flops by taking the output of one cell to the clock input of the next. The J and K inputs of each flip-flop are set to 1 to produce a toggle at each cycle of the clock input. For every two toggles of the first cell, a toggle is produced in the second cell, and so on down to the fourth cell. This produces a binary number equal to the number of cycles of the input clock signal. This device is sometimes called a "ripple through" counter. The same device is useful as a frequency divider. In the 3-bit ripple counter, three flip-flops are used in the circuit. As here ‘n’ value is three, the counter can count up to 2 3 = 8 values .i.e. 000,001,010,011,100,101,110,111. The circuit diagram and timing diagram are given below. Circuit Diagram: Timing Diagram: The output waveform of Q1 is given as a clock pulse to the flip flop J2K2. So, when Q1 goes from 1 to 0 transitions, the state of Q2 is changed. The output of Q2 is the MSB. INPUT OUTPUT Number of Pulses Q2 Q1 Q0 0 - - - 1 0 0 0 2 0 0 1 3 0 1 0 4 0 1 1 5 1 0 0 6 1 0 1 7 1 1 0 8 1 1 1 This circuit can be further connected to the BCD to 7-segment IC to get the BCD output onto the 7-segment display. Applications: The Advanced Digital Electronics kit can be used to build various combinational circuits such as BCD decoder drivers. To build serial to parallel data converters. To build binary counters. To build binary multipliers.

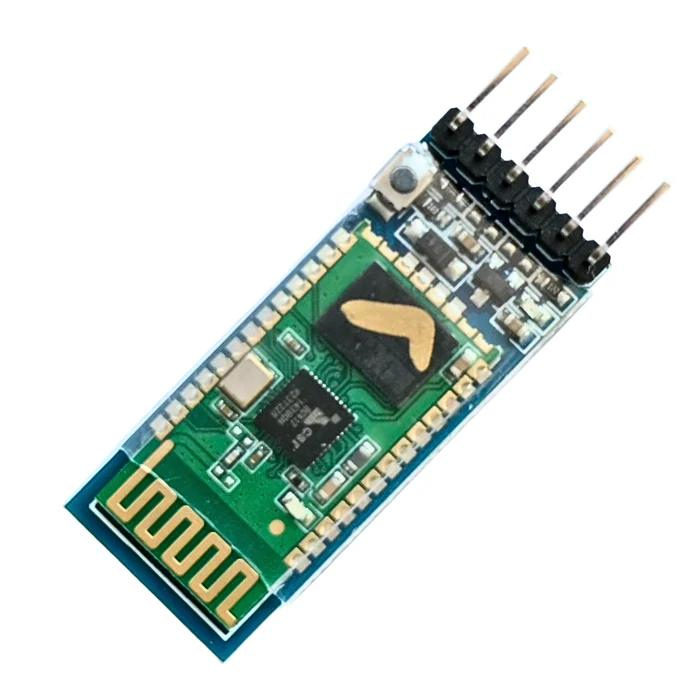

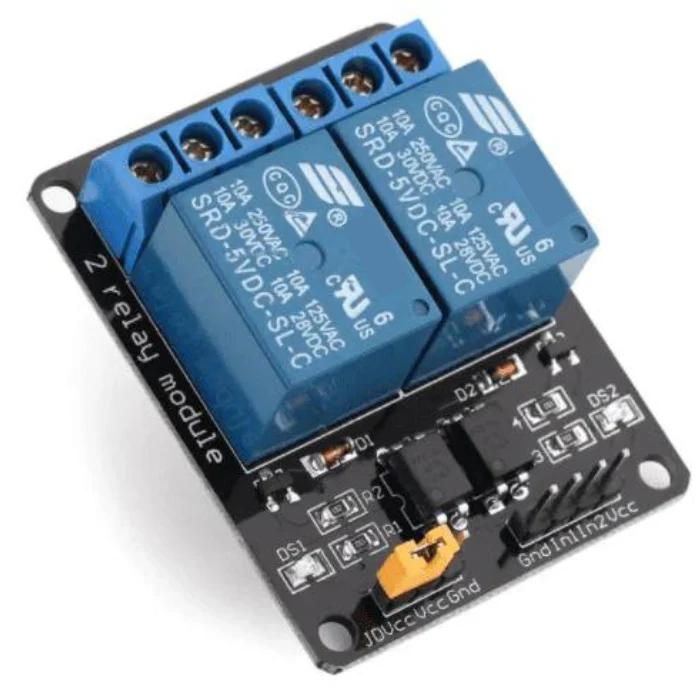

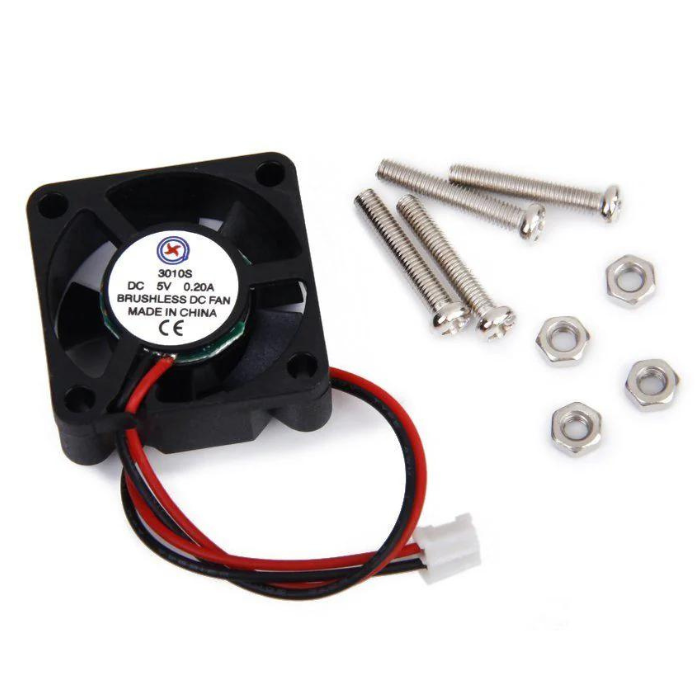

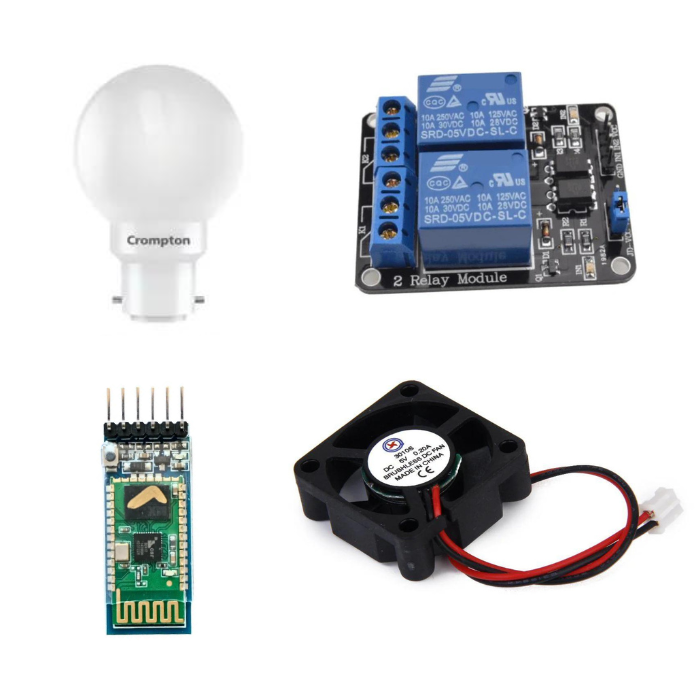

Advanced Electronics Kit for Grade 10 | Ekya School, CMR The Advanced Electronics Kit for Grade 10 by Ekya School, CMR is more than just a set of parts—it’s a doorway to exploring and creating with electronics. This kit is perfect for students who want to learn electronics with hands-on projects. This kit is designed to make learning fun and engaging. This kit contains components that allow students to participate in hands-on projects and get a deeper understanding of key electrical concepts. They will improve their critical thinking and problem-solving abilities. Everything is simple to utilize with common microcontrollers, which renders lots of freedom for creativity and invention. Here’s what’s inside: HC-05 Bluetooth Module: It supports a range of 9600-115200bps and operates at 2.4~2.524 GHz. It requires a 5VDC power supply, with low current consumption at 30mA and a range of under 100 meters. It’s easy to integrate with microcontrollers like Arduino, providing stable and reliable communication. 2-Ch 5V Relay Board: Features two channels, runs on 5V, and is compatible with Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, and TTL logic. It can handle up to 10A and provides electrical isolation for safety which makes it perfect for controlling high-power devices. 5V DC Fan: It operates on 5V and consumes just 0.2A. It’s designed for use with Raspberry Pi 3 and 2, boasting low power consumption at 20mA. This fan efficiently cools your components, is compact, and operates quietly. AC Bulb: It uses only 0.5W and operates at 220-240V, 50Hz, with a lifespan of 25000 hours. It’s energy-efficient and suitable for various projects, from simple circuits to home automation.

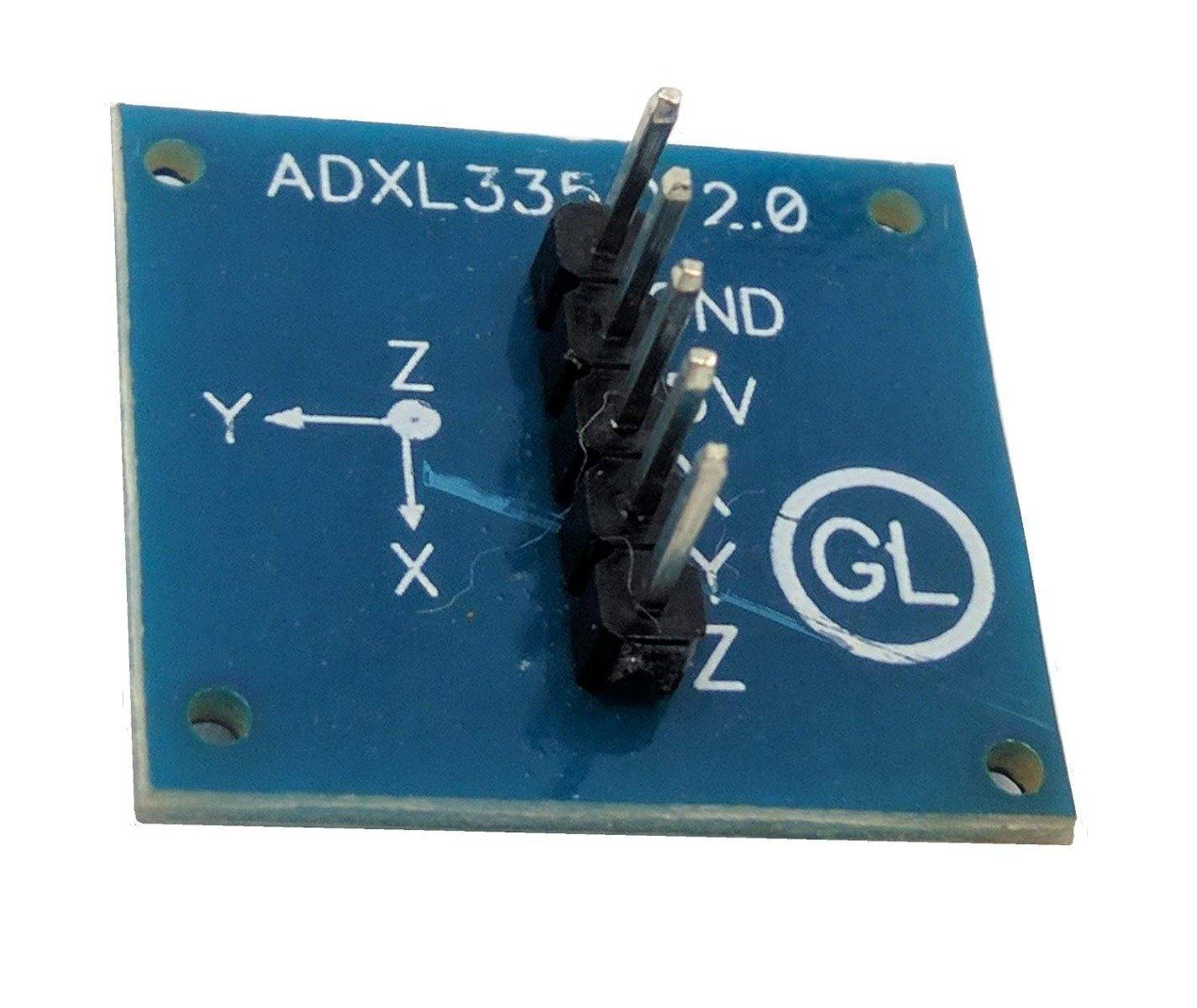

ADXL325 3-Axis Accelerometer The ADXL325 is a 3-axis accelerometer that can measure acceleration in three dimensions: X, Y, and Z. The ADX325 is a small, thin, low power, complete 3-axis accelerometer with signal conditioned voltage outputs. The product measures acceleration with a minimum full-scale range of +/-5 g. It can measure the static acceleration of gravity in tiltsensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration. The accelerometer is often used in applications such as detecting the orientation of a device, detecting movement, or measuring acceleration in sports or other activities. The ADXL325 is a small, low-power device that can be easily integrated into a variety of systems.

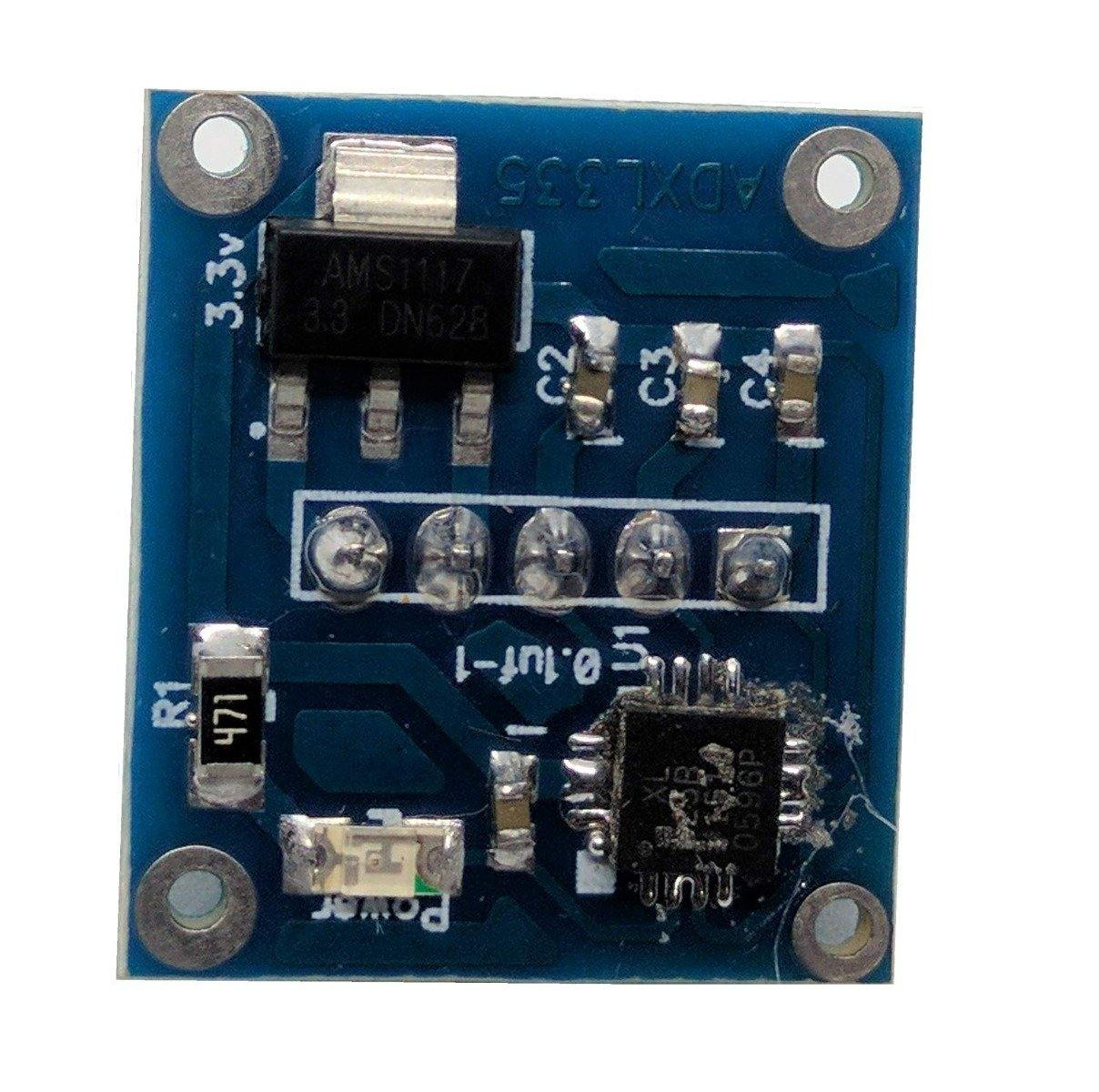

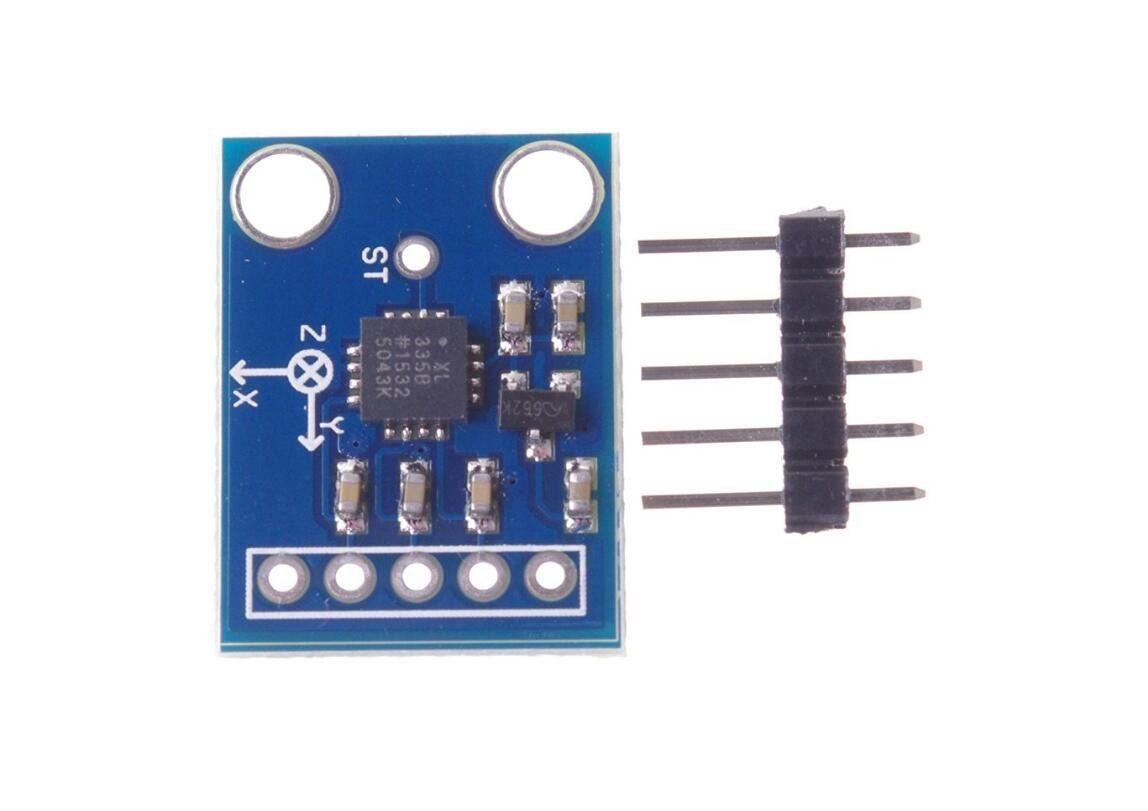

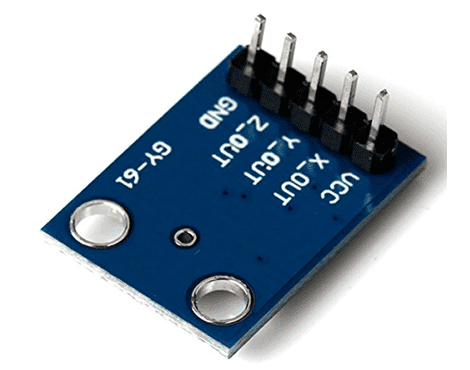

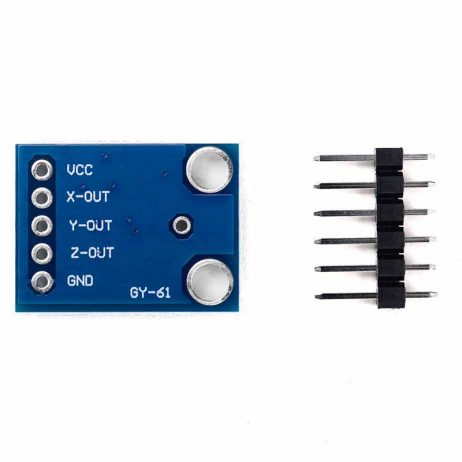

ADXL335 Triple-Axis Accelerometer The ADXL335 Triple-Axis Accelerometer is a breakout board for Analog Devices analog 3-axis accelerometer. The ADXL335 is a small, thin, low-power, complete 3-axis accelerometer with signal-conditioned voltage outputs. The product measures acceleration with a minimum full-scale range of ±3 g. It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration. The user selects the bandwidth of the accelerometer using the CX, CY, and CZ capacitors at the XOUT, YOUT, and ZOUT pins. Bandwidths can be selected to suit the application, with a range of 0.5 Hz to 1600 Hz for the X and Y axes, and a range of 0.5 Hz to 550 Hz for the Z axis. Key Features: Measures acceleration in X, Y, and Z axes. Offers a full-scale measurement range of ±3 g. Customizable bandwidth for X and Y axes from 0.5 Hz to 1600 Hz. Customizable bandwidth for the Z axis from 0.5 Hz to 550 Hz. Consumes only 350 ?A. Capable of surviving G shock up to 10,000 g. Operates on a voltage range of 1.8 V to 3.6 V. ADXL335 Triple-Axis Accelerometer Pin Diagram: Applications: Tilt-sensing applications Mobile devices Gaming systems Disk drive protection Image stabilization Sports and health devices

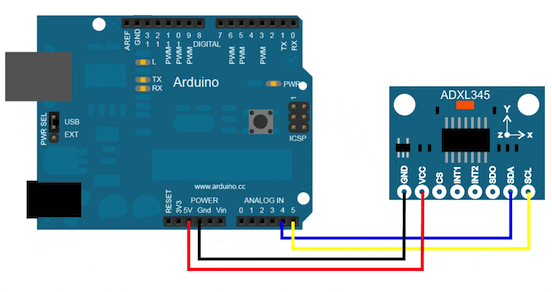

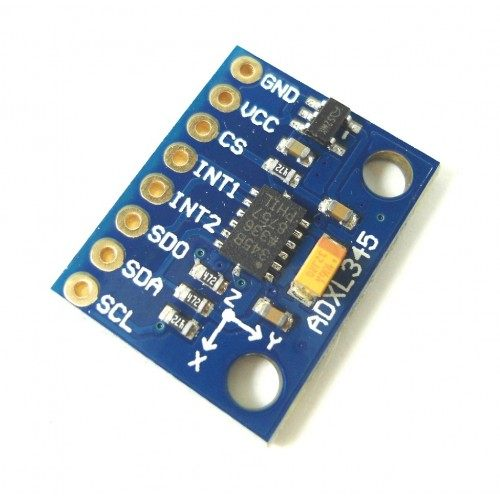

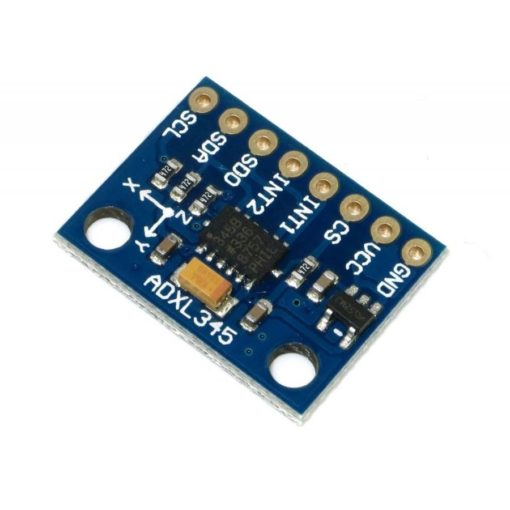

ADXL345 Accelerometer Module ADXL345 is a Breakout board for the Analog Device's ADXL345 triple-axis accelerometer. The module is populated with MOSFET-based Voltage level conversion circuitry to enable you to interface with different types of microcontrollers (3V3 & 5V). Components like decoupling capacitors, filter capacitors, pull-up resistors, and LED are also populated on board. This is ideal for motion and acceleration sensing applications. It is a low-power, 3-axis accelerometer module with I2C and SPI interfaces to communicate with controllers like Arduino Raspberry Pi, PIC, etc. It also has user-selectable sensitivity and 10-13bit of resolution. This Digital Accelerometer has a voltage regulator on board and can be connected to 5V and 3.3V powered controllers. Its high-resolution 4mg/LSB also enables it to measure less than 1° change in the object orientation. The ADXL345 features 4 sensitivity ranges from +/- 2G to +/- 16G. And it supports output data rates ranging from 10Hz to 3200Hz such as the Arduino. Also check, our product 6-axis motion tracking mpu6050 sensor Features: 13-bit resolution measurement at up to ±16g. Consumes as low as 23 ?A in measurement mode and 0.1 ?A in standby mode. Data is formatted as 16-bit two’s complement and accessible via SPI or I2C interfaces. Includes tap/double tap detection, activity/inactivity monitoring, and free-fall detection. Operates between 2.0 V to 3.6 V. Compact Size: Small and thin. Features a FIFO buffer to minimize host processor load. Check out our collections of Accelerometer Applications: Cost-sensitive, low power, motion- and tilt-sensing applications Mobile devices Gaming systems Robotics applications Data acquisition system of a vehicle Measuring vibration in a machine Monitoring bridge movements Detecting taps on objects Disk drive protection Image stabilization Sports and health devices

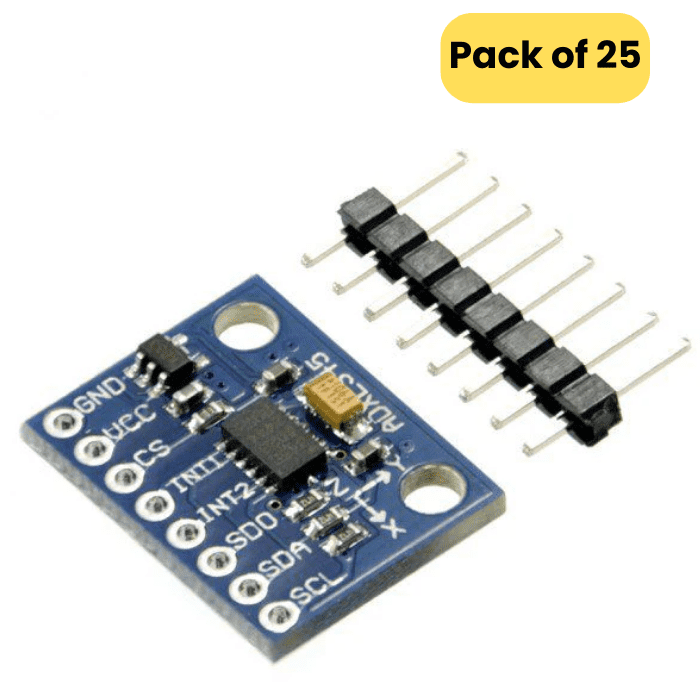

ADXL345 Accelerometer Module ADXL345 is a Breakout board for the Analog Device's ADXL345 triple-axis accelerometer. The module is populated with MOSFET-based Voltage level conversion circuitry to enable you to interface with different types of microcontrollers (3V3 & 5V). Apart from the above all, necessary components like decoupling capacitors, filter capacitors, pull-up resistors and LED are also populated on board. It is ideal for motion and acceleration sensing applications.It is a low-power, 3-axis MEMS accelerometer module with both I2C and SPI interfaces. The ADXL345 is a low-power, MEMS, three-axis accelerometer module with both SPI and I2C interfaces to communicate with your controller like Arduino , Raspberry Pi , PIC, etc. It also has user-selectable sensitivity and 10-13bit of resolution. This Digital Accelerometer has a voltage regulator on board hence can be connected to both 5V and 3.3V powered controllers. Its high-resolution 4mg/LSB also enables it to measure less than 1° change in the orientation of the object. The ADXL Sensor can be used in Robotics applications, measuring vibration in a machine, in the data acquisition system of a vehicle, measuring the motions of a bridge, etc. It can also be used to detect taps on an object. The ADXL345 features 4 sensitivity ranges from +/- 2G to +/- 16G. And it supports output data rates ranging from 10Hz to 3200Hz such as the Arduino. Applications: Cost-sensitive, low power, motion- and tilt-sensing applications Mobile devices Gaming systems Data acquisition system of a vehicle Measuring vibration in a machine Disk drive protection Image stabilization Sports and health devices

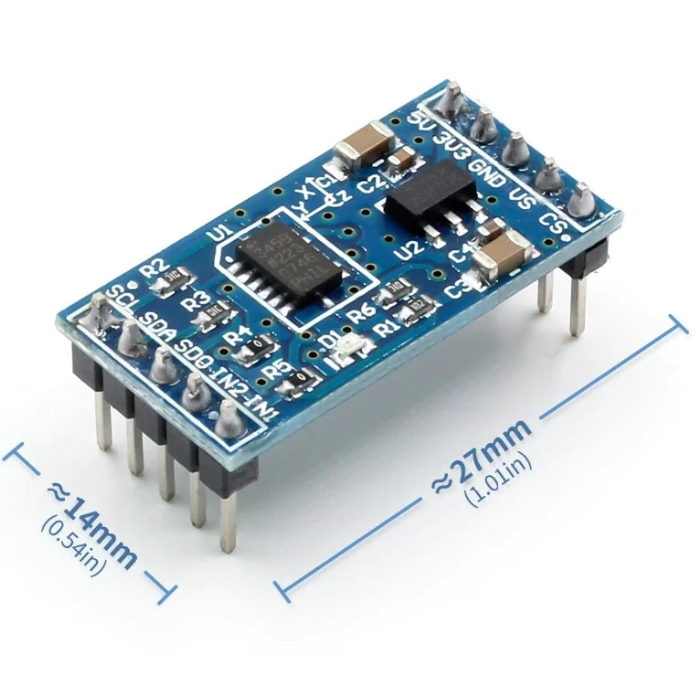

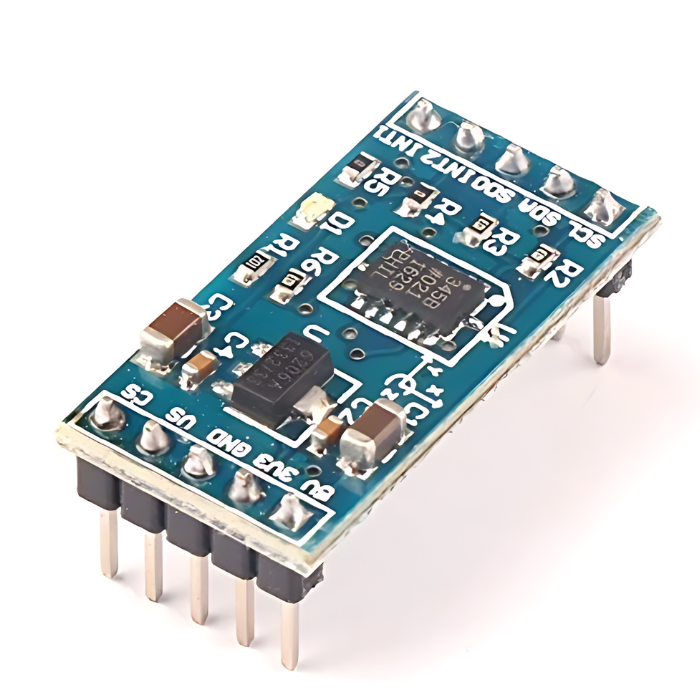

ADXL345 Digital Angle Acceleration Sensor Module The ADXL345 Digital Angle Acceleration Sensor Module is the go-to solution for high-precision movement measurement. Whether you're working on a DIY project or need accurate angle detection, this sensor module delivers. With versatile compatibility supporting both 5V and 3.3V inputs, it seamlessly interfaces with microcontrollers like Arduino. This sensor features wide sensitivity ranges, from +/- 2G to +/- 16G, offering flexibility for various applications. Its noise-resistant design, incorporating the onboard RT9161, ensures faster load speed, making it perfect for noisy power environments. DIY enthusiasts will appreciate its user-friendly design, and its mobile application suitability makes it a valuable tool for multiple scenarios. Made with quality in mind, the ADXL345 promises high-resolution measurements (4mg/LSB) for changes less than 1.0° angle. From skew detection to dynamic acceleration measurement, this sensor module is a versatile choice. Features: Supports 5V/3.3V input Onboard RT9161 faster load the appropriate speed Ideal for noisy power environment Application: DIY project. Applications: Motion Sensing: The ADXL345 can be used for motion sensing in various applications, such as gaming devices, pointing devices, and handsets Tilt Sensing: It can be used as a tilt sensor to measure static acceleration, such as gravity Activity and Inactivity Detection: The ADXL345 can detect the presence or lack of motion by comparing acceleration on any axis with user-set thresholds Tap and Double-Tap Detection: It can detect single and double taps in any direction Free-Fall Detection: The ADXL345 can detect if the device is falling High-G Shock Detection: It can handle high-g shocks, making it suitable for applications in harsh environments Low Power Consumption: The ADXL345 is designed to consume minimal power, making it suitable for battery-powered devices Selectable Range: The ADXL345 offers multiple selectable ranges, allowing you to adjust the measurement sensitivity based on your specific needs Data Rate Control: You can configure the output data rate to suit your application requirements Integration with Microcontrollers: The ADXL345 can be easily integrated with microcontrollers and other digital devices using digital interfaces such as I2C and SPI
