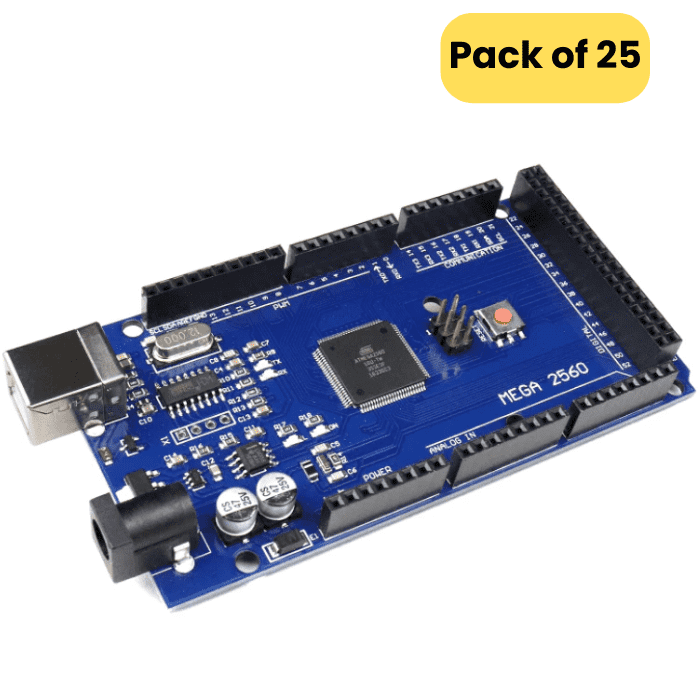

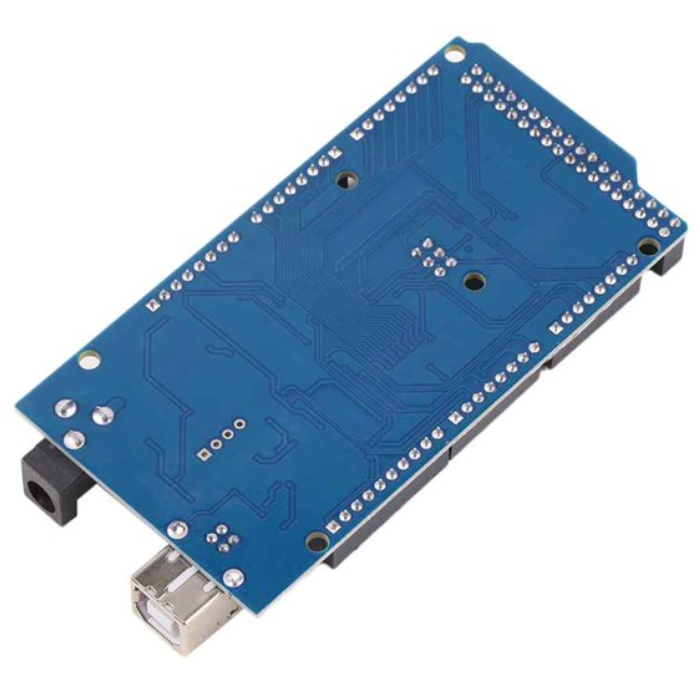

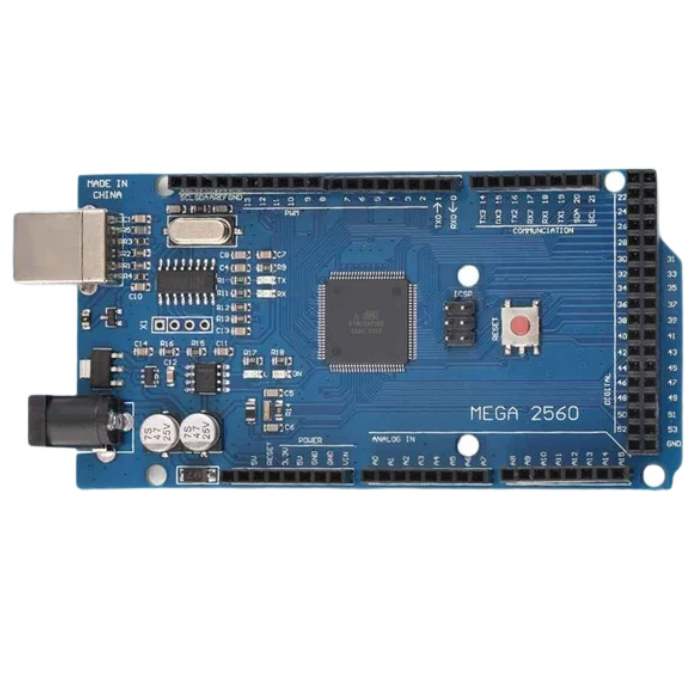

Arduino MEGA 2560 CH340 R3 Compatible Board The Arduino MEGA 2560 R3 feature-packed development board is a dream come true for electronics enthusiasts and creators. It comes with top-notch quality and assurance. This Arduino mega microcontroller Board is a true powerhouse, equipped with 54 digital I/O pins and 16 analog input pins. It caters to all age groups and skill levels, encouraging skill development as you experiment and innovate. It's an ideal choice for a spectrum of applications, from robotics to automation and IoT projects. The AT Mega2560 Arduino R3 board is an Android Accessory Development Kit (ADK) that can be powered via a USB connection or with an external power supply. The power source is selected automatically. External (non-USB) power can come either from an AC-to-DC adapter (wall-wart) or a battery. The adapter can be connected by plugging a 2.1mm center-positive plug into the board’s power jack. The Arduino Mega R3 Android Accessory Development Kit (ADK) is a USB Host, the phone will attempt to draw power from it when it needs to charge. When the ADK is powered over USB, 500mA total is available for the phone and board. It's engineered to solve a wide range of user applications. This makes it a must-have for makers, students, and professionals alike. If you're someone who values quality and versatility in your electronics projects, the Arduino MEGA 2560 R3 Board is an indispensable tool. New Features of the Arduino Mega2560 R3 Board Features a 1.0 pinout with added SDA and SCL pins near the AREF pin. Features two new pins located near the RESET pin. It allow mega2560 shields to adapt to the voltage provided by the board. The At Mega2560 development board also features a stronger RESET circuit. Leads from a battery can be inserted in the GND and Vin pin headers of the POWER connector. Applications: Building robotic projects. Creating automation systems for home or industrial use. Perfect for Internet of Things (IoT) applications. Capable of gathering data from sensors and input devices. Excellent for prototyping electronic projects. A valuable tool for teaching electronics, programming, and engineering concepts. Controlling lights, appliances, and security devices.

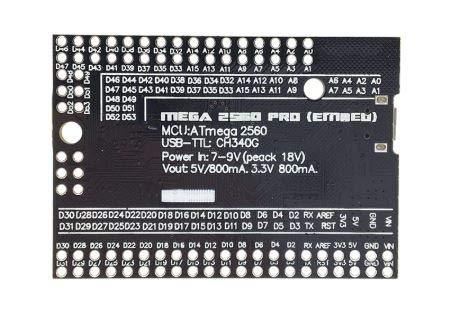

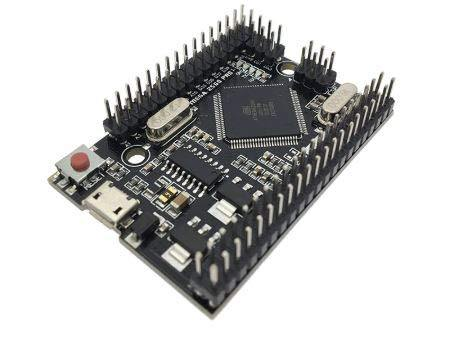

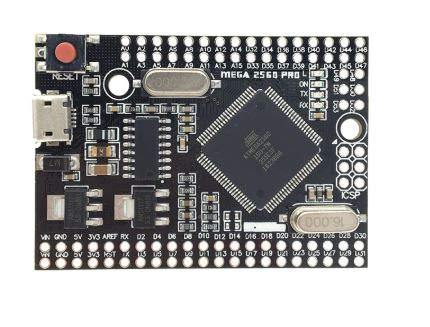

Mega 2560 Pro CH340G ATmega2560 Board The Mega Pro Embed CH340G / ATmega2560 board is based on the ATmega2560 microcontroller and the USB-UART adapter CH340. The board is compatible with Arduino Mega 2560. The Mega 2560 is an excellent solution for building exciting projects based on ATmega2560. The Mega Pro Embed functionalities are identical to the Arduino Mega 2560. Even though it is an Embed board, it is solid and stable as the Mega Board. It uses the original chip, and a 16 MHz high-quality quartz resonator is present on the board. atmega2560 board has a Micro USB connector that allows you to connect the microcontroller to the computer via the USB-UART adapter CH340 and may require an installation driver. You can power the Mega 2560 Pro or power the pins through the MicroUSB connector. The voltage regulator (LDO) can handle input voltages from 6V to 9V (peak 18V) DC. The voltage regulator allows to use up to 18V as an input value, however, we do not recommend exceeding the recommended values aforementioned, since this can lead to excessive heat and damage the device. Key Features: Based on the ATmega2560. Equipped with a 16 MHz quartz resonator. Integrated CH340 adapter for easy USB connectivity. Fully compatible with the Arduino Mega 2560. Supporting input voltages from 6V to 9V (up to 18V peak). Comes with 20-pin headers for easy prototyping. Features a built-in voltage regulator (LDO). Applications : IoT Projects Home automation Agriculture automation

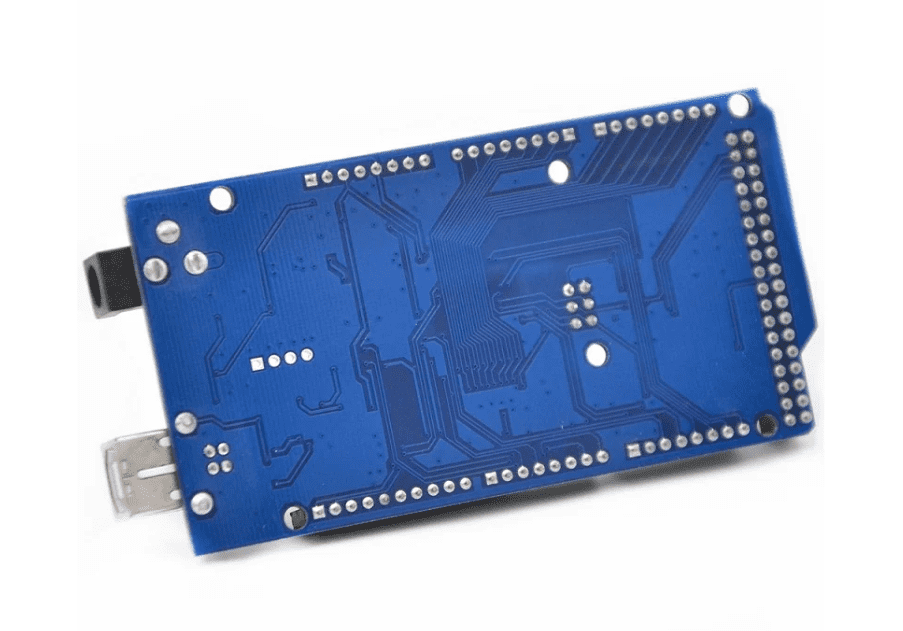

MEGA 2560 R3 Board compatible with Arduino The MEGA 2560 R3 CH340G Board MEGA 2560 R3 Board compatible with Arduino is a micro-controller board base on the ATmega2560. It has a USB host interface to connect with Android-based phones, based on the MAX3421e IC. The ATMega2560 has 54 digital input/output pins (of which 15 can be used as PWM outputs); 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator; a USB connection, a power jack, an ICSP header, and a reset button. The MEGA ADK is based on the Mega 2560. Similar to the Mega 2560 and Uno, it features an ATmega8U2 program as a USB-to-serial converter. Revision 3 of the Mega ADK board has a resistor pulling the 8U2 HWB line to the ground, making it easier to put into DFU(Device Firmware Upgrade) mode. New Features of the Mega2560 R3 Board The Mega2560 R3 board features a 1.0 pinout with an added SDA and SCL pins near the AREF pin. It also features two new pins located near the RESET pin. They allow mega2560 shields to adapt to the voltage provided by the board. The At Mega2560 development board also features a stronger RESET circuit. The AT Mega2560 Arduino R3 board is an Android Accessory Development Kit (ADK) that can be powered via a USB connection or with an external power supply. The power source is selected automatically. External (non-USB) power can come either from an AC-to-DC adapter (wall-wart) or battery. The adapter can be connected by plugging a 2.1mm center-positive plug into the board’s power jack. Leads from a battery can be inserted in the GND and Vin pin headers of the POWER connector. Because the Mega R3 Android Accessory Development Kit (ADK) is a USB Host, the phone will attempt to draw power from it when it needs to charge. When the ADK is powered over USB, 500mA total is available for the phone and board.

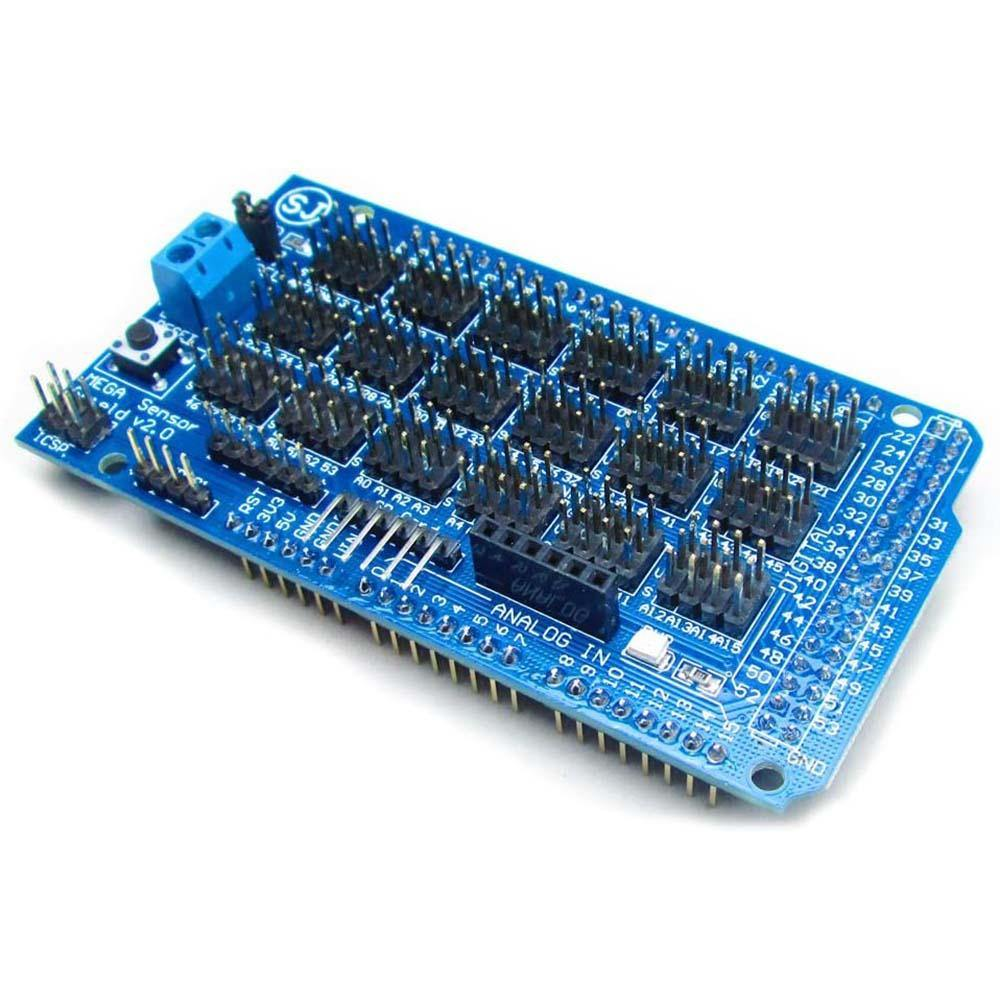

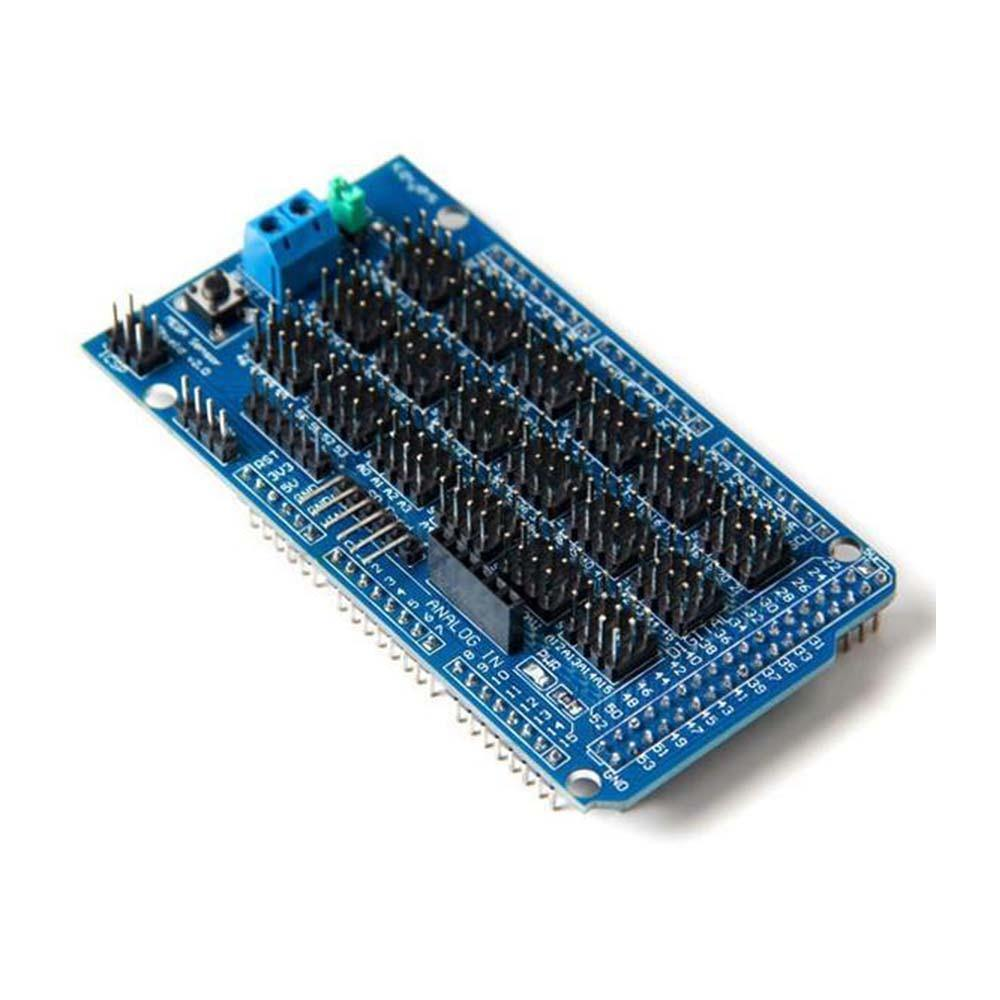

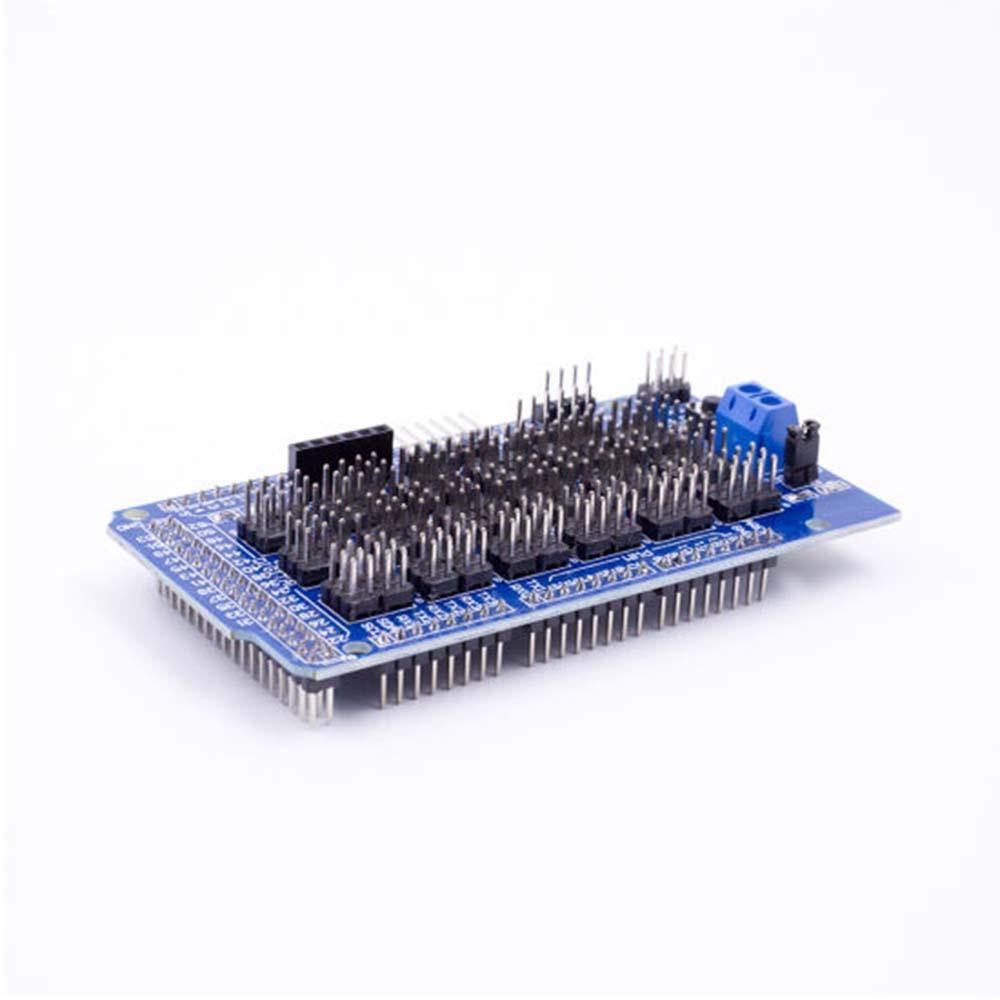

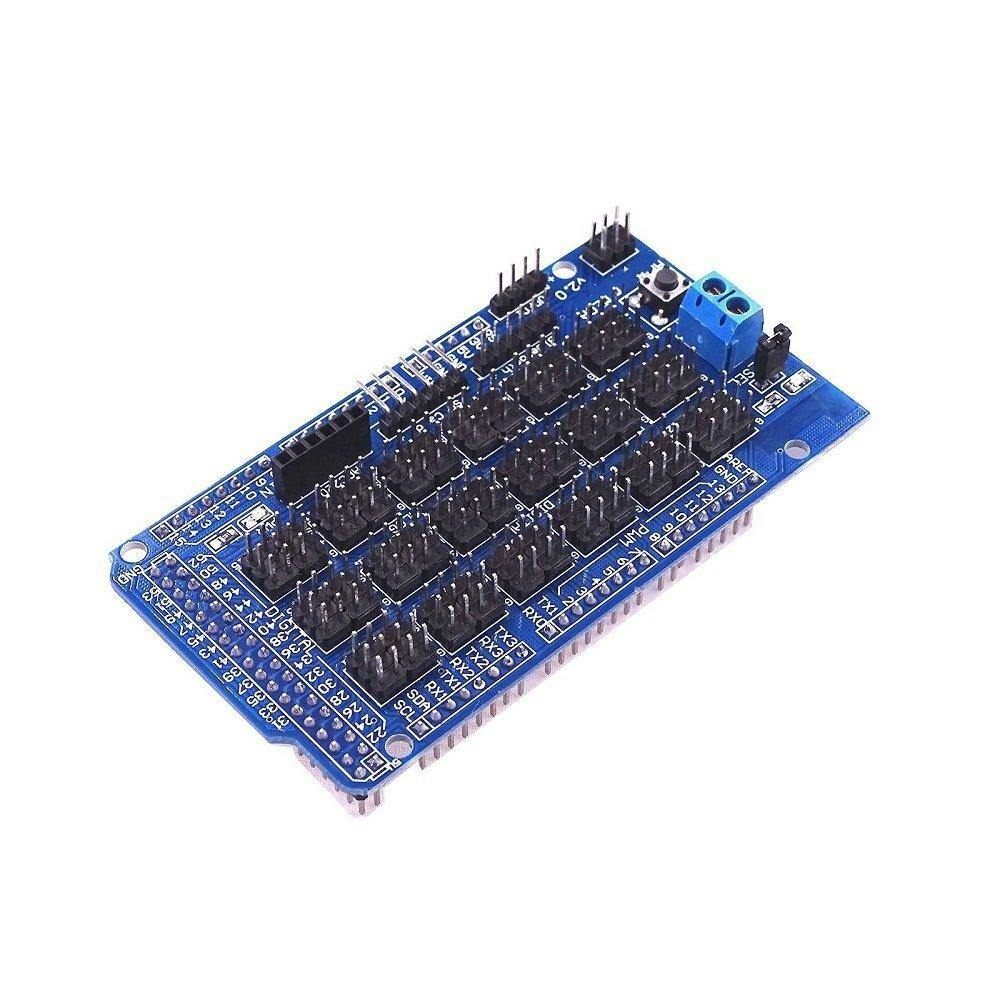

Mega 2560 R3 Sensor Shield V2.0 compatible with Arduino The Arduino mega has many more i/o pins (54 digital pins and 16 analog pins)than a standard Arduino. This Arduino shield also has connectors specifically for some external devices like an SD card, radio communications (Bluetooth and others). It also has an option to power the "v" pins on all the digital i/o 3-pin groups from an external power supply instead of the Arduino +5v. This is good for large numbers of servos etc. The "analog" 3-pin groups still use the Arduino +5v which is better from an electrical noise perspective. Version has two options of +5v supply to all the "v" pins jumper on: +5 comes from the Arduino. Should be limited to about 300 ma jumper off: +5 (or other appropriate voltage) comes from an external supply connected to the blue terminal strip. External power ground must also be connected to the blue terminal strip. New Arduino Mega 2560 R3 Sensor Shield V2.0 has an advantage of a PCB Immersion Gold processed all of the digital and analog interfaces, the motherboard will not only be extended to the steering gear line order form ad hoc Bluetooth module communication interface, SD card module communication interface, APC220 radio frequency module communication interface, and RB URF v1.1 ultrasonic sensor interface, and independent expansion easier to use convenient. beginner, do not have cumbersome complex circuit connection and headache, will simplify the circuit on the true meaning of this sensor expansion board can easily connect the commonly used sensor , a sensor only needs a universal 3P sensor cable (regardless of digital cable and analog cable), complete the circuit connection, write the program is downloaded to the MEGA controller reads the sensor data, or receive wireless module return data, operation processing, final Easily complete your own interactive works. PCB finest Immersion Gold processing Plug it easier to set up a variety of commonly used module interface Applications: You can connect the expansion board to various modules, such as sensor, relay, button and so on.

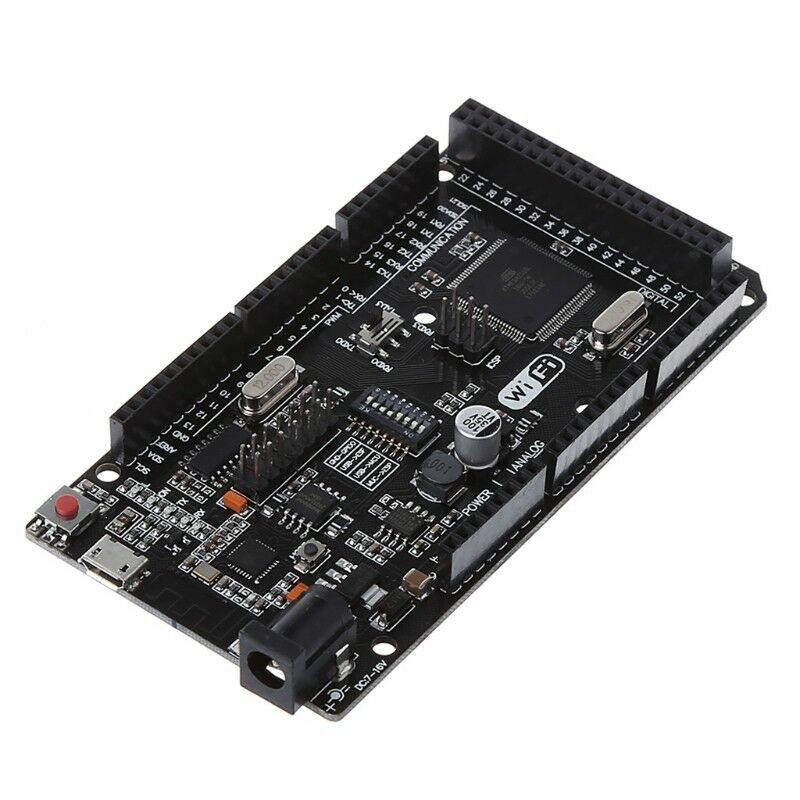

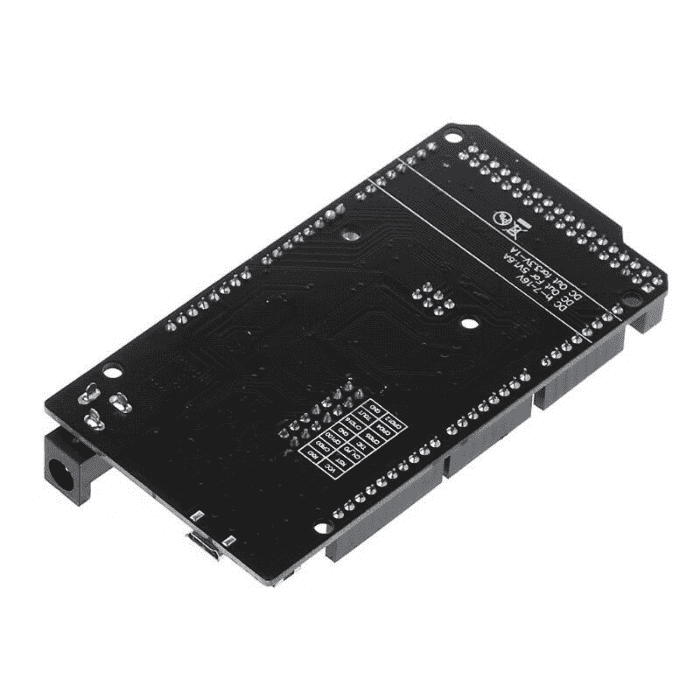

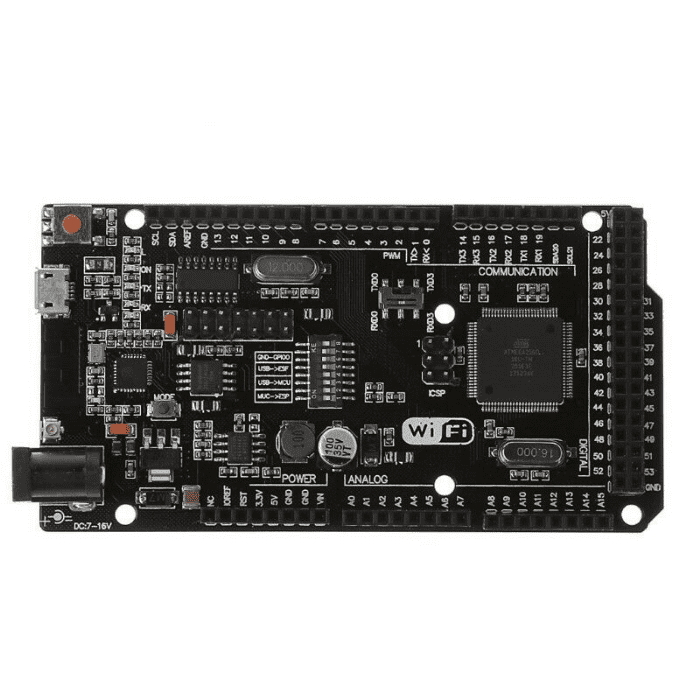

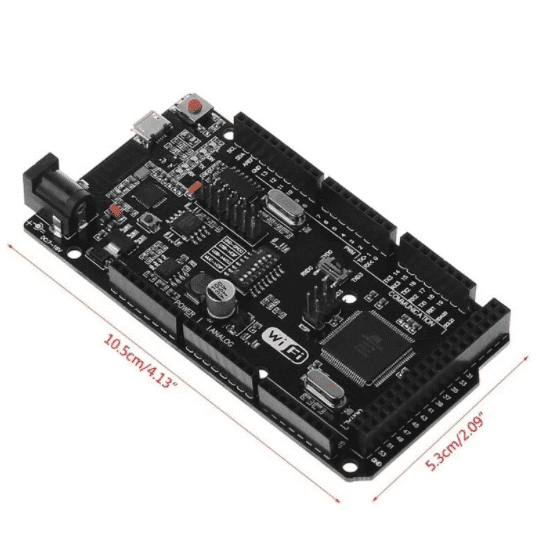

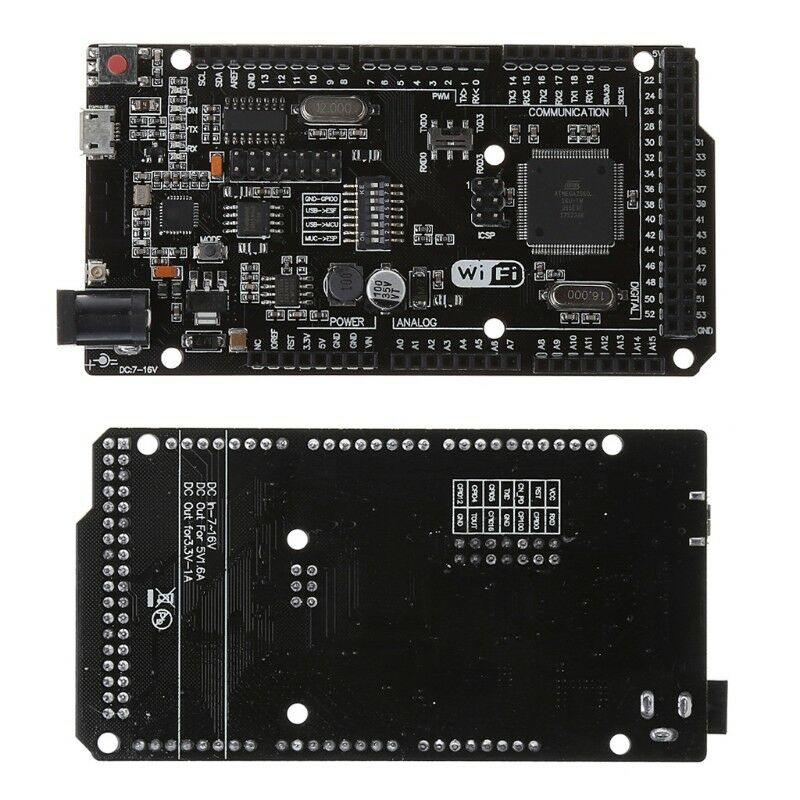

Arduino Mega 2560+WiFi R3 ATmega2560+Node MCU ESP8266 CH340G Board Compatible with Arduino Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 is a customized version of the Arduino Mega R3 board with full integration of Atmel ATmega2560 microcontroller and ESP8266 Wi-Fi IC, with 32 Mb (megabits) of flash memory, and CH340G USB-TTL converter on a single board! All components can be set up to work together or independently. Mega +WiFi R3 Atmega2560+NodeMCU ESP8266 32Mb Memory USB-TTL CH340G Compatible with Arduino Mega is Full integration on one board Mega R3 ATmega2560 and WiFi ESP8266 with memory 32Mb. All of the modules can work together or separately. And everyone has their pinout headers. The convenient solution for the development of new projects requiring Uno and WiFi. Via USB you can update sketches and firmware for ATmega328 and ESP8266. Switch status and model selection: Connection/Switch No. 1 2 3 4 5 6 7 8 CH340 connect to ESP8266 (upload sketch) OFF OFF OFF OFF ON ON ON NoUSE CH340 connect to ESP8266 (connect) OFF OFF OFF OFF ON ON OFF NoUSE CH340 connect to ATmega2560 (upload sketch) OFF OFF ON ON OFF OFF OFF NoUSE CH340 connect to Mega2560 COM3 connect to ESP8266 ON ON ON ON OFF OFF OFF NoUSE Mega2560+ESP8266 ON ON OFF OFF OFF OFF OFF NoUSE All modules work independently OFF OFF OFF OFF OFF OFF OFF NoUSE Also, have the switch to change of connecting port between ATmega2560 and ESP8266After choosing the mode of the board can proceed to set up the IDEIt is important that when the ESP8266 module is programming, it is necessary to press the button Mode Applications: IoT smart applications Wi-Fi-based applications Robotics applications Can be used to enable internet connectivity to embedded applications

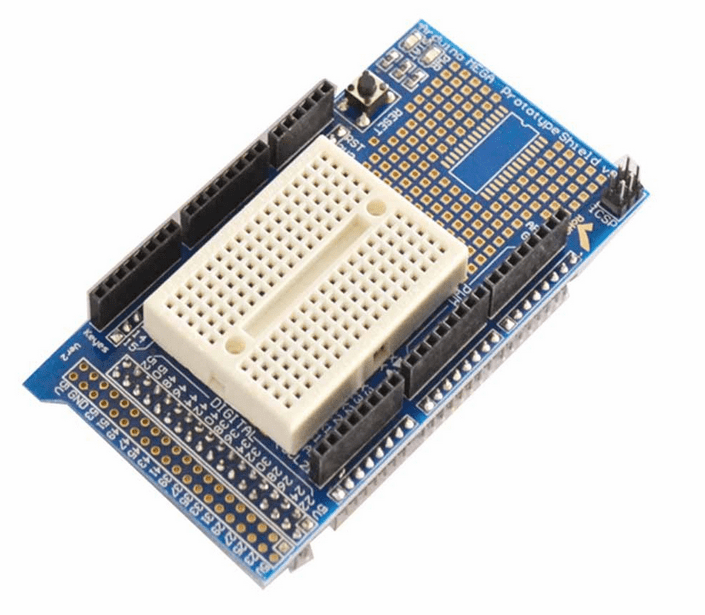

MEGA Prototype Shield V3 The Arduino-compatible MEGA Prototype Shield V3.0 comes equipped with a breadboard , allowing you to easily construct circuits. The Arduino shield features a gold PCB sink process and a compact mainboard with small golden square pad spacing, making it convenient to solder components onto. With the Prototyping Shield, designing custom circuits is a breeze. You can either solder components to create a prototyping area for your project or utilize a small breadboard for testing circuit ideas without the need for solder. Additionally, it offers extra connections for all I/O pins and ample space to mount through-hole and surface mount integrated circuits. This makes it a convenient solution for building custom circuits and modules. The Prototype shield, when paired with a miniature breadboard, measures 2.7 inches in length and 2.1 inches in width. It also includes three screw holes for attaching it to a surface or case. Do note that the distance between digital pins 7 and 8 is 160 mil (12:16”), which is not an even multiple of the 100-mile distance from the other pins.

Arduino Micro with Headers The Arduino Micro was developed by Arduino in collaboration with Adafruit. The Arduino micro is a powerful development board integrated with the ATmega32U4 microcontroller. This arduino board features 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a reset button. The Arduino Micro contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard. This Original Arduino Micro is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. It also has other implications for the behaviour of the board. Onboard is the processor, crystal, micro USB connection with fuse, Reset button, ISP low-level reprogramming header, ON LED, TX and RX LEDs, an extra user pin #13 LED, and a 3.3V regulator. You’ll probably also want to pick up a micro-B USB cable to connect this board to your computer You can use it for basic Arduino sketches as well as USB client projects like making it appear as a mouse or keyboard to your computer! Although it is not shield compatible – it does have all the same pins as a Leonardo. Its best for when you want to shrink your project down or use it on a breadboard. Pinout of Arduino Micro Note: Iotcart is the authorized seller of Arduino in India. Therefore, even if you are Bangalore, Hyderabad, Mumbai, or Pune, you can order and buy Arduino Micro online from the comfort of your home. Look out our various collections of Original Arduino Boards .

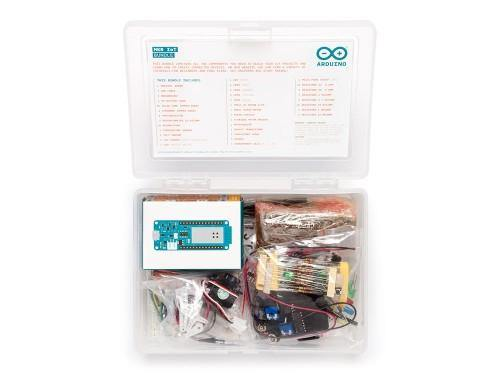

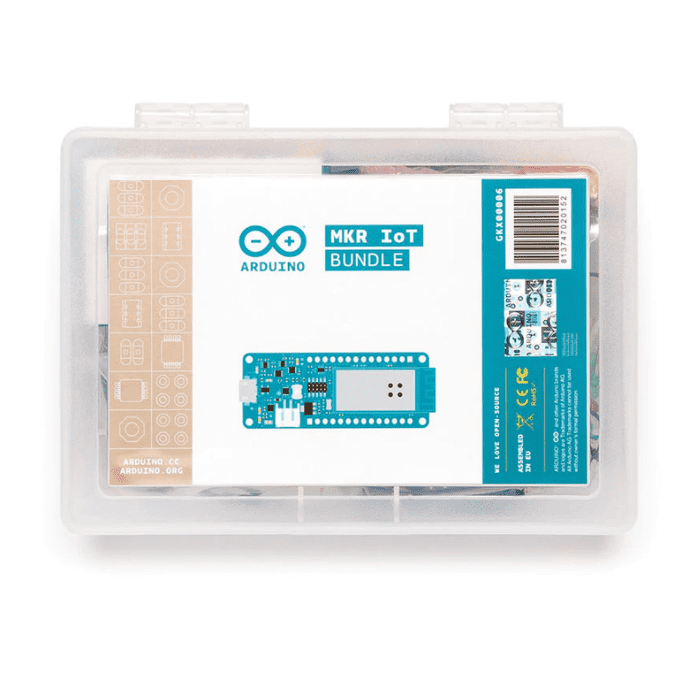

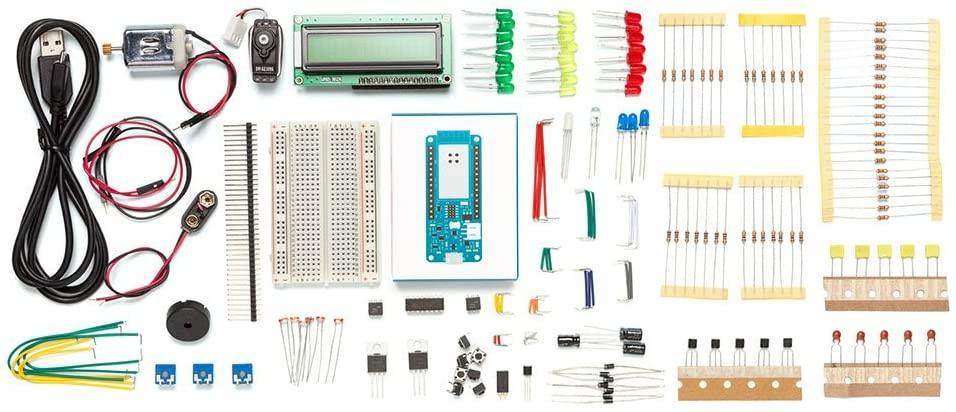

Arduino MKR IoT Bundle The Arduino MKR IoT Bundle comes with the most optimum set of components to get started with building various projects right from a beginner level all the way up to advanced IoT projects. This Arduino kit helps you get practical hands-on experience in the embedded systems and IoT domain. It is the perfect kit for the everyday hobbyist and tinkerer. The Arduino MKR IoT bundle ships with the Arduino MKR1000 board which combines the functionality of the Zero and the Wi-Fi Shield. It offers a practical and cost-effective solution for makers seeking to add Wi-Fi connectivity to their projects. It is based on the Atmel ATSAMW25 SoC (System on Chip), which is part of the SmartConnect family of Atmel Wireless devices, specifically designed for IoT projects and devices. The design includes a Li-Po charging circuit that allows the Arduino/Genuino MKR1000 to run on battery power or external 5V, charging the Li-Po battery while running on external power. Pinout Of Arduino MKR IoT Bundle Applications: I Love You Pillow Puzzle Box Pavlov's Cat The Nerd Plant Communicator Warning: Unlike most Arduino & Genuino boards, the MKR1000 runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board. While output to 5V digital devices is possible, bidirectional communication with 5V devices needs proper level shifting. Note: The Arduino MKR IoT kir comes in a 22x15cms package and weighs about 200 grams. Iotcart is the authorized seller of Arduino in India. Therefore, even if you are in Bangalore, Hyderabad, Mumbai, or Pune, you can order and buy Arduino MKR IoT Kit online from the comfort of your home. Please note, don't connect 9V to the board, as it will be damaged. You can use the 9v Battery strip to supply an external component.

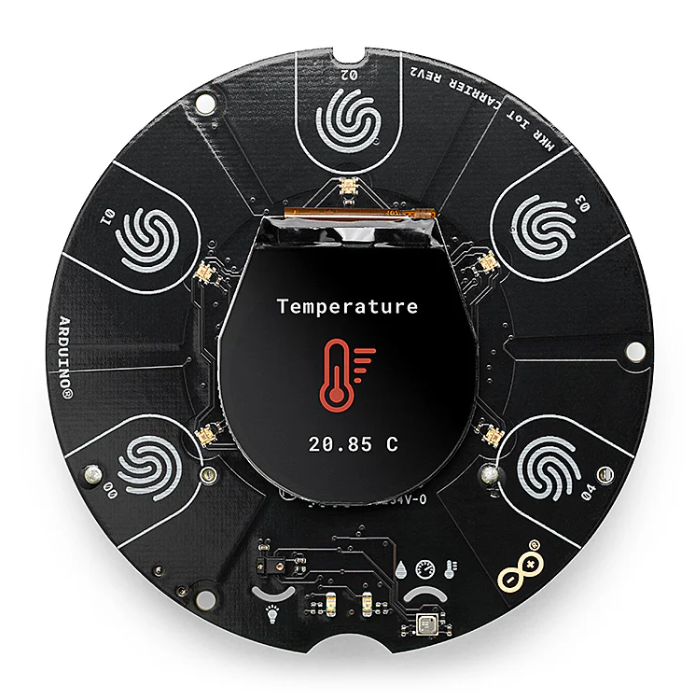

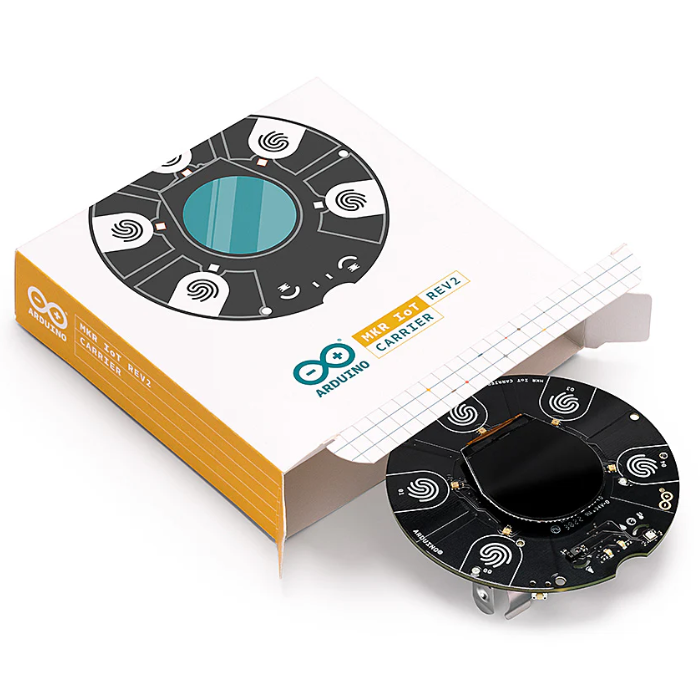

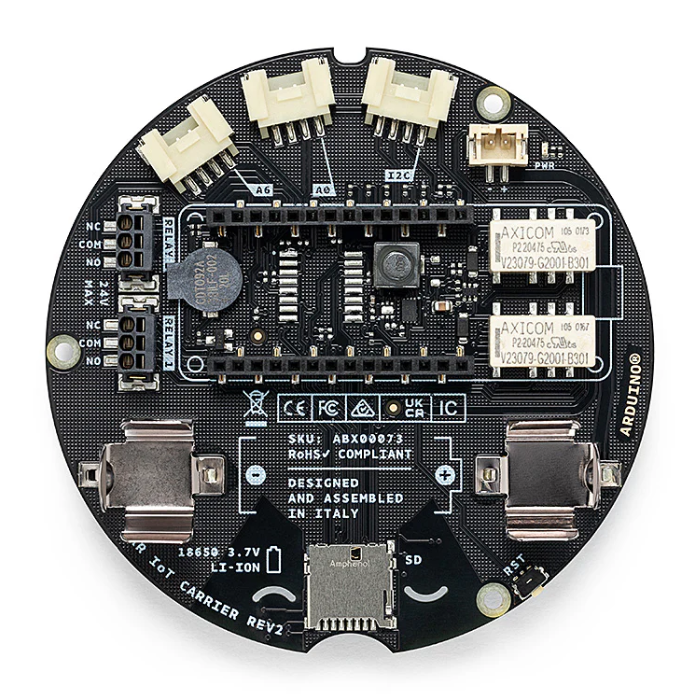

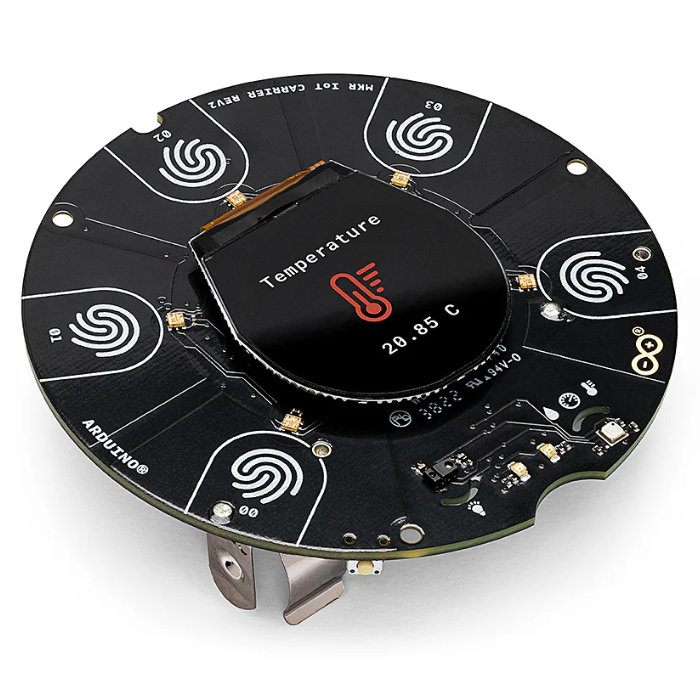

Arduino MKR IoT Carrier Rev2 ABX00073 Meet the Arduino MKR IoT Carrier Rev2, your go-to tool for creating exciting Internet of Things (IoT) projects easily. This carrier works with any board from the MKR family, so you don’t need extra parts to get started. Here’s what you can do with the MKR IoT Carrier Rev2: Build Environment Monitors: Use the built-in sensors to keep track of things like temperature, humidity, air pressure, and air quality. Monitor environmental changes and detect movement with ease. Using Grove connections, you can add more analog or I2C modules to your project. Data can be saved to an SD card or uploaded immediately to the Arduino IoT Cloud for real-time monitoring and analysis. Create Custom Interfaces: If you want to display sensor information or make your own controls, you can use the colorful OLED screen. This screen allows you to set up menus and options. Plus, you can use the LEDs and buzzer to give feedback and make your project more interactive. Control Devices: You can use the two built-in relays to manage electronic devices that use up to 24 volts. This means you can turn things like lamps on or off remotely using the Arduino IoT Cloud app. You can also use the data from the sensors to control these devices based on what’s happening in your environment. Differences between MKR IoT Carrier Rev2 and MKR IoT Carrier: Some changes have been made to the sensors and components in this updated version Some sensors have changed: The humidity sensor (HTS221) and the barometric pressure sensor (LP22HB) have been replaced with the new BME6688 sensor. The IMU (LSM6DS3) has been upgraded to the LSM6DSOX. Additionally, some components have been repositioned: A new reset button has been added. The relay connectors have been rotated 90°. The light sensor (APDS-9960) has been moved to a new position. The relay control pins have been changed to pins 1 and 2. The Grove connector assignment has shifted from pin A5 to pin A6. Check out: Arduino MKR IoT Carrier Rev2 Cheat Sheet Key Features: BME6688 sensor for temperature, humidity, and pressure; LSM6DSOX IMU; and APDS-9960 light sensor. Color OLED screen for custom interfaces. Grove connections for attaching additional sensors. SD card slot with Arduino IoT Cloud connectivity. Two relays for devices up to 24 volts, including remote control via the Arduino IoT Cloud app. New reset button, relay connector rotation, light sensor repositioning, relay pin updates, and Grove connector assignment adjustment. Pin Diagram:

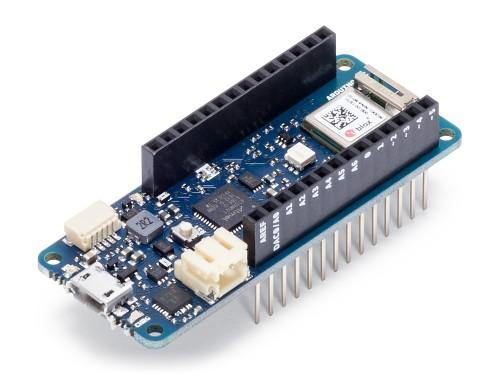

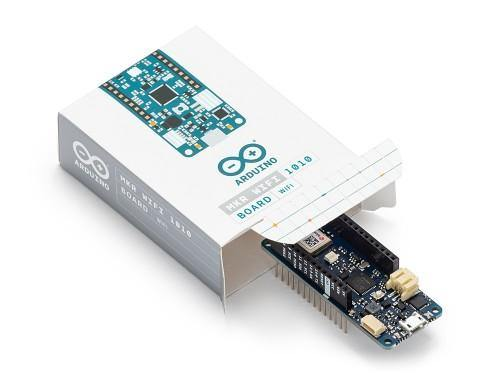

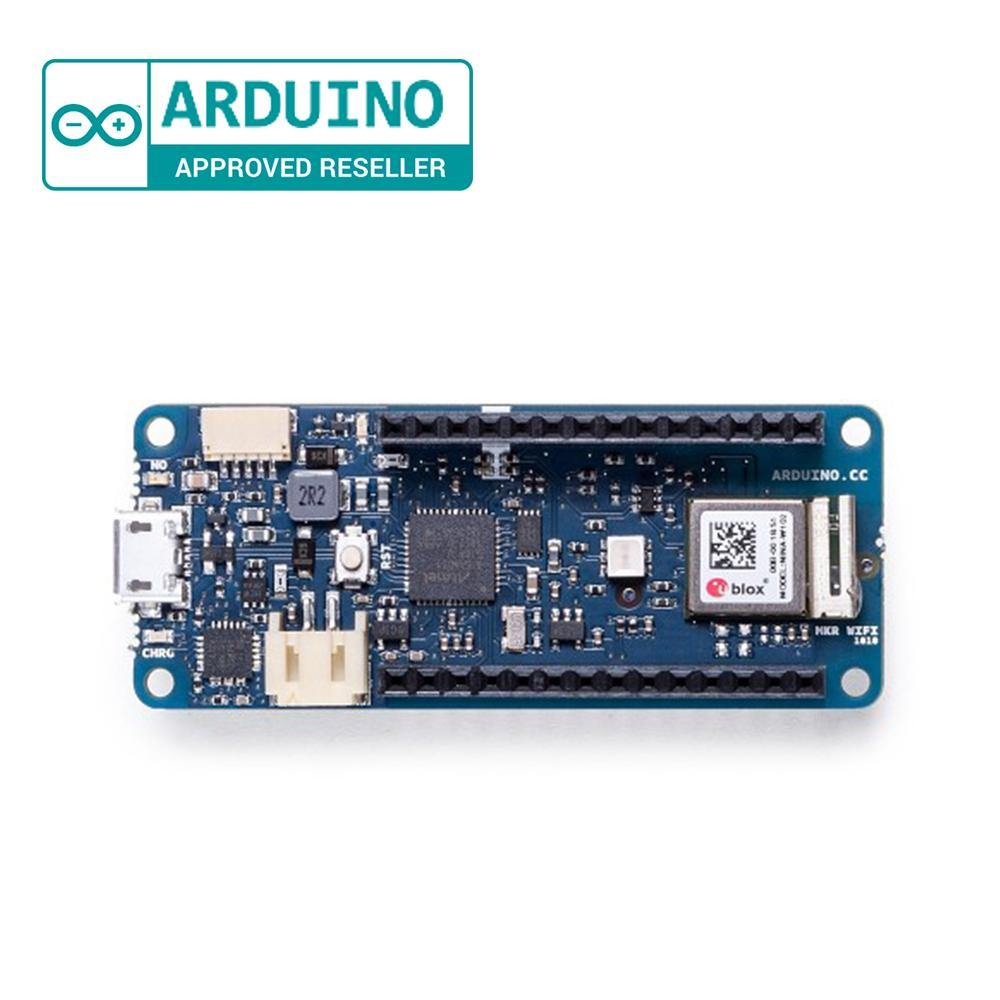

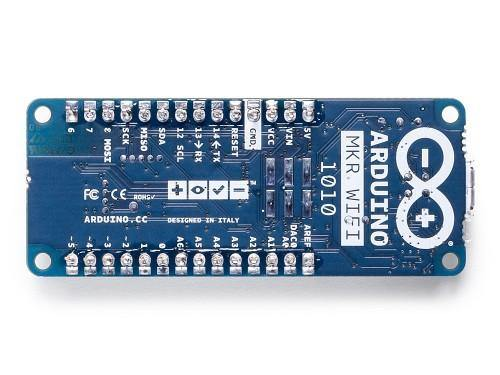

Arduino MKR WIFI 1010 ABX00023 The Original Arduino MKR WiFi 1010 board is the easiest point of entry to basic IoT and pico-network application design. Whether you are looking at building a sensor network connected to your office or home router, or if you want to create a BLE device sending data to a cellphone, the MKR WiFi 1010 is your one-stop solution for many of the basic IoT application scenarios. The MKR WIFI 1010 is a significant improvement on the MKR 1000 WIFI. It’s equipped with an ESP32 module made by U-BLOX. This board aims to speed up and simplify the prototyping of WiFi-based IoT applications thanks to the flexibility of the ESP32 module and its low power consumption. read more : COVID Hacks #4 Quarantine Enforcer Key Features: Offers easy connectivity to the office or home routers. Ideal for basic IoT and pico-network applications. Supports building sensor networks and BLE devices. Features an ESP32 module by U-BLOX for improved performance and lower power consumption. Designed to streamline and accelerate WiFi-based IoT prototyping. It has a SAMD21 Cortex-M0+ 32bit low power ARM MCU Microcontroller. Supports power input via USB or VIN at 5V. Compatible with Li-Po single-cell batteries (minimum 3.7V, 1024mAh). Offers 256 KB of internal flash memory for storing program code and data. Pinout: Pinout of Arduino MKR WiFi 1010 Note: Iotcart is the authorized seller of Arduino in India. Therefore, even if you are in Bangalore, Hyderabad, Mumbai or Pune, you can order and buy Arduino MKR Wifi board online from the comfort of your home.
