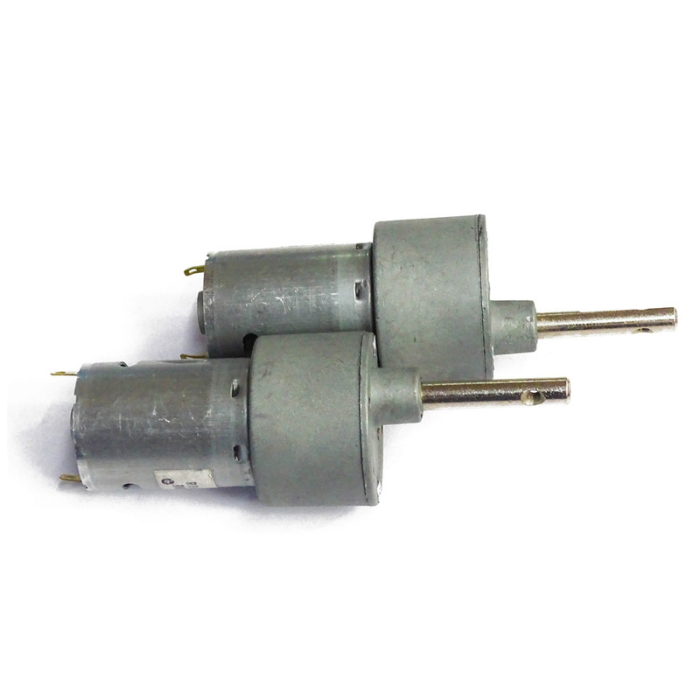

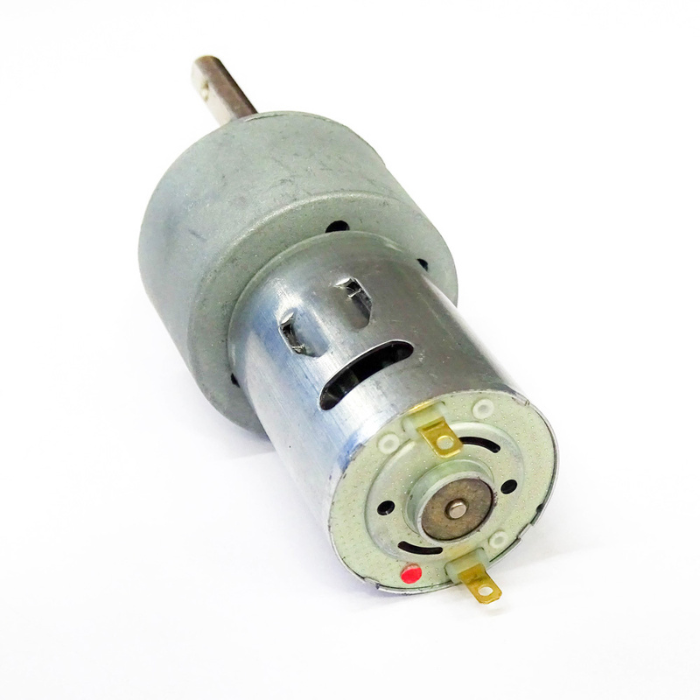

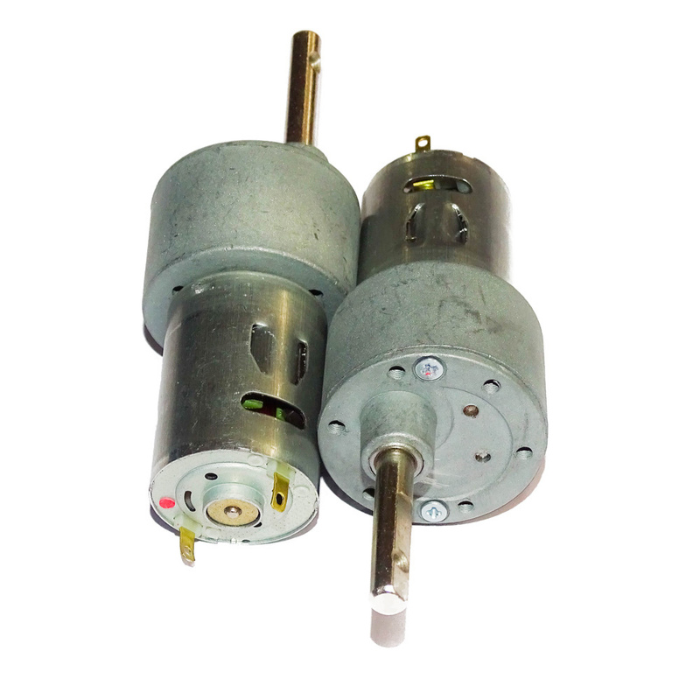

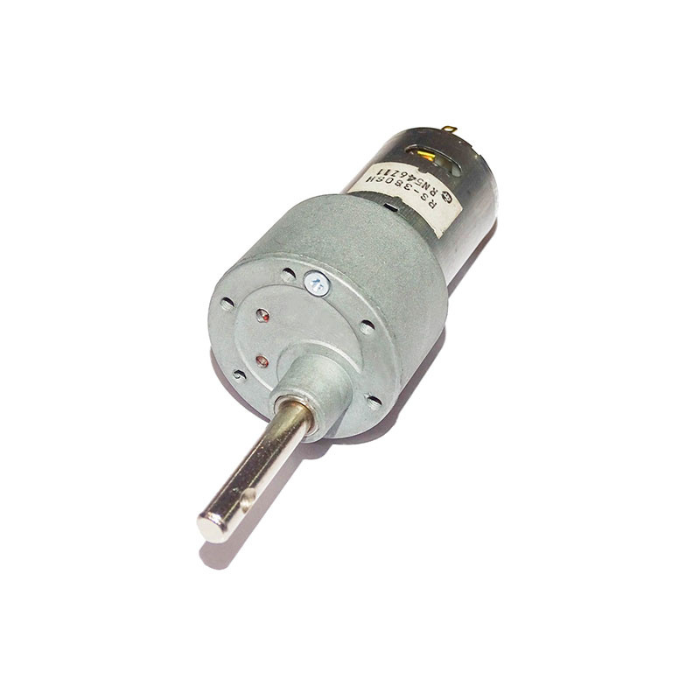

12V DC Johnson Geared Motor 60 RPM (Grade B)
Expected restock within 5-7 business days. We'll ship immediately once available.
For urgent inquiries, please contact us .
Delivery & Pickup Options
Expected to be in stock within 5-7 business days. We'll ship immediately once available.
12V DC Johnson Geared Motor 60 RPM (Grade B) The 60 RPM 12V DC Johnson Geared Motor (Grade B) is a reliable and affordable solution for various hobbyist and industrial applications. Known for its excellent performance, this Johnson geared motor offers a balanced torque output that falls between typical center-shaft and side-shaft gear motors. Operating at 12V, the DC motor delivers a torque of 7.5 kg-cm with a rotation speed of 60 RPM, making it ideal for medium-load projects such as robotics and automation. Equipped with a sturdy metal gearbox and side-mounted shaft, the motor is both durable and efficient. The metal bushes enhance the lifespan of the shaft by providing wear resistance, and the shaft hole simplifies coupling with other components. As a Grade B Johnson motor, it delivers great value for cost-conscious users while maintaining reliable functionality. Whether you're building a DIY bot or upgrading your project, this 60 rpm gear motor is a dependable choice. Applications: Pan/Tilt camera auto shutter welding machines water meter IC card towel disposal lighting coin refund devices peristaltic pump Features: The motor is built to last. Metal bushes are equipped with shafts for long-term use. High-quality gear is included. A hole in the shaft allows for improved connection.
- 12V DC operation with 7.5 kg-cm torque
- 60 RPM rated speed for smooth motion control
- Metal gearbox and durable construction
- Shaft with mounting hole for easy coupling
- Compatible with Arduino and Raspberry Pi via motor drivers
- Robust metal gearbox for long-term reliability
- Metal bushes reduce shaft wear and extend lifespan
- Pre-drilled shaft hole for easy mechanical integration
- Suitable for continuous duty in automation systems
- Cost-effective solution for prototyping and production
| Item Type | Johnson Geared Motor |
|---|---|
| Rated Torque (kg-cm) | 7.5 |
| Operating Voltage (VDC) | 6 ~ 18 |
| Rated Speed (RPM) | 60 |
| Material | Metal |
| Nominal Voltage (V) | 12 |
| Base Motor Rated RPM | 18000 |
| Stall Torque (kg-cm) | 30 |
| No-Load Current (mA) | 300 |
| Load Current Max (mA) | 900 |
| Shaft Diameter (mm) | 6 |
| Shaft Length (mm) | 30 |
| Gearbox Diameter (mm) | 37 |
| Motor Diameter (mm) | 27 |
| Motor Length (mm) | 65 |
| Weight (g) | 164 |
What is the torque and voltage of this Johnson geared motor?
This motor operates at 12V DC and delivers 7.5 kg-cm of torque at 60 RPM.
Is this motor compatible with Arduino or Raspberry Pi?
Yes, it can be easily controlled using motor driver modules like L298N or L293D with Arduino or Raspberry Pi.
What are typical applications for this 60 RPM gear motor?
Common uses include robotics, pan/tilt cameras, peristaltic pumps, automation systems, and DIY projects.
Does the motor shaft have a mounting hole?
Yes, the shaft includes a hole for secure coupling with gears, wheels, or other mechanical components.
