24V RGB 5050 SMD LED Strip Flexible 5M/Roll NO Waterproof
Delivery & Pickup Options
Order now and we'll have it ready for delivery by the next business day.
24V RGB 5050 SMD LED Strip Flexible 5M/Roll NO Waterproof 24V RGB 5050 SMD LED Strip with 1Meter length has 300 Bright, RGB LEDs on the single strip! The strip is comprised of 5050 Sized SMD RGB LEDs and draws a total of 22.5 Watts of Power. This RGB 5050 SMD LED Strip strip is flexible and can be bent to conform to curves and corners. Runs from 24VDC. (Power supply and controller not included) You need a minimum output 2 AMPs Adapter to power this full 1 Meter strip. Using an underpowered power supply on these strips will result in power loss down the line and mismatched colors due to a certain color of diodes not receiving enough power. These strips are a bit different because, though they have the same number of LED modules (300) in another Cold white or Warm White roll, they actually have three times the light-emitting diodes as a regular LED strips. This is because each of the 300 modules on the strip each contains three colors. A red, a blue and a green LED. This means that, when set to white, at full brightness, the RGB strips use almost three times the power as the regular white strips. A 1 Meter roll of RGB LEDs uses roughly 2.8 Amps at 24VDC. So connecting three of these strips, end-to-end would result in roughly an 8.4 Amp requirement. With this you can create different ambience at the comfort of your hands just by switching lights on and the designer sequence of lights that are already preset. These lights can be used as decorative pieces around the house especially during festive occasions, office buildings, walls etc. or for any functions to brighten the occasion. read more : NEOPIXEL WORKING AND DEMO Note : These are NOT individually addressable LED strips. Each color has its own separate 24VDC circuit. For a total of three 24VDC circuits (R G B). You can power these strips off of regular 24V DC if you don’t need advanced flashing patterns or color mixing. Application: Ideal for decoration of building outlines, landscape illumination, amusement themes. Holiday light sculpture, decorative figure, active signs, displays, shop windows Storefronts, bar, nightclub, street, sidewalk, deck, park, porch, staircase, railing, ceiling, or driveway.
- 24V DC operation with 300 RGB LEDs per 5-meter roll
- Flexible design for curved and corner installations

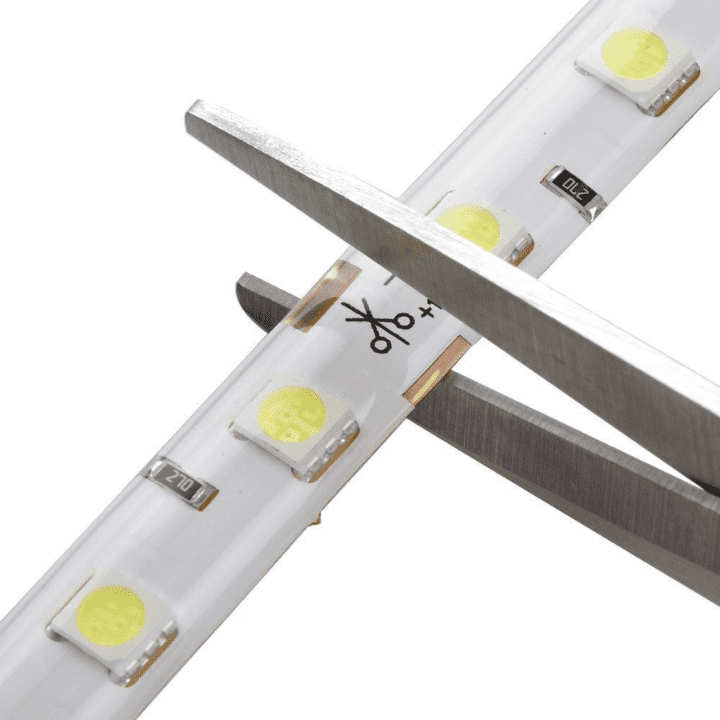

- Cuttable every 5cm for custom lengths

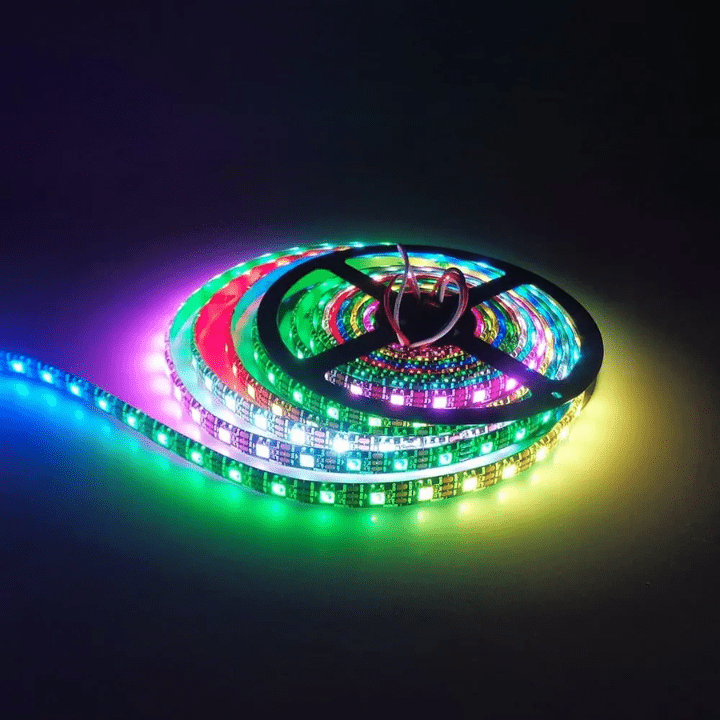

- Full-color RGB output with separate R, G, B circuits
- Ideal for indoor decorative and architectural lighting
- High-density RGB lighting for vibrant color effects
- Flexible PCB for easy installation on curved surfaces
- Compatible with standard 24V RGB controllers
- Energy-efficient SMD 5050 LEDs
- Safe low-voltage operation
| LED Glow Color | RGB |
|---|---|
| Operating Voltage | 24V DC |
| Operating Current | 2A |
| Total Luminous Flux | 18-20LM |
| View angle | 120 ° ~ 140 ° |
| Power required | 8-10W/meter |
| Strip Width | 10 mm |
| Strip Length | 1 Meter |
| No. of LEDs | 60LED/Meter |
| Protection Level | IP20 (No Waterproof) |
| Working Temperature | -20 °C to 50 °C |
| Weight(gm) | 10 |
Can this LED strip be used outdoors?
No, this is a non-waterproof LED strip and is only suitable for indoor use.
What power supply is required for the 5M RGB LED strip?
A 24VDC power supply with at least 14A output (2.8A per meter) is required for the full 5-meter strip.
Is this LED strip individually addressable?
No, this is not addressable. It uses three separate 24V circuits for red, green, and blue channels.

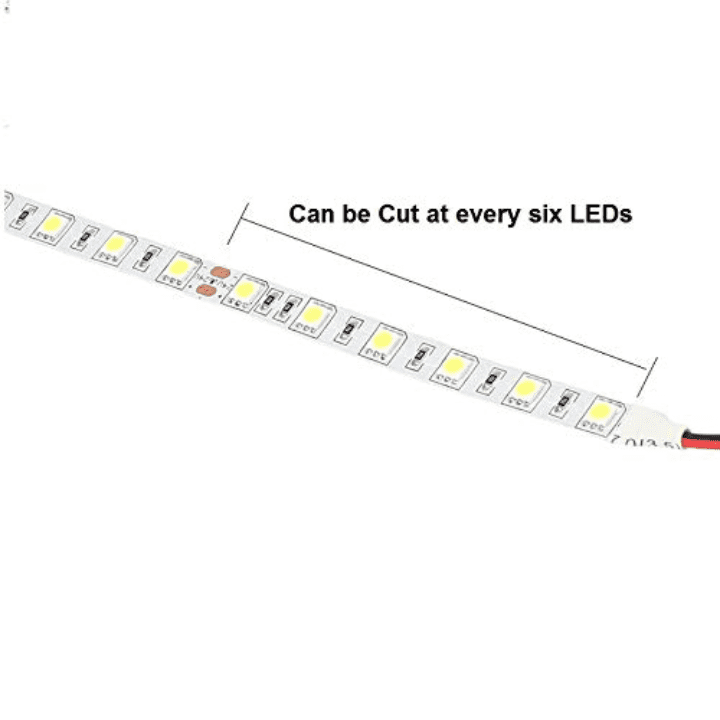

Can the strip be cut to shorter lengths?
Yes, it can be cut every 5cm at marked cut points without damaging the rest of the strip.
