A2212 1400KV BLDC Motor and Simonk 30A ESC with 1045 Propellers for RC Drones
Delivery & Pickup Options
Order now and we'll have it ready for delivery by the next business day.

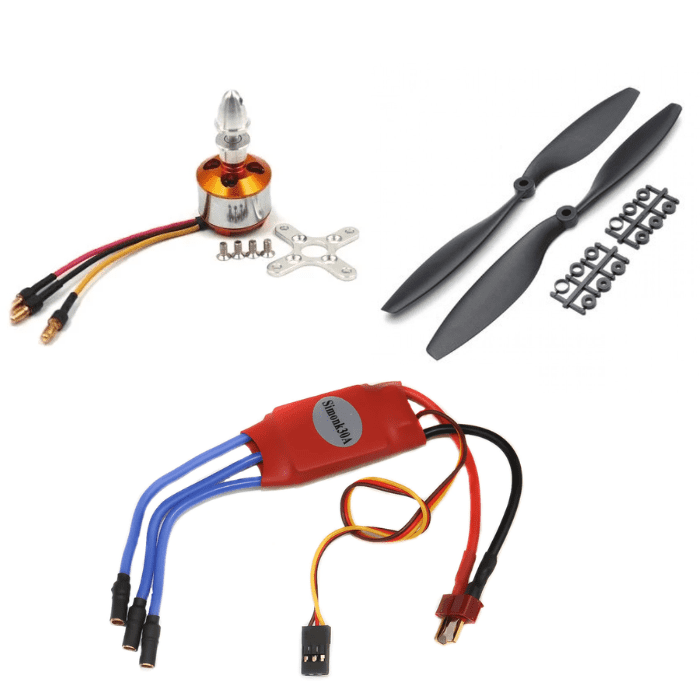

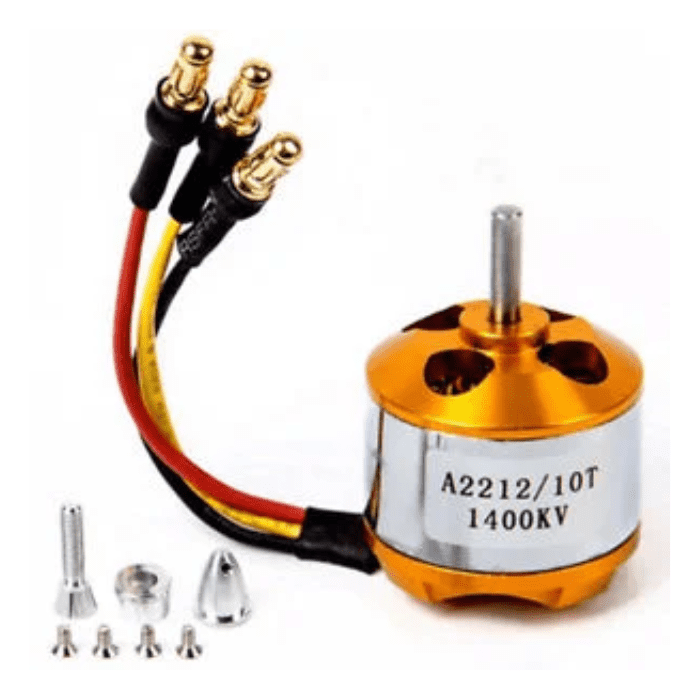

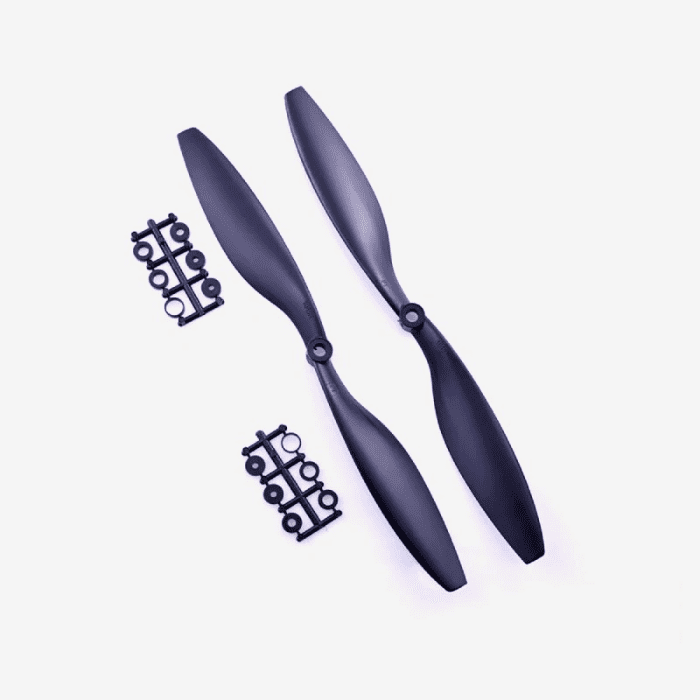

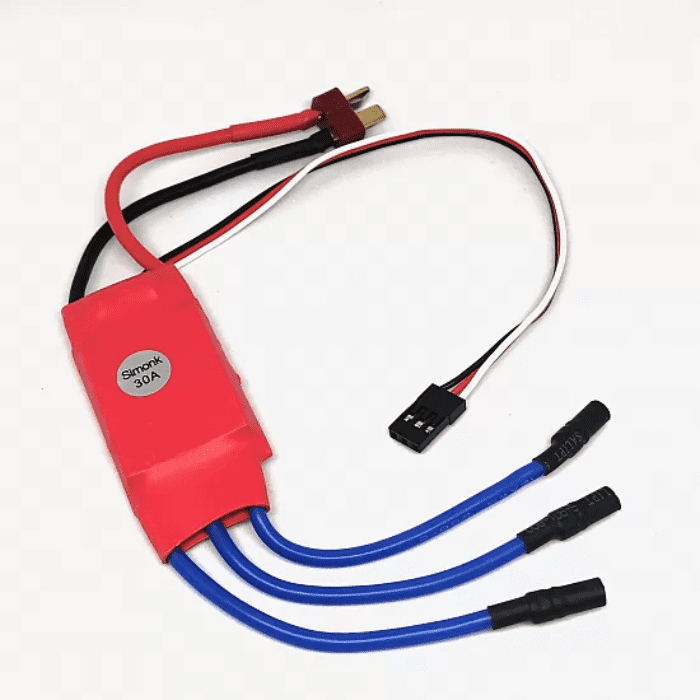

A2212 1400KV BLDC Motor and Simonk 30A ESC with 1045 Propellers for RC Drones The product pack features a 1400kv brushless motor, SimonK 30A ESC, and a set of 1045 propellers. The 1400KV brushless motor for drones and quadcopters is constructed with a solid metal case that is capable of withstanding tough weather conditions. The solid metal case of the brushless motor is made with a steel design that makes the drone motor reliable and strong. The A2212 brushless drone motors are integrated with good-quality pre-soldered connectors. This helps users to easily connect to the ESC. The SIMONK 30A ESC is specifically designed to provide a faster and better flight experience for drones, quadcopters, and multi-rotor systems. The characteristic feature of the Simonk ESC is that it has protection against backward polarity and protection for the 5V receiver line. What this means for the user is that, even if you attach a battery backward, accidentally, this protection feature will not destroy the motor controller and other BECs. The set of 1045 drone propellers is manufactured with an epoxy resin cover. They are a set of strong and lightweight propellers that are well-suited for lower RPM motors and slow-flying drone models. The 1045 propeller set includes one anti-clockwise and one clockwise propeller. The propellers are designed to provide the best aerodynamic efficiency and great lifting capacity. Note : The package weighs 200 grams (approx) and Dimensions: 15 x 9 x 5cms (approx) Experience smooth power delivery with the SimonK 30a BLDC ESC .
- Complete RC drone power kit: A2212 1400KV motor, SimonK 30A ESC, and 1045 propellers
- Reverse polarity and 5V receiver protection on ESC
- Pre-soldered connectors for easy wiring
- Compatible with Arduino, Raspberry Pi, and standard RC receivers
- Includes CW and CCW propellers for balanced flight
- High-torque brushless motor for drones
- Fast-response SimonK firmware ESC
- Lightweight and durable 1045 propellers
- Reverse polarity protection
- 5V BEC with overload protection
- Ideal for DIY drones, quadcopters, and UAVs
| Model of BLDC Motor | A2212 10T |
|---|---|
| Motor KV (RPM/V) | 1400 |
| Weight | 200 |
| Dimensions | 15 x 9 x 5cms |
What is the KV rating of the A2212 motor?
The A2212 motor has a KV rating of 1400, meaning it spins at 1400 RPM per volt applied.
Is the SimonK 30A ESC compatible with Arduino and Raspberry Pi?
Yes, the SimonK 30A ESC accepts PWM signals from Arduino, Raspberry Pi, and other microcontrollers for precise motor control.
Does the kit include both propeller directions?
Yes, the 1045 propeller set includes one clockwise and one counter-clockwise propeller for balanced thrust.
Can this ESC handle reverse polarity?
Yes, the SimonK 30A ESC has built-in reverse polarity protection to prevent damage from incorrect battery connection.
What is the recommended battery voltage for this motor combo?
The A2212 1400KV motor works best with 2S to 3S LiPo batteries (7.4V to 11.1V) for optimal performance.
