Arduino UNO R3 Board + CNC Shield + 4xDRV8825 Driver Kit compatible
Only 2 items in stock. Additional quantity can be backordered.
Delivery & Pickup Options
Pick up today from our store.
Estimated delivery: 2-5 business days

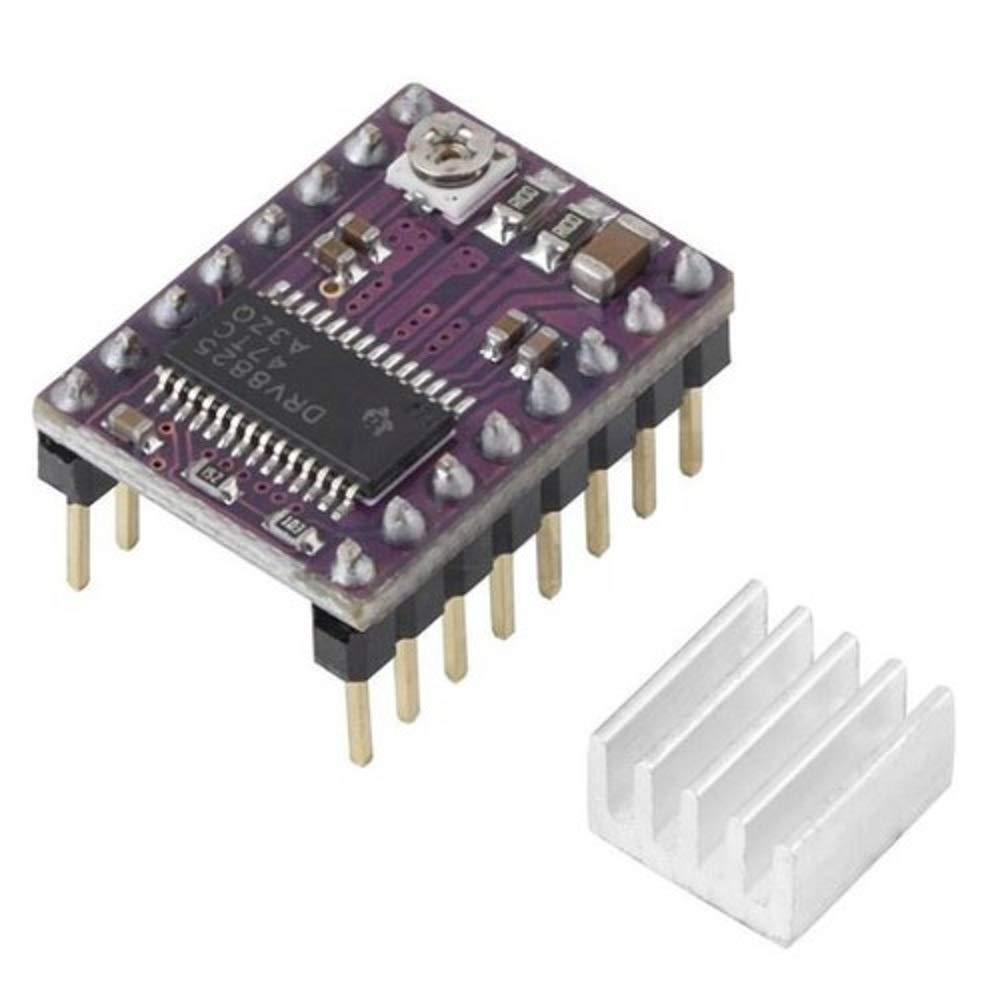

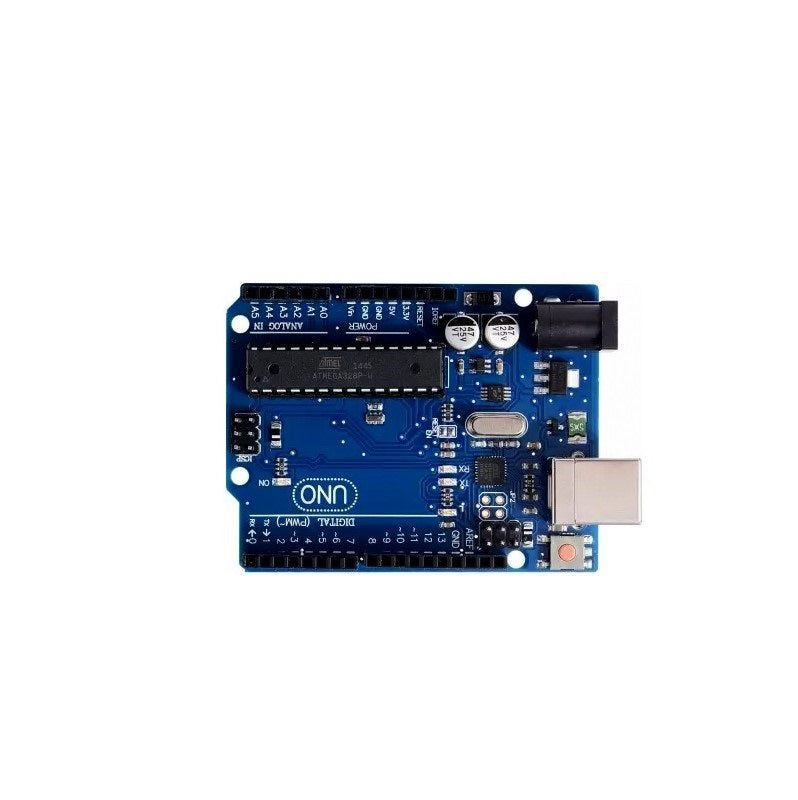

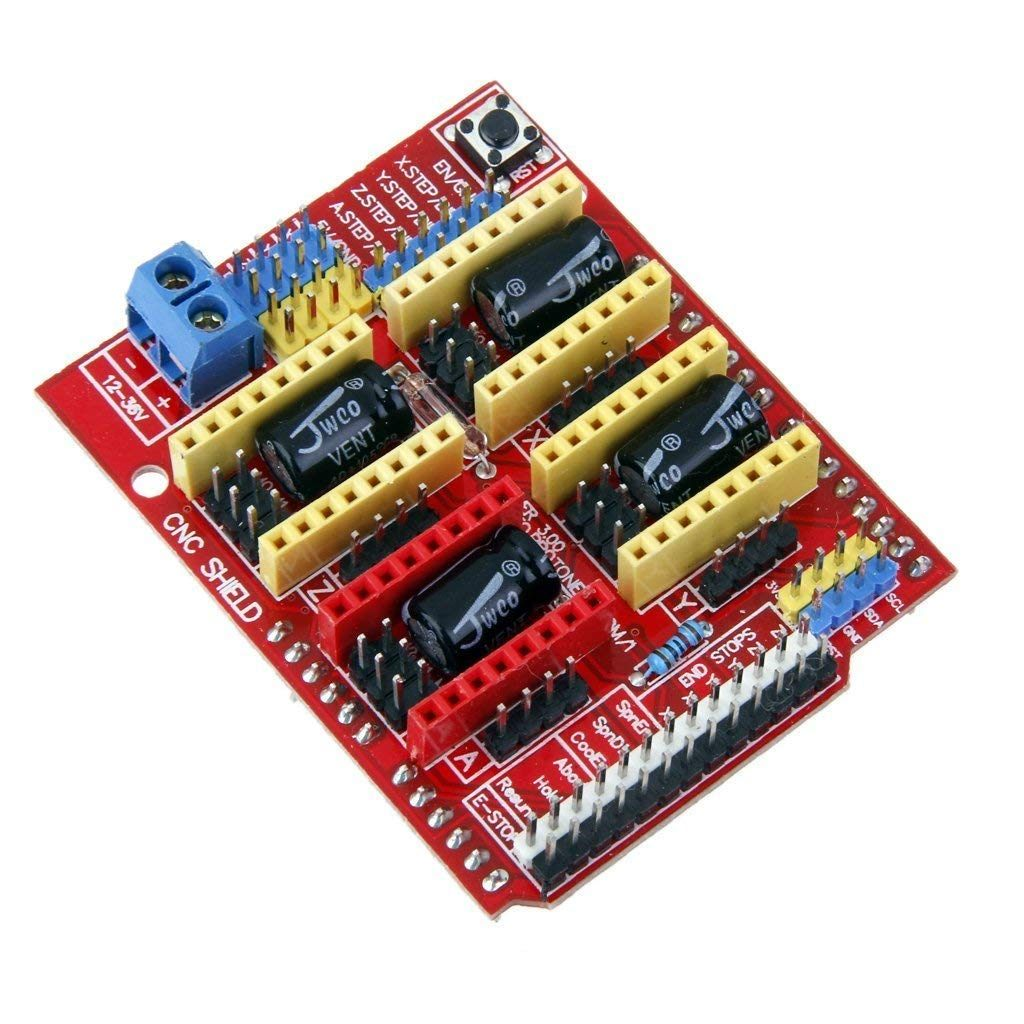

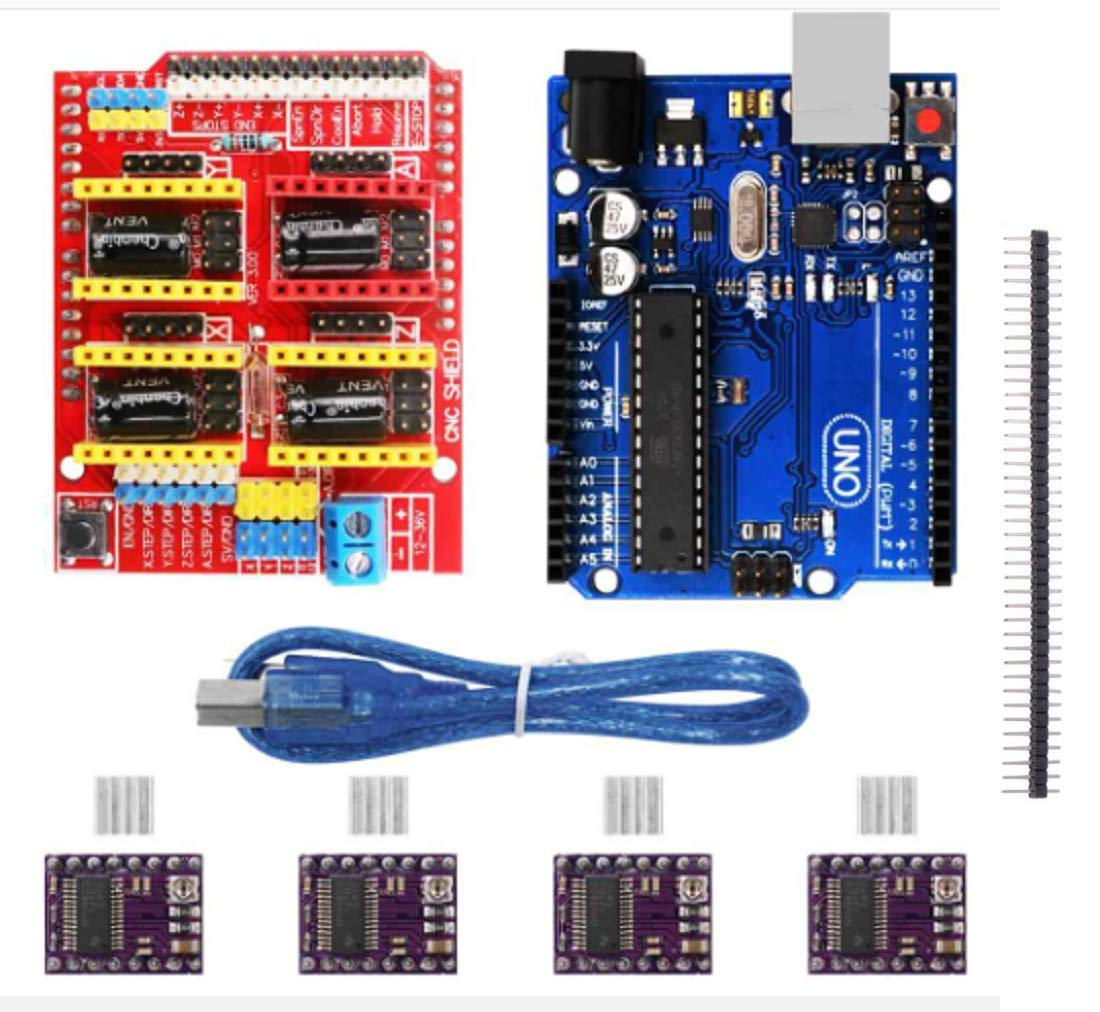

CNC Shield + UNO R3 Board compatible with Arduino + 4xDRV8825 Driver Kit Arduino Uno is an open-source microcontroller used by students and hobbyists entering the world of DIY electronics and automation, The Arduino Uno can be used for any application including being the brains of your next DIY 3D printer and/or CNC router The CNC Shield V3.0 allows you to build an engraving machine, 3D printer, mini CNC and other similar devices using your Arduino. It is designed as a shield and can plug on top of an Arduino requiring no external connections and wiring. Along with that, the CNC shield allows you to control up to four stepper motors by mounting on 4 stepper motor drivers, included with this kit The DRV8825 provides an integrated motor driver solution for printers, scanners, and other automated equipment. The device has two H-bridge and is intended to drive a bipolar stepper motor. Features: UNO R3 Board: The main microcontroller board compatible with Arduino. CNC Shield: An expansion board that allows for easy connection and control of stepper motors. 4x DRV8825 Stepper Motor Drivers: High-performance drivers for controlling stepper motors. Micro-Stepping: Supports micro-stepping settings for precise control of stepper motors. GRBL Compatibility: Compatible with GRBL firmware, which is widely used for CNC control. Voltage Range: Operates on 12-36V DC. Heat Sinks: Included for cooling the stepper motor drivers. USB Cable: For connecting the UNO R3 board to a computer. 40-Pin Row Needles: For additional connections. Applications: CNC Machines: Used for controlling stepper motors in CNC milling, engraving, and cutting machines. 3D Printers: Essential for driving stepper motors in 3D printers, ensuring precise layer deposition and movement. Laser Cutters: Controls stepper motors in laser cutting machines for accurate cutting and engraving. Robotics: Ideal for robotics projects requiring precise motor control, such as robotic arms and automated guided vehicles (AGVs). X-Y Tables: Used in X-Y tables for accurate positioning and movement in various industrial applications. Pick-and-Place Devices: Employed in pick-and-place machines for accurate component placement in electronics manufacturing. Labeling Machines: Used in labeling machines for precise label application. Pinout Diagram for the Arduino Uno Microcontroller Applications of the Kit The kit can be used to create custom 3D printers, scanner, CNC mills and other automated equipment applications
- Complete CNC and 3D printer control solution
- Includes Arduino UNO R3 and CNC Shield V3.0
- 4x DRV8825 stepper motor drivers with heat sinks
- Supports up to 1/32 micro-stepping
- GRBL firmware compatible
- Operates on 12–36V DC input
- Ideal for DIY CNC, 3D printing, and robotics
- Plug-and-play CNC Shield design
- High-precision stepper motor control
- Thermal protection via heat sinks
- Open-source hardware and software support
- Compatible with A4988 and DRV8825 drivers
- Supports XYZ and dual-axis control (A-axis)
| Microcontroller | ATmega328P (Arduino UNO R3) |
|---|---|
| CNC Shield Version | V3.0 |
| Stepper Drivers | 4x DRV8825 (with heat sinks) |
| Micro-Stepping | Up to 1/32 step |
| Input Voltage | 12–36V DC |
| Firmware Compatibility | GRBL |
| Connectivity | USB (Type B) |
| Pin Headers | 40-pin included |
What components are included in the Arduino UNO R3 CNC Kit?
The kit includes Arduino UNO R3, CNC Shield V3.0, 4x DRV8825 drivers with heat sinks, USB cable, and 40-pin headers.
Is this kit compatible with 3D printers and CNC machines?
Yes, it's compatible with GRBL firmware and ideal for 3D printers, CNC mills, laser cutters, and robotics.
What power supply voltage is required for the DRV8825 drivers?
The DRV8825 drivers support 12–36V DC input. Use a regulated power supply matching your motor specifications.
Can I use this kit with a Raspberry Pi?
No, this kit is designed for Arduino UNO R3. Use a compatible microcontroller or adapter for Raspberry Pi integration.
Does the kit support micro-stepping for smoother motor control?
Yes, the DRV8825 drivers support up to 1/32 micro-stepping for enhanced precision and reduced motor vibration.
To rate this product please login!
About Arduino UNO R3 Board + CNC Shield + 4xDRV8825 Driver Kit compatible by Iotcart
Shop Arduino UNO R3 + CNC Shield + 4xDRV8825 Kit. Compatible with GRBL, 3D printers & CNC machines. 12-36V DC.
Categorised under: 3D Printer Kits› Development Boards› Arduino› Compatible with Arduino› Industrial
