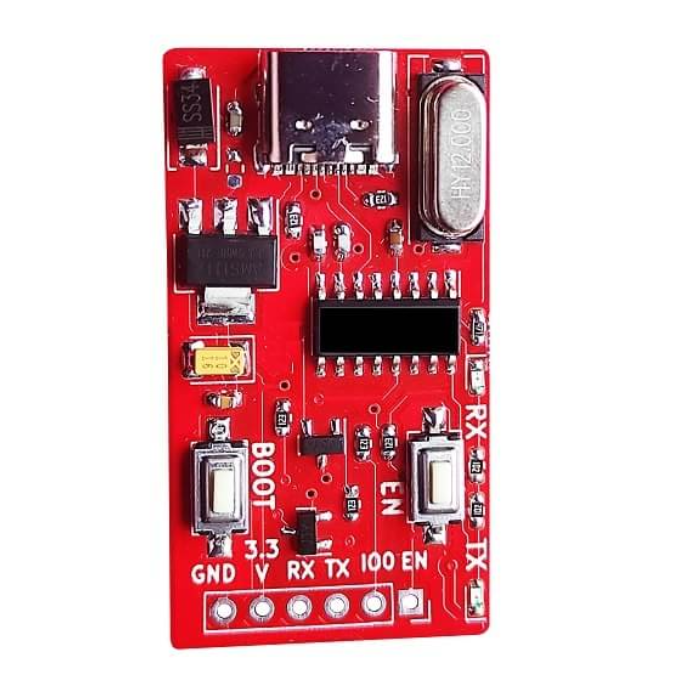

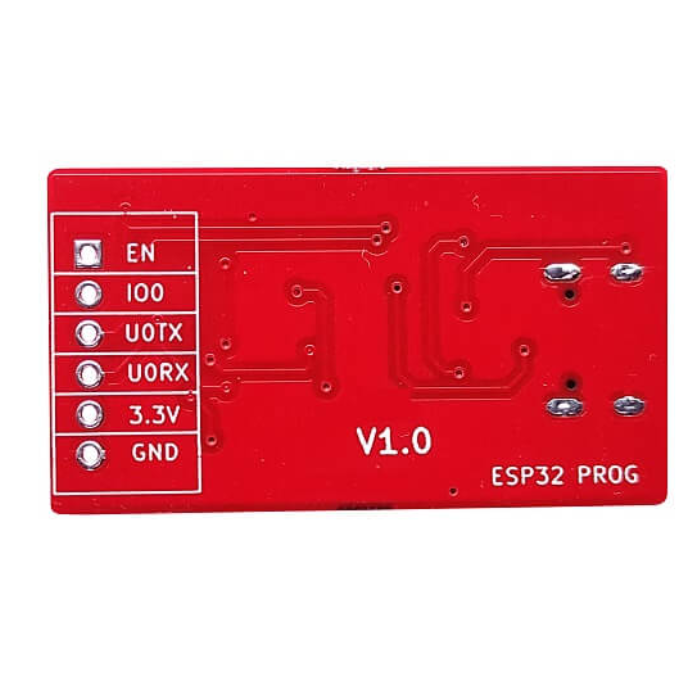

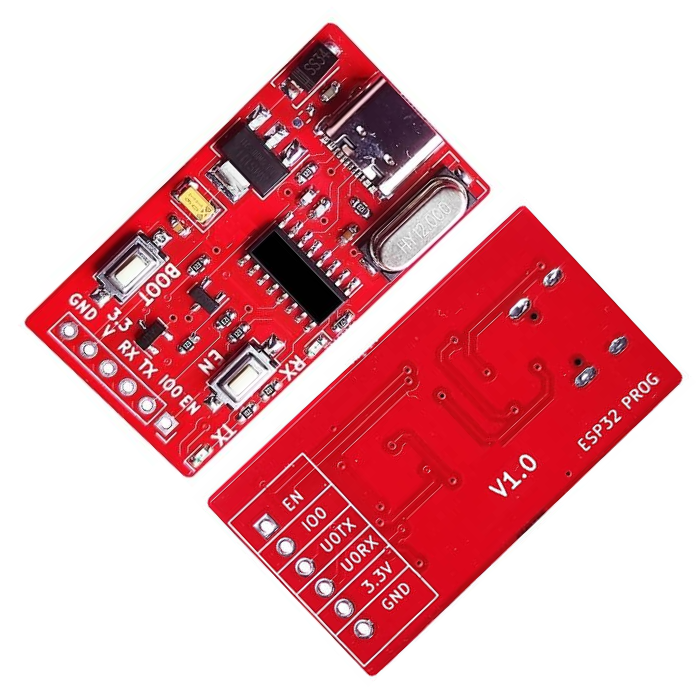

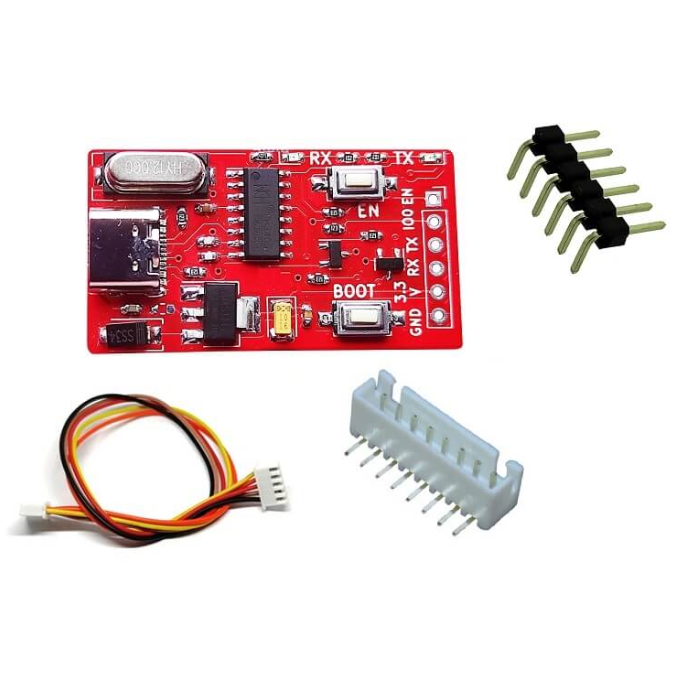

ESP32 & ESP8266 USB Programmer Rev1.0 With Auto Boot
(0)
ESP32 & ESP8266 USB Programmer Rev1.0 With Auto Boot If you want to simplify your development and debugging tasks, the ESP32 & ESP8266 USB Programmer Rev1.0 with Auto Boot is here to help. This handy tool makes it easy to download firmware and handle serial communication on ESP32 platforms. All you need is a single USB cable to connect to your PC, and it automatically recognizes the board and its functions. It’s designed to make your setup smoother and more efficient, so you can focus on what you do best. Pinout details: GND 3.3V DC (100mA Max.) RXD TXD Io0/Boot/DTR …
Sale Accelerators
Hurry up! Only 0 left in stock
Condition:
NEW
As low as
₹303.78
MRP. ₹586.60
Incl. GST (No Hidden Charges)
OUT OF STOCK
ESP32 & ESP8266 USB Programmer Rev1.0 With Auto Boot If you want to simplify your development and debugging tasks, the ESP32 & ESP8266 USB Programmer Rev1.0 with Auto Boot is here to help. This handy tool makes it easy to download firmware and handle serial communication on ESP32 platforms. All you need is a single USB cable to connect to your PC, and it automatically recognizes the board and its functions. It’s designed to make your setup smoother and more efficient, so you can focus on what you do best. Pinout details: GND 3.3V DC (100mA Max.) RXD TXD Io0/Boot/DTR EN/Reset/RTS
- CH340 serial chip.
- Boot and EN/RST buttons.
- USB programmer with C Type connector.
- Female connector for ESP32 boards.
- RX and TX LEDs.
- 5V input voltage.
- -20°C to 85°C operating range.
- 2.54mm pin pitch.
- Plug and Play.
- Serial Chip CH340
- Buttons Boot, EN/RST
- Interface USB Programmer
- USB Connector C Type
- Connector Type Female Connector for ESP32 series Board
- LED Indicators On-Board RX and TX LEDs
- Input Voltage 5V
- Operating Temperature -20°C to 85°C
- Output Pin Pitch 2.54mm
