JHD 128x64 Graphic LCD -Blue Backlight

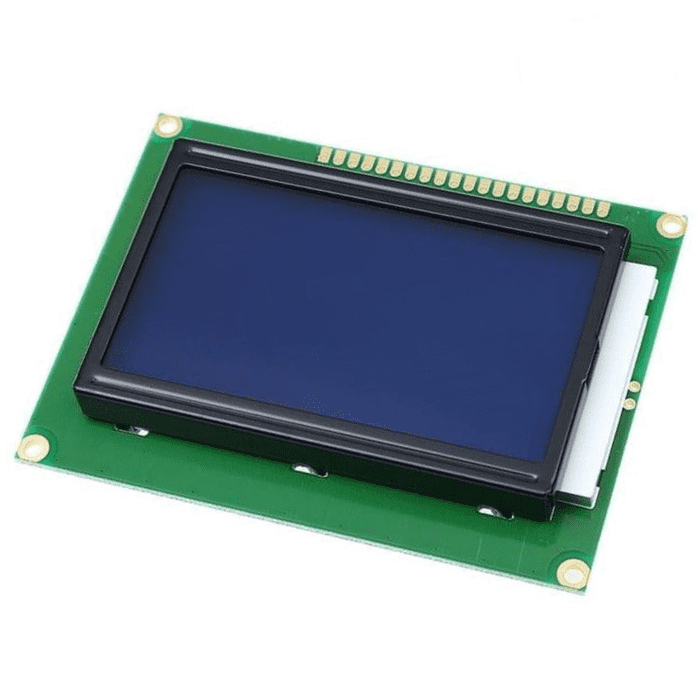

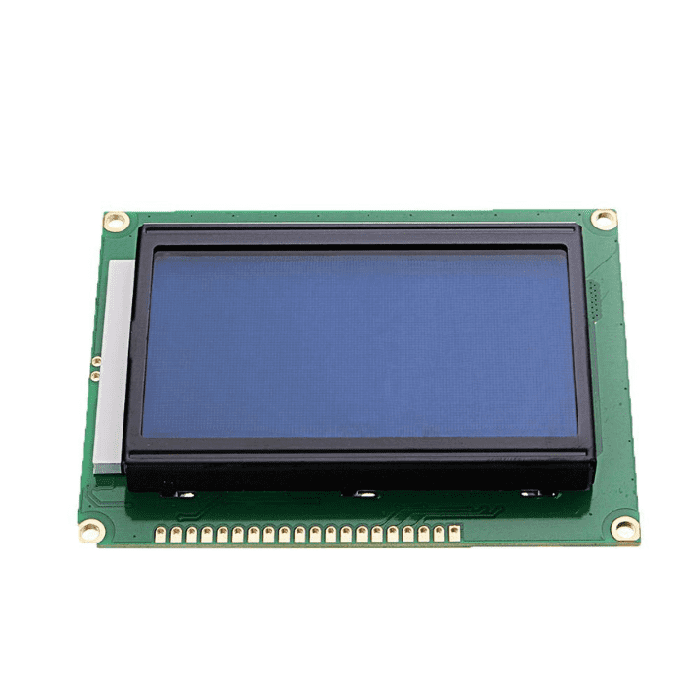

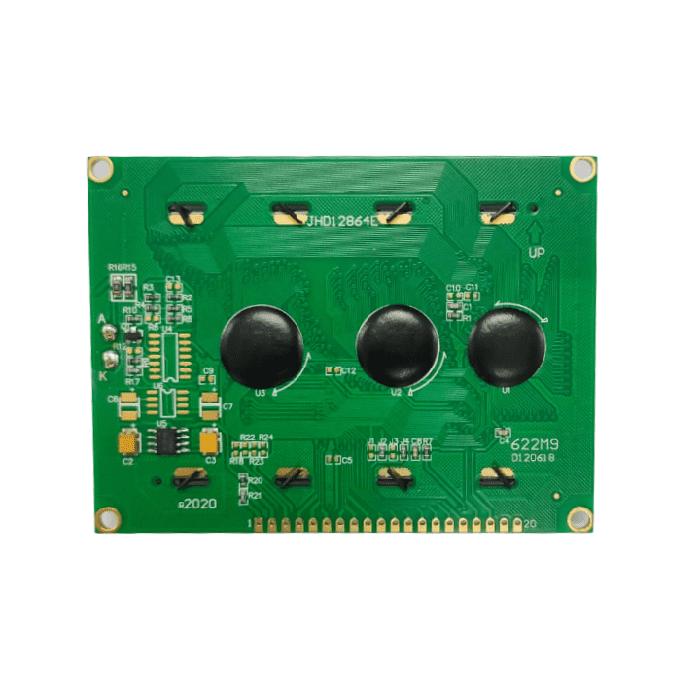

JHD 128x64 Graphic LCD -Blue Backlight This is the original jHD128x64 LCD display, It is simple to use and works with the vast majority of microcontrollers on the market. With this Graphic LCD, you can do a lot of graphic things. You can make frames as well as small animations. The 128x64 Graphic LCD module has a 128 x 64 pixel LCD screen with a Blue backlight and a white foreground. The display is fully programmable and can show a mix of graphics and text. This 128x64 LCD display is a large, bright Blue LCD with white back-lit pixels. It is also well known for its widespread use in 3D printers as a RAMPS extension accessory. A display is required if you want to add visual output to your Arduino projects. This LCD display is best suited for graphical upgrades to popular 16x2 LCDs, but it also allows full graphical control. This 128x64 Graphic LCD series allows the user to draw lines, circles, and boxes, set or redefine individual pixels, clear specific blocks of the display, control the backlight, and adjust the baud rate in addition to writing text. The pins of the LCD 128x64 Graphic Blue Color Backlight LCD Display module are documented on the back of the LCD to aid in wiring it up. It is very simple to connect this LCD to the 3D printer's RAMPS controller. Features: Display Resolution: 128x64 pixels, allowing for detailed graphics and text. Backlight: Yellow backlight for clear visibility in different lighting conditions. Controller: Typically uses the KS0108 controller, compatible with many microcontrollers. Interface: Supports multiple communication interfaces, including parallel and SPI. Voltage: Operates on 5V. Viewing Angle: Wide viewing angle for better visibility. Operating Temperature: Suitable for a range of temperatures, typically from -20°C to 70°C. Applications: Ideal for kiosks, metering applications, handheld devices, and more Applications: Kiosks: Displaying interactive menus and information. Metering Applications: Showing detailed readings and data in devices like multimeters and power meters. Handheld Billing Devices: Providing a user interface for portable billing and transaction devices. HVAC Controllers: Displaying temperature, humidity, and other environmental data in heating, ventilation, and air conditioning systems. Uninterruptible Power Supplies (UPS): Showing status, battery levels, and other critical information. Video Games: Used in retro gaming consoles and custom game projects. Mobile Phones: Displaying graphics and text in older mobile phone models. Lifts/Elevators: Showing floor numbers, status messages, and other information.
- This is JHD 128x64 Pixel Blue Backlight Graphic LCD
- The graphic LCD display module has a 128x64 pixel resolution.
- The 128x64 pixel LCD display module uses JHD12864E controller has is equipped with Blue backlight.
- The graphic LCD display uses a 8 bit parallel interface or serial SPI modes.
- It needs a power supply voltage of 5V and operating temperature of :-20°C to +70°C.
- This 128x64 pixel graphic lcd display module is best suited for microcontrollers and development boards compatible with Arduino.
- Brand JHD12864E
- Display Format 128x64 dots
- Controller KS0108
- Interface 8-bit parallel interface or serial SPI modes
- Power Supply Voltage 5V
- Operation temperature -20°C to +70°C
- Package Dimensions 6 x 4 x 2 cm
- Package Weight 150 grams
