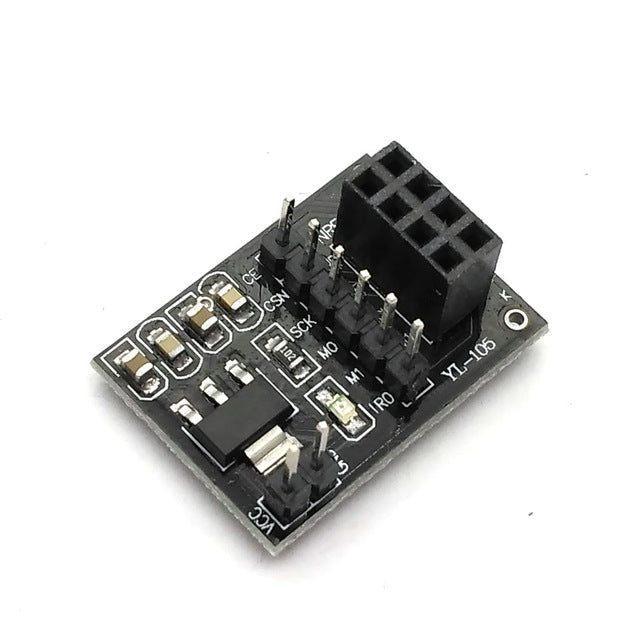

NRF24L01 Adapter Board

Seeed Studio XIAO nRF52840 Module & Wio-SX1262 Kit for Meshtastic The Seeed Studio XIAO nRF52840 Module & Wio-SX1262 Kit is a powerful combination designed for modern IoT and wireless networking projects. Featuring the nRF52840 module and SX1262 transceiver, it supports BLE 5.0 and LoRa (862-930MHz) for reliable, long-range communication with low power consumption. This versatile kit is perfect for applications such as Meshtastic, environmental monitoring, sensor networks, asset tracking, and educational or innovative experiments. It's compact design and robust features make it an ideal solution for developers, makers, and students exploring connected device projects. Features: Versatile Microcontroller: Incorporate the Nordic nRF52840 chip with FPU, working up to 64 MHz, mounted several development ports, supported by Arduino, CircuitPython, and Micropython. Long-range: LoRa on the Semtech SX1262 supports the 868/915 MHz bands, providing powerful performance. Dual-core communication: It supports Bluetooth and LoRa dual modes, allowing for cross-domain interconnection. The integrated antenna is 8mm × 22mm × 23mm. Applications: Meshtastic Node&Router: An extremely compact node that may be used as a portable device or a stationary router to expand the Meshtastic network. LoRa/LoRaWAN Sensor: A little LoRaWAN sensor, excellent for those new to LoRa/LoRaWAN. When paired with a GPS module (such as the XIAO L76K), it can be used to track the movement of logistical vehicles, livestock, and important equipment. LoRa's long-distance coverage (2-5 km in urban areas and more than 10 km in suburban areas) can help to lower the cost of base station placement. Hardware Overview of XIAO nRF52840 Module: Pinout Diagram: Hardware Overview of Wio-SX1262: Pinout Diagram:

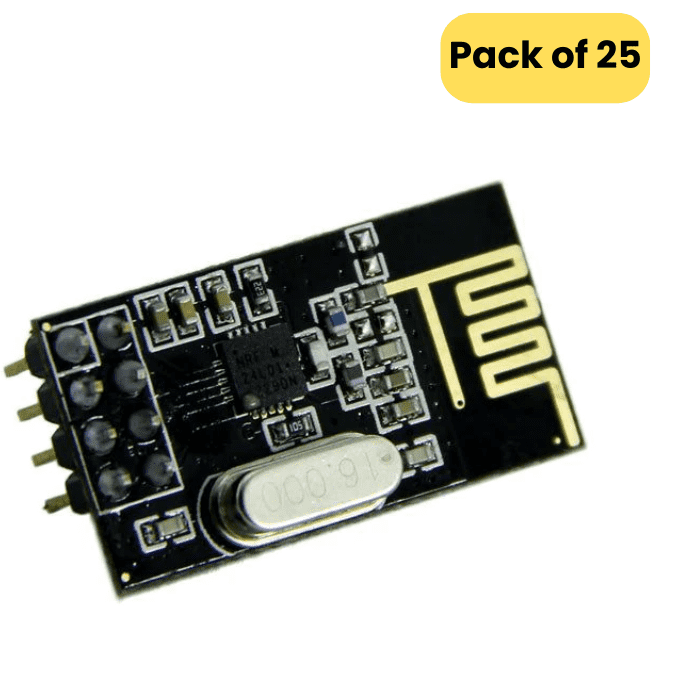

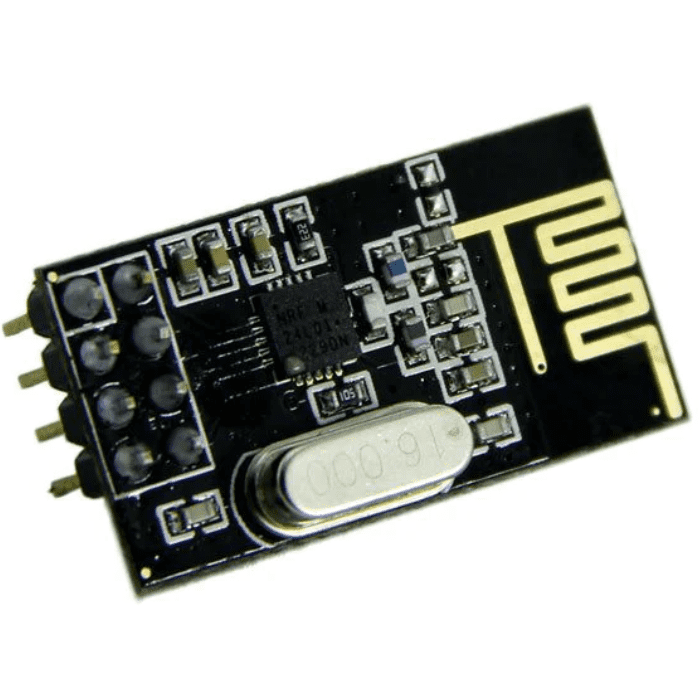

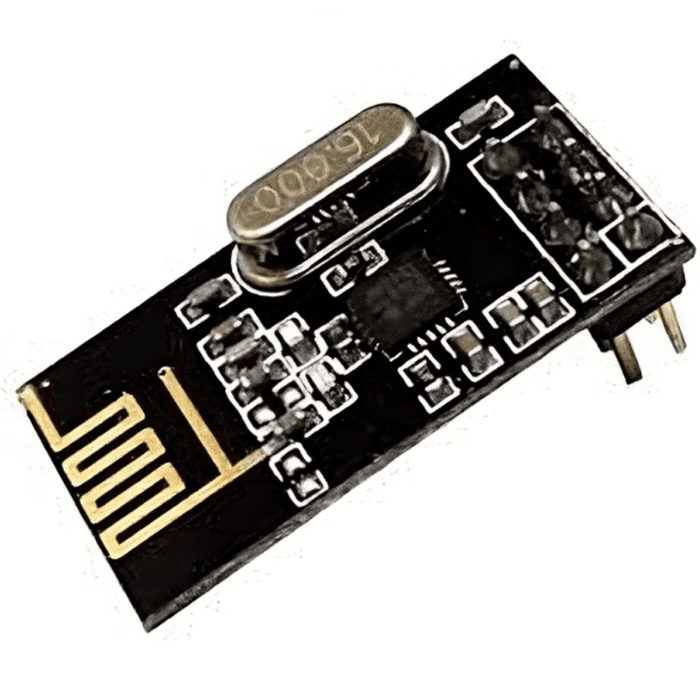

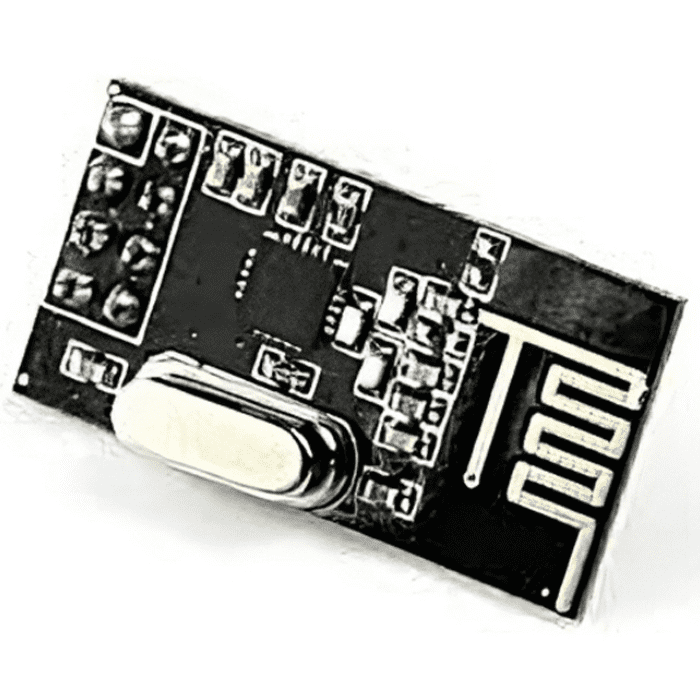

NRF24L01 Ultra-Low Power 2.4GHz RF Wireless Transceiver The NRF24L01 2.4GHz Antenna Wireless Transceiver Module is a compact and integrated IC designed for ultra-low power (ULP) RF transmission and reception in the 2.4GHz ISM band. It boasts a peak current of less than 14mA for both receiving and transmitting, a sub ?A power down mode, advanced power management, and a wide supply voltage range of 1.9 to 3.6V, which makes it a true ULP solution for achieving extended battery life, especially when running on coin cells or AA/AAA batteries. These RF modules are widely used by Arduino enthusiasts and are suitable for various wireless control applications, given their transceiver nature, allowing for data transmission and reception. The NRF24L01+ 2.4GHz Antenna Wireless Transceiver Module is compatible with different MCUs, including Arduino, Mbed, and ARM. It can be easily powered by mounting it over a 3.3V Adapter Board designed for the 24L01 Wireless Module. Features : Maximum operating speeds up to 2Mbps, GFSK modulation efficiency, Anti-interference ability, Particularly suitable for industrial control applications. 125 Channels, Multi-point communication, and frequency hopping to meet the communication needs Built-in hardware CRC error detection, Multipoint communication address control. Low-power 1.9 ~ 3.6V, only 1uA on Power down mode Built-in 2.4Ghz antenna Available software to set the address only received local Address when output data(Provide interrupt instruction), can be directly connected to a variety of microcontrollers, Software programming is very convenient. Built-in voltage regulator Standard DIP Pitch Interface for embedded applications. read our blog explaining the nrf24l01 pinout , which provides detailed information about the NRF24L01 wireless communication module, including its operations, features, applications, and versions. Note: VCC is a range of 1.9V~3.6V, do not exceed this range, otherwise, it will destroy the module. Communication pins other than Vcc and GND are 5v tolerant Applications: Wireless PC Peripherals Mouse, keyboards, and remotes 3-in-1 desktop bundles Advanced Media center remote controls VoIP headsets Game controllers Sports watches and sensors RF remote controls for consumer electronics Home and commercial automation Ultra low power sensor networks Active RFID Alarm and security systems Asset tracking systems Toys

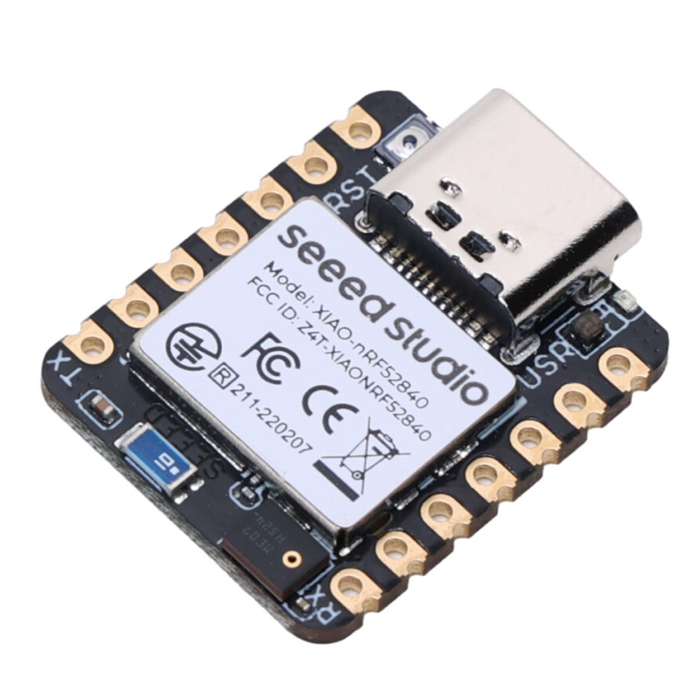

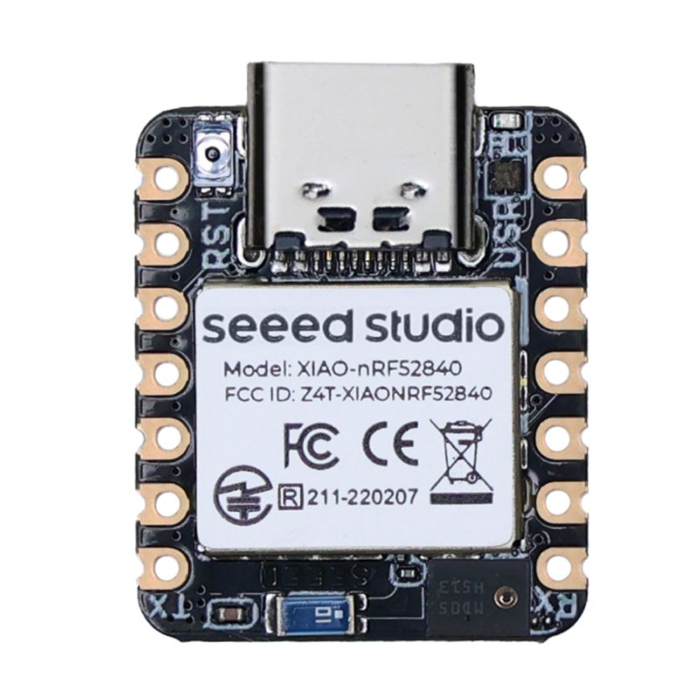

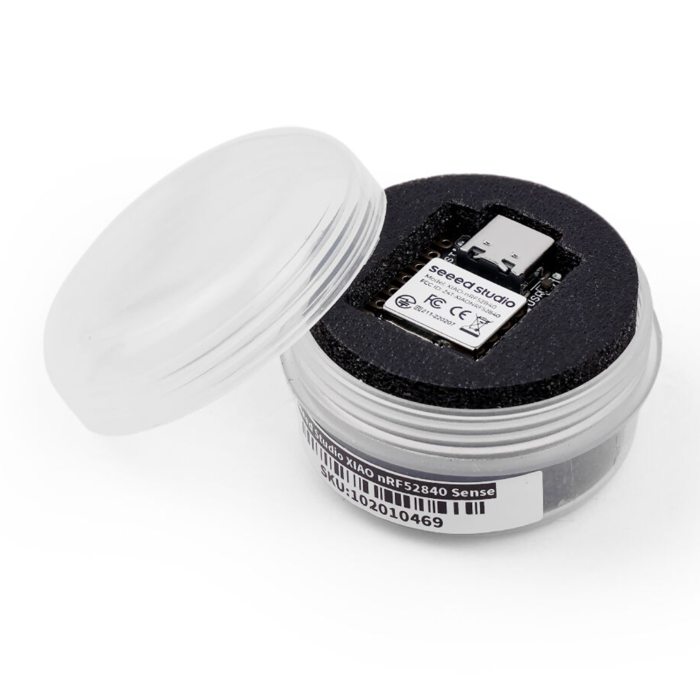

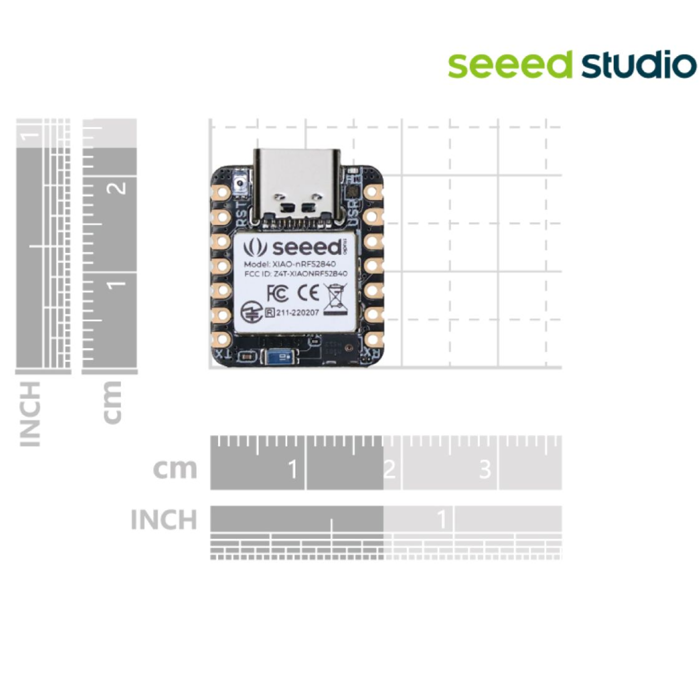

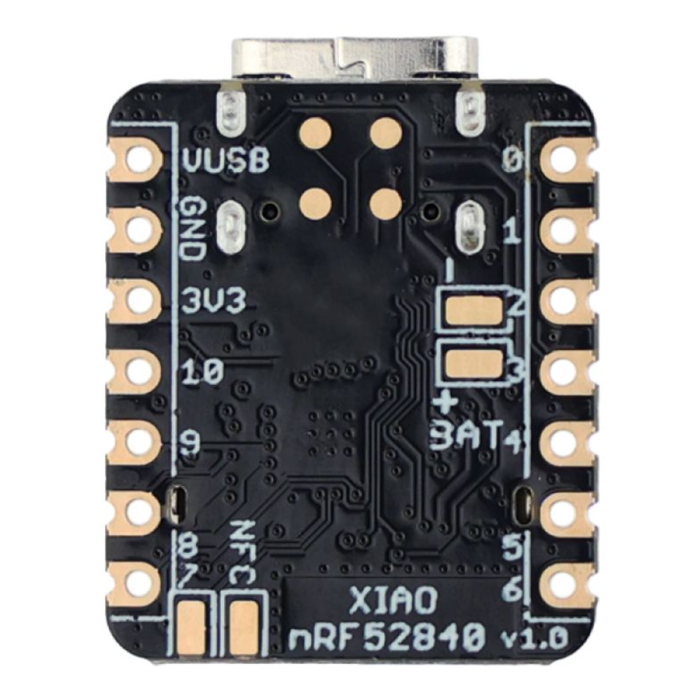

Seeed Studio XIAO Nordic nRF52840 Sense Module The Seeed Studio XIAO Nordic nRF52840 Sense Module is a compact yet powerful development board designed for AIoT and sensor-rich applications. Powered by the advanced Nordic nRF52840 chipset, it offers Bluetooth 5.0 connectivity with low energy consumption, making it highly efficient for IoT, wearables, and smart devices. This versatile nRF52840 module integrates an onboard IMU and PDM microphone, enabling motion tracking and audio input for embedded Machine Learning projects. Its small form factor, rich features, and low-power performance make it an excellent choice for developers working on next-generation AI and IoT solutions. Features: Versatile Microcontroller: Incorporates the Nordic nRF52840 chip with FPU, working up to 64 MHz, mounted several development ports, supported by Arduino and CircuitPython. Wireless Capabilities: Support Bluetooth 5.0, BLE functionalities with integrated antenna, and NFC connectivity. Elaborate Power Design: Uses only 5 μA in deep sleep mode and supports lithium battery charge management. Advanced onboard functionality: Add a digital microphone and a 6-axis IMU to the compact board for embedded machine learning applications. Thumb-sized Design: 21 x 17.8mm, Seeed Studio XIAO series classic form-factor, appropriate for wearable devices. Applications: Small and flexible wearable gadget. Wi-Fi/Bluetooth wireless connection project Embedded Machine Learning Project IoT and TinyML AI applications. Perfect for mini-Arduino projects. XIAO Nordic nRF52840 Sense Module Pinout Diagram

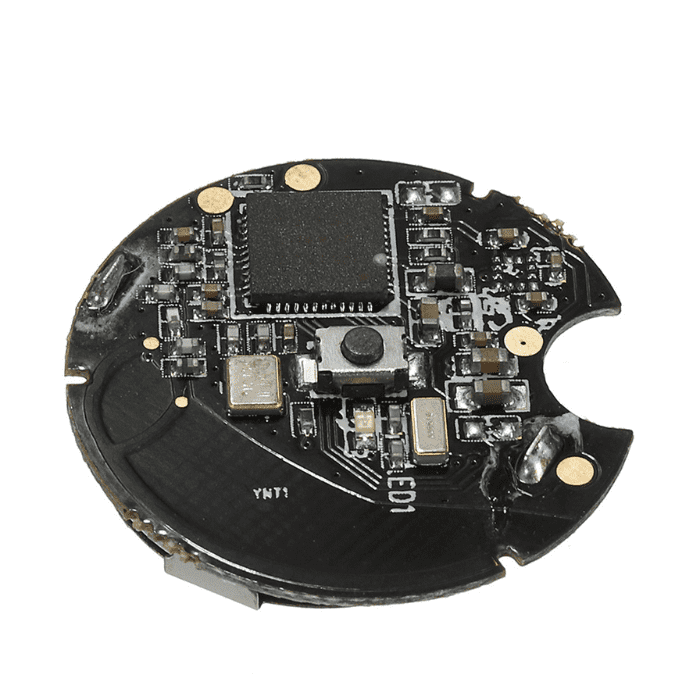

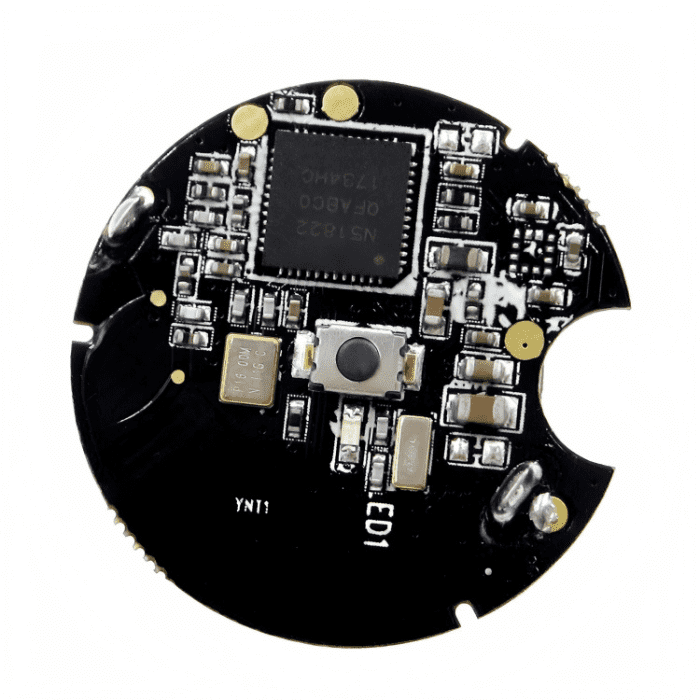

NRF51822 Ibeacon Wireless Bluetooth Module The NRF51822 iBeacon Wireless Bluetooth Module is a low-power, multi-protocol wireless system-on-chip (SoC) that is designed for Bluetooth low energy and 2.4GHz ultra-low-power wireless applications. This module is ideal for commercial advertising and indoor location-based services due to its accurate hardware and robust firmware. This NRF is a general-purpose, ultra-low power SoC that is ideally suited for Bluetooth Low Energy and 2.4 GHz proprietary wireless applications. This module is based on Nordic's high-performance wireless SOC chip NRF51822 and is a complete low-cost, low-power design for Bluetooth low-energy applications. The NRF51822 module is ultra-compact at 20mm diameter and can run from CR1632 coin-cell batteries, making it an ideal solution for wearable devices, IoT sensors, and other battery-operated devices. The NRF51822 is a multiprotocol SoC with Bluetooth Low Energy (BLE) and a 2.4GHz transceiver that supports both chip solutions and module solutions. If you're interested in programming the NRF51822 iBeacon module, note that Core Bluetooth is a fairly low-level framework and not very easy to learn. Applications: Indoor navigation Mobile payment In-store shopping guide Flow analysis 1 x NRF51822 Ibeacon Wireless Bluetooth Module

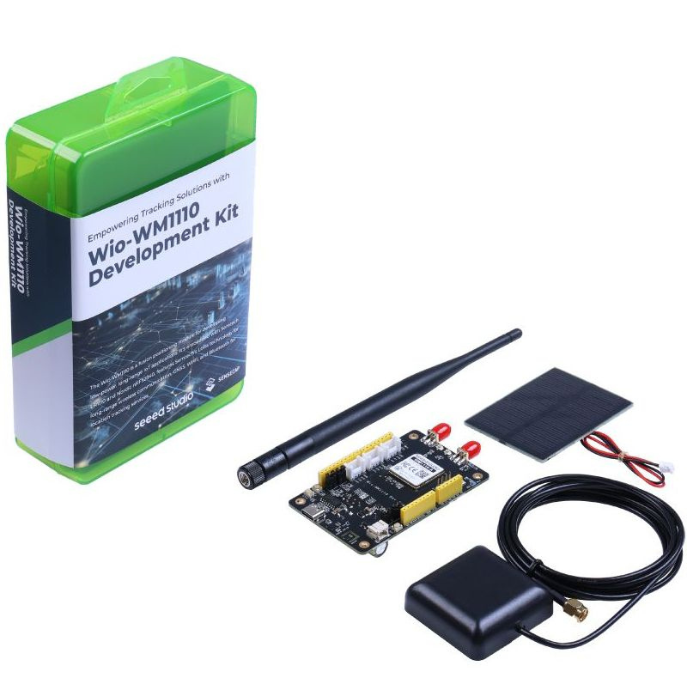

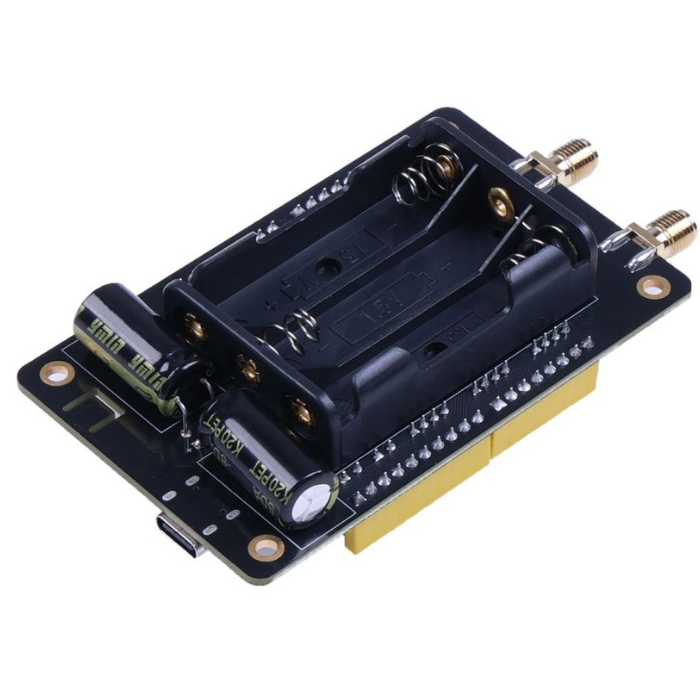

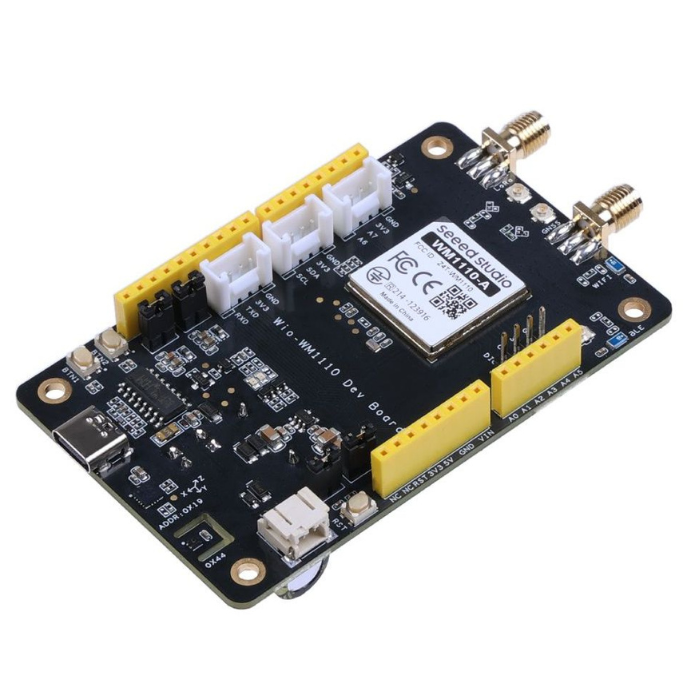

Wio-WM1110 Dev Kit, built-in Semtech LR1110 and Nordic nRF52840 The Seeed Studio Wio-WM1110 Dev Kit is the ultimate solution for your IoT projects, offering long-range communication, precise location tracking, and versatile customization options. With features like LoRa® technology, GNSS, and an extensive Grove-compatible interface, this dev kit empowers developers to create innovative solutions. The integration of sensors and multiple power supply modes ensures adaptability to diverse environmental conditions. Whether you're a seasoned developer or just starting, Wio-WM1110 provides the tools and capabilities you need. This dev kit guarantees top-notch quality and durability. Its open-source nature and compatibility with popular protocols make it an ideal choice for IoT enthusiasts and professionals alike. Note : Wio-WM1110 module has been perfectly applied to SenseCAP T1000 , SenseCAP T1000 is a LoRaWAN® card size tracker for seamless indoor & outdoor positioning. It boasts months of battery life and is equipped with temperature, light, and motion sensors, making it ideal for a variety of location-based applications. Features: Low-Power High-Sensitivity LoRa/(G)FSK Half-Duplex RF Transceiver: Frequency bands support in the range 863- 928MHz Multi-Purpose Radio Front-End for Geolocation: GNSS (GPS/ BeiDou)?Wi-Fi?Bluetooth Rich GPIOs and Compatible with Grove: Over 400 Grove-compatible for flexible expansion options. Open Source Platform: Leverage the extensive LR1110 and nRF52840 open-source ecosystem for infinite application possibilities. Built-in Sensors and Multiple Power Supply Modes: Temp&Humidity sensor and 3-Axis accelerometer, support both solar power and battery-powered. Applications: Long-Range Communication: Enables reliable wireless communication with Semtech's LoRa® technology, covering distances of up to 10km. Precise Location Tracking: Offers both outdoor and indoor positioning accuracy through integrated GNSS (GPS/BeiDou) and Wi-Fi scanning. Extensive Expansion Options: Provides over 400 Grove-compatible interfaces for customizable and flexible project applications. Open Source Platform: Allows for limitless application possibilities by leveraging the LR1110 and nRF52840 open-source ecosystem. Built-in Sensors: Facilitates comprehensive environmental data collection with temperature, humidity, and 3-axis accelerometer sensors. Power Flexibility: Supports both solar and battery power deployment, enhancing adaptability to diverse environmental conditions.

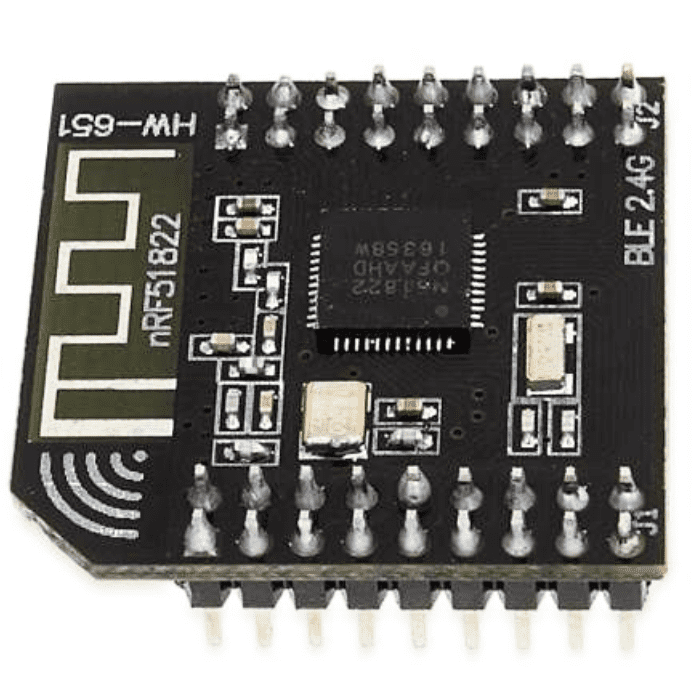

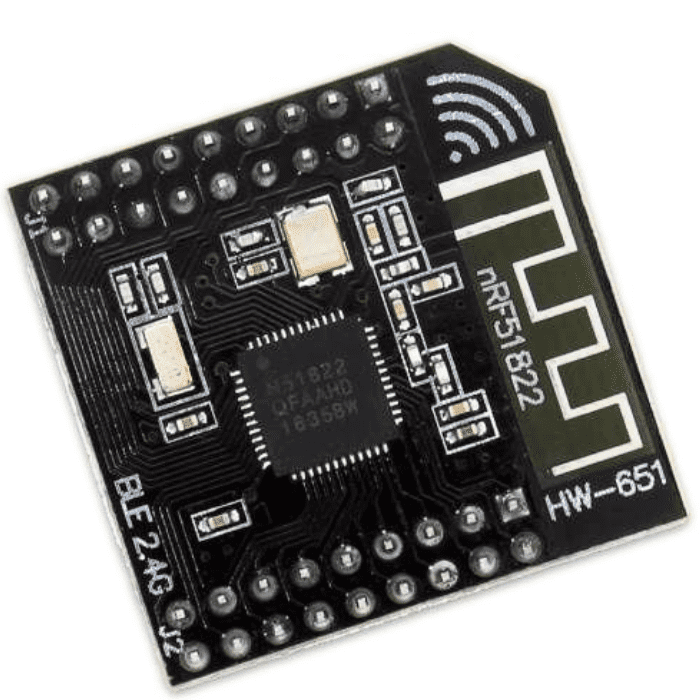

NRF51822 Bluetooth module The NRF 51822 BLE 4.0 Bluetooth Module Wireless Low-power Development Board is a versatile wireless module optimized for ultra-low power wireless applications. It utilizes the nRF 51822, which is a multiprotocol Bluetooth® 4.0 low energy/2.4 GHz RF SoC developed by Nordic Semiconductor. Built around the nRF 51822 SoC, the Core51822 wireless module provides an easy-to-use interface for developers who want to incorporate Bluetooth connectivity into their projects. This module is ideal for wireless sensors, health and fitness trackers, smart home automation, and more. One of the standout features of the nRF 51822 is its ultra-low power consumption. With less than 10 µA power consumption in sleep mode, the nRF 51822 can operate for several years on a single coin cell battery. Designed to be user-friendly and integrate seamlessly with existing projects, the Core51822 module includes all necessary components, such as an onboard antenna, voltage regulator, and crystal oscillator. Additionally, it has several input and output pins that can be used to connect to other devices and sensors, making it a versatile option for various applications. Features: 2.4 GHz multiprotocol RF transceiver ARM® Cortex M0 32 bit processor 128 bit AES HW encryption 256kB flash & 32kB RAM Programmable Peripheral Interconnect (PPI) 10 bit ADC Programmable output power: -20 to +4 dBm Independent application development and protocol stack Fully compatible with NRF24L series Pinout compatible with NRF51xxx series Global separate power management Onboard Antenna Applications: Wearable devices Bluetooth intelligent application Mobile phone accessories RFID labels Smart home appliances Industry control Data acquisition system

NRF24L01 Ultra-Low Power 2.4GHz RF Wireless Transceiver The NRF24L01 2.4GHz Antenna Wireless Transceiver Module is a compact and integrated IC designed for ultra-low power (ULP) RF transmission and reception in the 2.4GHz ISM band. It boasts a peak current of less than 14mA for both receiving and transmitting, a sub ?A power down mode, advanced power management, and a wide supply voltage range of 1.9 to 3.6V, which makes it a true ULP solution for achieving extended battery life, especially when running on coin cells or AA/AAA batteries. These RF modules are widely used by Arduino enthusiasts and are suitable for various wireless control applications, given their transceiver nature, allowing for data transmission and reception. The NRF24L01+ 2.4GHz Antenna Wireless Transceiver Module is compatible with different MCUs, including Arduino, Mbed, and ARM. It can be easily powered by mounting it over a 3.3V Adapter Board designed for the 24L01 Wireless Module. Features : Maximum operating speeds up to 2Mbps, GFSK modulation efficiency, Anti-interference ability, Particularly suitable for industrial control applications. 125 Channels, Multi-point communication, and frequency hopping to meet the communication needs Built-in hardware CRC error detection, Multipoint communication address control. Low-power 1.9 ~ 3.6V, only 1uA on Power down mode Built-in 2.4Ghz antenna Available software to set the address only received local Address when output data(Provide interrupt instruction), can be directly connected to a variety of microcontrollers, Software programming is very convenient. Built-in voltage regulator Standard DIP Pitch Interface for embedded applications. Note: VCC is a range of 1.9V~3.6V, do not exceed this range, otherwise, it will destroy the module. Communication pins other than Vcc and GND are 5v tolerant Applications: Wireless PC Peripherals Mouse, keyboards, and remotes 3-in-1 desktop bundles Advanced Media center remote controls VoIP headsets Game controllers Sports watches and sensors RF remote controls for consumer electronics Home and commercial automation Ultra low power sensor networks Active RFID Alarm and security systems Asset tracking systems Toys

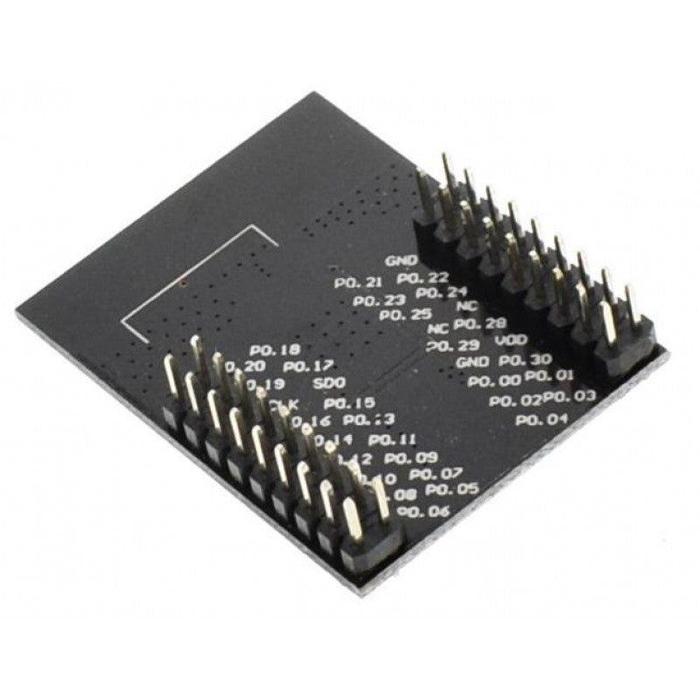

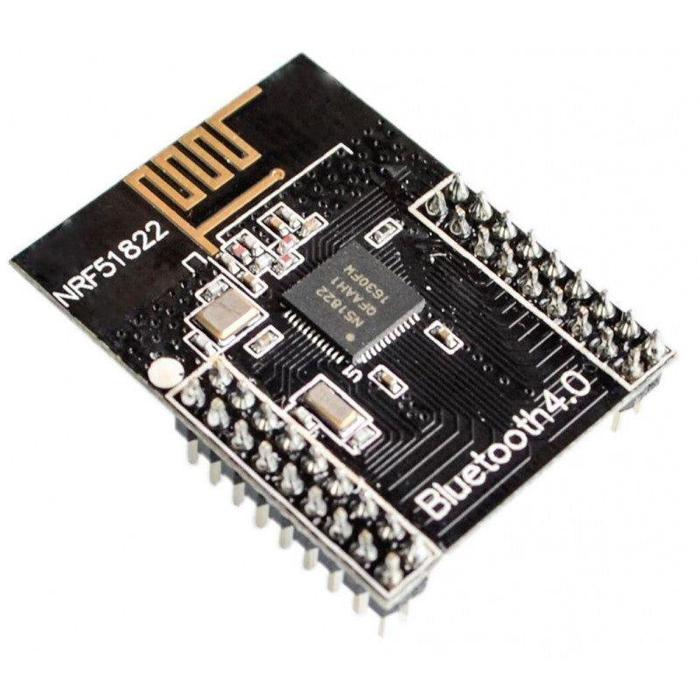

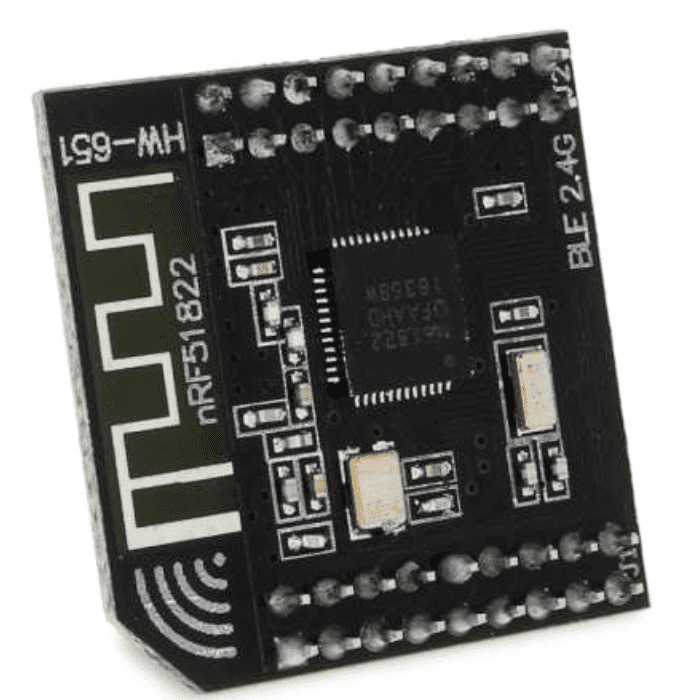

NRF51822 BLE4 2.4GHz Bluetooth 4.0 Module The NRF51822 BLE4 2.4GHz Bluetooth 4.0 Module is a wireless module that uses the nRF51822 chip. This chip is a low power multiprotocol Bluetooth 4.0/2.4 GHz RF system-on-chip designed for wireless applications that require ultra-low power consumption. The module has a communication distance of up to 30 meters in open outdoor conditions at a data rate of 1M and operates on a frequency range of 2.4GHz with an operating voltage of 2.0V to 3.6V. The Bluetooth module is fully compatible with the NRF24L series and pinout compatible with NRF51xxx series, making it suitable for various applications such as wearable devices, Bluetooth intelligent applications, mobile phone accessories, RFID labels, smart home appliances, industry control, and data acquisition systems. The nRF51822 chip is built around a 32-bit ARM Cortex-M0 CPU with 256KB flash and 16 KB RAM. It has a flexible 2.4 GHz radio that supports Bluetooth Low Energy and 2.4 GHz, and is fully supported by the Bluetooth LE and ANT software development kit. Features Based on the nRF51822 SoC, a multi-protocol Bluetooth low energy/2.4 GHz dedicated RF single-chip solution Supports Bluetooth Low Energy (BLE) 4.0, a low-power, low-data-rate wireless protocol designed for IoT devices Equipped with a 2.4 GHz multiprotocol RF transceiver Contains an ARM Cortex M0 32-bit processor Includes 128-bit AES HW encryption for security Has 256kB flash and 16kB RAM for storage and processing Features programmable peripheral interfaces for flexibility Can communicate up to a distance of 30 meters in open outdoor environments with a 1M data rate Widely used in various applications such as PC peripherals, internet TV, toys, remote controls, sports/fitness/health sensors, and automation. Applications: Wearable devices Bluetooth intelligent application Mobile phone accessories RFID labels Smart home appliances Industry control Data acquisition system

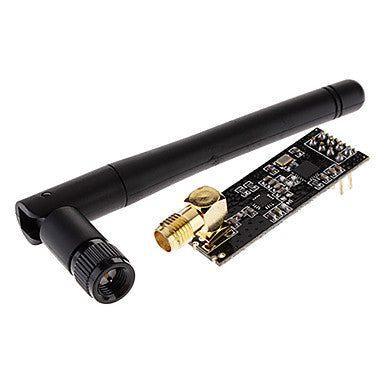

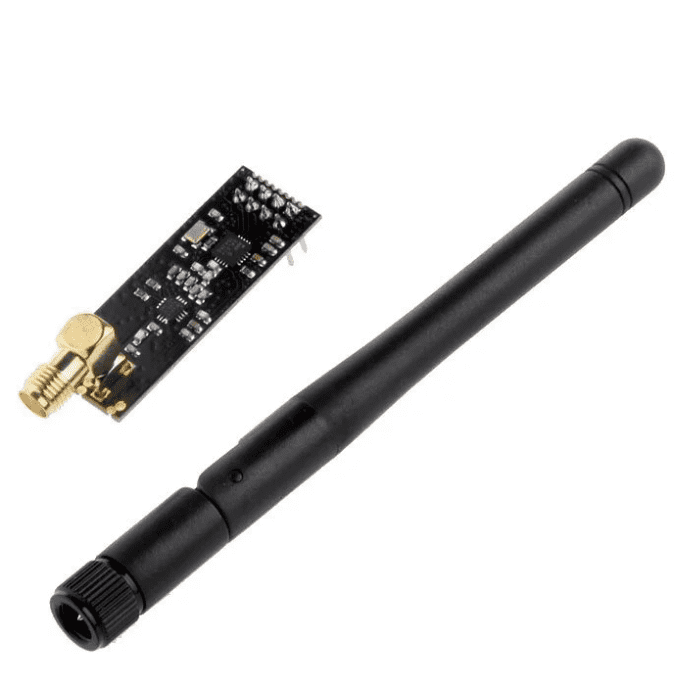

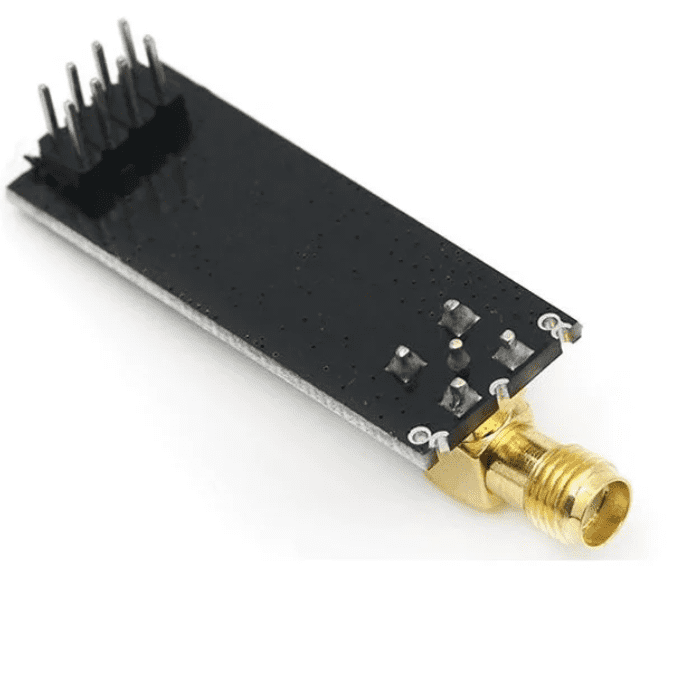

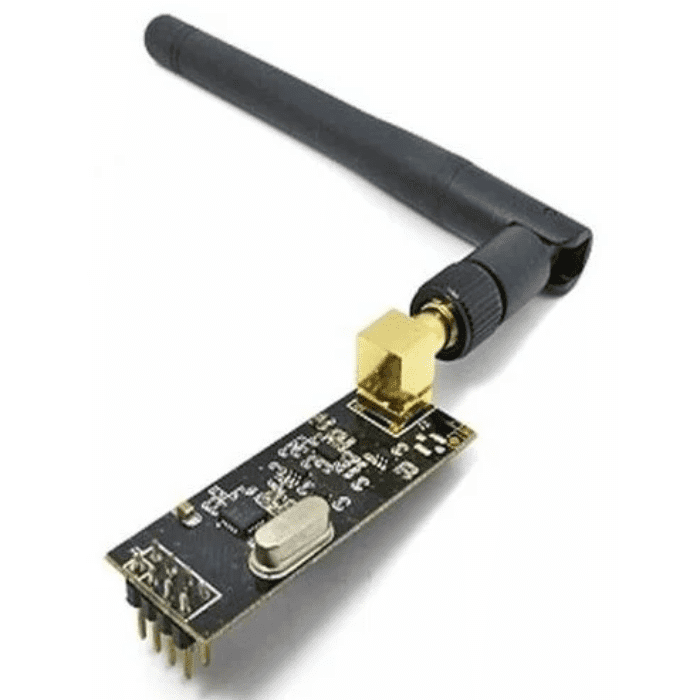

NRF24L01+PA+LNA SMA Wireless Transceiver Antenna The NRF24L01 module is a state-of-the-art RF module that uses Nordic Semiconductor's 2.4GHz transceiver , the NRF24L01+. This IC operates in the 2.4GHz band and comes with many new features, such as additional pipelines, buffers, and an auto-retransmit function. The board has a reverse-polarized SMA connector that maximizes the RF range, as well as a PA and LNA circuit, which enables long-distance communication when combined with an external antenna. The module comes with a 2DB 2.4G antenna and can achieve a communication distance of 800-1K meters with a transmission rate of 250Kbps on open-air. It is an affordable and user-friendly option for setting up a wireless communication system, striking a good balance between cost and wireless transition performance. The nRF24L01+ module is compatible with various systems, including MCU/ARM/PIC/AVR/STM32, and its power amplifier and SMA antenna design allow for wireless communication up to 1000 meters without barriers. Features : It uses 2.4GHz global open ISM band, with license-free. Transmit power is greater than +20 dBm. Support six-channel data reception. 2Mbit/s speed makes high-quality VoIP possible Multi-frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping. Low cost: integrated with high-speed signal processing parts associated with RF protocol, such as: automatically re-send lost packets and generate acknowledge signal; SPI interface facilitates the communication with MCU I/O port. Facilitate the development for customers, without development RF part. Software programming is fully compatible with NRF24L01 modules.

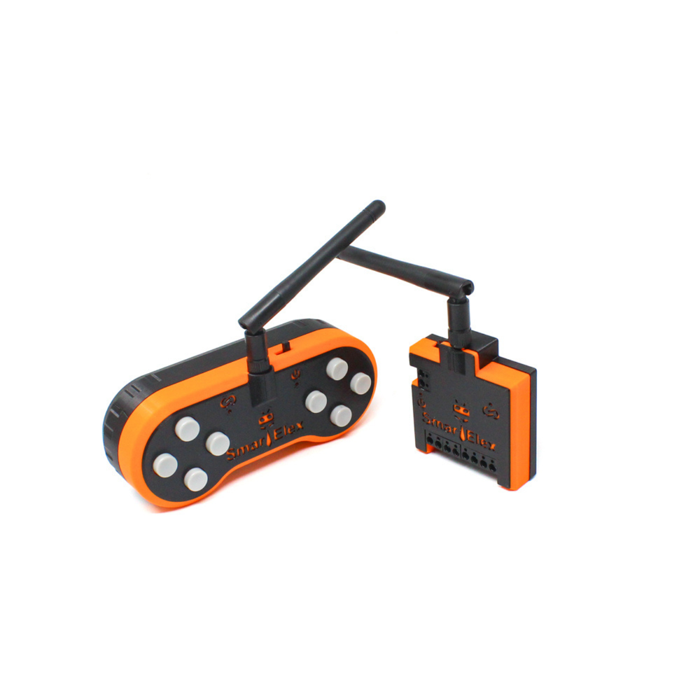

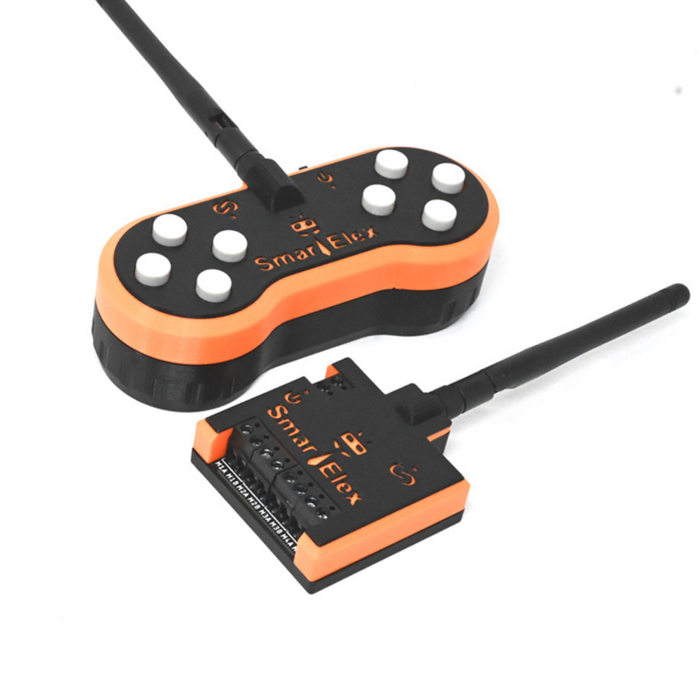

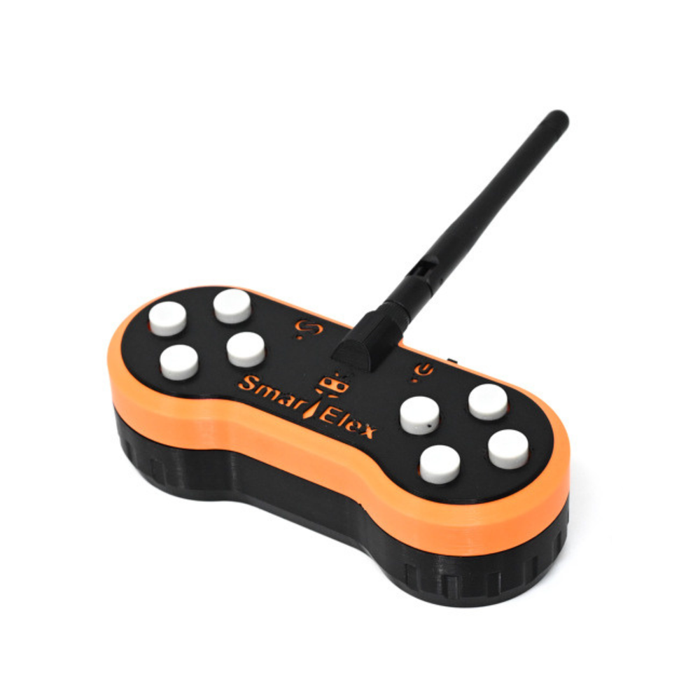

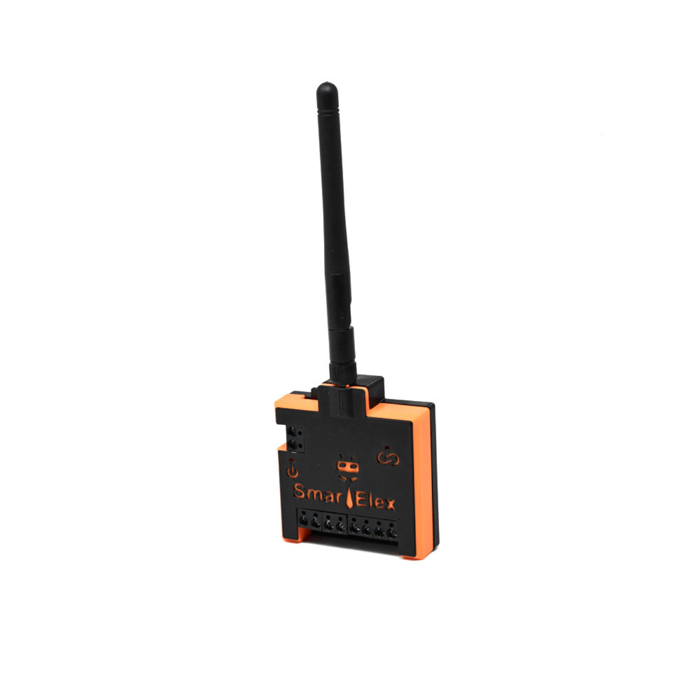

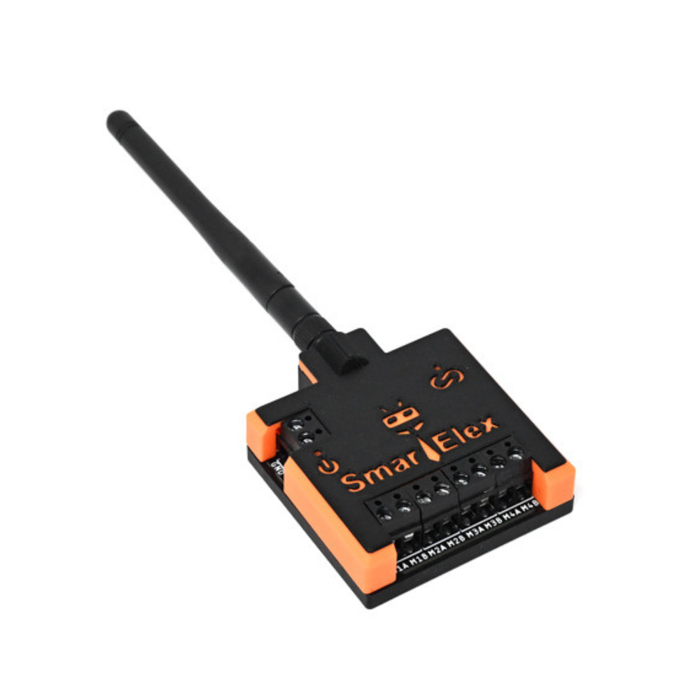

SmartElex 2.4GHz Wireless Remote Control Kit with NRF24l01 Transceiver and Motor Driver The SmartElex 2.4GHz Wireless Remote Control Kit is a ready-to-use control system designed for building wireless robots and remote-operated projects. It includes an NRF24L01 transceiver module and an onboard motor driver, allowing users to control motors and communicate wirelessly without needing to design a circuit from scratch. This wireless robot controller is ideal for students, hobbyists, educators, and early-stage engineers who want a practical way to learn wireless communication, robot control, and embedded system development. This wireless remote control kit is commonly used in RC vehicles, robotics competitions, automation prototypes, and IoT-based control applications. It works smoothly with development platforms like Arduino, Raspberry Pi, and ESP32, making integration simple and beginner-friendly. With stable 2.4GHz communication and onboard motor control support, the SmartElex wireless remote control kit is a reliable choice for DIY electronics, STEM education, and project prototypes that require responsive wireless operation and motor management. Features: 2.4GHz wireless communication for stable long-range control Built-in NRF24L01 transceiver module for reliable data transmission Onboard motor driver enables direct DC motor control Compatible with Arduino, Raspberry Pi, and ESP32 platforms Perfect for wireless robots, RC vehicles, and automation projects Beginner-friendly kit designed for fast setup and prototyping
