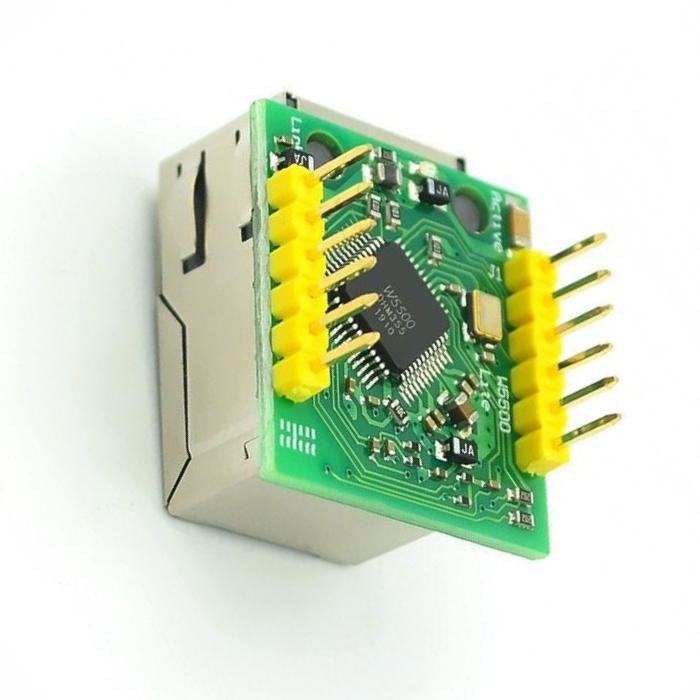

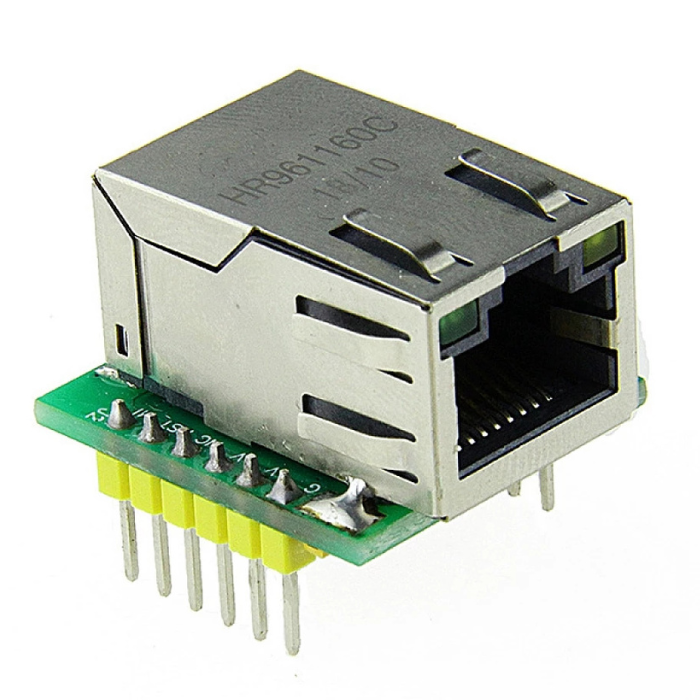

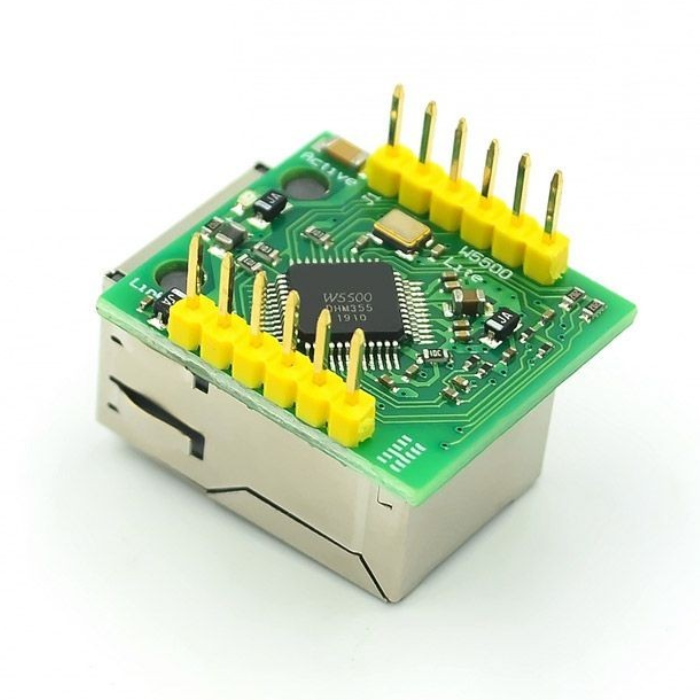

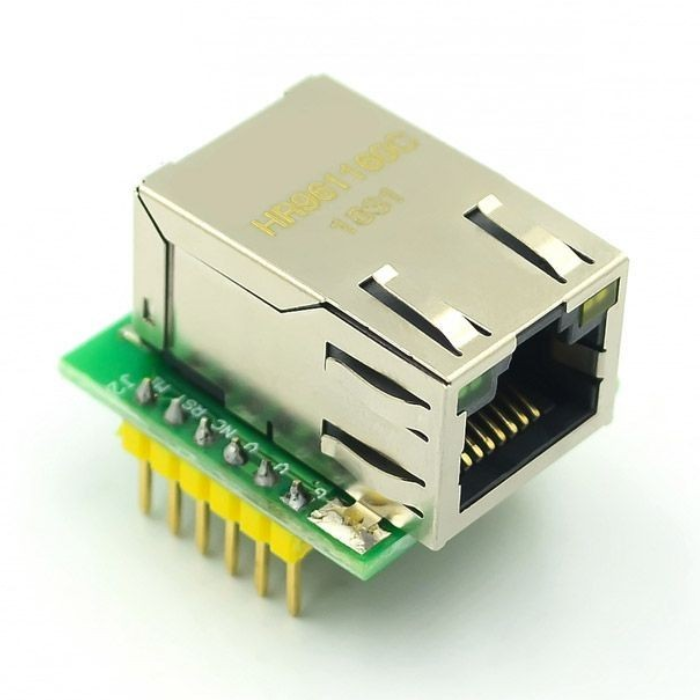

W5500 Mini Ethernet Gateway Module
(0)
W5500 Mini Ethernet Gateway Module The W5500 Mini Ethernet Gateway Module is a compact network solution featuring the W5500 chip. It uses the SPI interface and includes a built-in TCP/IP stack, supporting protocols like TCP/IP, UDP, ICMP, ARP, IGMP, and PPPoE. The module also supports Wake on LAN over UDP and is designed for easy integration with breadboards, making it perfect for embedded systems, IoT applications, and custom projects.
Sale Accelerators
Hurry up! Only 0 left in stock
Condition:
NEW
As low as
₹377.94
MRP. ₹768.60
Incl. GST (No Hidden Charges)
OUT OF STOCK
W5500 Mini Ethernet Gateway Module The W5500 Mini Ethernet Gateway Module is a compact network solution featuring the W5500 chip. It uses the SPI interface and includes a built-in TCP/IP stack, supporting protocols like TCP/IP, UDP, ICMP, ARP, IGMP, and PPPoE. The module also supports Wake on LAN over UDP and is designed for easy integration with breadboards, making it perfect for embedded systems, IoT applications, and custom projects.
- Compact Ethernet module with built-in TCP/IP stack.
- Supports TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE.
- Integrated data link and physical layer.
- Wake-up support at power off.
- SPI interface for microcontroller communication.
- 32KB internal buffer.
- Built-in 10BaseT/100BaseTX Ethernet with auto-negotiation.
- Operates at 3.3V.
- LED status indicator.
- Built-in Protocol Stack Hardware TCP/IP stack
- Supported Protocols TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- Data Link & Physical Layer Integrated
- Wake-up Support Wake-up support at power off
- Interface SPI interface
- Buffer 32KB send and receive buffer
- Ethernet PHY Built-in 10BaseT/100BaseTX Ethernet
- Auto-negotiation Support Yes
- Working Voltage 3.3V
- LED Status Indicator Yes
- Weight 12g
- Dimensions (L x W x H) 2.8 x 2.3 x 2.4 cm
