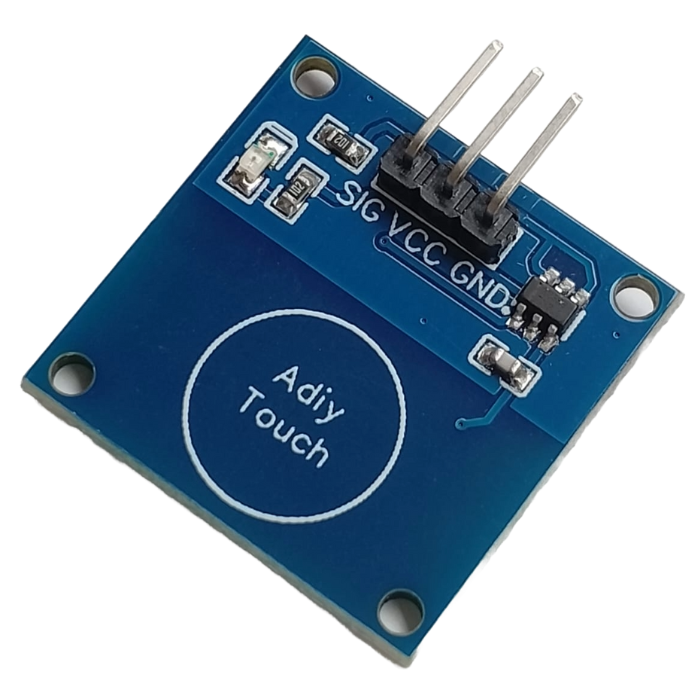

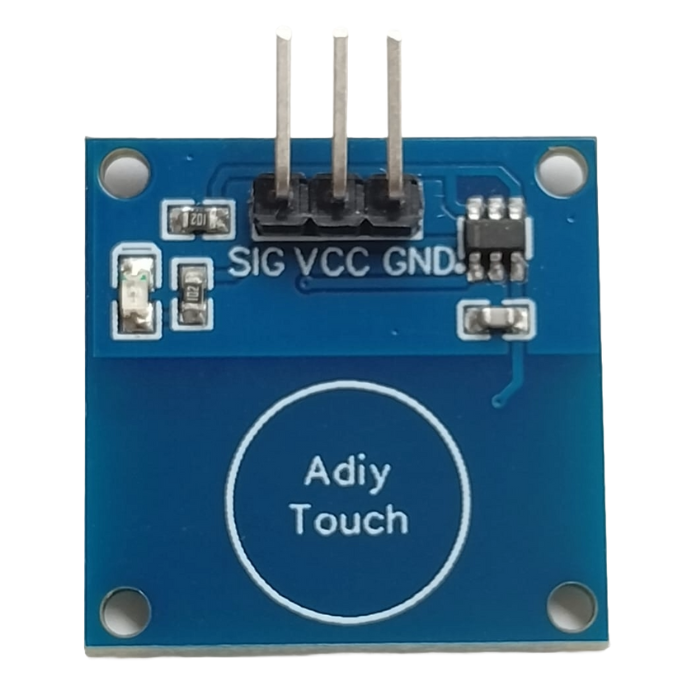

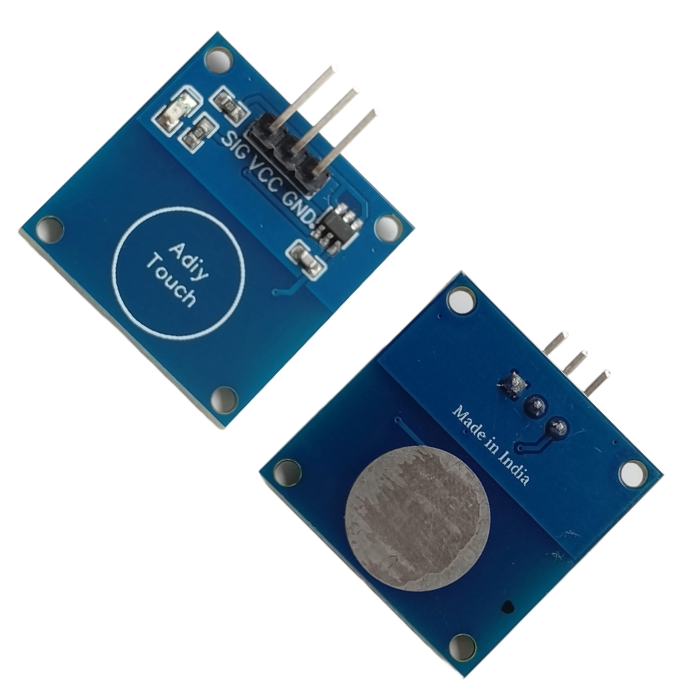

TTP223B Capacitive Touch Sensor Module The TTP223B Digital Capacitive Touch Switch Sensor Module is based on a touch-sensing IC (TTP223B) capacitive touch switch module. Allows you to remove the worry of conventional push-type keys. Digital Capacitive Touch Switch Sensor Module is based on TTP223B. Normally, it outputs low and keeps at a low power state. When a touch is sensed on the circular marked region, it outputs high and switches to the quick response state. When not being touched for 12 seconds, it switches to a low-power state again. If the module is mounted on surfaces of non-metallic materials such as plastic, glass, or acrylic, you can make the keys hidden in the walls and desks. In addition to the thin paper ( non-metallic ) covering the surface of the module, as long as the correct location of the touch, you can make it hidden in the walls, desktops and other parts of buttons. Touch Sensor Interface: Control Interface: A total of three pins (GND, VCC, SIG), GND to the ground, VCC is the power supply, SIG digital signal output pin Power Indicator: Green LED, power on the right that is shiny Touch area: Similar to a fingerprint icon inside the area, you can touch the trigger finger. Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install, to achieve inter-module combination. Applications: Portable devices such as smartphones and tablets (iPhones, iPad, etc.) Home applications such as touch lamps Automotives Industrial

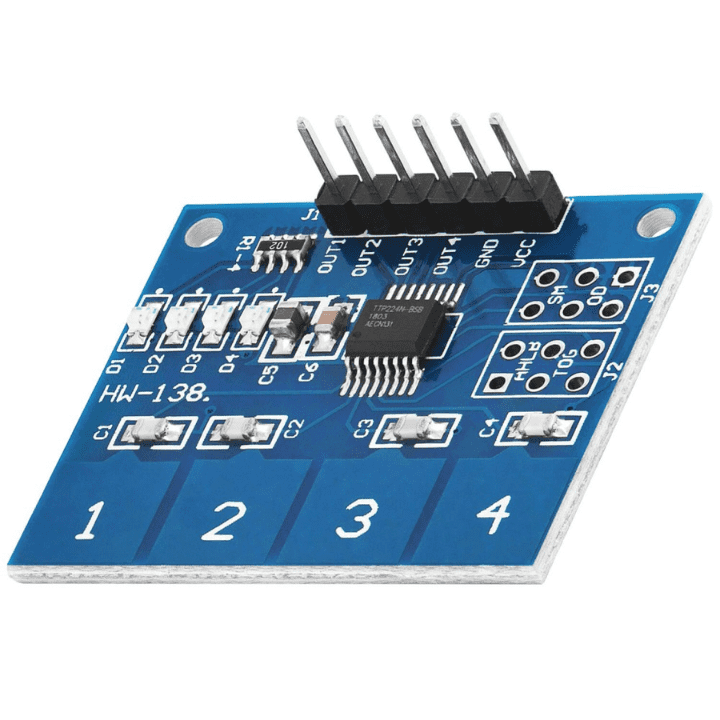

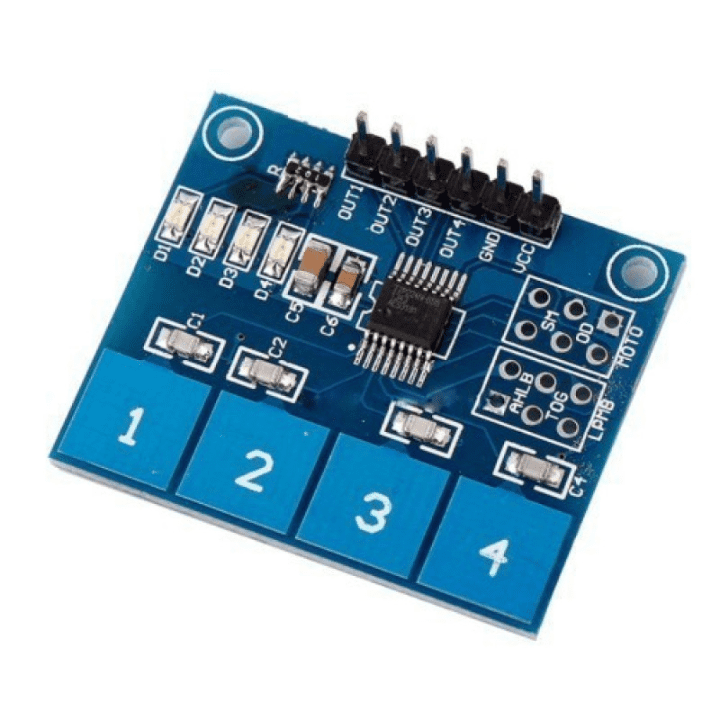

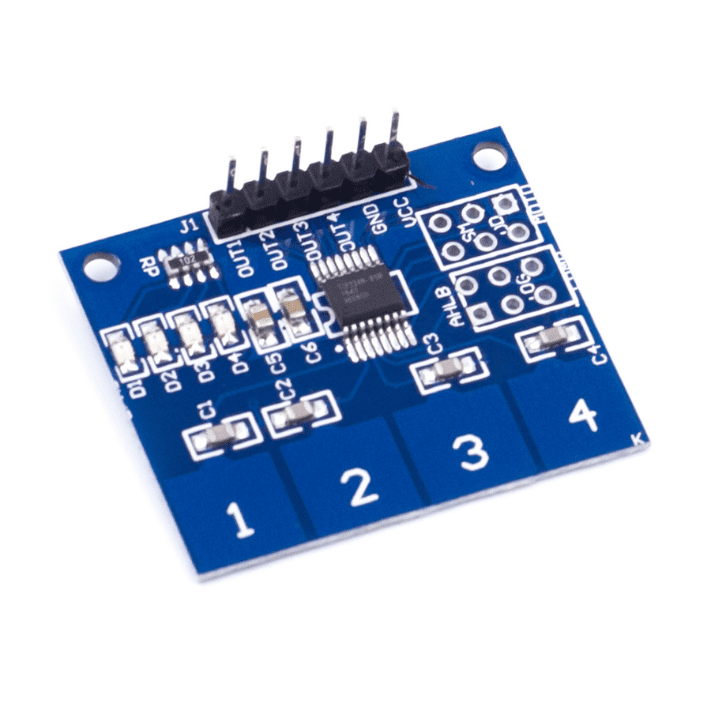

TTP224 - 4 Channel Capacitive Touch Sensor Module 4 Channel Capacitive Touch Sensor Module uses the touch-sensing IC TTP224 to sense the touch input thus making it easy to add capacitive touch input to your project. The touching detection IC is designed for replacing traditional direct button key with diverse pad size. The module has 4 touch pads. Power the module with 2.4 ~ 5.5V DC and the touch pad is all active to sense the input. Four Channel Capacitive Touch Sensor Module is easy to interface. It can be used along with a microcontroller or an Arduino or even without one. When a capacitive load (such as a human hand) is in close proximity to the sense-pad, the sensor detects the change in capacitance and activates the switch. Custom sense-pads can be made from nearly any conductive material and these sensors can detect touch through thin layers of non-conductive materials such as glass, plastic, fabric or even wood. Thus, the 4 Channel Capacitive Touch Sensor Module can be hidden in wall or other places, a perfect alternative to get rid of the conventional push-button troubles. A total of 4 pads are available on this module. The sense-pads can also be extended with a wire or almost any conductive material.

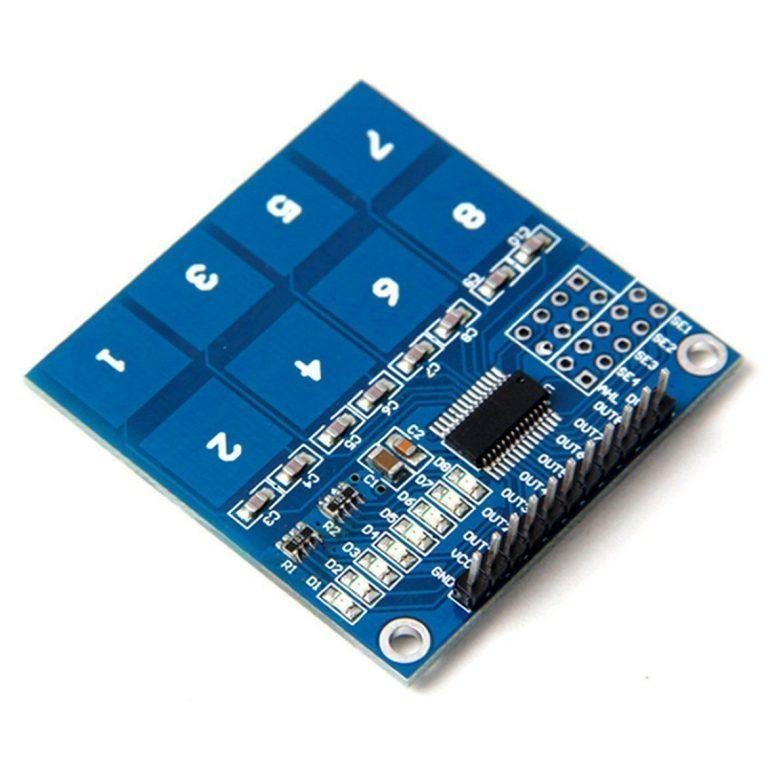

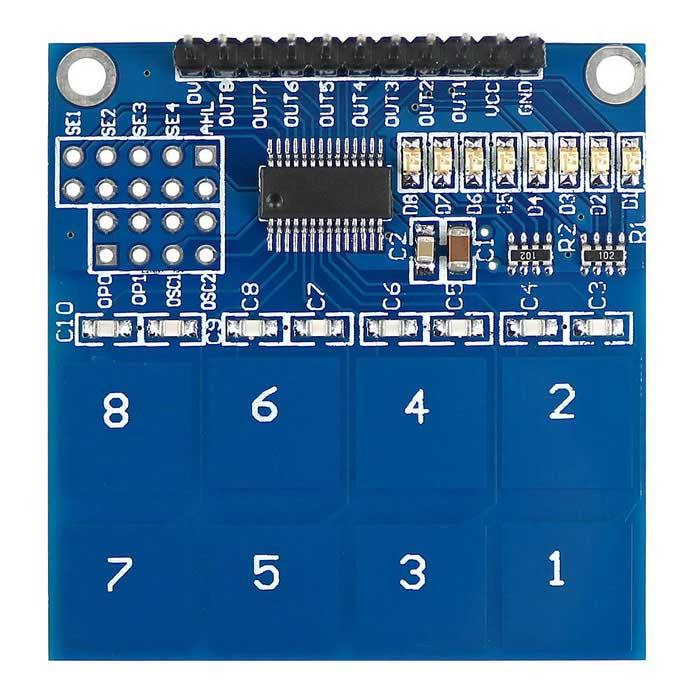

TTP226 8-Channel Capacitive Touch Pad Sensor The TTP226 8-Channel Capacitive Touch Pad Sensor is capacitive sensing design specifically for touch pad controls. The device built in regulator for touch sensor. Stable sensing method can cover diversity conditions. Human interfaces control panel links through non-conductive dielectric material. The main application is focused at replacing of the mechanical switch or button. The ASSP can independently handle the 8 touch pads with 8 direct output pins. Package Include: 1 x TTP226 8-way Capacitive Touch Switch Module.

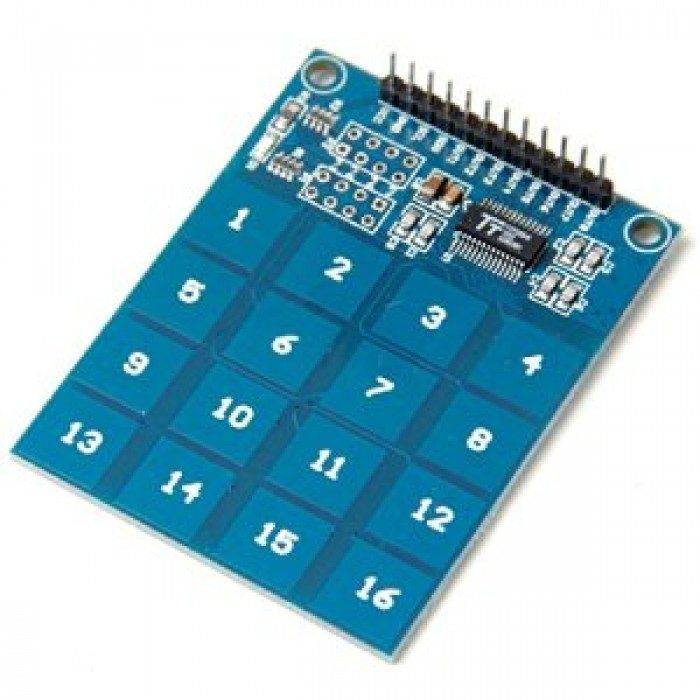

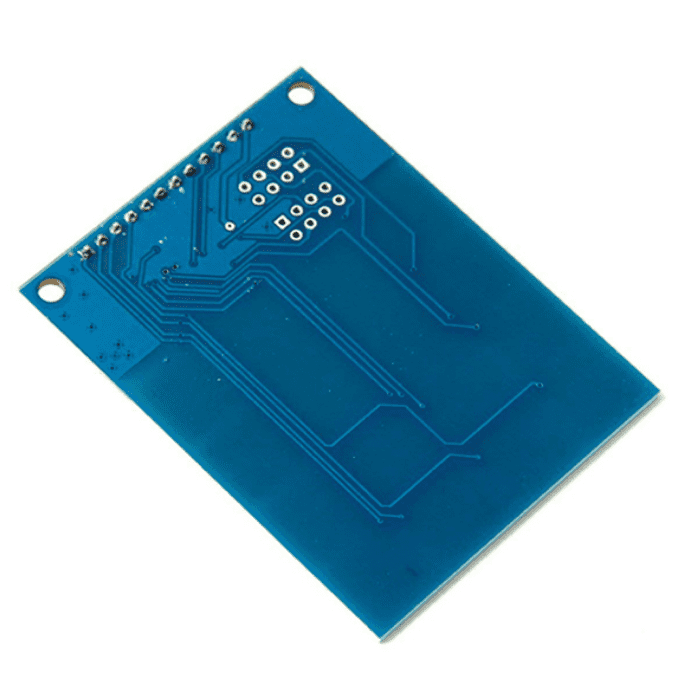

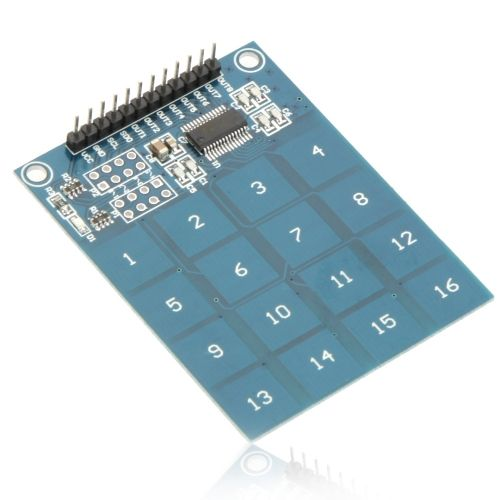

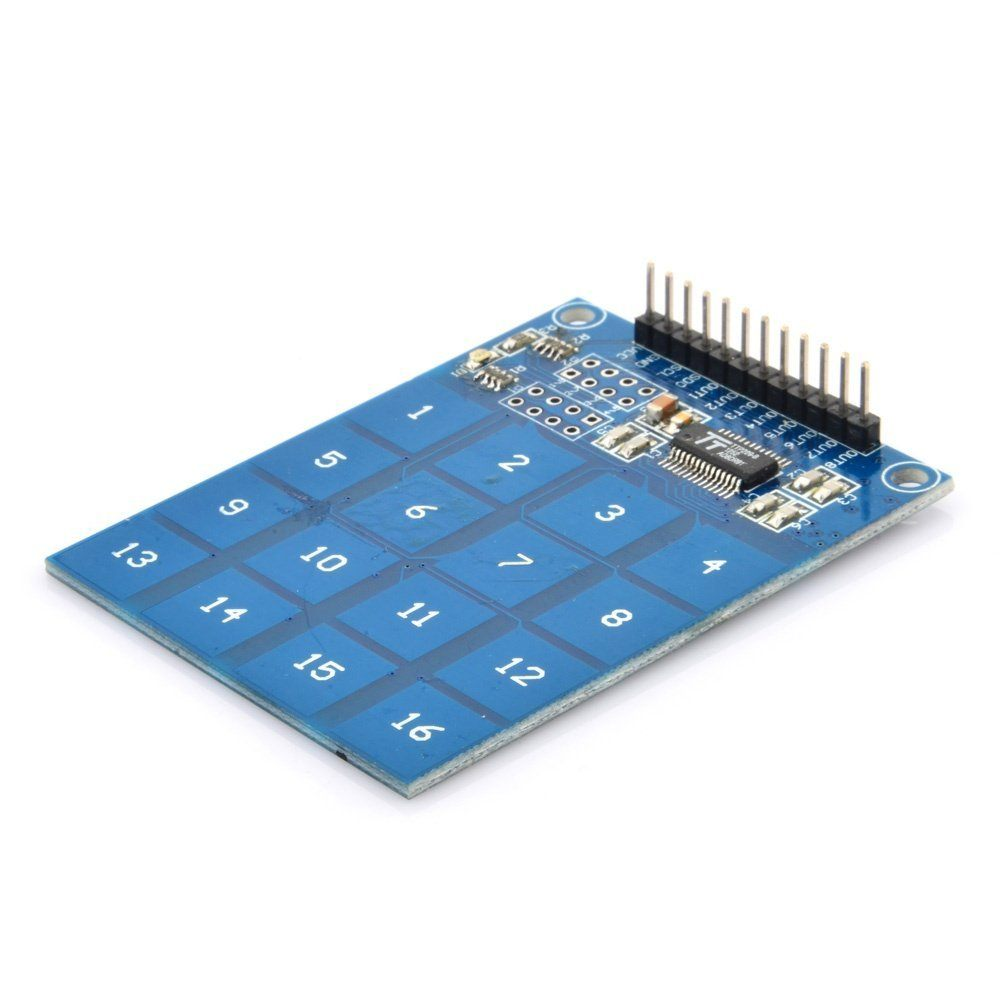

TTP229 16 Channel Capacitive Touch Module This is TTP229 16-Way Capacitive Touch Switch Digital Touch Sensor Keypad Module. This capacitive touch sensor module uses the TTP229 integrated circuit, making it easy to add capacitive touch input to your project. It features 16 sensitive touchpads that make an ideal replacement for the old-fashioned keypads. Capacitive touch allows electronics to sense when your finger is within a few millimeters of a surface to simulate a button “press” just like how the pushbutton works. Capacitive sensing may be used in any place where low to no force human touch sensing is desirable.

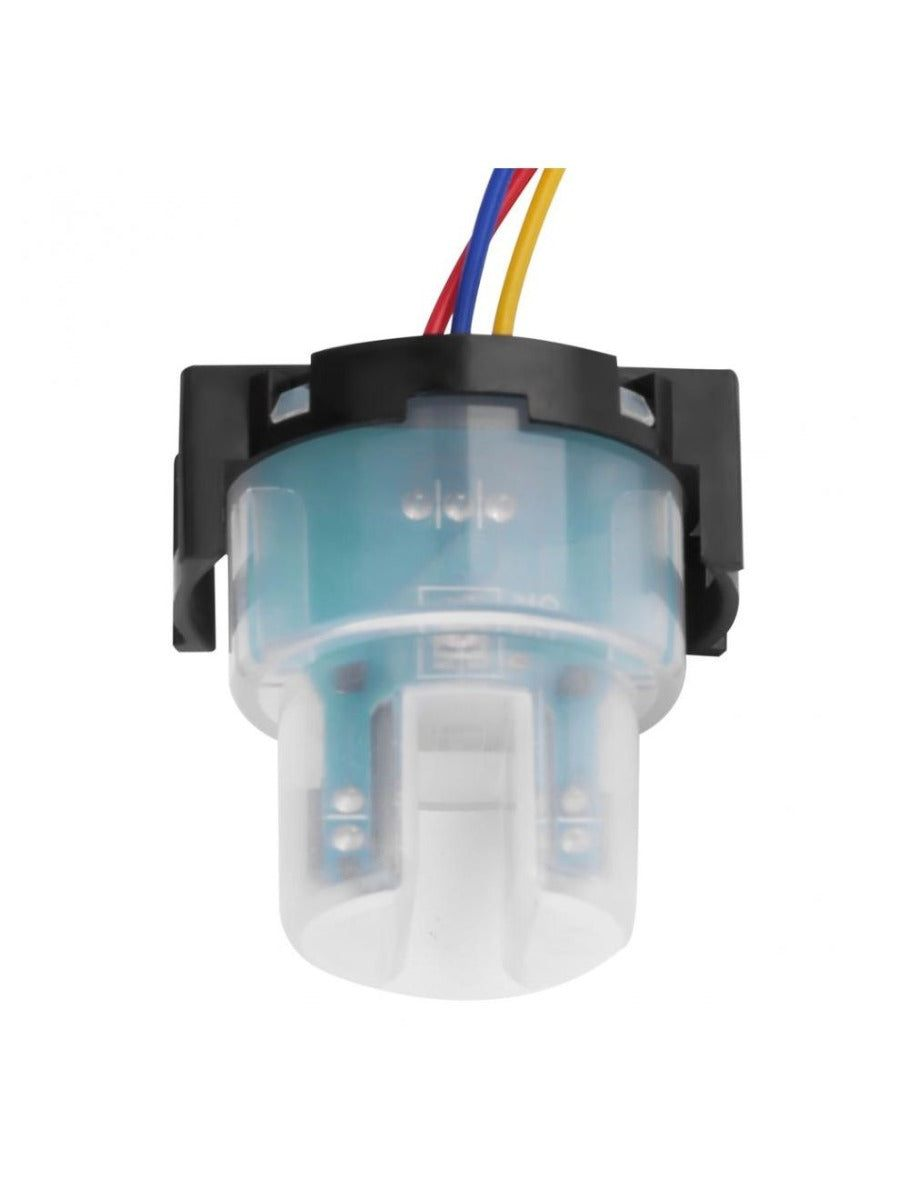

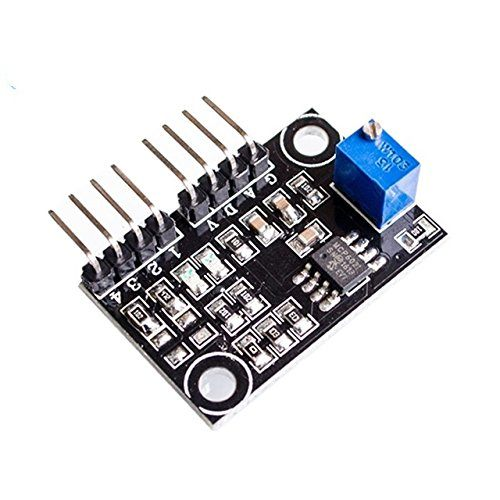

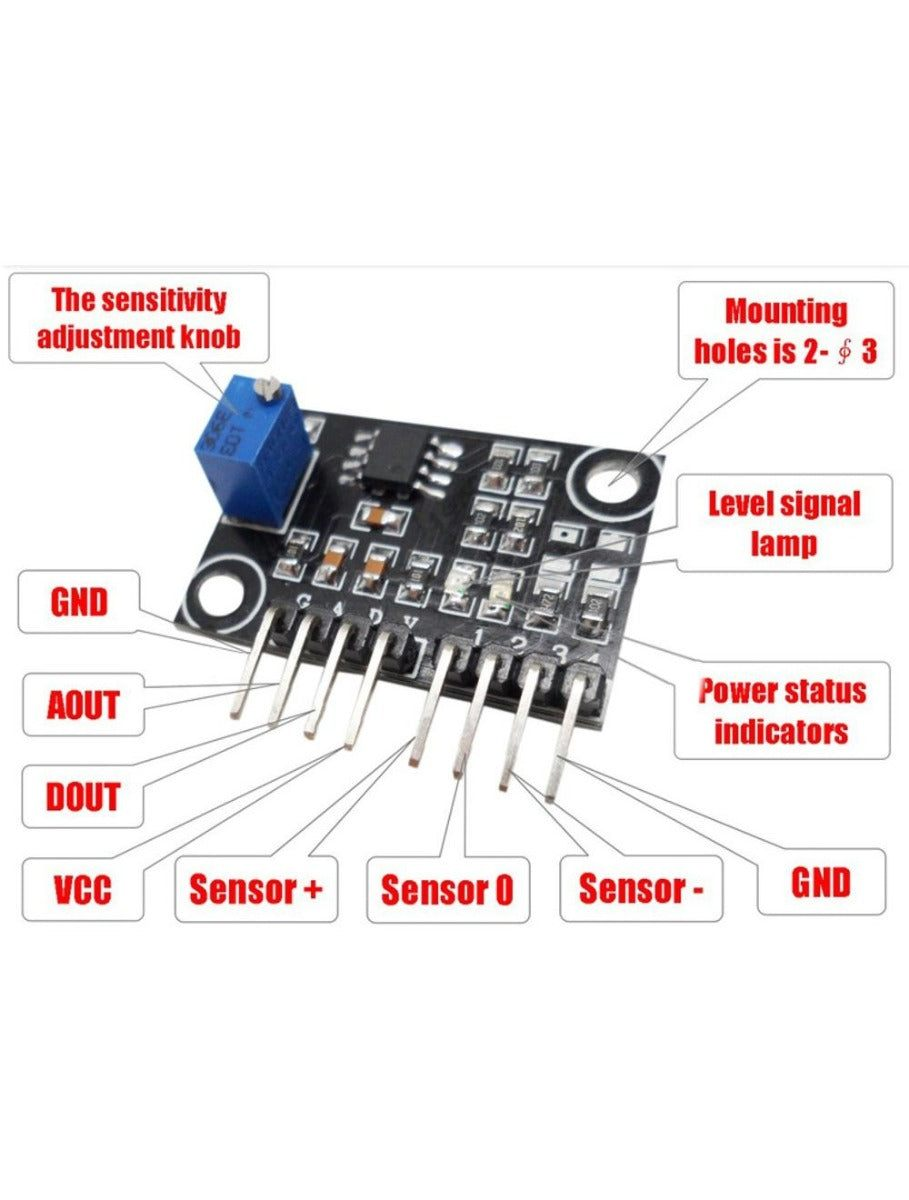

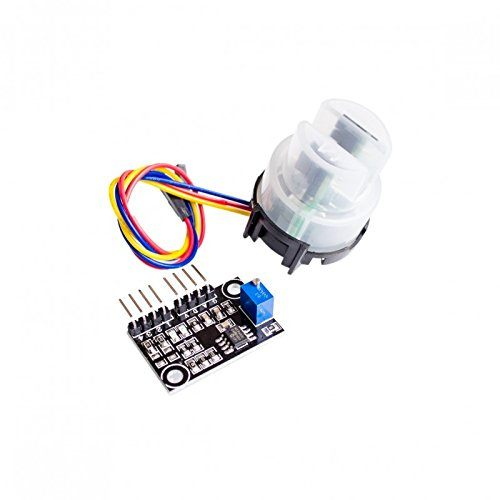

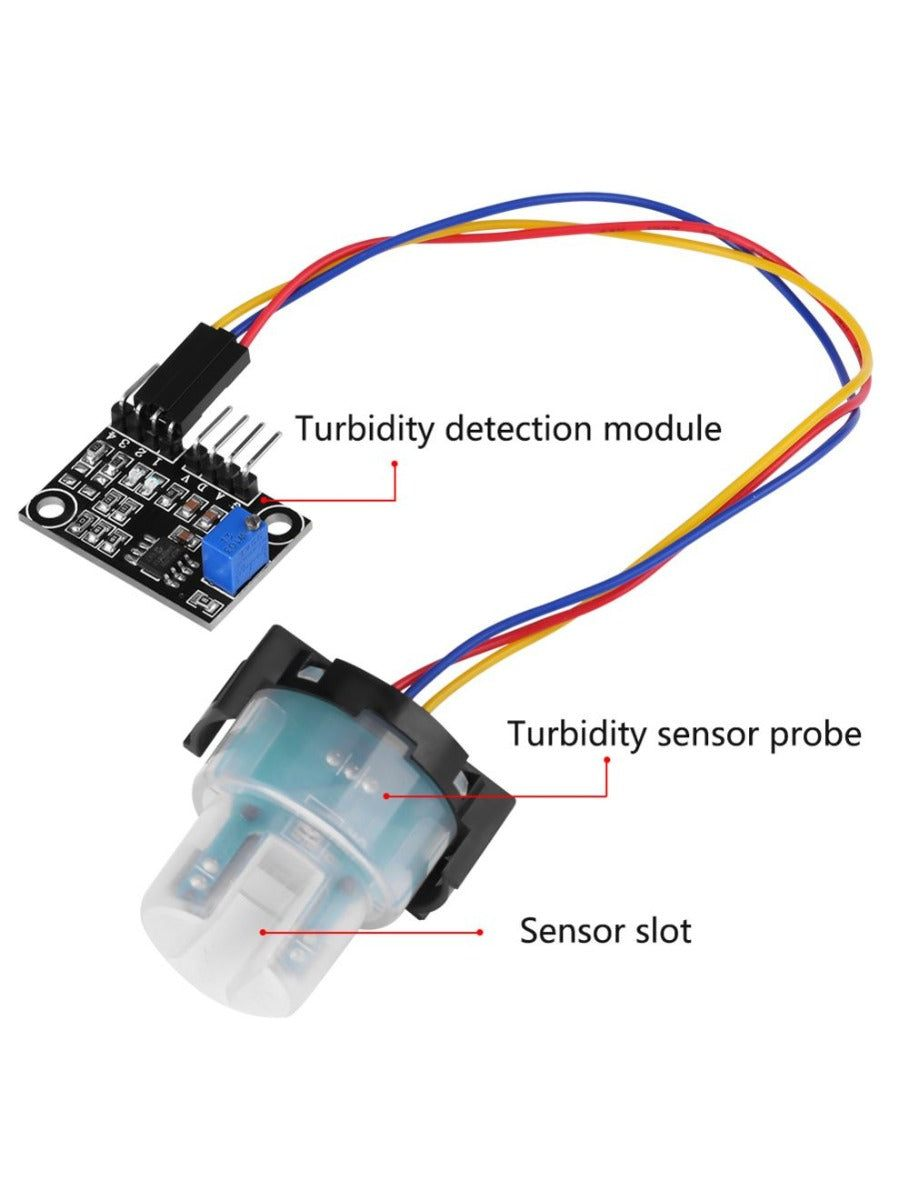

Turbidity Sensor Module Kit The Turbidity Sensor emits at its end an infrared light, imperceptible to human vision, capable of detecting particles that are suspended in water, measuring the light transmittance and the dispersion rate, which changes according to the Amount of TSS (Total Suspended Solids), increasing the turbidity of the liquid whenever levels increase.This is a Turbidity Sensor Module, an electronic monitoring module specially developed to work with microcontroller platforms Arduino, Raspberry Pi, PIC, ARM, AVR, among others. It is very efficient, the Arduino Turbidity Sensor is able to detect and verify the quality of the water, making the turbidity measurement, where it is possible to verify the results by means of digital or analogue signal next to the corresponding pins in the accompanying electronic module. In general, the Arduino Turbidity Sensor is applied in projects involving the monitoring of water turbidity in rivers, streams, lakes, water bodies, catchment and research sites, laboratories, tanks with liquids and so on. This Turbidity Sensor has an end specially prepared for direct contact, having an electronic module to amplify and send the received data to the microcontroller of the project.

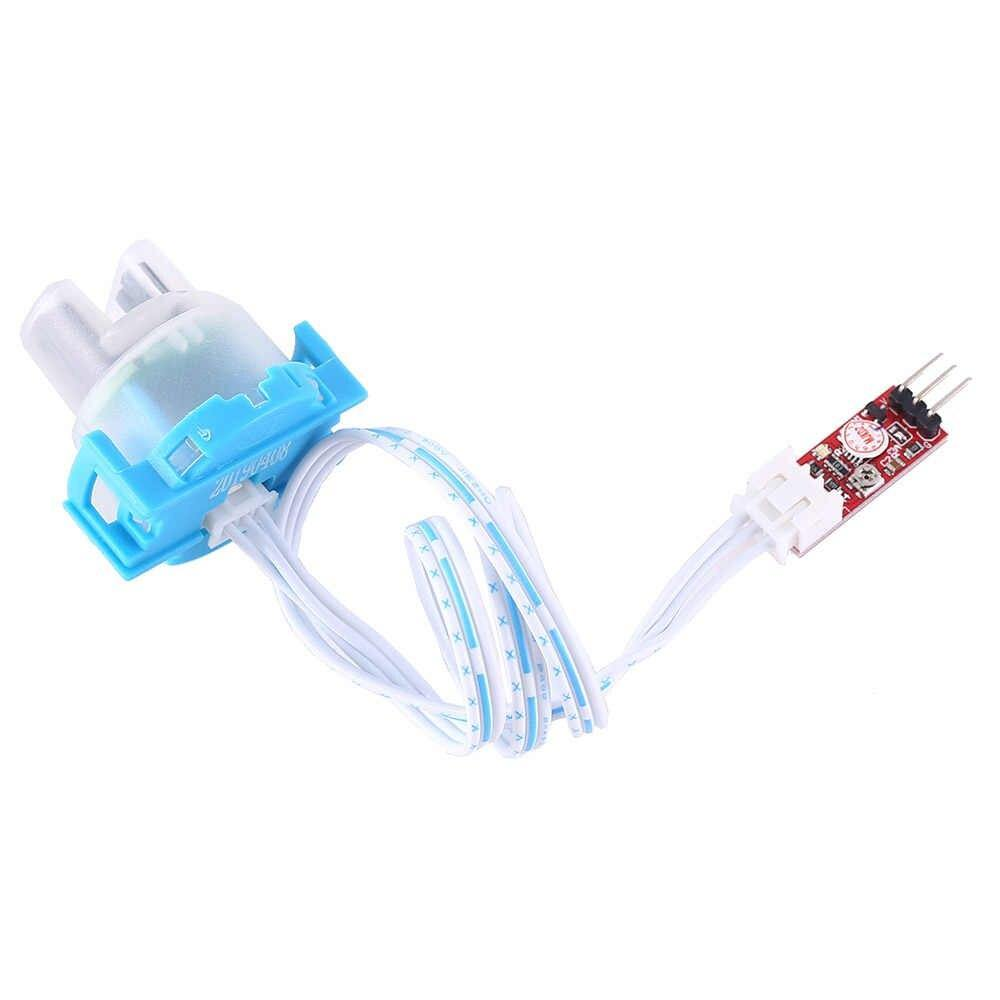

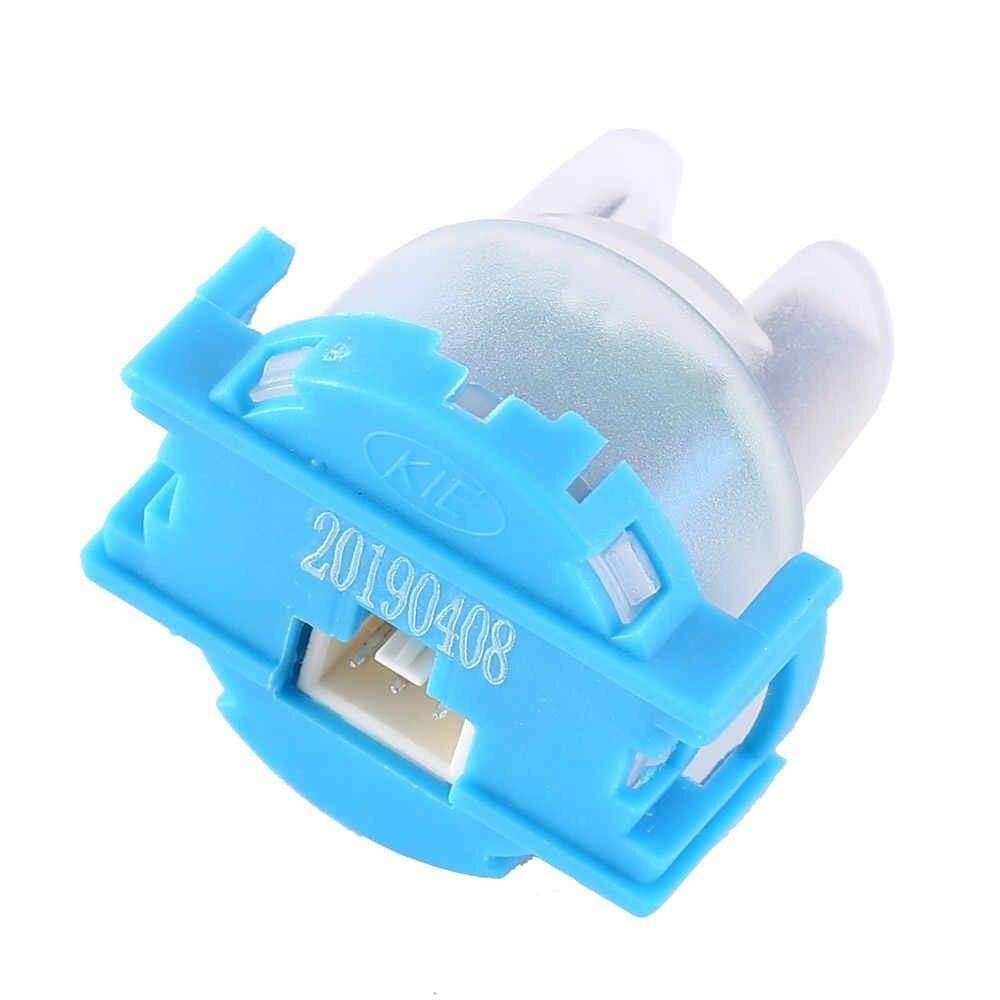

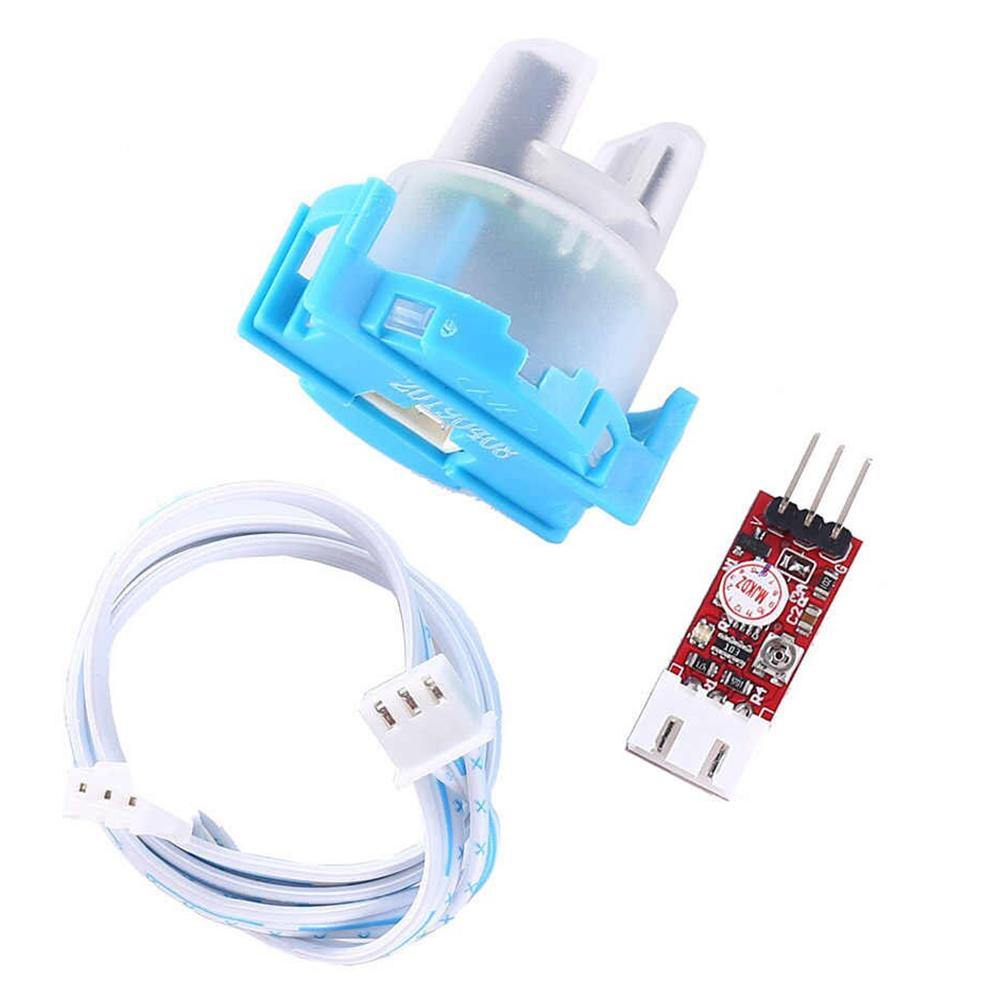

Turbidity Sensor With Module for Liquid Particle Detection A turbidity liquid particle detection sensor is a device that is used to measure the turbidity, or cloudiness, of a liquid. Turbidity is often used as an indication of the presence of suspended particles in the liquid, such as dirt, algae, or bacteria. The sensor works by shining a light through the liquid and measuring the amount of light that is scattered or absorbed by the particle detection. Turbidity is the measurement of particulate matter in water. It requires the analog port of the MCU to read the analog value for calculation. It needs turbidity calibration liquid to calibrate. It is not the multimeter that directly measures the voltage. The output voltage of each module is different. The module should be protected from light and light. The temperature and voltage will make the output voltage of the module different. These decisions are made on the basis of a comparison between clean water measurements (taken at the beginning of the wash cycle) and the wash water turbidity measurement taken at the end of each wash cycle. By measuring the turbidity of the wash water, the dishwasher can conserve energy on lightly soiled loads by only washing as long as necessary. This will result in energy savings for the consumer. Parameters of the Turbidity Particle Sensor: Voltage: 3.3-5V (with anti-reverse circuit) Output: default analog (can set high and low output) Measuring range: 0-1000 NTU Key Features: Turbidity can be measured in the range of 0 to 1000 Nephelometric Turbidity Units (NTU). Operates at 3.3-5V and has built-in anti-reverse circuitry for safety. The operating temperature range is from -20°C to 80°C. Uses light scattering or absorption to estimate the presence of suspended particles in liquids. Used in various applications such as water quality monitoring, environmental monitoring, and industrial processes. Turbidity Liquid Particle Detection Sensor Pin Diagram:

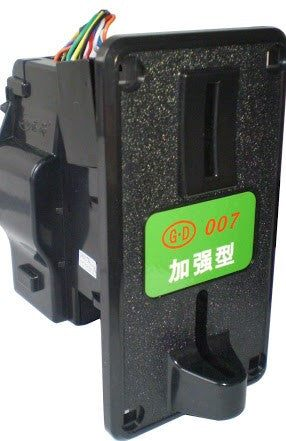

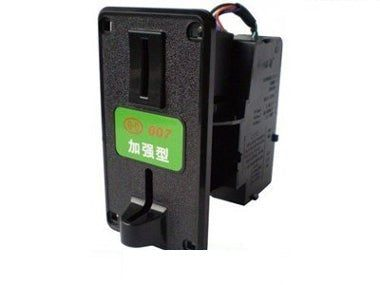

GD-007 Single Coin Acceptor Coin acceptor modules accept currency coins which can be suitable for various vending machines. Coin acceptor modules are available in multiple categories including single coin acceptors, comparable type coin acceptors, multi-coin coin acceptors, etc. The Single coin acceptor is specially designed to accept only a specific coin. A comparable type of coin acceptor is used to accept the coins that are similar to the coins put aside the coin acceptor. Multi-coin coin acceptors can accept different coins with one machine, and output different signals to the microcontroller. The coin-accepting sensor device has an inbuilt microcontroller that takes data from the sensor inside the device and collects different coins. Using this data, the microcontroller knows whether this coin needs to be accepted or returned. The device is easily programmed using a push button located on the top. The coin acceptor device gives us an impulse signal on the output pin for every inserted coin and by counting impulses we know how many coins have been inserted. It also has three switches which we use in order to select the type of signal we want to get on the output. The first switch has three positions to select the impulse length. The second switch is used to set the signal to be +5 V(NC) or 0 V(NO). Using the 3rd switch, the precision of the device can be chosen. Applications: Vending Machine Also check BV30 Compact Bill Acceptor offered by Iotcart. It is designed for handling low-value transactions efficiently and securely. The bill acceptor has a compact design, making it suitable for use in vending machines, parking systems, and arcade games. It features enhanced sensing and security for accurate bill validation. The attractive bezel illumination comes in RGB options, providing an eye-catching display.

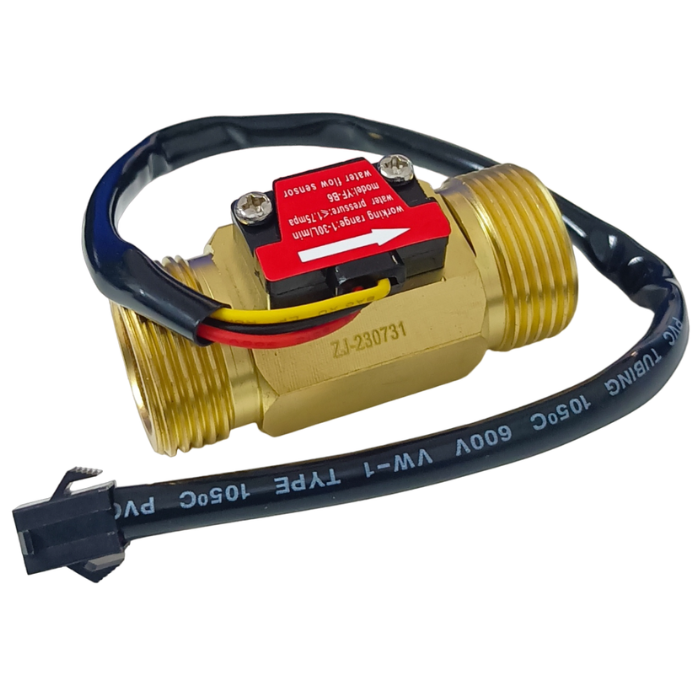

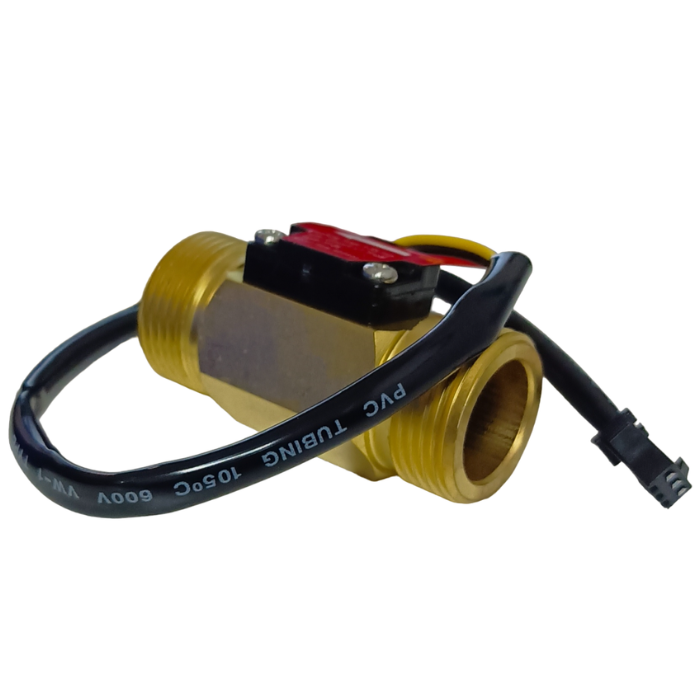

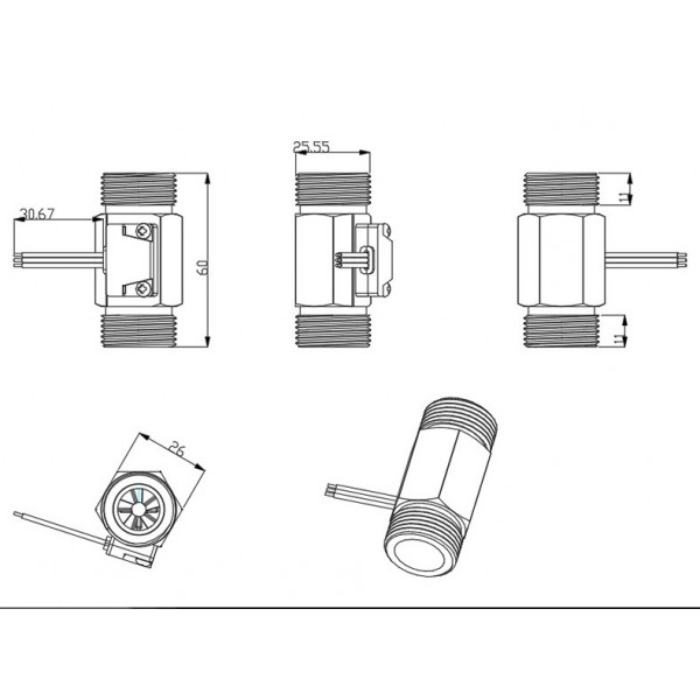

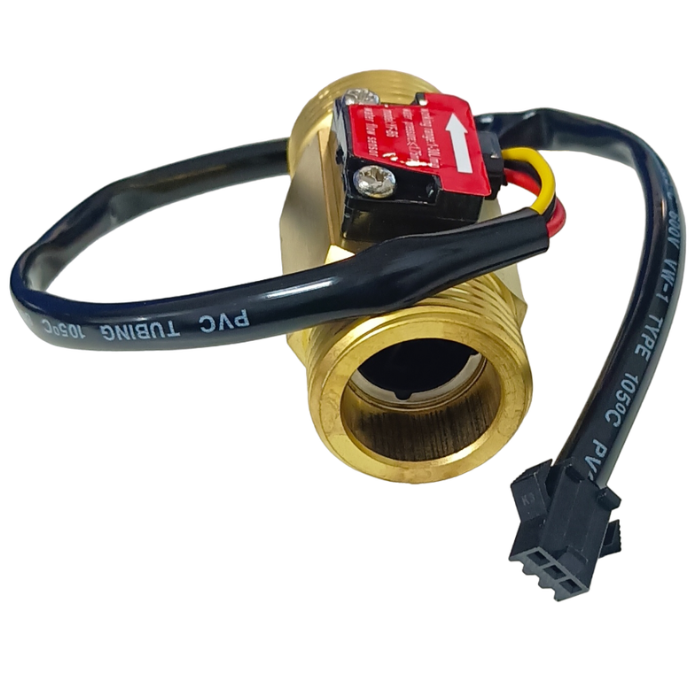

Water Flow Sensor - YF-B6 Flowmeter G3/4 1-30L/min 5-15V Brass Water Flow Sensor (Sea) YF-B6 is the perfect solution for industrial monitoring and water management systems. It is made with brass and plastic materials, measuring 60X OD26mm and featuring a G3/4 thread connection. The sensor includes a Hall effect sensor and digital output, ensuring accurate monitoring of flow rates. Its durable design makes it suitable for a wide range of conditions, perfect for industrial and commercial applications. Water Flow Sensor (Sea) YF-B6 is easy to install and maintain with its compact design. Perfect for engineers, technicians, and hobbyists. Water Flow Sensor (Sea) YF-B6 ensures the highest quality and durability. wire connection : Terminal 1  ( Red) : Vdd  ” + ” Terminal 2 (Black) Vout   ” – ” Terminal 3 ( Yellow )  Gnd : output (13) Connector :  Housing SM2.54-3P

X9 3411 cw/ccw Blade Drone Propeller The X9 3411 CW/CCW Blade Drone Propeller is engineered to boost the performance and reliability of agricultural drones. Built using a robust blend of carbon fiber and nylon alloy, these 34×11-inch folding propellers combine strength with lightweight construction for efficient power transfer and longer flight durations. The foldable design not only helps in reducing drag and noise but also enhances flight stability. Thanks to precision dynamic balancing, the propellers minimize vibrations, ensuring better control and less strain on the drone's components. Compatible with a wide range of drone models and motor systems, these propellers are a trusted upgrade for professionals seeking high-performance aerial solutions in agriculture. Features: Exceptional durability and robustness provide long-term viability. withstands collisions and environmental conditions. Torque distribution is balanced to ensure effective propulsion. Compatible with a variety of drone types and motor configurations. Precision-engineered design ensures smooth and stable flight. Trusted for a variety of recreational and professional uses.

XD-621 Induction Touch Switch The Induction touch switch is an isolated touch sensor switch, applicable to all types of lamps on the medium (such as glass, acrylic, plastic, ceramic, etc.), such as energy-saving lamps, H tubes, LED lamps, and various household appliances. It has an on-chip active low noise PGA with selectable gain of 3264 and 128. The on-chip power supply regulator for load-cell and ADC analog power supply. On-chip active low noise PGA with selectable gain of 3264 and 128. On-chip power supply regulator for load-cell and ADC analog power supply. Installation process: Note: Before installation, please turn off the main power. Set a touchpoint in the mirror, the diameter of the contact point should be 9-10mm, first of all, must remove the mercury from the mirror around the point of contact, the size for the removable mercury should be 1.5-2mm; Make a grid in the middle of the touchpoint, there are three lines of the arrow on the cover of the switch, when installed, the three lines of the arrow should align with any of the three lines of the lattice and can touch to control whether after aligning the direction, now remove the paster from the touch plate, and then can install the touch switch on the mirror, after that, you can correct it using other things to avoid falling. Applications: Household appliances Energy-saving lamp LED lamps
