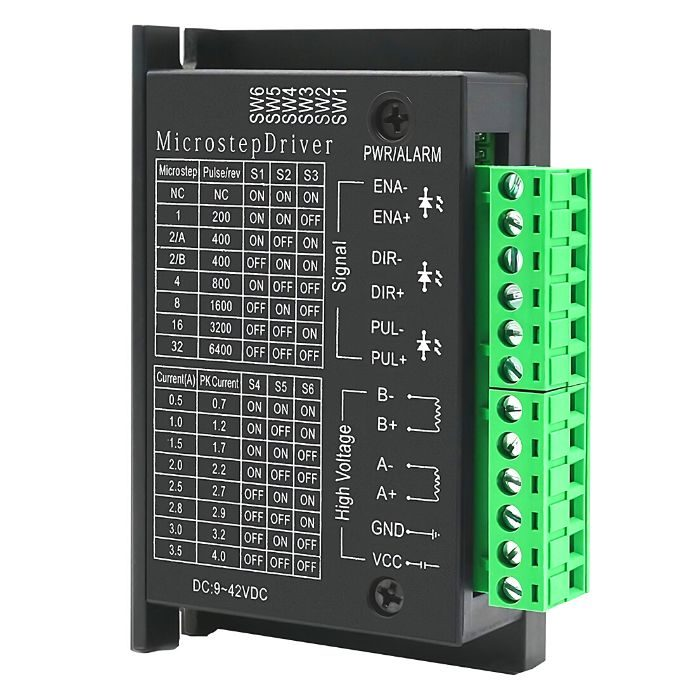

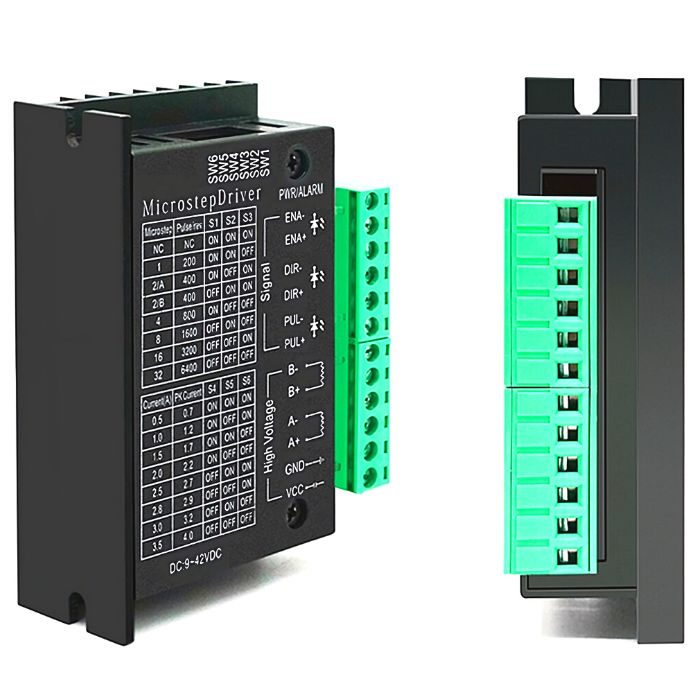

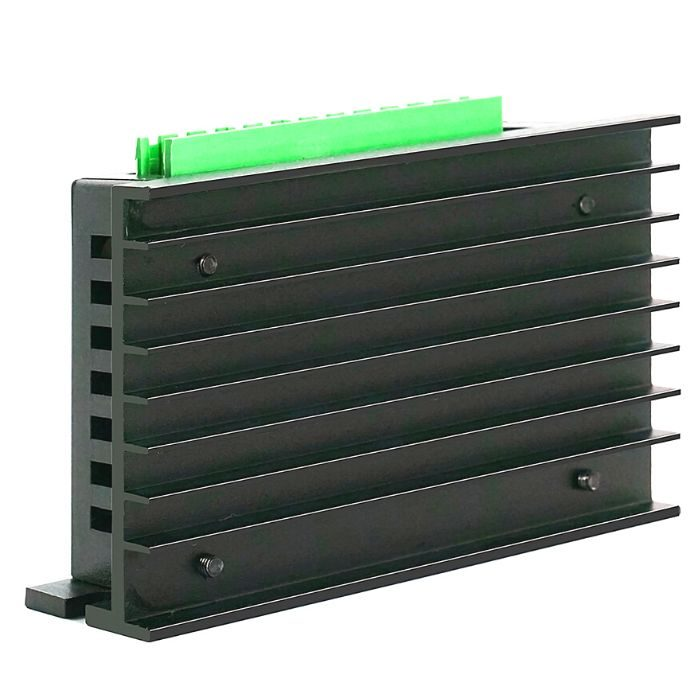

TB6600 Stepper Motor Driver TB6600 Stepper Motor Driver Controller 4A is an easy-to-use professional Arduino stepper motor driver, which can control a two-phase stepper motor . It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal. Jumper wires are used to connect the stepper motor to the Arduino. TB6600 Arduino stepper motor driver has a wide range of power inputs and a 9~42VDC power supply . It is able to output a 4A peak current, which is enough for most of the stepper motors. The stepper driver supports speed and direction control. You can set its micro-step and output current with a 6 DIP switch. There are 7 kinds of micro-steps (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 kinds of current control (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A) in all. And all signal terminals adopt high-speed optocoupler isolation, enhancing its anti-high-frequency interference ability. As a professional device, it is able to drive 57, 42-type two-phase, four-phase, hybrid stepper motors. TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step CNC 1 Axis Upgraded Version of the 42/57/86 Stepper Motor segment increased to 32 segments, suitable for high subdivision applications. Suitable for step motor:57, 42, 86 Type 4 phase 2 phase (4 line 6 line 8). Control signal connections: PUL +: positive pulse signal input. PUL-: pulse signal input negative. DIR +: the motor is, reverse the positive control. DIR-: the motor is, reverse the negative control. ENA +: positive control motor off. ENA-: motor off control of the negative. Motor winding connection: A+ : A + phase motor winding connection. A- : Connect the motor windings A- phase. B+ : B + phase motor winding connection. B- : B- phase motor winding connection. Supply voltage connection: VCC: positive power supply terminal “+” GND: negative power supply terminal “-“ check out : TB6560 Stepper Motor Driver Features: Bipolar constant current H bridge drive This has eight different types of output current available. This has six different subdivision modes are available. High-speed photoelectric isolation of the input signal Offline storage function. The semi-enclosed casing is capable of adapting to a more demanding environment. Provide a half-automatic current lock function to save energy. check out : DM542 Digital Stepper Motor Driver for CNC Drivers Controller 3D Printer Accessories Also check our dc motor speed control ( 9-60V 20A DC Motor Speed Controller), which is a reversible PWM switch with a metal shell and connective label, designed for DC brushed motors.

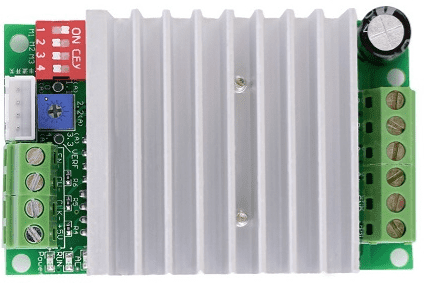

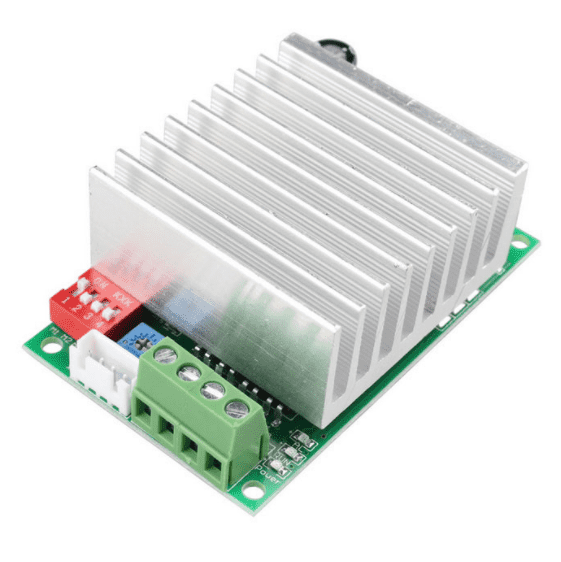

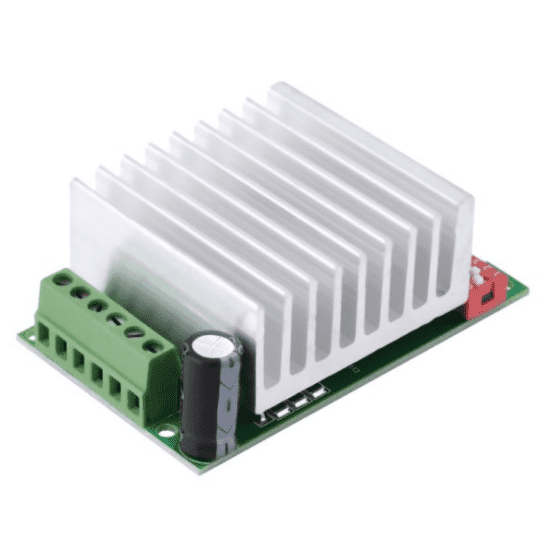

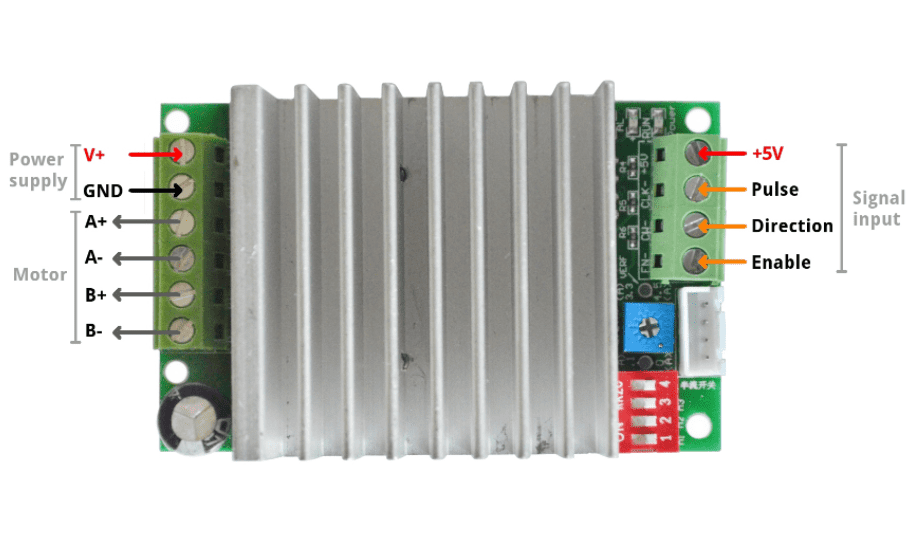

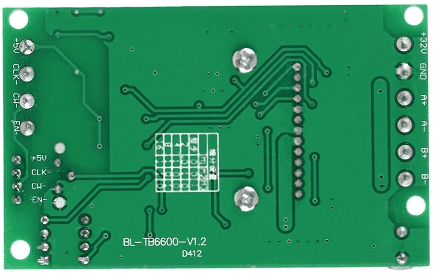

TB6600 Stepper Motor Driver Controller 8~50V 4.5A TB6600 stepper motor Driver Controller 4.5A 8~50V TTL 16 Micro-Step CNC Single-Axis Based on the TB6600HG chip, the new BL-TB6600-V1.2 driver model replaces the popular BL-TB6560-V2.0 driver. This driver controller is suitable for building not only amateur CNC systems but also professional ones based on high-power engines. Compared to the previous generation of the TB6560AHG, the output of the TB6600HG has increased to 200W (as we see a practical doubling in power value), the operating voltage is raised from 35V (TB6560AHG) to 50V, the operating current is increased to 4.5A (5A peak value). The main aspects of this driver include intelligent current control and the use of PWM modulation, which makes it possible to connect stepper motors of any supply voltage and current to the driver – at a fixed level; the chip itself will limit the maximum current. If you want to control the stepper motor with this motor driver, for that you will need a few essential components like Arduino jumper wires , batteries or power supply . Features: Supply Voltage: 8V – 50V DC (36V recommended) Output Current: 0.3A – 4.5A (peak value of 5A) Micro Step Settings: Supports 1, 2, 8, and 16 micro steps Maximum PWM Frequency: 200kHz Current Adjustments: Adjustable for maximum current settings of 1A, 2.2A, 3.3A, and 4.5A High-Speed Optocoupler Isolation: For signal terminals, enhancing anti-high-frequency interference ability Protection Features: Overheat, overcurrent, and short circuit protection Heat Dissipation: Large area heat sink for better heat dissipation Control Type: Supports speed and direction control Operating Temperature: -10 to +45 °C Applications: CNC Machines: Used in controlling stepper motors for precise movements in CNC milling, engraving, and cutting machines. 3D Printers: Essential for driving stepper motors in 3D printers, ensuring accurate layer deposition and movement. Robotics: Ideal for robotics projects requiring precise motor control, such as robotic arms and automated guided vehicles (AGVs). X-Y Tables: Used in X-Y tables for accurate positioning and movement in various industrial applications. Laser Cutters: Controls stepper motors in laser cutting machines for precise cutting and engraving. Pick-and-Place Devices: Employed in pick-and-place machines for accurate component placement in electronics manufacturing. Labeling Machines: Used in labeling machines for precise label application.

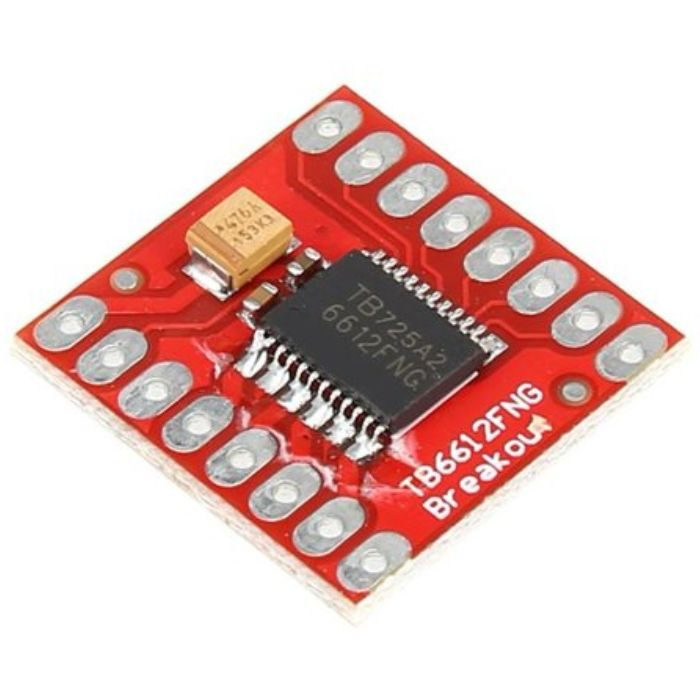

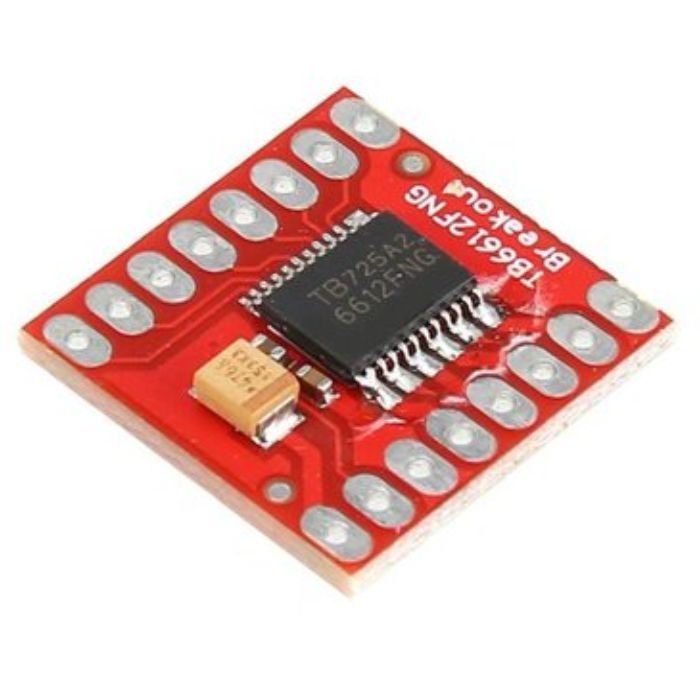

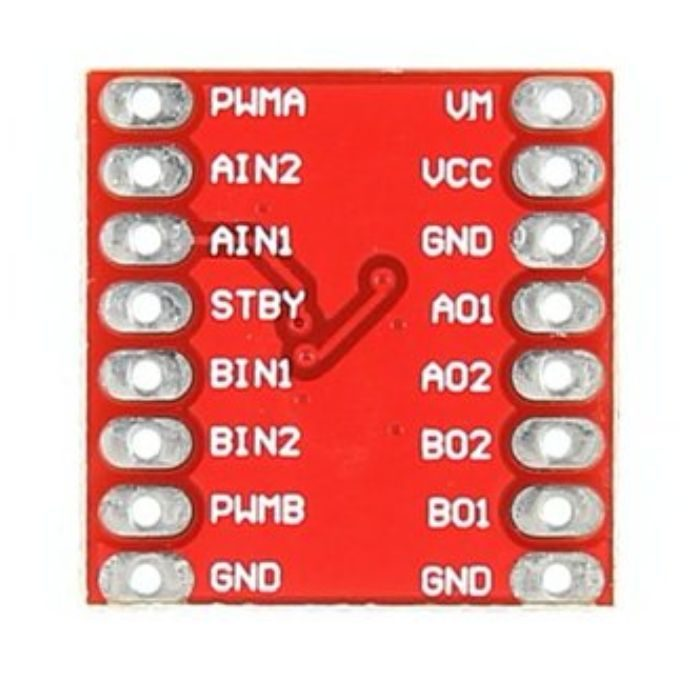

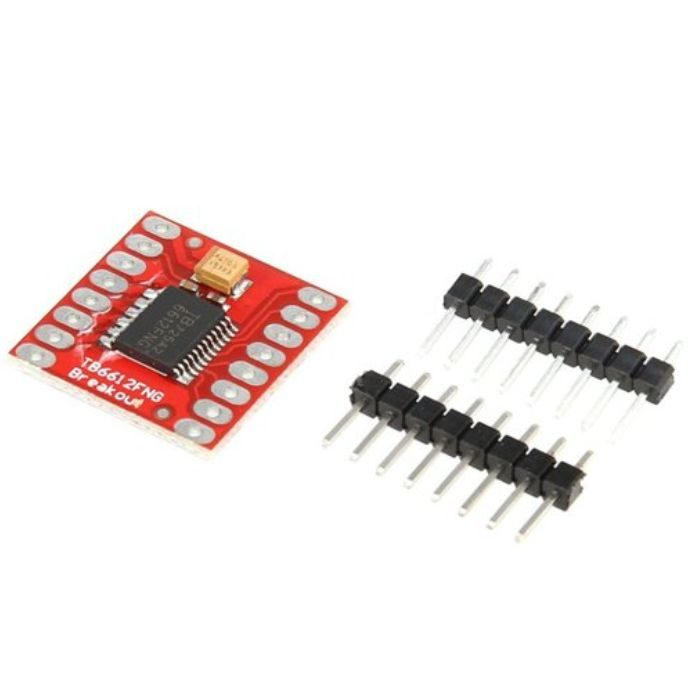

TB6612FNG Dual DC Motor Driver The Motor Driver TB6612FNG Module can control up to two DC motors at 1.2A constant current (3.2A peak). The motor can be controlled by two input signals (IN1 and IN2) in one of four function modes: CW, CCW, short-brake, and stop. The two motor outputs (A and B) can be controlled independently, and the speed of each motor is controlled by a PWM input signal with a frequency range of up to 100kHz. To remove the motor from standby mode, pull the STBY pin high. The logic supply voltage (VCC) can range from 2.7 to 5.5VDC, while the motor supply (VM) has a maximum voltage of 15VDC. The maximum output current per channel is 1.2A. (or up to 3.2A for a short, single pulse). All components are installed on the board as shown. On both supply lines, decoupling capacitors are installed. The TB6612FNG has all of its pins broken out to two 0.1?? pitch headers, with input pins on one side and output pins on the other. Features: Output current: Iout=1.2A(average) / 3.2A (peak) Standby control to save power CW/CCW/short break/stop motor control modes Built-in thermal shutdown circuit and a low voltage detecting circuit All pins of the TB6612FNG broken out to 0.1? spaced pins Filtering capacitors on both supply lines

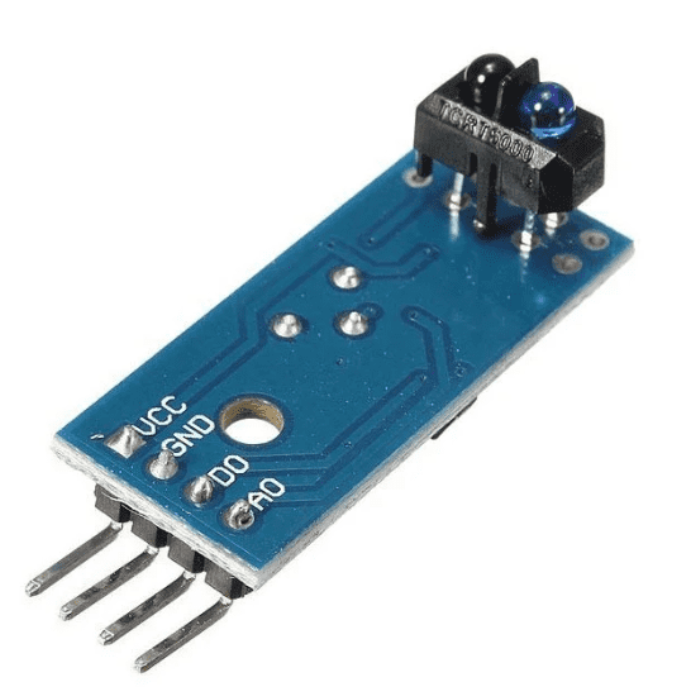

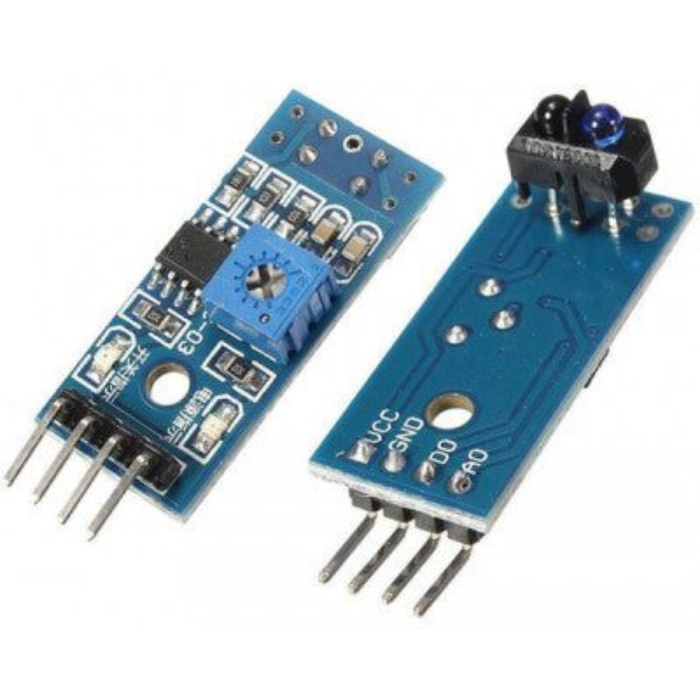

TCRT5000 IR Sensor The TCRT5000 is a reflective sensor that includes an infrared emitter and phototransistor in a leaded package that blocks visible light. The package includes two mounting clips. This sensor is often used for line-follower robots. TCRT5000 Reflective Optical Sensor IR Infrared Switch is perfect for line tracking robot car like DIY projects When the infrared transmitter emits a beam of light to a piece of paper, if the rays shine on a white surface, they will be reflected and in turn, be received by the Infrared detector, and pin S on the module will output a low-level; If the beam of light encounters a black line, they will be absorbed, thus the Infrared detector gets nothing, and pin S will output a high level. So this module basically acts like a simple switch when it gets close to a white/black object. You can adjust the sensitivity with the potentiometer on the module. Applications of TCRT5000 IR Sensor: Position sensor for shaft encoder. Detection of reflective material such as paper, IBM cards, magnetic tapes, etc. Limit switch for mechanical motions in VCR.

TCRT 5000 IR Sensor Module The TCRT5000 IR reflective sensor Module uses TCRT5000 IR Sensor to detect color and distance. This sensor module consists of an IR transmitter & an IR receiver. IR Transmitter continuously emits an IR signal which is then reflected by an obstacle and is then detected by the IR receiver. TCRT5000 Infrared Reflective Sensor Module is often used in line following robots, object sorting Robot because this module can sense if a surface is white or black. The measuring distance range from 1mm to 8mm, and the central point is about 2.5mm. There is also an onboard potentiometer to adjust the sensitivity. The infrared diode will be emitting the infrared continually when the module is powered ON when the emitted infrared light has not been reflected or the strength is not big enough, the receiver diode will be in the off state, and the output pin i.e. DO will be LOW. Read our blog Proximity Sensor Types where we explained what is a proximity sensor, different types of Proximity Sensors, and their working principle. Applications: Position sensor for shaft encoder Detection of reflective material such as paper, IBM cards, magnetic tapes etc. Limit switch for mechanical motions in VCR Also check TCRT5000 IR Sensor(pack of 5) The sensor is a reflective type, consisting of an infrared emitter and phototransistor in a leaded package that blocks visible light. read our blog explaining the application of ir sensor , which provides comprehensive information on the working principles of infrared (IR) sensors, detailing their significance across various technological domains.

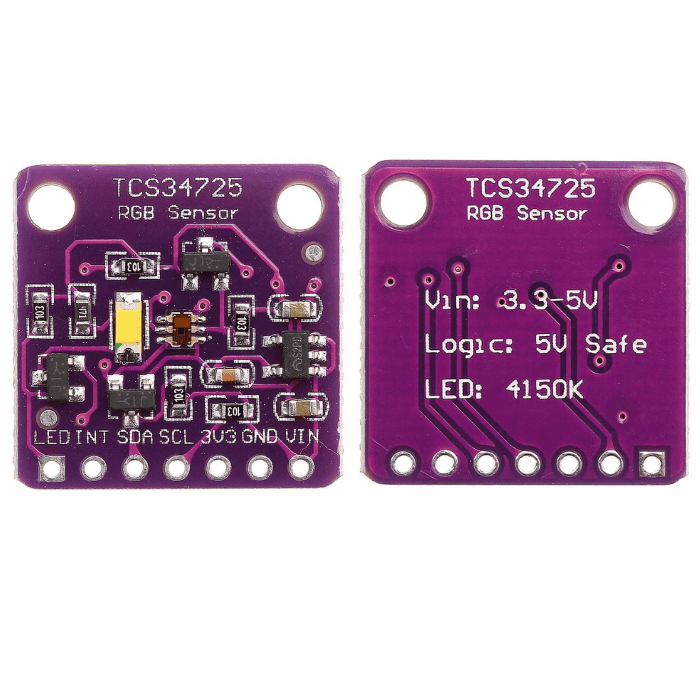

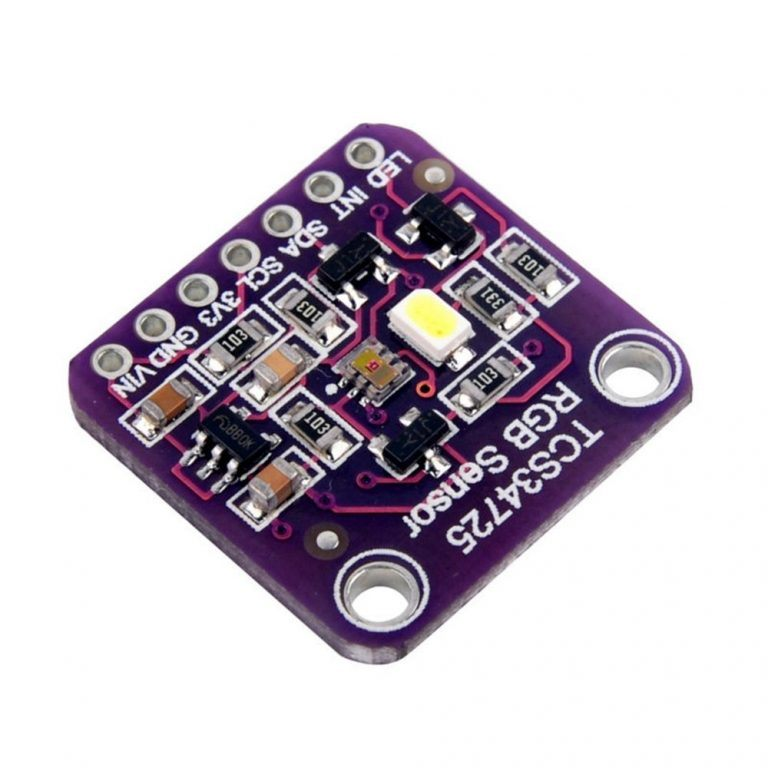

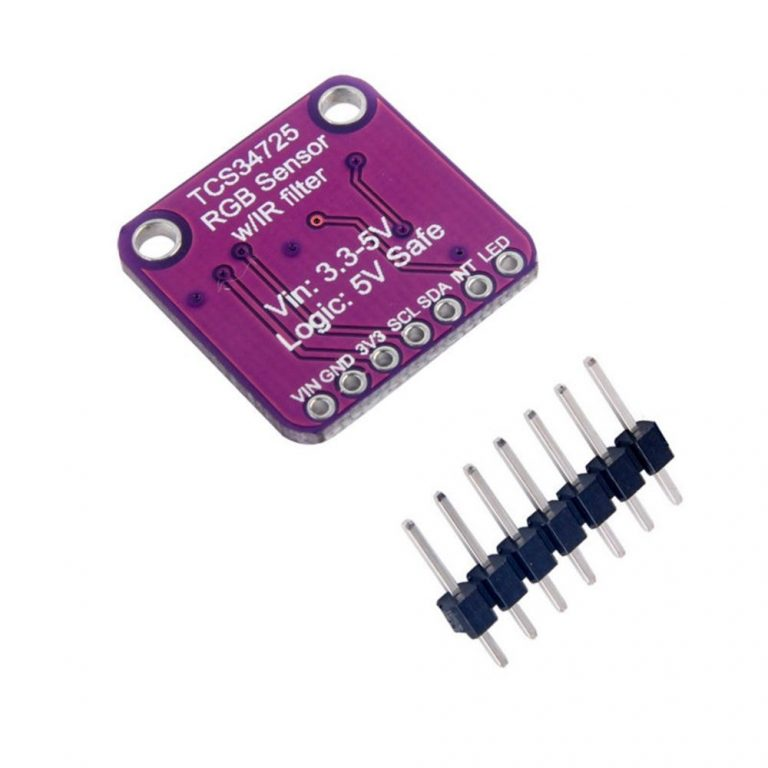

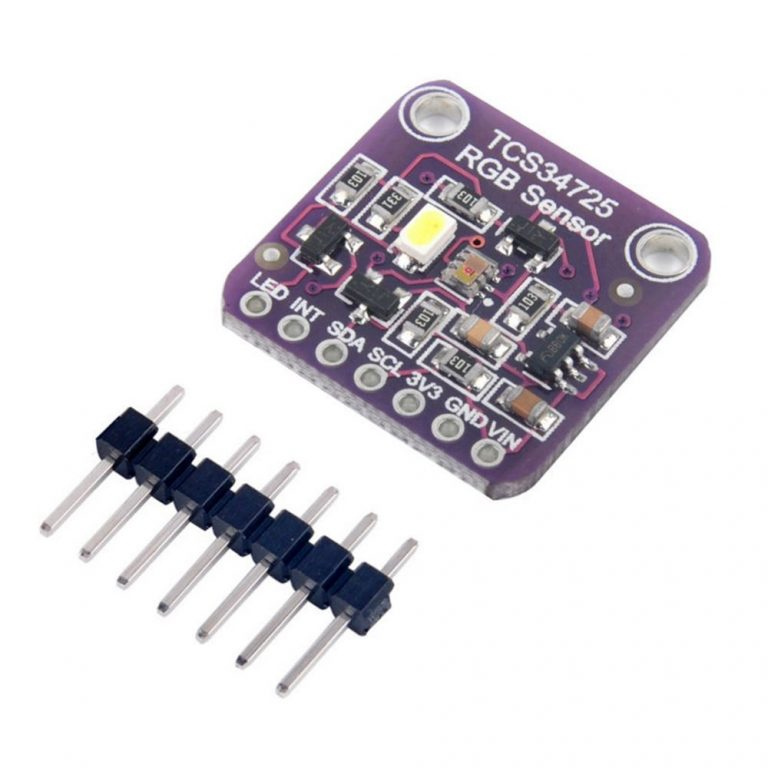

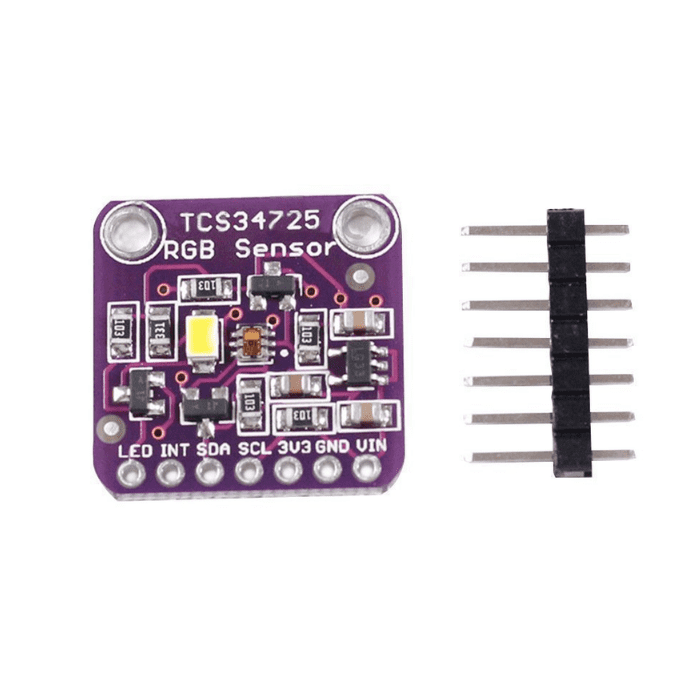

TCS34725 RGB Color Sensor The TCS34725 Color Sensor RGB Module provides digital return values for red, green, blue (RGB), and bright light sensing digital Mingguang induction return values. Color-sensitive photodiode integrated cut and localized infrared shading filter, to minimize the incident infrared spectrum components. It has high sensitivity, wide dynamic range, and IR shading filters. The TCS3472 is ideal for color-sensitive component solutions under varying light conditions and through attenuating materials. An IR blocking filter, integrated on-chip and localized to the color sensing photodiodes, minimize the IR spectral component of the incoming light and allows color measurements to be made accurately. The filter means you’ll get much truer color than most sensors since humans don’t see IR. The sensor also has an incredible 3,800,000:1 dynamic range with adjustable integration time and gain so it is suited for use behind darkened glass. High sensitivity, wide dynamic range and an infrared light blocking filter makes TCS3472 Sensor become ideal for lighting conditions change and through color sensitive element attenuating materials under conditions of a solution. Also check APDS 9960 RGB And Gesture Sensor . Read our blog about what is light sensors . Features: Measures RGB and clear light. IR filter for accurate color. Built-in white LED for stable lighting. High sensitivity, adjustable settings. I2C interface for easy microcontroller use. Interrupt output for light thresholds. Compact and lightweight. Applications: Color Detection Ambient Light Sensing Industrial Process Control Food Processing Medical Diagnostics RGB LED Control Consumer Electronics Health and Fitness Devices

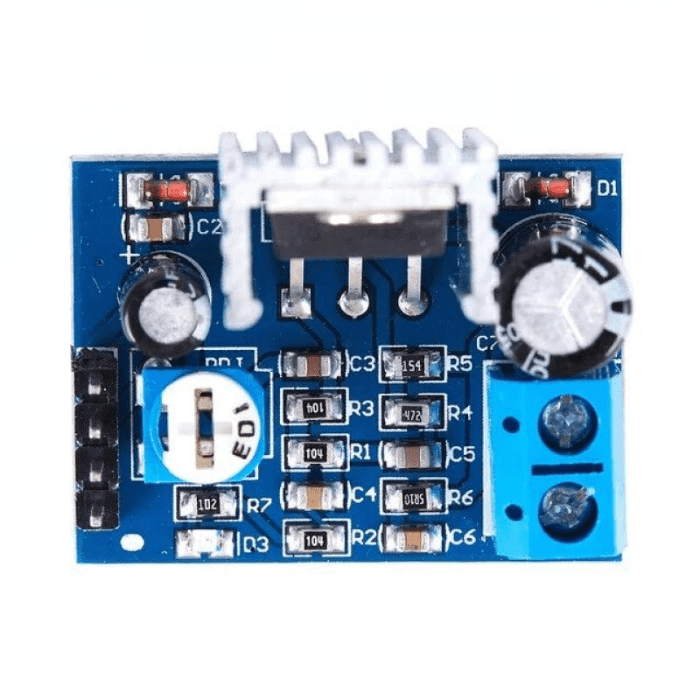

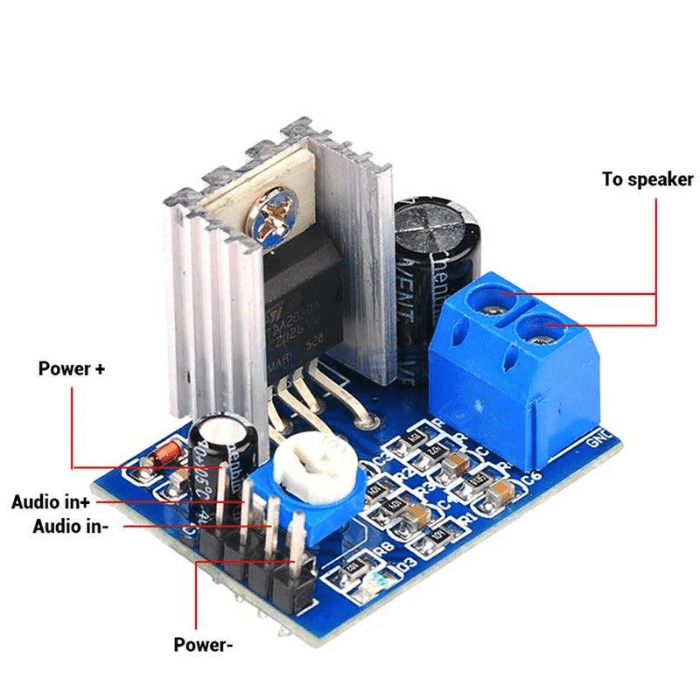

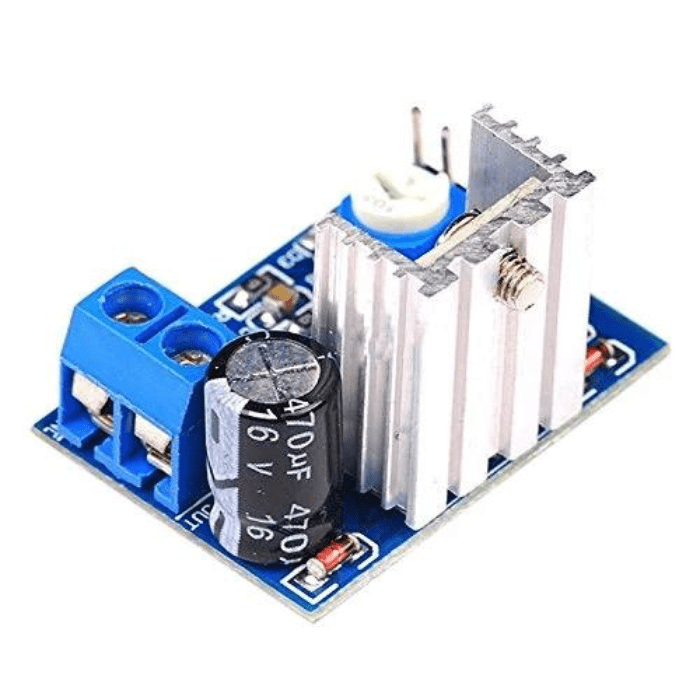

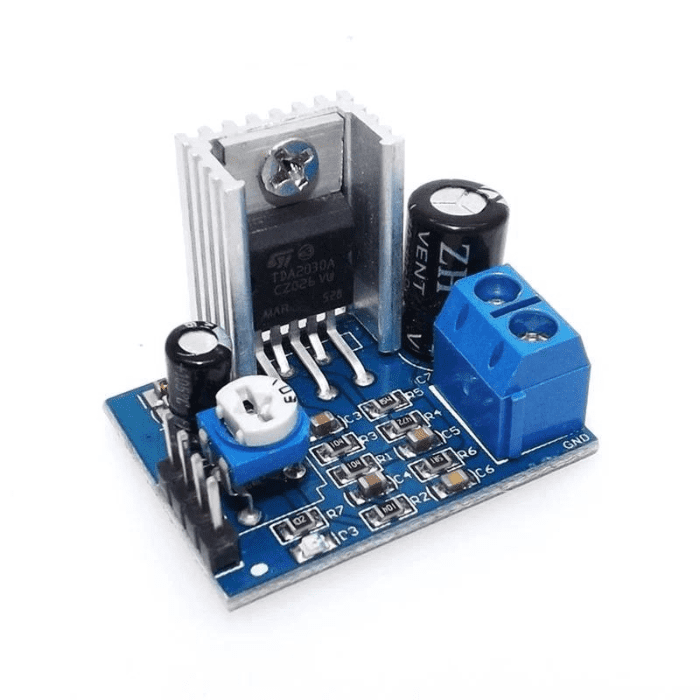

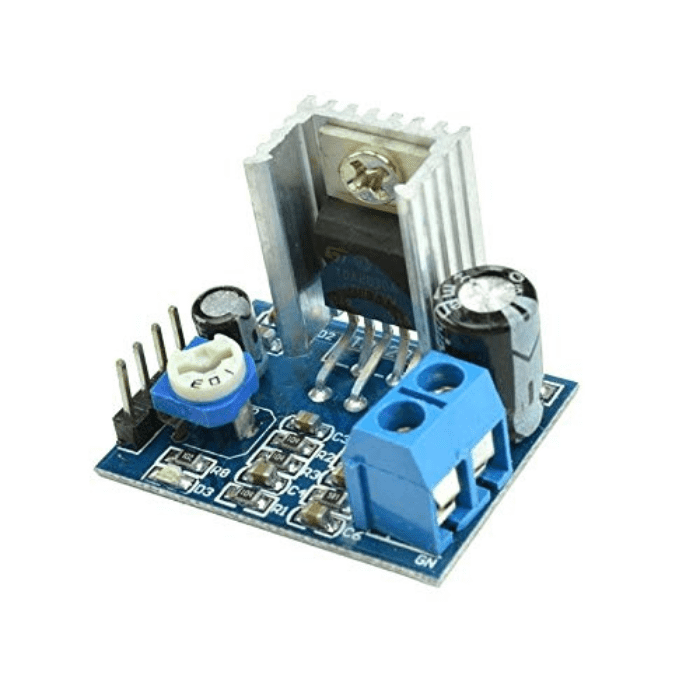

TDA 2030A Audio power Amplifier Module Want to increase the audio output capability of your project? Well, then this is the perfect module for you. This module is based on the famous TDA2030A Audio Amplifier Module which is capable of 18-watt power output with very low harmonic distortion. This TDA2030A audio amplifier circuit, often using V-5-pin single in-line plastic package structure. Also check the NE555 Multi-Channel Waveform Generator Module available on Iotcart. Priced at Rs. 465 with an 18% discount from the original Rs. 568, the module operates on a DC input of 6-12V. It features a color ring resistor with values of 1k?, 1m?, 4.7k?, 10k?, 15k?, and 100k?. The module can generate square waves, sawtooth waves, triangle waves, and sine waves, with the waveform output selected by a jumper. Also check TDA8932 digital power amplifier board . It is a compact and efficient board that can deliver 35W of mono audio. It is suitable for a variety of audio applications, including active speakers, DIY projects, and electro-acoustic projects.

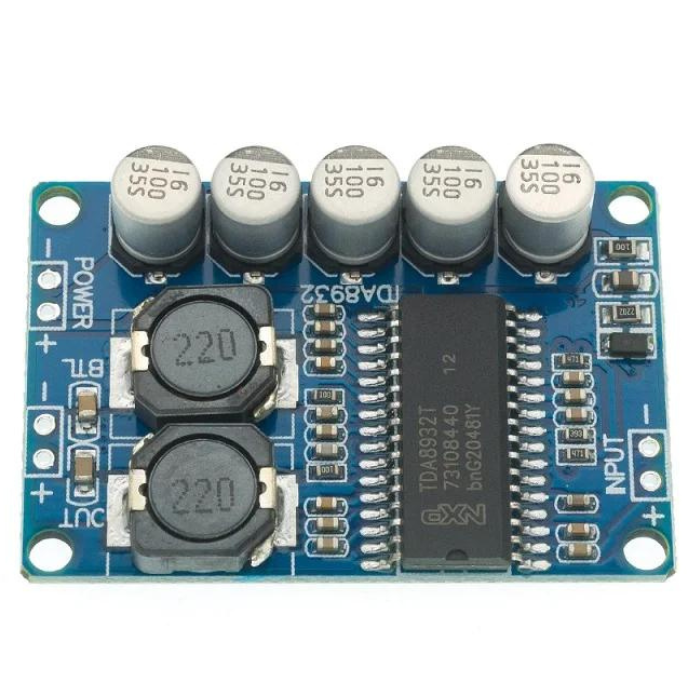

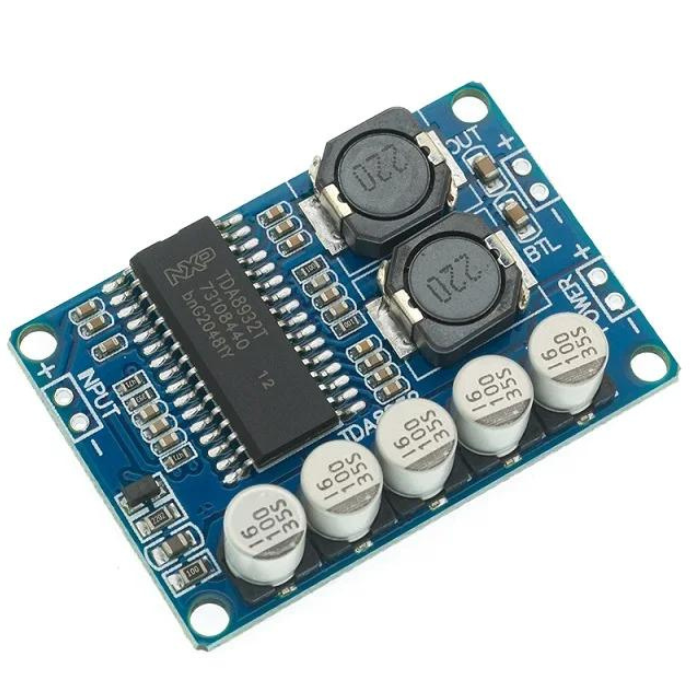

TDA8932 Digital Power Amplifier Board The TDA8932 Digital Power Amplifier Board is the perfect solution for audio enthusiasts and DIY project builders. This compact module, equipped with the high-performance TDA8932 chip, offers outstanding sound quality and efficiency. With an output of 35W in mono, it's ideal for active speakers, electro-acoustic projects, and various audio applications. The TDA8932 chip ensures high efficiency and minimal power consumption, making it an excellent choice for audio applications. Its compact size allows for easy integration into your projects, and you won't need additional radiators for installation. Whether you're looking to enhance the performance of your passive speakers or embark on audio product development, this amplifier board is the right choice. It's suitable for a wide range of applications, and its great sound quality ensures an excellent audio experience. Upgrade your audio projects with the TDA8932 Digital Power Amplifier Board. Buy now and enjoy the benefits of high efficiency and top-notch sound quality. Also check the TDA 2030A Audio Power Amplifier Module available on Iotcart. it features a mono channel 18W power amplifier circuit design. The module includes an onboard TDA2030A audio amplifier IC, a horn socket, and a 10k adjustable resistance for volume adjustment.

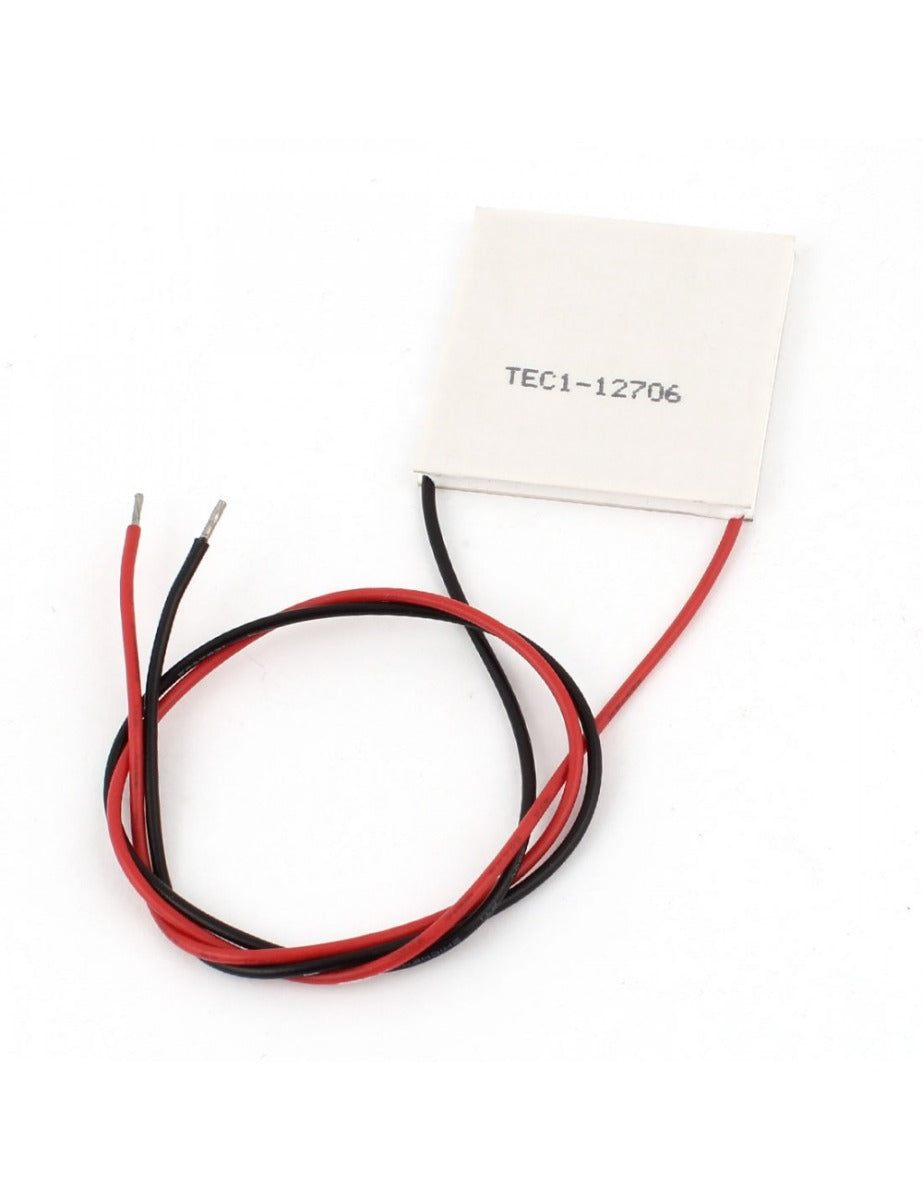

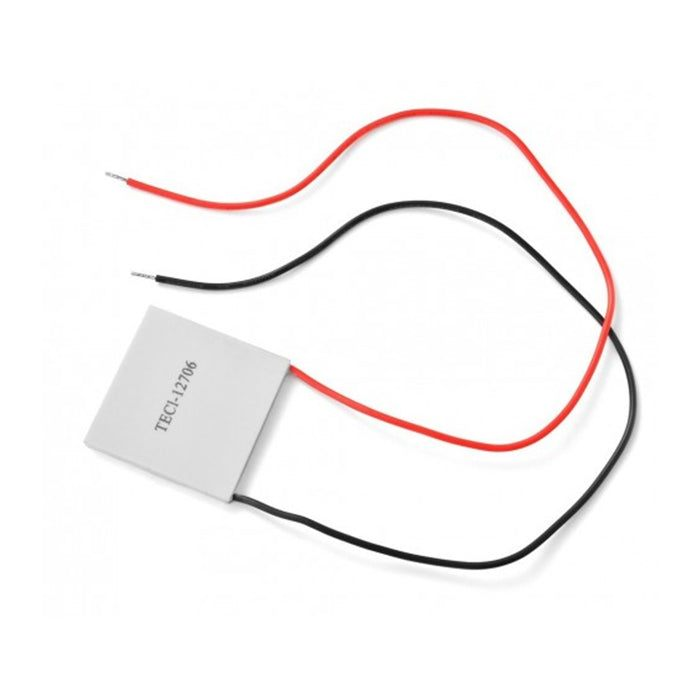

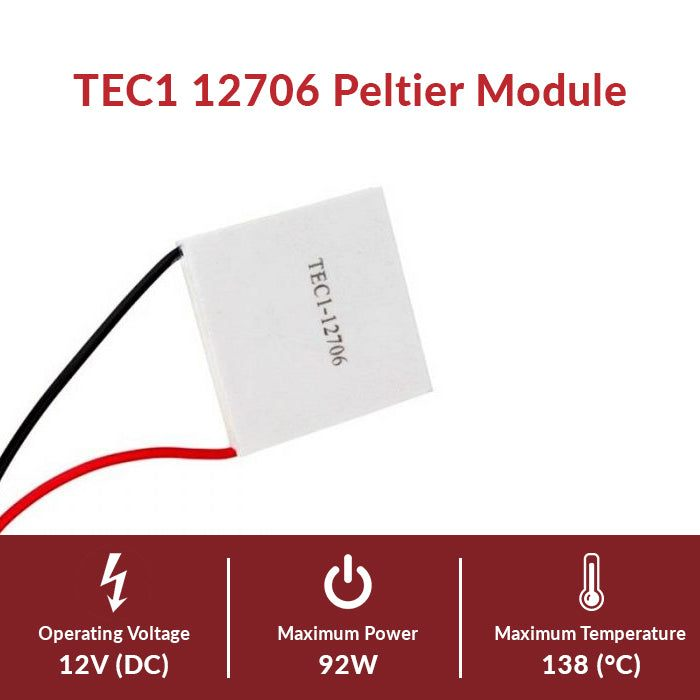

TEC1 12706 Peltier Module The TEC1-12706 6A Thermoelectric Cooler Peltier Module is the simple application of the Peltier Thermoelectric Effect. The Peltier module features 127 semiconductor couples in the area of 40 x 40mm which very effectively cools and heats up to 90°C. The thermoelectric cooler or TEC or Peltier module creates a temperature differential on each side. One side gets hot and the other side gets cool. They use to either warm something up or cool something down; above all, you can use either side. You can also take advantage of a temperature differential to generate electricity. A thermoelectric cooler (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying the DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely useful in industrial areas, for example, computer CPUs, CCDs, portable refrigerators, medical instruments, and so on. Tips: Operating Temperature: 138 Degree C. Do not exceed Imax or Vmax when operating a module. Please carry out moisture protection options (sealing) in final application use. Life expectancy: 200,000 hours. Failure rate based on long-time testing: 0.2%. Read our blog Peltier module working principle. Applications: Computer CPUs CCDs Portable refrigerators Medical instruments Also check DIY semiconductor cooling kit that includes a TEC1-12706 Thermoelectric Cooler Peltier Module.

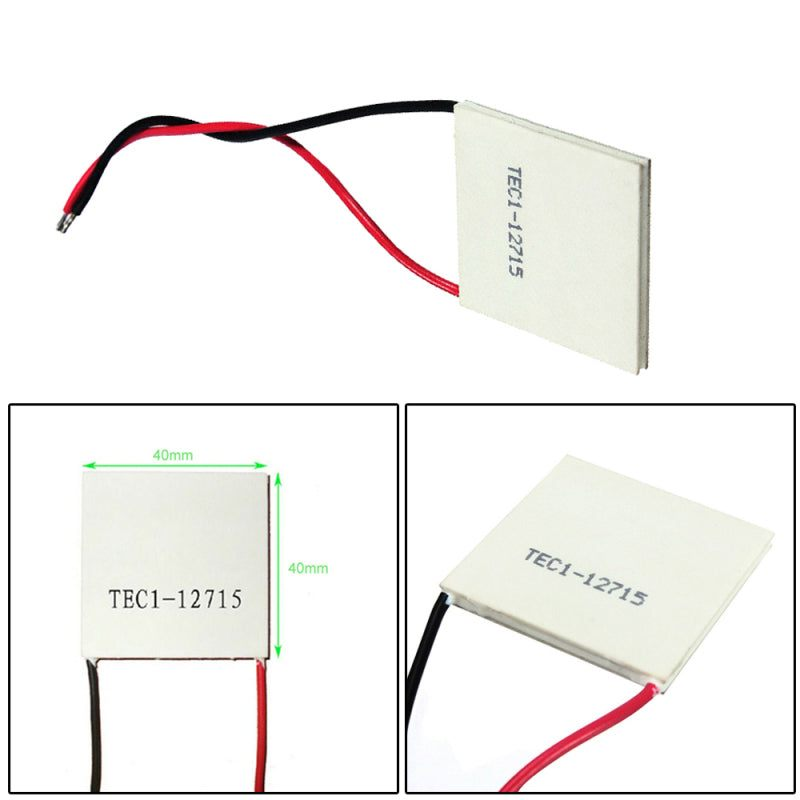

TEC1-12715 Peltier Module The TEC1-12715 40x40mm Thermoelectric Cooler 15A Peltier Module is the simple application of the Peltier Thermoelectric Effect. The module features 127 semiconductor couples in the area of 40mmx40mm. Thermoelectric coolers are also known as TEC or Peltier modules create a temperature differential on each side. One side gets hot and the other side gets cool. Therefore, they can be used to either warm something up or cool something down, depending on which side you use. You can also take advantage of a temperature differential to generate electricity. The TEC1-12715 40x40mm Thermoelectric Cooler 15A Peltier Module is the simple application of the Peltier Thermoelectric Effect. The module features 127 semiconductor couples in the area of 40mmx40mm. The TEC1-12715 Thermoelectric Peltier Cooler Module works very well as long as you remove the heat from the hot side. After turning on the device, the hot side will heat quickly, the cold side will cool quickly. If you do not remove the heat from the hot side (with a heat sink or other device), the Peltier will quickly reach stasis and do nothing. We recommend using an old computer CPU heatsink or another block of metal to pull heat from the hot side. We were able to use a computer power supply and CPU heatsink to make the cold side so uncomfortable we could not hold our finger to it. A thermoelectric cooling (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying the DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely used in industrial areas, for example, computer CPUs, CCDs, portable refrigerators, medical instruments, and so on. read our blog explaining Peltier module working , It explains the working principle of a Peltier Module, which involves transferring energy between two metals through electrical current. TEC1-12715 Peltier Module Operating Tips: Do not exceed Imax or Vmax when operating a module. Please carry out moisture protection options (sealing) in final application use. Life expectancy: 200,000 hours. Failure rate based on longtime testings: 0.2%. Read our blog Peltier module working principle where we explained what is a Peltier Cooler, how it works, things to keep in mind while using a Peltier, and applications of Peltier. Applications: Industrial areas Computer CPU CCDs Portable refrigerators Medical instruments
