ST-Link V2 Programmer and Debugger

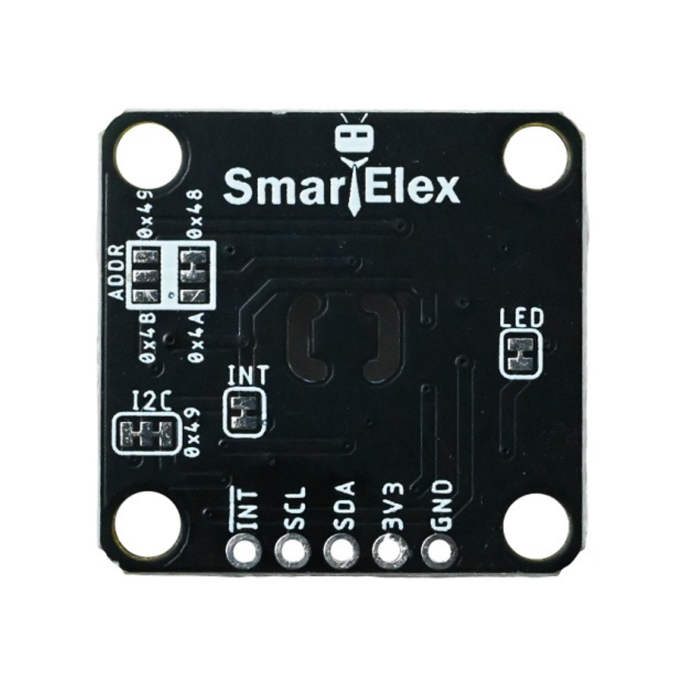

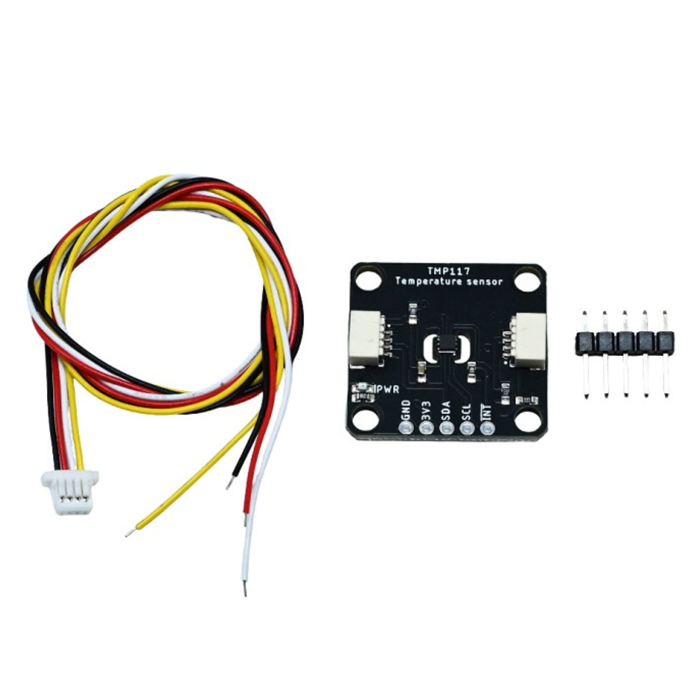

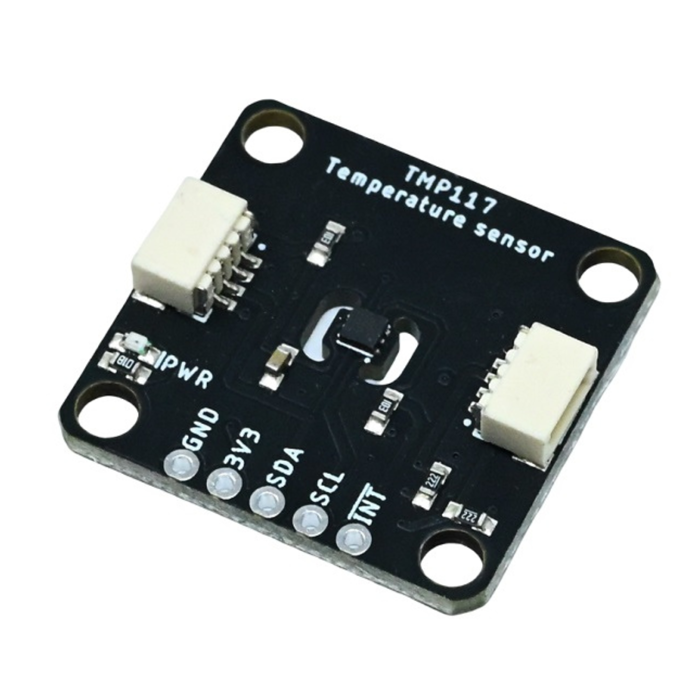

SmartElex TMP117 Temperature Sensor Module - I2C Interface for Accurate Thermal Measurement The SmartElex TMP117 High Precision Temperature Sensor is a compact digital sensor that delivers exceptionally accurate temperature readings with a precision of up to 0.1°C. Designed for reliability and ease of use, it operates over a wide range of -55°C to +150°C, making it suitable for both industrial and hobby projects. With its low power consumption and I2C interface, this temperature sensor is ideal for energy-efficient applications and precise environmental monitoring. Whether you’re developing smart devices, weather stations, or embedded systems, this sensor module ensures accurate data and simple integration without soldering. Features: Equipped with the TMP117 sensor offering ±0.1°C precision from 20°C to 50°C. Operates across a wide temperature range from -55°C to +150°C. Communicates using an easy-to-use I2C interface with four selectable addresses. Offers 16-bit resolution (0.0078°C) for fine-grained temperature measurements. Extremely low power consumption – just 3.5µA in active mode and 150nA in shutdown. Includes programmable temperature limits and digital offset for calibration-free accuracy. Compact, breadboard-friendly breakout board for seamless prototyping and integration.

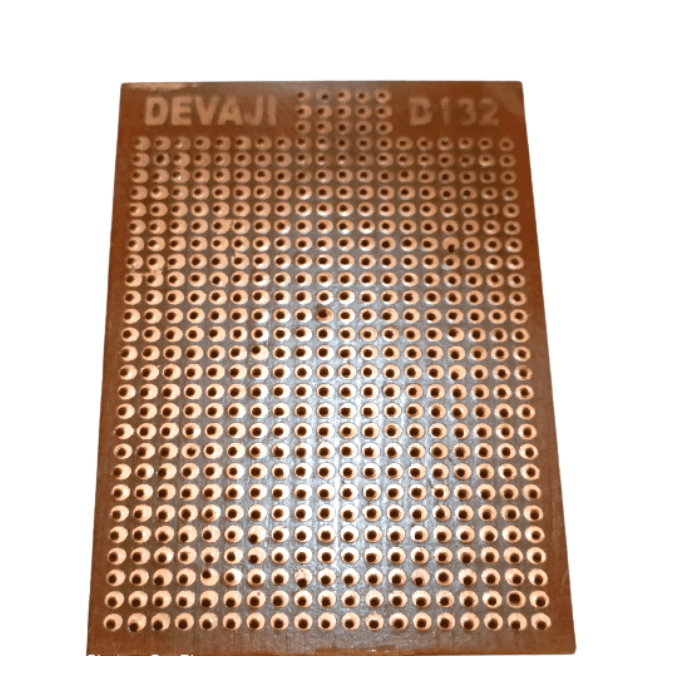

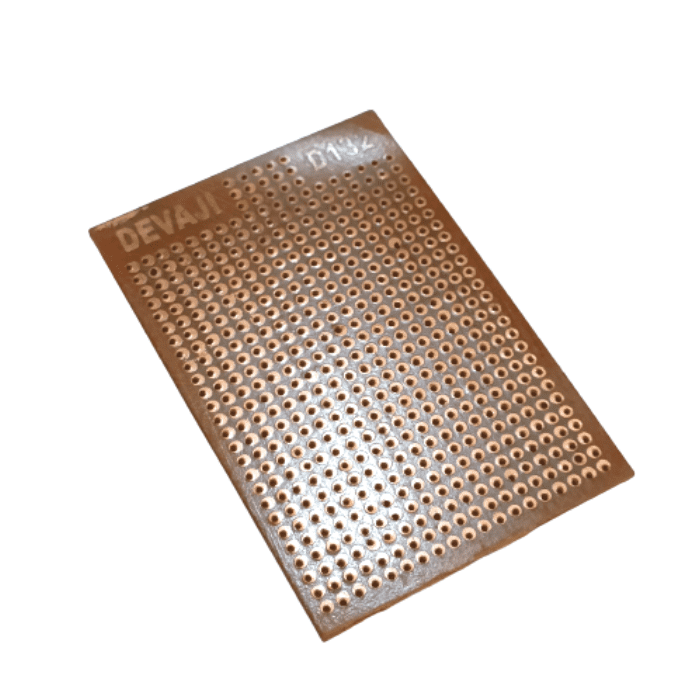

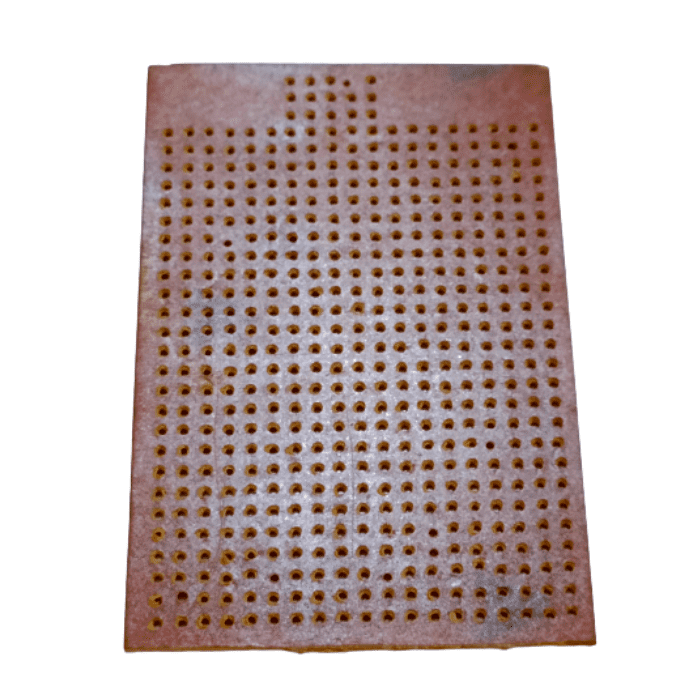

Vero Board (2x3 Inch) Vero Board is basically a general-purpose printed circuit board (PCB), also known as veroboard or DOT PCB. It is a thin rigid copper sheet with holes pre-drilled at standard intervals across a grid with 2.54mm (0.1-inch) spacing between holes. Each hole is encircled by a round or square copper pad so that component lead can be inserted into the hole and soldered around the pad without short-circuiting the nearby pads and other leads. For connecting the lead of component with another lead, solder these together or join these using a suitable conducting wire. Application: Hold electronic components Develop prototypes of electronic circuits

TL866 - Universal IC Programmer The TL866II plus universal programmer is a well designed programmer of high density SMD technology, developed with an easy to use interface. TL866II plus USB programmer support 15000+ic spi flash and EEPROM 8051 MCU pic AVR gal. TL866ii plus programmer is the advanced version of TL866CS and TL866A programmer. The programming speed is much higher (up to double) of high-capacity memories as compared to TL866CS and TL866A programmers. It supports multiprogramming mode (up to four). Well-designed cheap professional programmer, Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small code -runs faster, supports bilingual (English and Chinese), it can automatically identify the operating system to install and run under win 2000/win XP/win 2003/win 2008/win vista /win7/win8/win10 (32biit/64bit). Key Features: The support simultaneously burns with 4 Programmers on each computer, the minimum volume, and the lowest power consumption, and does not feel any heat in the process. All chips do not need an external power supply, the low power consumption on its own ensures that the USB port can provide enough power. Best internal 40 pins over-voltage protection, the strongest VCC/app 4-level over current protection. The short circuit does not reset the pc. Wide range of chip 15000+ support, support for serial and parallel series 40/44/48pin large capacity flash. Unique serial icsp interface, supporting the serial download and high-speed parallel high voltage programming, test cmos4000 74/54 series integrated circuit, can be located in the gate circuit error, chip auto serial number is the most complete and practical. Original chip encryption operation on AVR microcontroller with internal RC Calibration byte, the decrypt software cannot be directly run on another same type of chip. Also check the HIPG854 Universal Programmer available on the Iotcart website, it is currently sold out. The universal programmer supports a wide range of devices, including ATMEL, AVR, PIC, EPROM, EEPROM, and many more ICs Features: Wide Compatibility: Supports programming for over 14,000 different devices, including EPROMs, EEPROMs, SPI FLASHs, DataFlash, and various microcontrollers. High-Speed Programming: Equipped with a high-performance MCU and USB interface, offering fast programming speeds. ICSP Port: Includes an In-Circuit Serial Programming (ICSP) port, allowing it to replace or eliminate the need for other programmers like Microchip PICkit or Atmel AVRISP. User-Friendly Interface: Designed with an easy-to-use interface, making it accessible for both beginners and professionals. Compact and Portable: Small and lightweight, making it easy to carry and use in various settings. Logic IC Testing: Can test the operation of logic ICs (CMOS and TTL), DRAMs, and SRAMs. Applications: Microcontroller Programming: Used for programming a wide range of microcontrollers from various manufacturers. EPROM and EEPROM Programming: Suitable for programming EPROMs and EEPROMs, which are used in many electronic devices. Flash Memory Programming: Can program SPI FLASH, DataFlash, and other types of flash memory. Logic IC Testing: Capable of testing the operation of logic ICs (CMOS and TTL), DRAMs, and SRAMs. In-Circuit Serial Programming (ICSP): Allows for in-circuit programming of microcontrollers, eliminating the need for separate programmers like Microchip PICkit or Atmel AVRISP. Development and Prototyping: Ideal for use in development and prototyping environments where multiple types of ICs need to be programmed.

TOP3000 Universal Programmer The Top3000 Universal Programmer is powered by a USB interface or a 5V power supply. This universal programmer is a Top3000 programmer which is small, lighweight, highly reliable, and consumes low power. The Top3000 Universal Programmer is highly compatible with notebooks and desktop computers. The TOP3000 programmer supports 2.5 ~ 6.5V device, Powered by your USB interface or the included 5V external power supply. With the fast transmission speed of 12MHz/s via the USB port, Auto detects the device's manufacturer and part number. It is easily compatible with Notebooks and desktop computers. The in-built connection inspection checks the connection for every pin in the unit. The current protection function protects both the programmer and connected devices, it has 48-pin self-lock sockets, a Compact programmer with a tough plastic casing

Universal Programmer TOP2013 The TOP2013 is a universal programmer from Seeit. The TOP2013 is designed to work with components with up to 32 pin, from a range of manufacturers. These components include EPROMs, EEPROMs and FLASH memories. A full list of compatible devices can be found on the product datasheet. The Top2013 Universal programmer featuring an ARM Cortex 32 core and is housed in a compact package. It also offers low-power loss and overcurrent protection. Simply plug the TOP2013 into a PC via USB cable. The TOP2013 automatically starts programming once it detects a device has been inserted correctly into the ZIF40 socket. Features of TOP2013 Universal Programmer Model TOP2013 Universal Programmer Dimensions 11.5 x 9 x 2.5 cm Weight 250g Power < 2.5w (5v/500mA) Pins 40-pin Universal locking socket Operating System WINDOWS XP / WIN7 / WIN8 / WIN10 Transmission Speed 12MHz/s

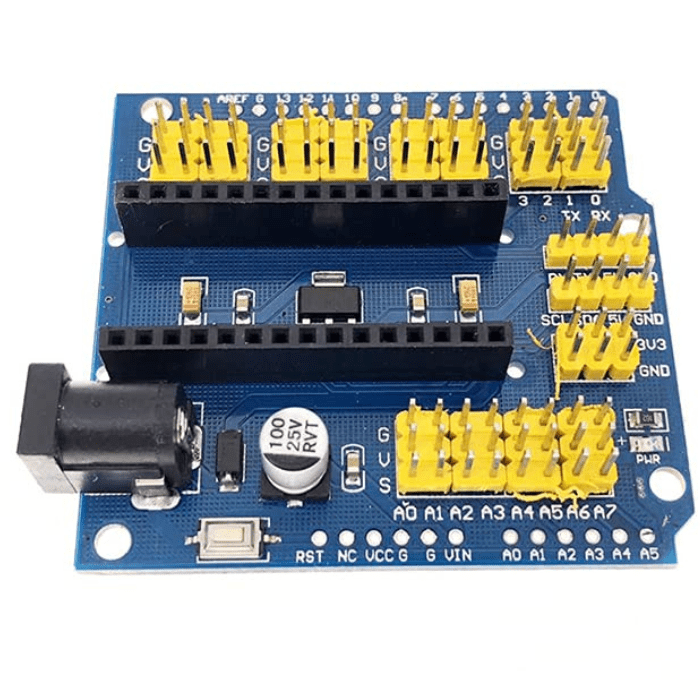

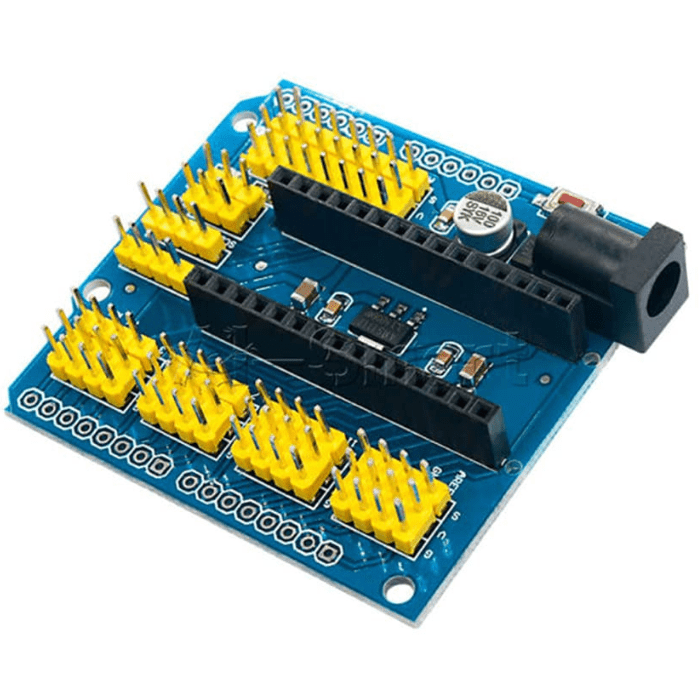

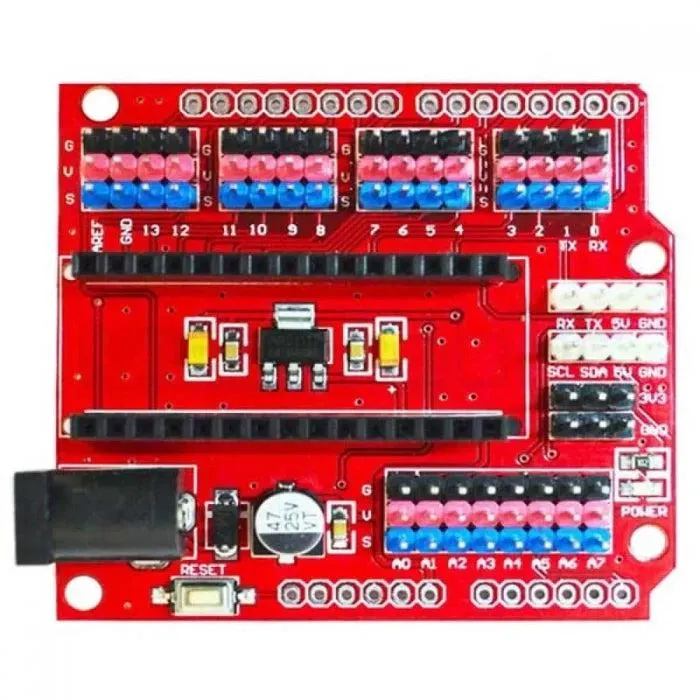

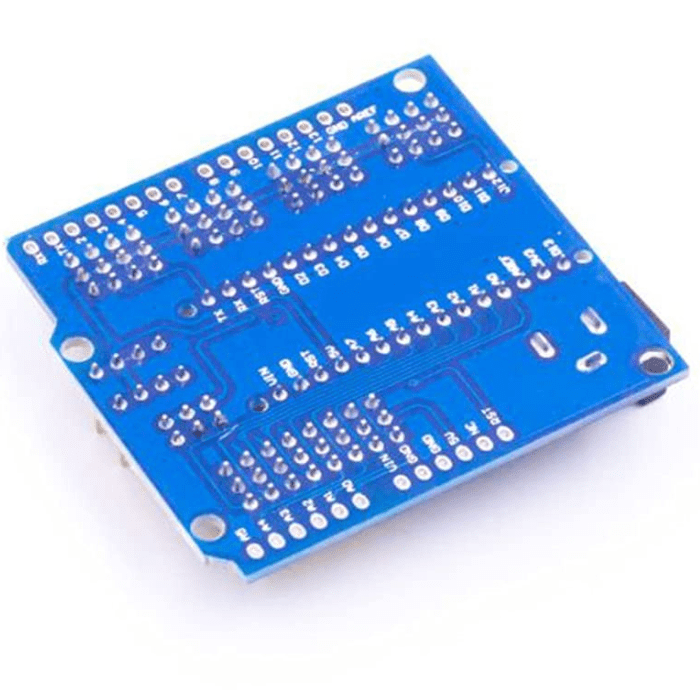

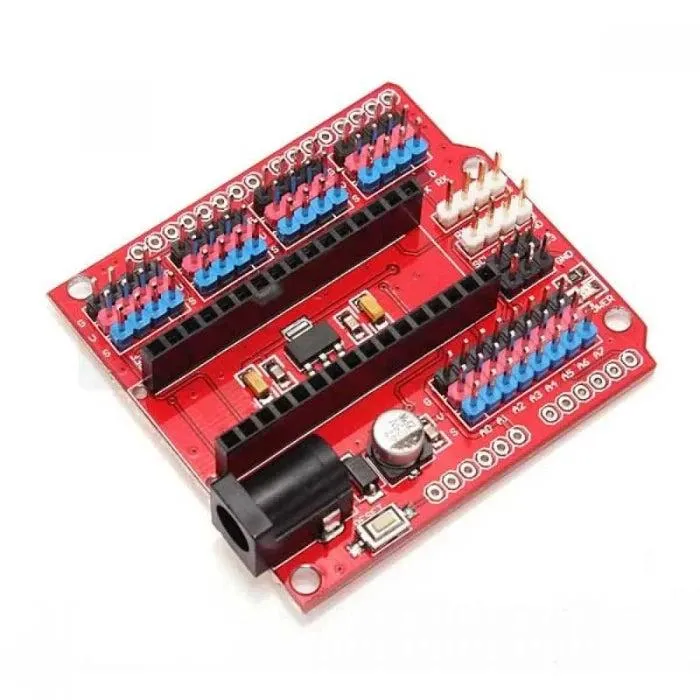

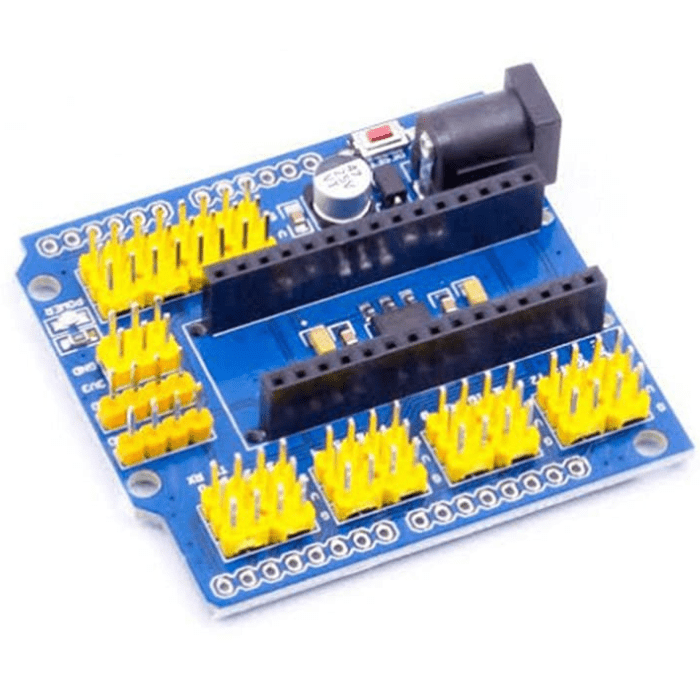

Nano Expansion Shield Introducing the Nano 328P Expansion Adapter Breakout Board IO Shield – your ultimate companion for seamless connections with the Arduino Nano microcontroller. Designed to simplify and enhance your Arduino projects, this breakout board acts as a bridge between the Arduino Nano and various other devices, making your experimentation and prototyping process a breeze. The expansion adapter breakout board shares the same footprint as the Arduino Duemilanove, ensuring compatibility and easy integration. With multiple power input options, you have the flexibility to power your projects using various sources. Each pinout includes 5V and GND pins, providing convenient connections to sensors and servos. What sets this breakout board apart is its comprehensive pin configuration. Featuring 14 I/O pins in servo type, each equipped with GND, power, and signal connections, you have the freedom to interface with a wide range of peripherals. Additionally, there are 8 analog pins with power output and GND, along with 6 PWM pins, allowing precise control of various components. The board also includes 1 Servo power input, 5 I2C expansion pins, 1 AREF output, and 1 3.3V output, making it a versatile choice for all your Arduino projects. The Nano 328P breakout board comes fully assembled, so you can start experimenting right away. Its compact size and convenient pinout design ensure easy wiring and hassle-free experiments. Whether you're a hobbyist, student, or professional, this shield is an essential tool for unleashing your creativity with Arduino projects. It's fully compatible with both Arduino Nano v2.x and v3.x, ensuring seamless integration with existing setups. Whether you're a seasoned Arduino enthusiast or just starting, this expansion shield is your go-to companion. Get ready to take your Arduino projects to the next level with the Nano 328P Expansion Adapter Breakout Board IO Shield. Explore endless possibilities and create innovative solutions with this feature-packed shield. Get yours now and experience the power of Arduino at your fingertips.

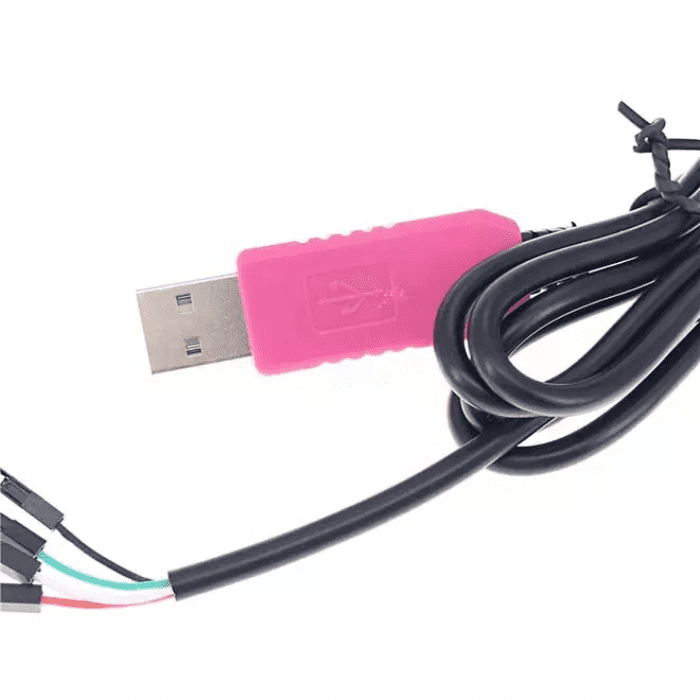

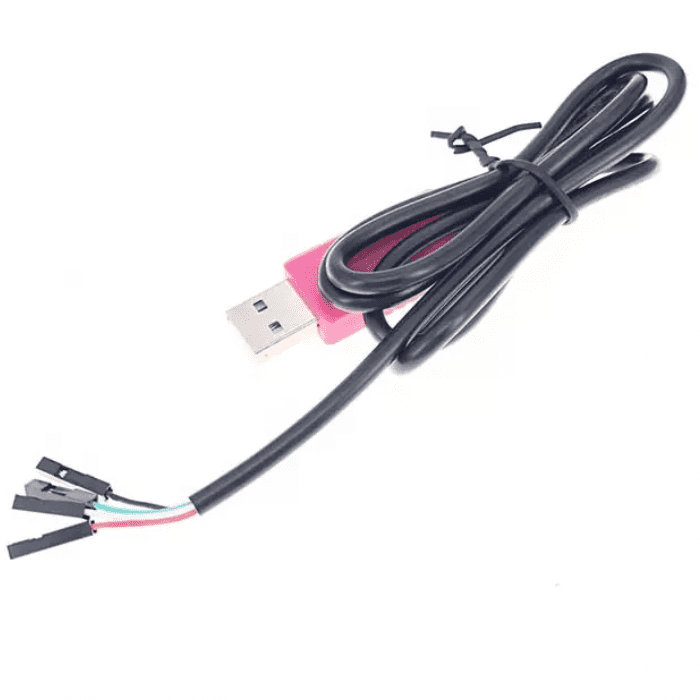

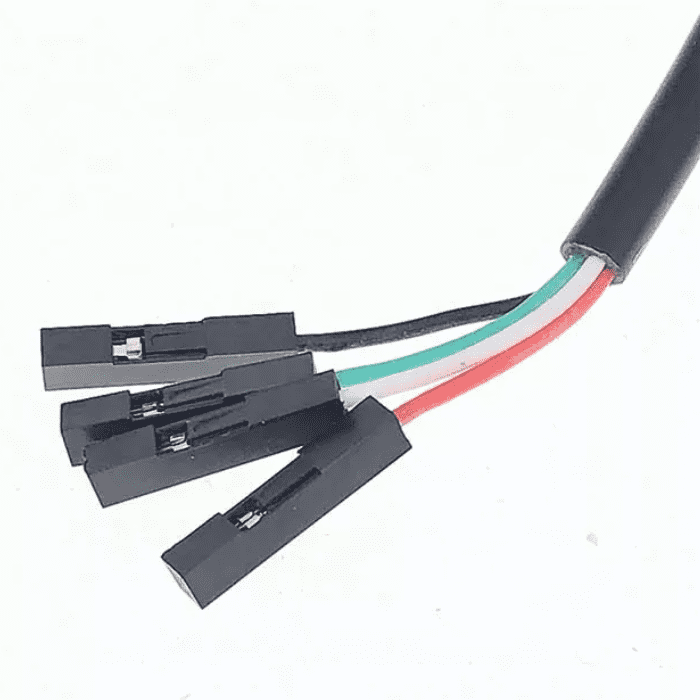

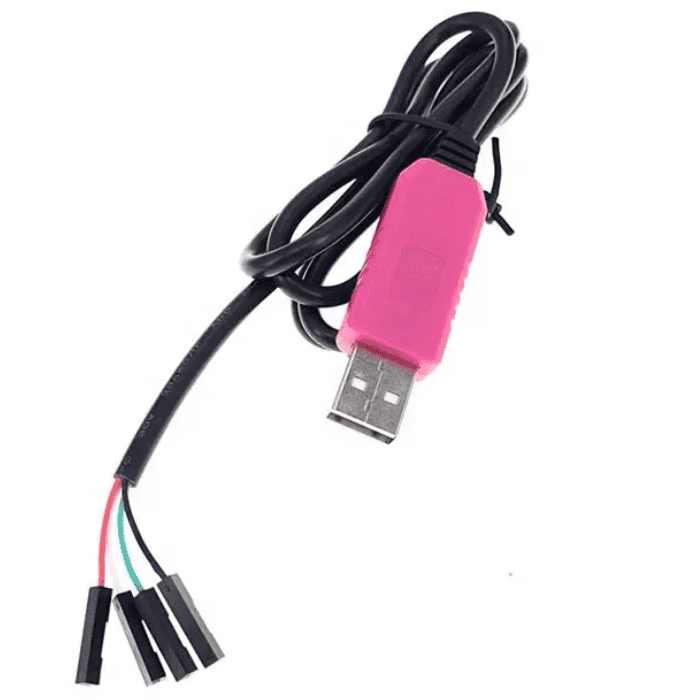

CP2102 USB to TTL Converter Cable This cable is easiest way ever to connect to the serial console port of your microcontroller, Raspberry Pi or router. The USB connector contains a USB - Serial converter chip and at the other end of the 90cm long cable are four header connectors: red = power, black = ground, white = RX (to USB port) and green = TX (from USB port). The power connector provides 5V at 500mA directly from the USB port and the RX / TX connectors are 3.3V for interfacing with most 3.3V components. Because of the separated pin plugs, this cable is ideal for powering and connecting up to the debug/login console on the Raspberry Pi or BeagleBone Black. Features: Stable and Reliable Chipset: Uses the CP2102 chipset, known for its stability and reliability. USB 2.0 Compliant: Supports full-speed 12Mbps USB 2.0 interface. Standard Connectors: Features a standard USB Type A male connector and a TTL 6-pin connector. Wide Baud Rate Support: Supports baud rates from 300 bps to 1 Mbps. Handshaking and Modem Signals: Includes all handshaking and modem interface signals. Buffer Capacity: 640-byte receive buffer and 640-byte transmit buffer. Voltage Levels: Supports both 3.3V and 5V logic levels. Cross-Platform Compatibility: Compatible with Windows, Mac OS, and Linux. LED Indicators: Features RX, TX, and Power LEDs for easy debugging. Applications: Programming Microcontrollers: Used for programming and debugging microcontrollers that use UART communication. Serial Communication: Facilitates general-purpose serial communication between a computer and embedded systems. Firmware Upgrades: Useful for upgrading firmware on devices like routers, HDDs, ADSL modems, and broadband modems. Embedded Systems Development: Ideal for developing and testing embedded systems that require a serial connection to a computer. IoT Projects: Commonly used in Internet of Things (IoT) projects for connecting sensors and modules to a computer. Debugging Tools: Acts as a UART debugging tool in various applications. Communication with Peripherals: Enables communication with peripherals like GPS modules, XBOX360, and vehicle inspection systems. Features of the CP2102 USB to TTL Converter Cable Cable Type CP2102 USB to TTL Converter Cable Lenght of the cable 90cms Weight 25 grams Header Connectors Red = power, black = ground, white = RX (to USB port) and green = TX (from USB port)

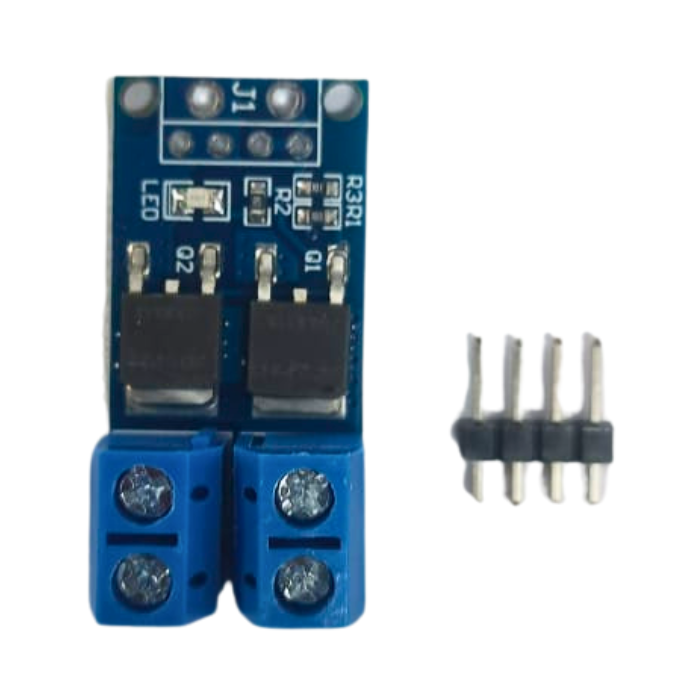

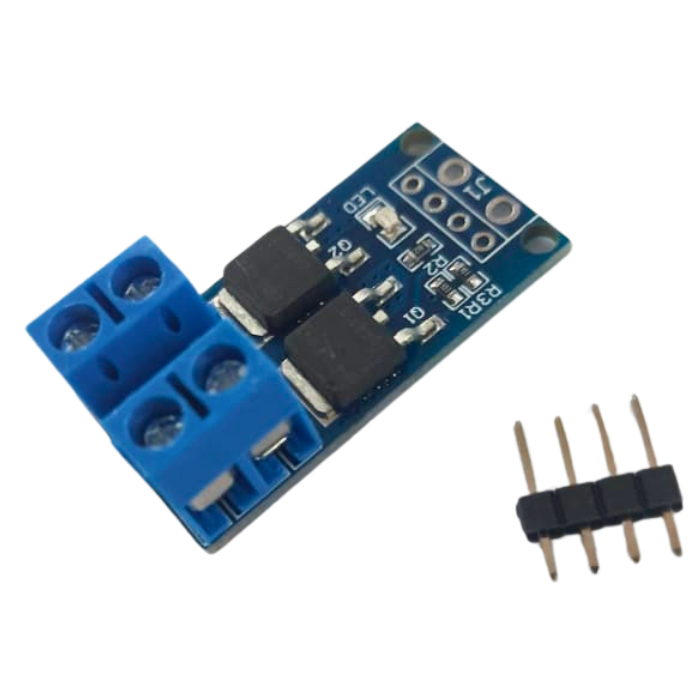

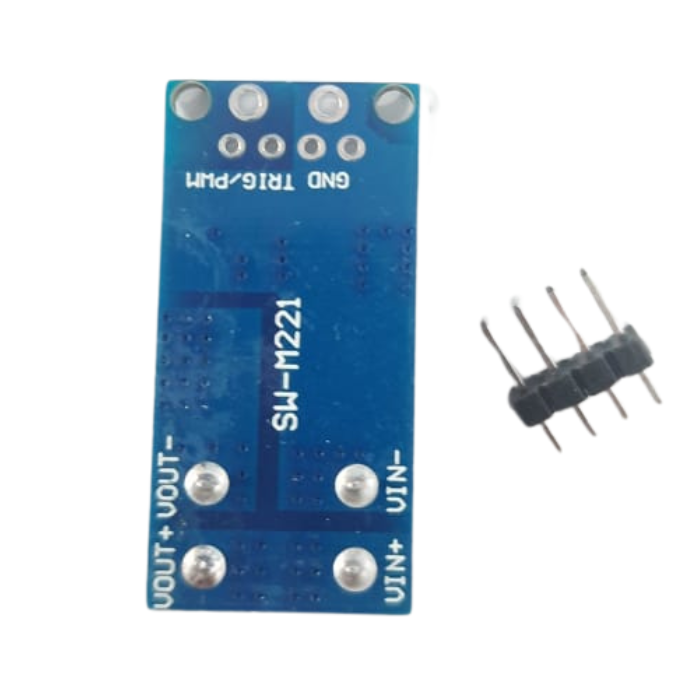

15A 400W Mosfet Trigger Switch Driver This Dual Large Power Mosfet is the ultimate solution for high-power applications. This compact device manages 15A, 400W power at room temperature with its dual MOSFET parallel active output. With a wide voltage input supporting PWM and a flexible trigger source, this Mosfet adapts to various setups, connecting seamlessly to microcontrollers, PLC interfaces, and DC power sources. The robust output capacity of DC 5V - 36V, continuous current 15A, and power up to 400W makes it versatile for applications like high-power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, and solenoid valves. Its temperature resilience (-40 to 85?) ensures reliable performance in diverse conditions. Compact in size at 34mm X 17mm X 12mm, it's designed for efficiency, but for high-current operations. Features: The trigger source: digital high-low (DC3.3V – 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 0–20KHZ perfect support. Output capacity: DC 5V – 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary cooling conditions, the maximum current up to 30A. Applications: High-power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, motor speed control, lamp brightness

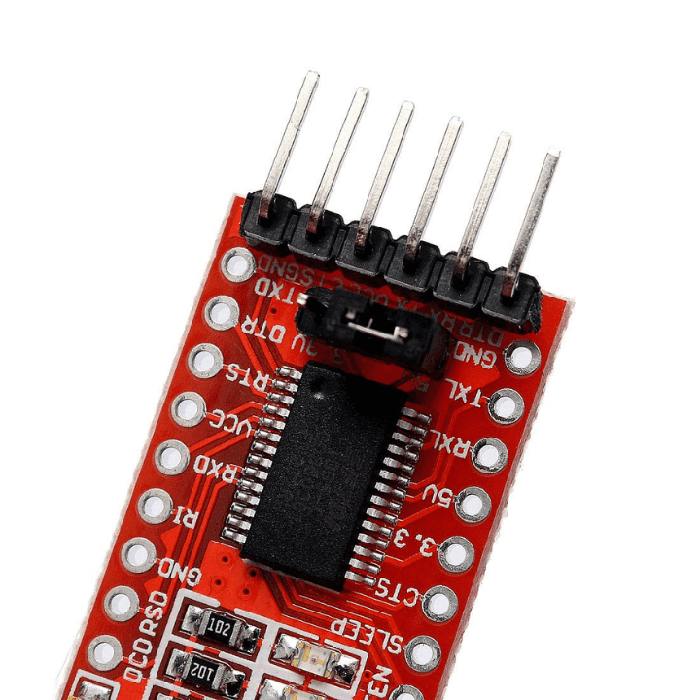

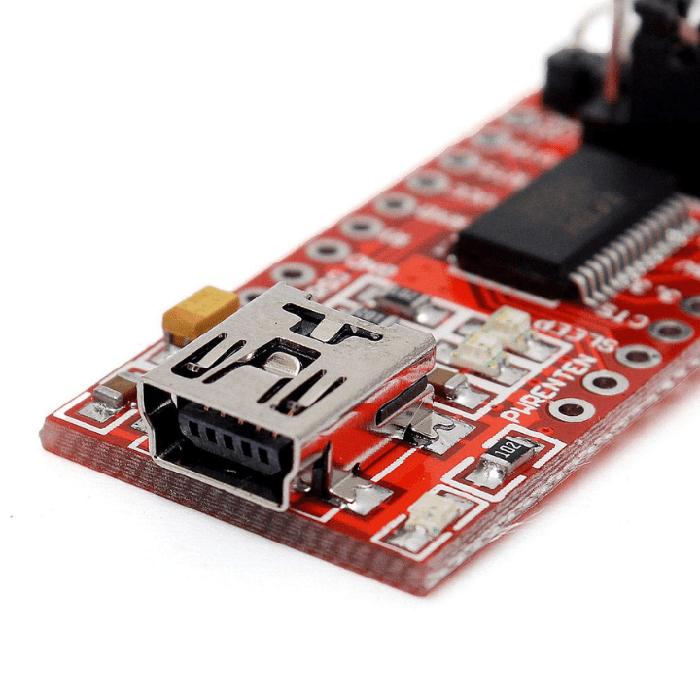

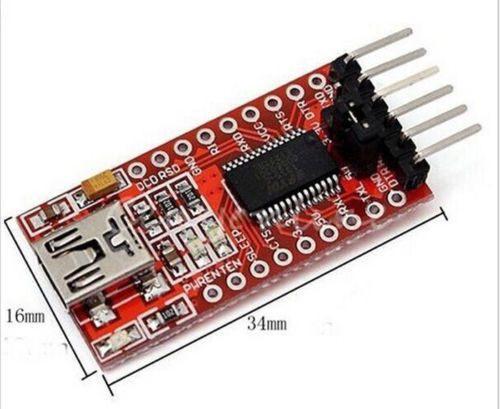

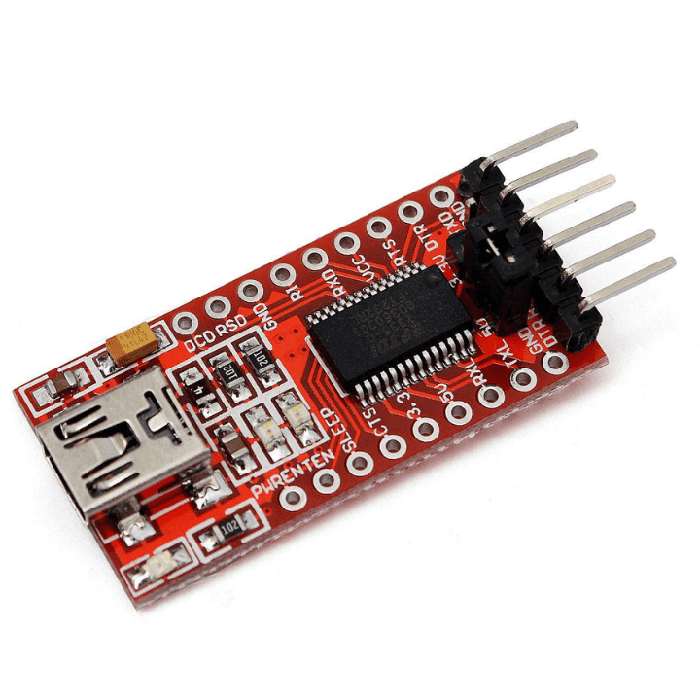

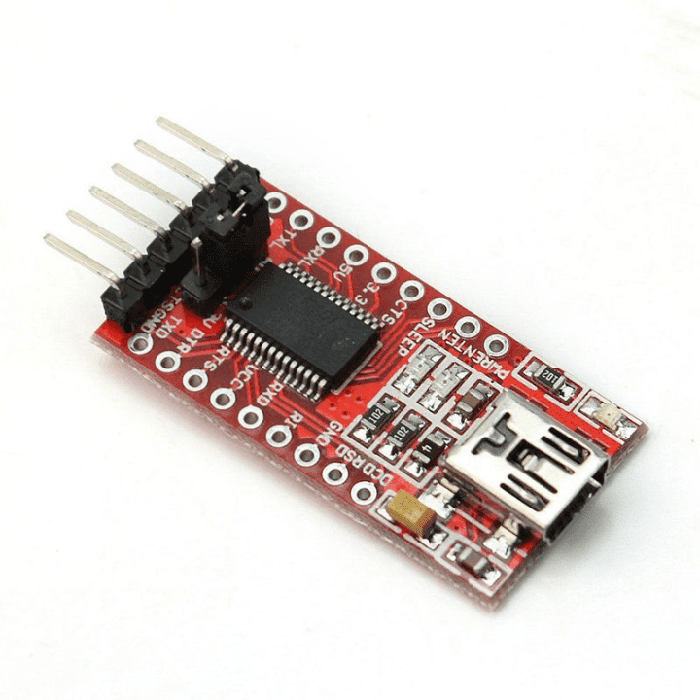

FTDI FT232RL 3.3-5.5V USB to TTL Converter The FT232RL Breakout Board Mini USB to TTL Converter is a great TTL converter for board compatible with Arduino. It uses a chipset Ft232rl USB power which has over current protection. It uses 500ma Self-Restore Fuse and is integrated with Rxd/Txd Transceiver Communication Indicator. The FTDI FT232RL features fully integrated USB terminator. Fully integrated clock generation that does not require an external crystal, plus optional clock output selection that allows seamless interfacing to an external MCU or FPGA. Data transfer rate from 300 baud to 3 Mbaud (RS422, RS485, RS232) at TTL level. A 128-byte receive buffer and a 256-byte transmit buffer (with buffer smoothing technology) provide high data throughput.

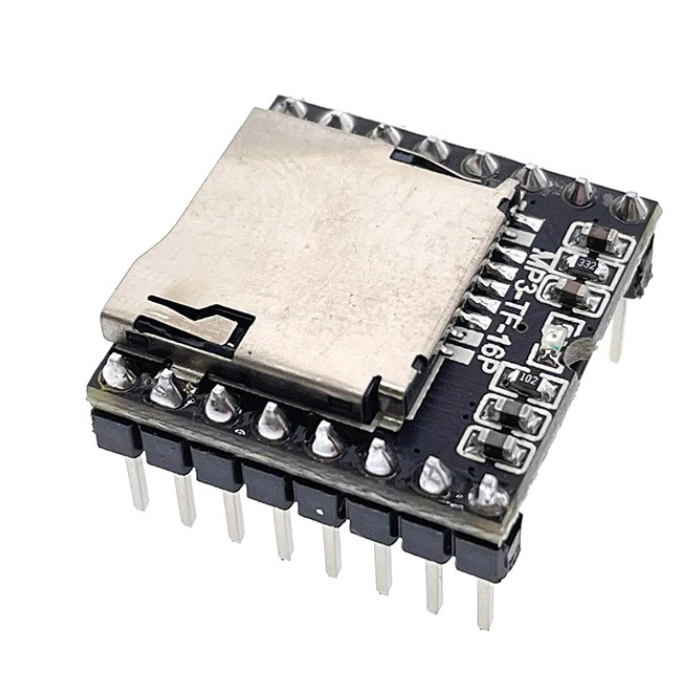

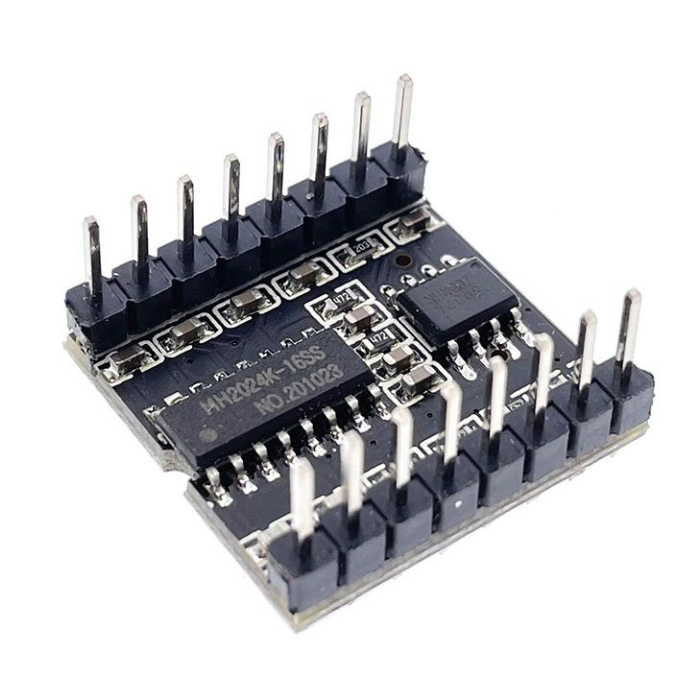

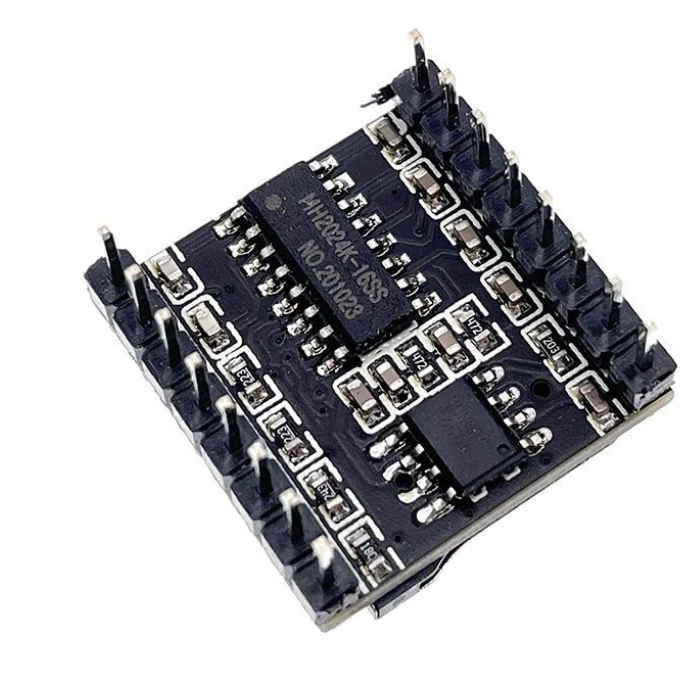

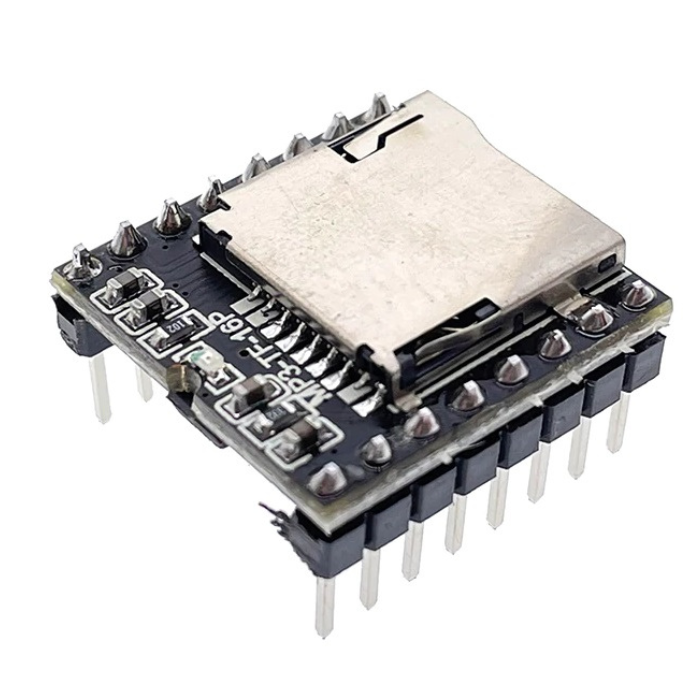

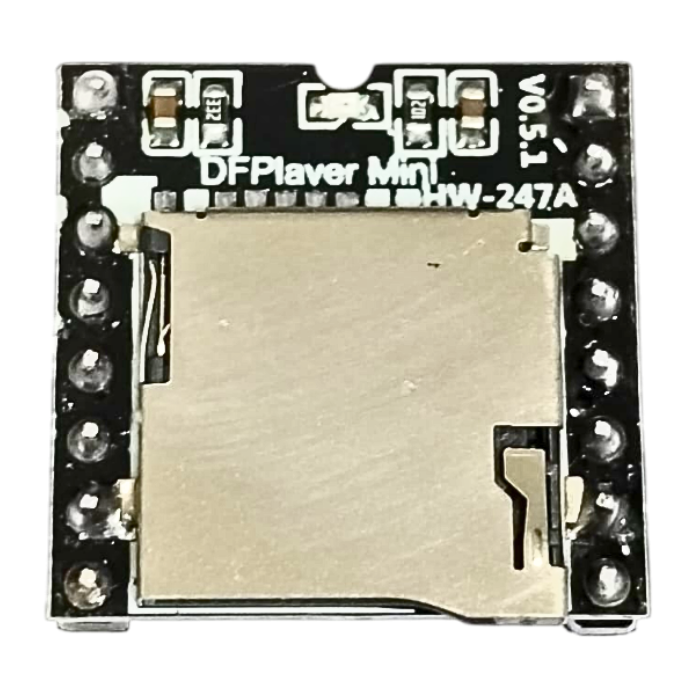

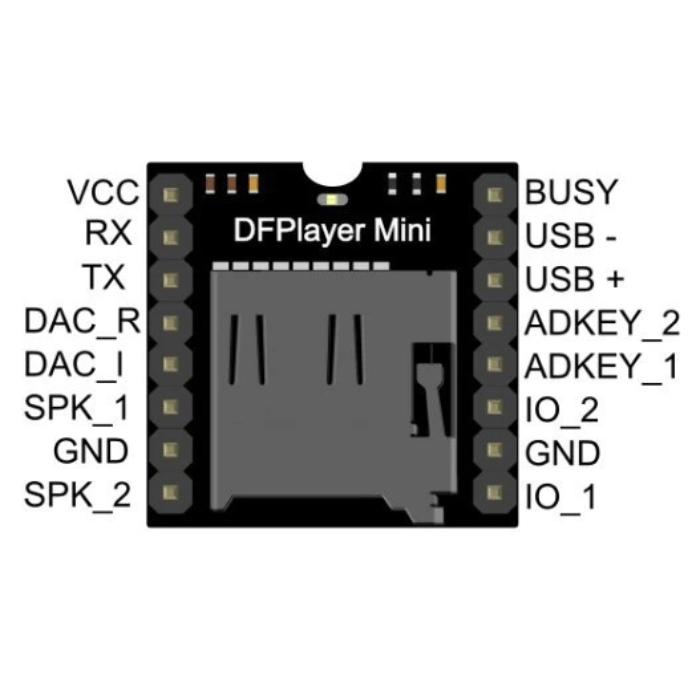

Mini DF MP3 Player Module MP3-TF-16P The compact Mini DF Player can connect to the speaker directly It integrates perfectly with hard-decision decoding of DF, wav, wma it supports tf card driver, support fat16, fat32 file system. Supports sampling rates (KHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48 24-bit DAC output, dynamic range support: 90dB, SNR support: 85dB Fully supports FAT16, FAT32 file system Maximum support 32G TF card Support U disk to 32G, 64M bytes of NORFLASH A variety of control modes are available. IO control mode, serial mode, AD key control mode

DB-9 RS232 to TTL Converter RS-232 to TTL converters make easy connections between your TTL equipment and RS-232 ports. All TTL converter models convert two channels in each direction from TTL to RS-232 or RS-422.

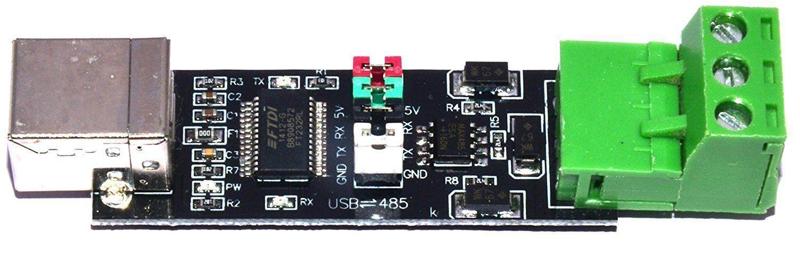

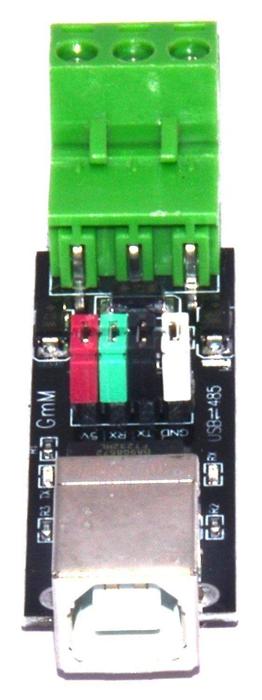

USB 2.0 to TTL RS485 Serial Converter The USB 2.0 to TTL RS485 Serial Converter can be used in industrial-grade applications and features an excellent speed anti-jamming capability and is very suitable for industrial control field, individual applications. With the help of RS485 interface, it can be used in a surveillance camera, video capture, fingerprint attendance machine, program-controlled switches and CNC machine.

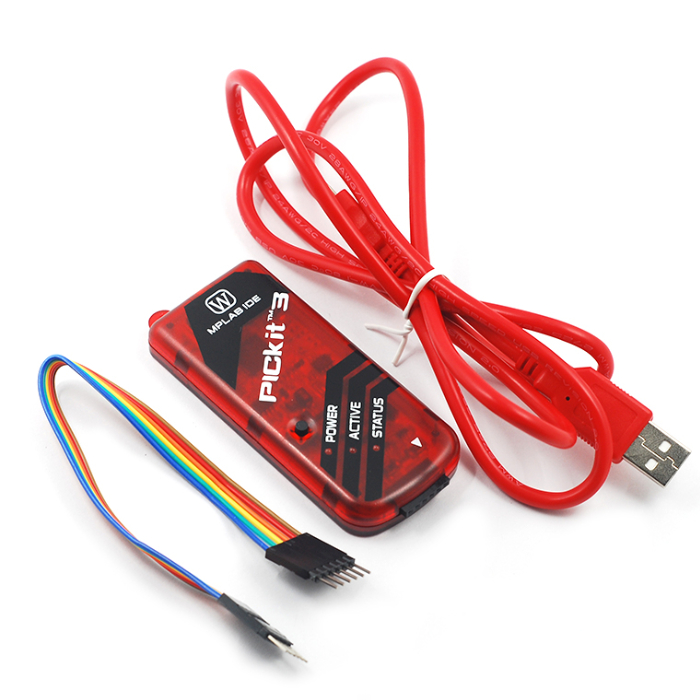

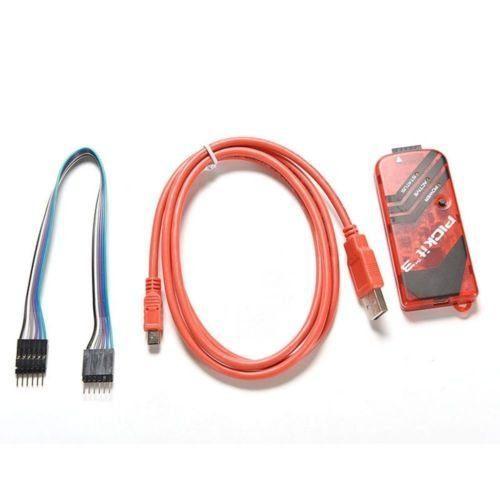

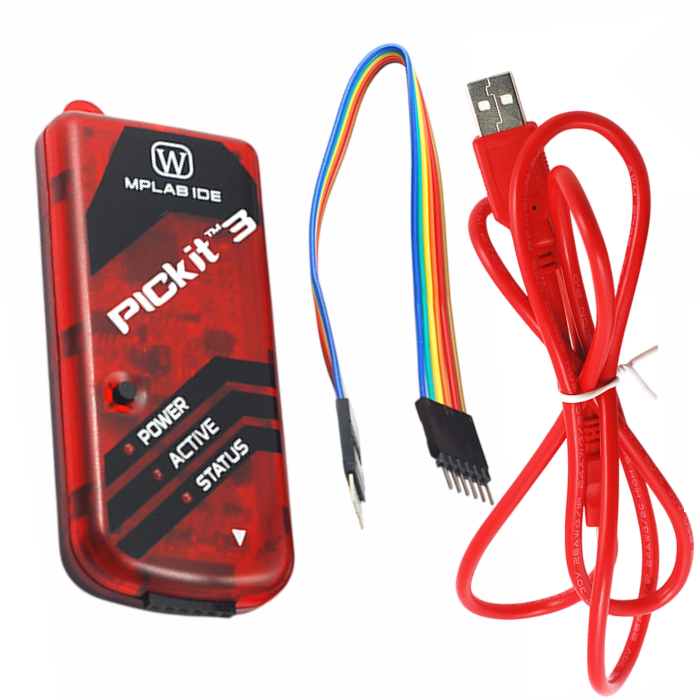

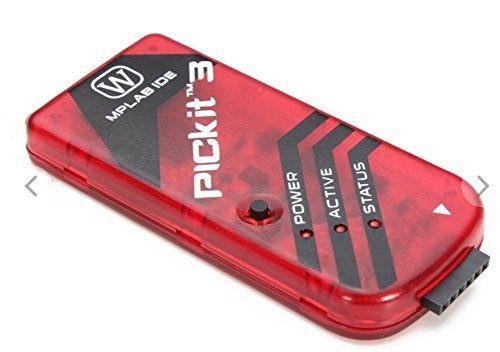

PICkit3 USB Debugger Programmer Emulator Controller Development Board The MPLAB PICkit3 Debugger Programmer makes it easier to debug and program PIC and dsPIC Flash microcontrollers. Compared to earlier generations like the ICD2, it offers more stability and connects to your PC with ease via a full-speed USB interface. This PICKit3 USB debugger version has a full patch design with reflow soldering for increased longevity and dependability, and it also supports Windows 7. PICkit is a family of programmers for PIC microcontrollers made by Microchip Technology. The Pickit3 In-Circuit Debugger/Programmer features a faster 16-bit PIC24F processor and a wider voltage regulation range which makes it more reliable than the Pickit 2. The PICkit 3 is compatible with the MPLAB X IDE, has a pinout diagram to make it easier for customers to grasp, and uses a graphical user interface to do programming and debugging activities. A Microchip debug (RJ-11) connector is used to link it to the target microcontroller, guaranteeing compatibility with MPLAB ICD 2, MPLAB ICD 3, and MPLAB REAL ICE systems. This MPLAB PICkit 3 programmer development board comes with a variety of tools to facilitate C language development. Because of its ability to simplify the development process, the PICkit3 Debugger Programmer is a perfect tool for product development, prototyping, and embedded system applications. Features: Used for programming and debugging microcontrollers. Features a faster 16-bit PIC24F processor. Supports a voltage supply range from 1.8V to 5V. Capable of programming up to 512K flash memory bytes. Compatible with MPLAB ICD 2, MPLAB ICD 3, and MPLAB REAL IC. Essential tool for developers working with PIC microcontrollers. PICkit 3 Pinout: Applications: Embedded System Development Electronics Prototyping Industrial Automation Robotics IoT Projects Educational Learning Consumer Electronics

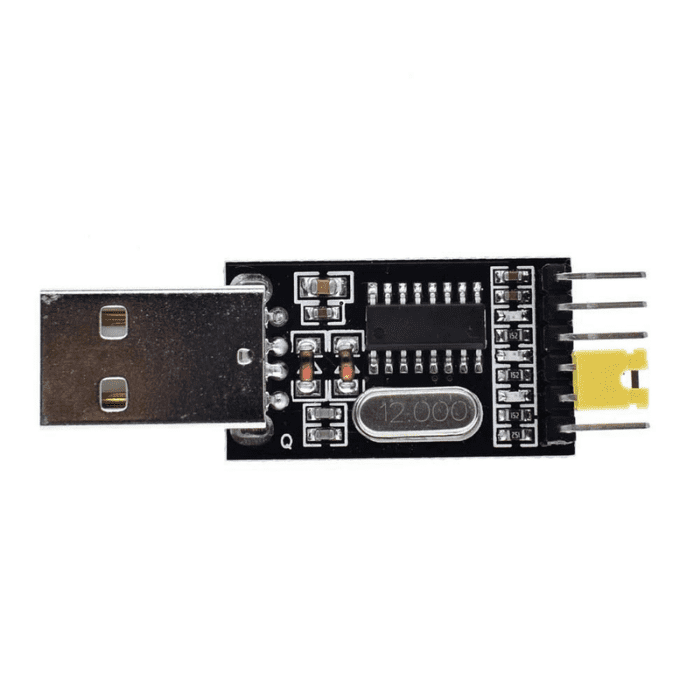

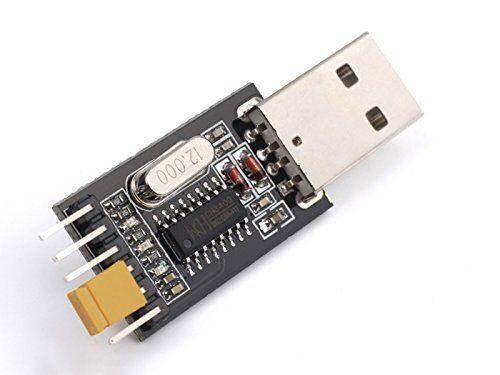

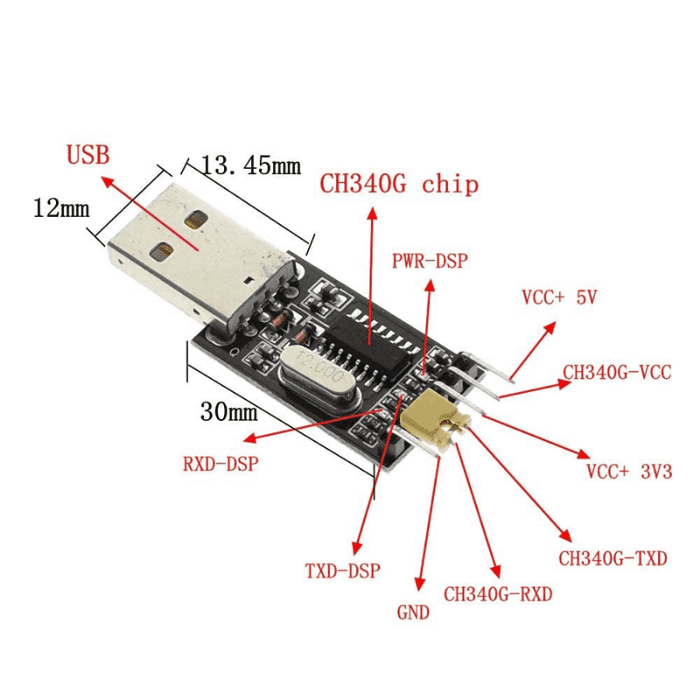

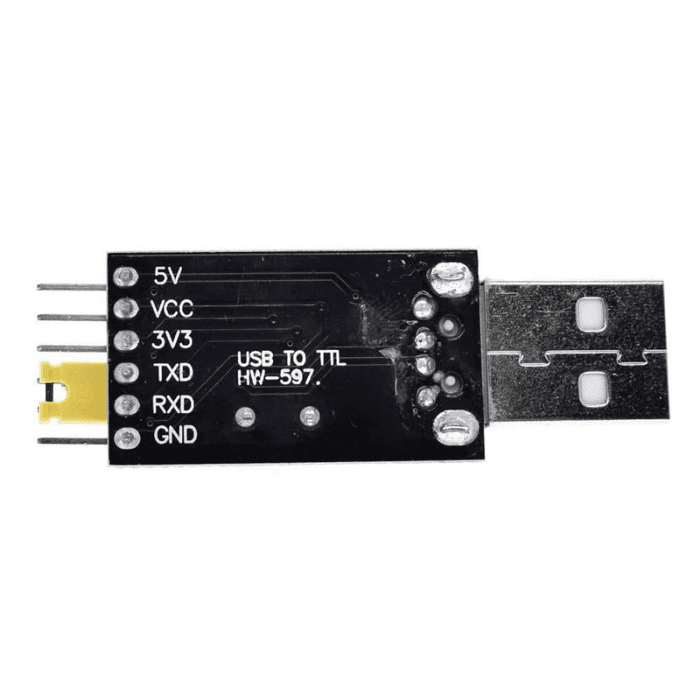

CH340G USB to Serial Converter This is CH340G USB To TTL(Serial) Converter, USB to TTL / USB-TTL /STC microcontroller programmer / PL2303 in nine upgrades plate with a transparent cover Compatible with ARDUINO, RASPBERRY PI, AVR, PIC, 8051, etc. This USB–TTL converter is based on CH340G USB to Serial TTL converter chip. The module can be used for 3.3V logic level signals and has the option to switch from 5V to 3.3V logic level using a 2 pin shunt supplied with the module. The CH340 USB to serial adaptor makes use of the CH340 USB to serial IC to provide a low-cost alternative to our popular FTDI-based module. Although much cheaper this module doesn’t lack in features or usability. Note: Once you have installed the drivers the module will appear as a normal serial COM port on your computer making it compatible with most terminal programs and development environments such as the Arduino IDE. The module includes a small switch that allows the voltage available at the VC (Supply output) pin to be switched between 3.3 and 5V. Data pins include TX and RX. These digital pins are at 5V TTL levels allowing them to be directly interfaced with most 5V microcontrollers. What does the CH340G USB to Serial TTL converter support? The USB to serial converter supports WINDOWS 98 / ME / 2000 / XP / Server 2003 / VISTA /Server 2008 / Win7 / Win8 32 Bit / 64. For the purpose of communication, the USB serial converter supports USB1.1 or USB2.0/USB3.0. It also supports RS232, RS485, and RS422 interfaces. The CH340G USB to Serial converter also supports common MODE contact signal and IRDA SIR infrared communication. Applications: Programming USB to UART Converter Debugging Serial Monitor

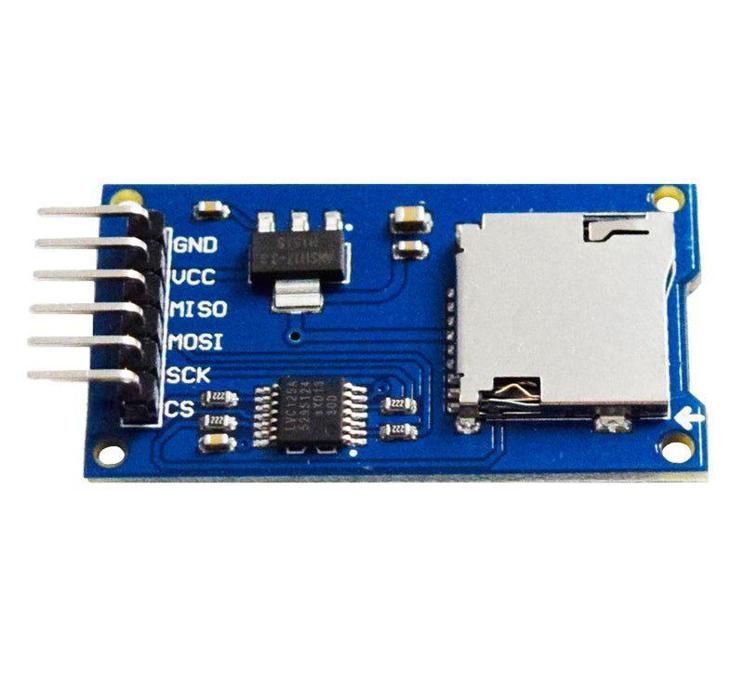

SD Card Module The module (MicroSD Card Adapter) is a Micro SD card reader module and the SPI interface via the file system driver, and microcontroller system to complete the Micro SD card read and write files. Users can directly use the Arduino IDE that comes with an SD card to complete the library card initialization and read-write. 3.3V voltage regulator circuit: LDO regulator output is 3.3V level converter chip, Micro SD card supply. Level conversion circuit: Micro SD card into the direction of the signal is converted to 3.3V, MicroSD card interfaces to control the direction of the MISO signal is also converted into 3.3V, and a general AVR microcontroller system can read the signal , . Micro SD card connector: a self: bomb deck, easy card insertion. Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install, to achieve inter-module combination. check out : 8GB Class 6 SD Card Applications: Data loggers Audio Video storage Visualization Expandable memory
