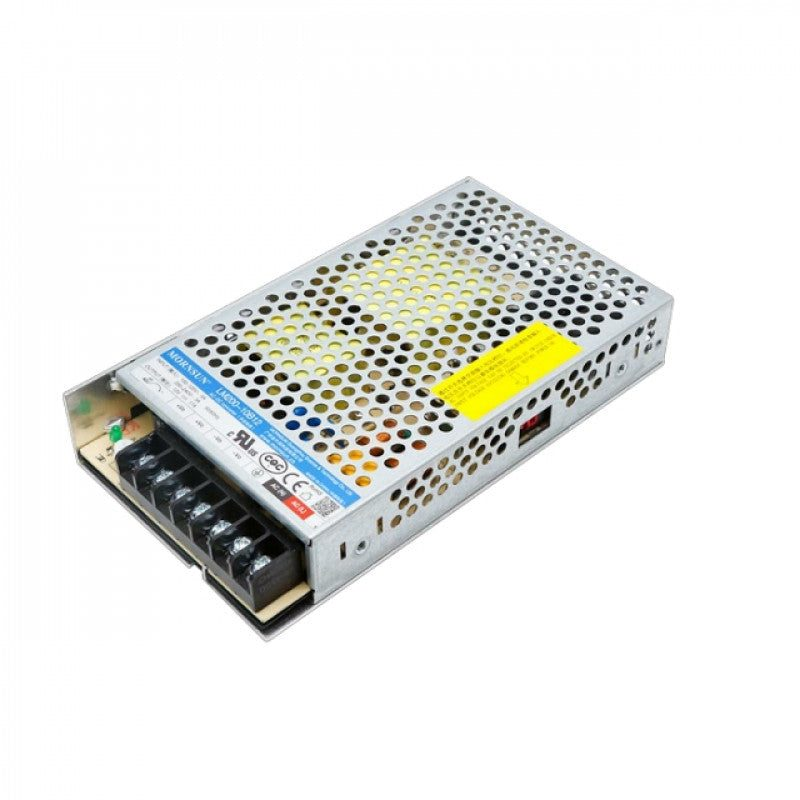

Mornsun LM200-10B15 AC/DC 200W Enclosed Switching Power Supply The LM200-10B15 is a cost-effective, reliable, and efficient enclosed AC-DC switching power supply from Mornsun. It features selectable AC input and DC input voltage, low no load power consumption, and high EMC performance. The LM200-10B15 meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards, and is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications. Features Selectable AC input and DC input voltage Low no load power consumption High EMC performance Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards Widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications check out : Mornsun LM200-10B48 AC/DC 200W Enclosed Switching Power Supply Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment check out : Mornsun LM200-12B12 AC/DC 200W Enclosed Switching Power Supply

Mornsun LM200-10B24 AC/DC 200W Enclosed Switching Power Supply The LM200-10B24 is a 211.2W AC/DC enclosed switching power supply with a single output of 24V and 8.8A. It has a universal input voltage of 85-264VAC or 120-370VDC, and a maximum efficiency of 88%. The power supply is protected against output short circuit, over current, over voltage, and over temperature. It is also RoHS compliant. Features: Universal input voltage of 85-264VAC or 120-370VDC Single output of 24V and 8.8A Maximum efficiency of 88% Protected against output short circuit, over current, over voltage, and over temperature RoHS compliant Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Mornsun LM200-10B36 AC/DC 200W Enclosed Switching Power Supply The LM200-10B36 is an enclosed AC-DC switching power supply from Mornsun. It features a selectable AC input, DC input voltage acceptance, cost-effectiveness, low no load power consumption, high efficiency, and high reliability. It offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards. It is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications. Features Selectable AC input: The LM200-10B36 can be powered by a wide range of AC input voltages, from 90 to 264 VAC. DC input voltage acceptance: The LM200-10B36 can also be powered by a DC input voltage, from 240 to 373 VDC. Cost-effective: The LM200-10B36 is a cost-effective solution for a wide range of applications. Low no load power consumption: The LM200-10B36 consumes very little power when it is not in use, which can help to save energy costs. High efficiency: The LM200-10B36 is highly efficient, which can help to reduce energy costs and extend the life of the product. High reliability: The LM200-10B36 is designed to be highly reliable, and it is backed by a one-year warranty. If you are looking for an enclosed AC-DC switching power supply with a wide range of features and benefits, the LM200-10B36 is a great option. Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

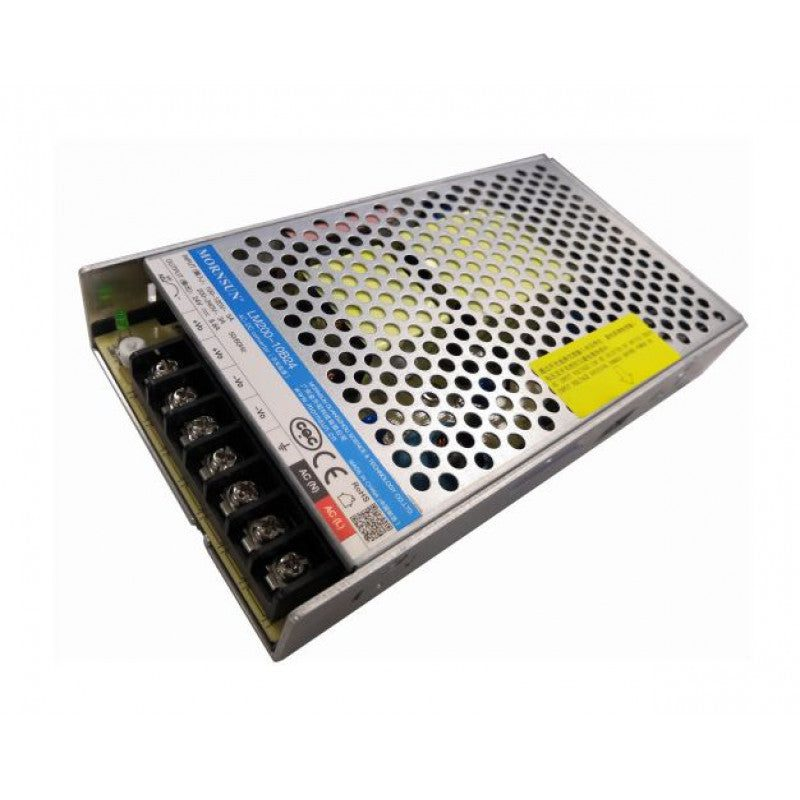

Mornsun LM200-10B48 AC/DC 200W Enclosed Switching Power Supply The LM200-10B48 is a cost-effective, reliable, and efficient AC-DC switching power supply from Mornsun. It features a selectable AC input range, DC input voltage acceptance, low no-load power consumption, and excellent EMC performance. The LM200-10B48 meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards. It is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications. Features: Selectable AC input range: 90-132VAC/180-264VAC DC input range: 240-370VDC (switch in position of 230) Ultra low standby power consumption: <0.75W @ 230VAC Operating ambient temperature range: -30°C to +70°C High efficiency: up to 89.5% High reliability: meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards Wide range of applications: industrial, LED, street light control, electricity, security, telecommunications, and smart home check out : Mornsun LM200-10B15 AC/DC 200W Enclosed Switching Power Supply Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Mornsun LM200-12B05 AC/DC 200W Enclosed Switching Power Supply The LM200-12B05 is an enclosed AC-DC switching power supply from Mornsun. It features a universal input voltage of 90-264VAC, 50/60Hz, and can output a constant 12V DC at up to 150W. The power supply is also equipped with short circuit, over voltage, over current, and over temperature protection. Features: Universal input voltage: 90-264VAC, 50/60Hz Output voltage: 12V DC Output current: 150W Short circuit protection Over voltage protection Over current protection Over temperature protection check out : Mornsun LM150-23B36 AC/DC 150W Enclosed Switching Power Supply Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

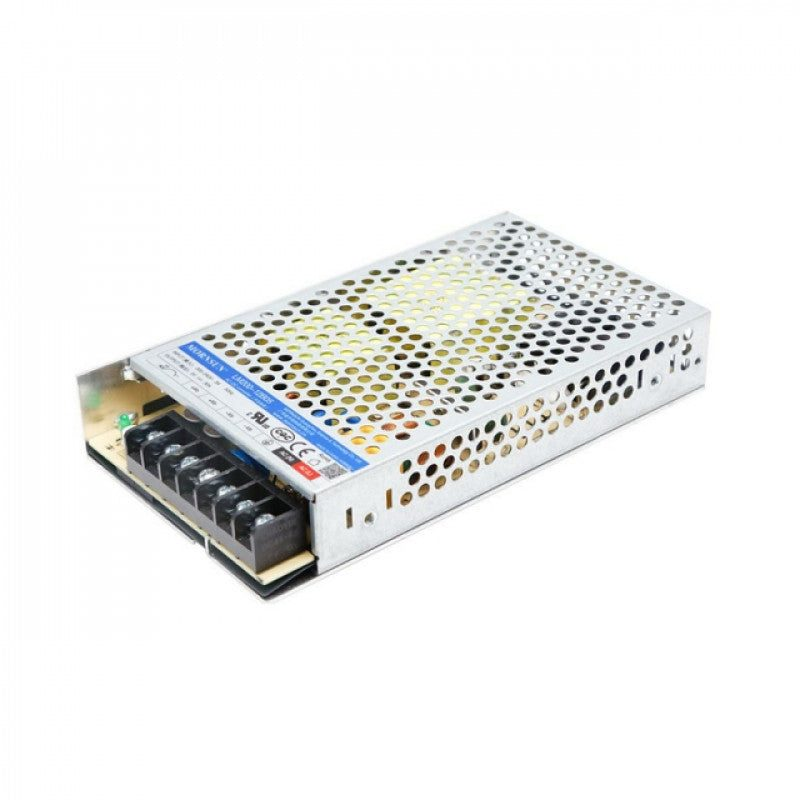

Mornsun LM200-12B12 AC/DC 200W Enclosed Switching Power Supply The LM200-12B12 series is a line of enclosed AC-DC switching power supplies from Mornsun. These converters feature AC input and DC input voltage acceptance, cost-effectiveness, low no load power consumption, high efficiency, high reliability, and double or reinforced insulation. They also offer excellent EMC performance and meet a variety of industry standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, and IEC/EN61558. The LM200-12B12 series is widely used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home. Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Mornsun LM200-12B15 AC/DC 200W Enclosed Switching Power Supply The LM200-12B15 is an enclosed AC/DC switching power supply from Mornsun. It has a maximum output power of 210 watts and can output a regulated 12 volts DC at 14 amps. The power supply has a universal input voltage range of 176 to 264 VAC or 240 to 370 VDC. It is also equipped with short circuit, over voltage, over current, and over temperature protection. The LM200-12B15 is a cost-effective and reliable power supply that is suitable for a wide range of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home. Features: Universal input voltage range of 176 to 264 VAC or 240 to 370 VDC Maximum output power of 210 watts Regulated 12 volts DC output at 14 amps Short circuit, over voltage, over current, and over temperature protection Cost-effective and reliable Suitable for a wide range of applications check out : Mornsun LM200-12B36 AC/DC 200W Enclosed Switching Power Supply Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment check out : Mornsun LM200-12B48 AC/DC 200W Enclosed Switching Power Supply

Mornsun LM200-12B24 AC/DC 200W Enclosed Switching Power Supply The LM200-12B24 is a cost-effective, reliable, and versatile AC-DC switching power supply from Mornsun. It features selectable AC input and DC input voltage, low no load power consumption, high efficiency, and excellent EMC performance. The LM200-12B24 meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards. It is widely used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home. Features Selectable AC input voltage (90-264VAC) or DC input voltage (240-373VDC) Low no load power consumption (<0.75W) High efficiency (up to 88.5%) Excellent EMC performance Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards Widely used in a variety of applications check out : Mornsun LM200-12B24 AC/DC 200W Enclosed Switching Power Supply If you are looking for a cost-effective, reliable, and versatile AC-DC switching power supply, the LM200-12B24 from Mornsun is a great option. Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment check out : Mornsun LM200-10B36 AC/DC 200W Enclosed Switching Power Supply

Mornsun LM200-12B36 AC/DC 200W Enclosed Switching Power Supply The LM200-12B36 is an enclosed AC-DC switching power supply from Mornsun. It has a universal input voltage of 176-264VAC or 240-373VDC, an output voltage of 36VDC, an output current of 5.9A, and an output power of 200W. It is also equipped with a number of features that make it ideal for a variety of applications, including: High efficiency: The LM200-12B36 has an efficiency of up to 89%, which helps to reduce energy costs. Low noise: The LM200-12B36 produces very low noise, which makes it ideal for use in sensitive applications. Wide temperature range: The LM200-12B36 can operate in temperatures ranging from -30°C to +70°C, making it suitable for use in a variety of environments. Durable construction: The LM200-12B36 is built with a durable metal housing that protects it from damage. The LM200-12B36 is a versatile and reliable power supply that is ideal for a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home. check out : Mornsun LM200-10B24 AC/DC 200W Enclosed Switching Power Supply Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment check out : Mornsun LM200-12B05 AC/DC 200W Enclosed Switching Power Supply

Mornsun LM200-12B48 AC/DC 200W Enclosed Switching Power Supply The LM200-12B48 is a 211.2W AC/DC power supply that provides a single output of 48V DC at 4.4A. It features a wide input voltage range of 176-264VAC, a low standby power consumption of <0.75W@230VAC, and an operating ambient temperature range of -30?to+70?. The LM200-12B48 also features high efficiency, high reliability, an LED indicator for power on, and output short circuit, over-current, over-voltage, and over-temperature protection. It can be used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home. check out : Mornsun LM200-12B15 AC/DC 200W Enclosed Switching Power Supply Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment check out : Mornsun LM60-12A15 AC/DC 60W Enclosed Switching Power Supply
