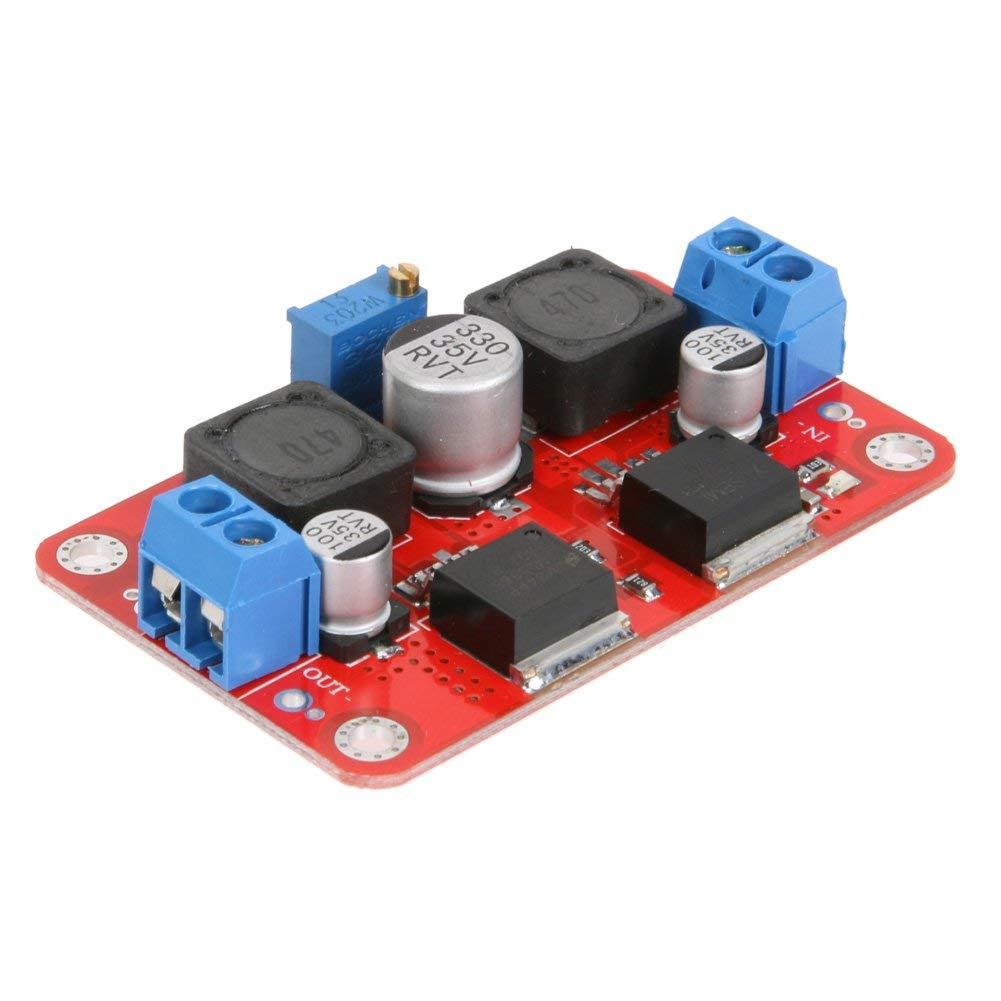

DC to DC 3.5V-28V Module The XL6009 LM2596 DC-DC Step Up Down Boost Buck Voltage Power Converter Module is a versatile converter that can both step up and step down (boost and buck) constant voltage (CV) DC-DC. The primary benefit of using this module is that it maintains a fixed output voltage, regardless of input voltage fluctuations. This Boost Buck Converter can achieve an output voltage range of 1.25V to 26V, and the input voltage can vary from 3.5V to 28V. The output voltage can be set and adjusted using the onboard trim pot. This module is particularly useful in solar applications, where a constant voltage of 12V to 14V is needed to charge a battery, but the output of the solar panel fluctuates with sunlight. Also check The XL7015 is a DC-DC step-down power supply buck module that operates at a fixed frequency of 150 kHz using PWM technology. It can efficiently drive a load of up to 0.8A with minimal ripple and excellent regulation for both line and load. This voltage converter is suitable for applications where the input voltage is higher than the output voltage. It features built-in thermal shutdown, current limit, and output short protection functions.

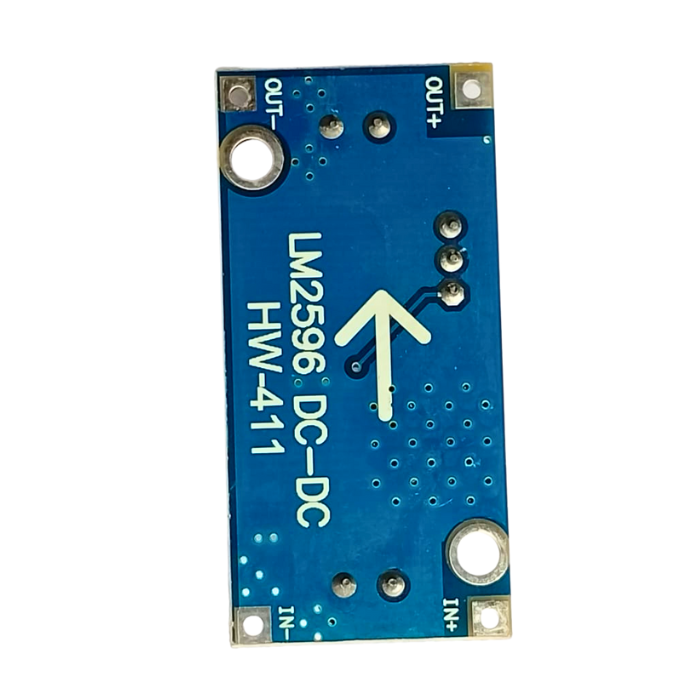

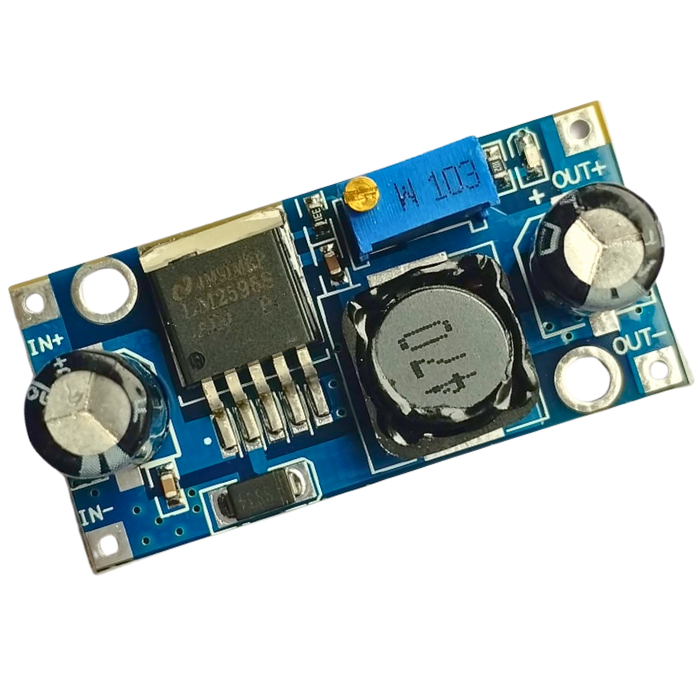

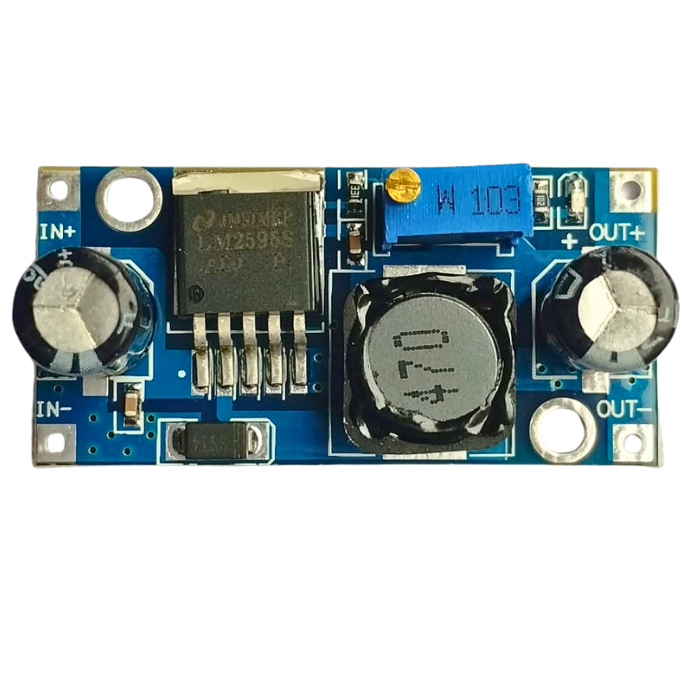

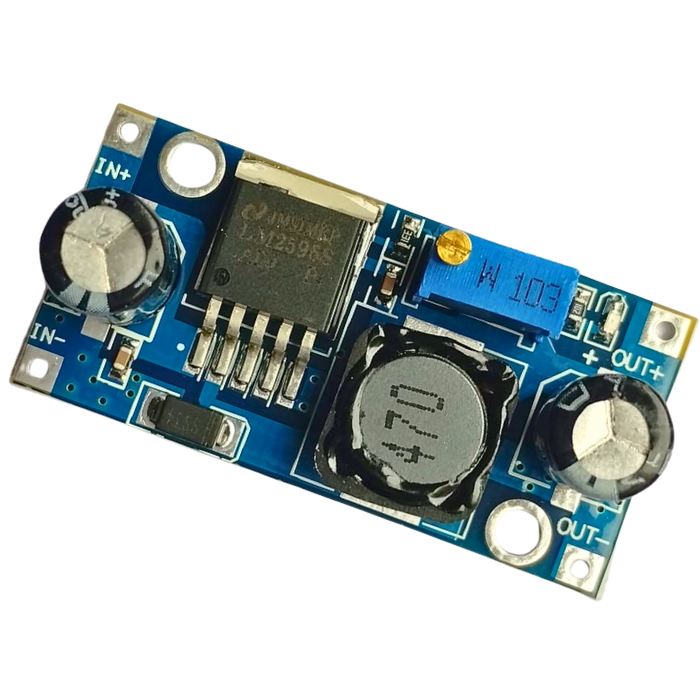

LM2596 DC-DC Buck Module The LM2596 DC-DC Buck Converter Step-Down Power Supply Module is a step-down(buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, and an adjustable output version. The LM2596 series operates at a switching frequency of 150kHz, thus allowing smaller-sized filter components than what would be required with lower-frequency switching regulators. This buck converter is internally compensated to minimize the number of external components to simplify the power supply design. Since the LM2596 converter is a switch-mode power supply, its efficiency is significantly higher than popular three-terminal linear regulators, especially with higher input voltages. The LM2596 operates at a switching frequency of 150 kHz thus allowing smaller-sized filter components than what would be needed with lower-frequency switching regulators. Features: Switching Frequency: 150KHz Rectification: Non-synchronous rectification Internally Compensated for minimized external components Efficient operation with higher input voltages compared to three-terminal linear regulators Short circuit protection for current limiting and recovery. Pinout: Pinout Of LM2596 DC-DC Buck Module Applications: Used for USB on the go. Used for Point of load converters for PCs and laptops. Used for Battery Chargers. Used for Quad Copters. Used for Power audio amplifiers.

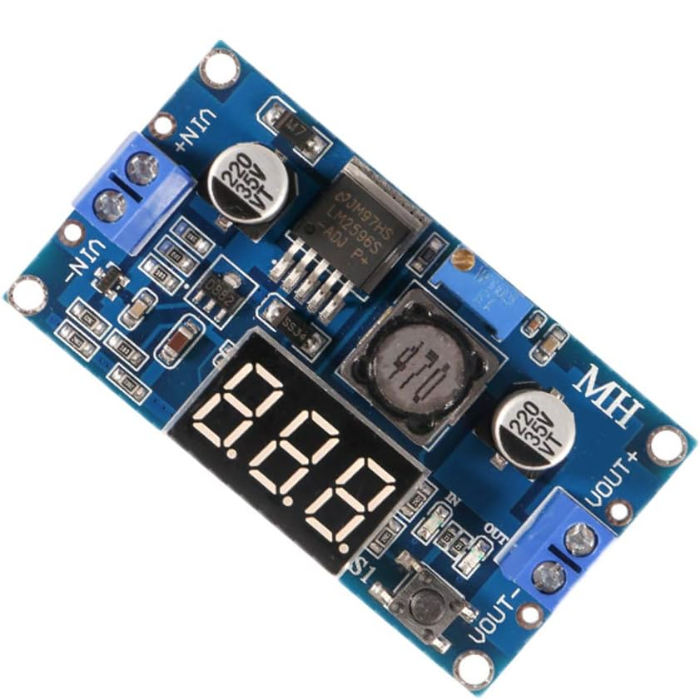

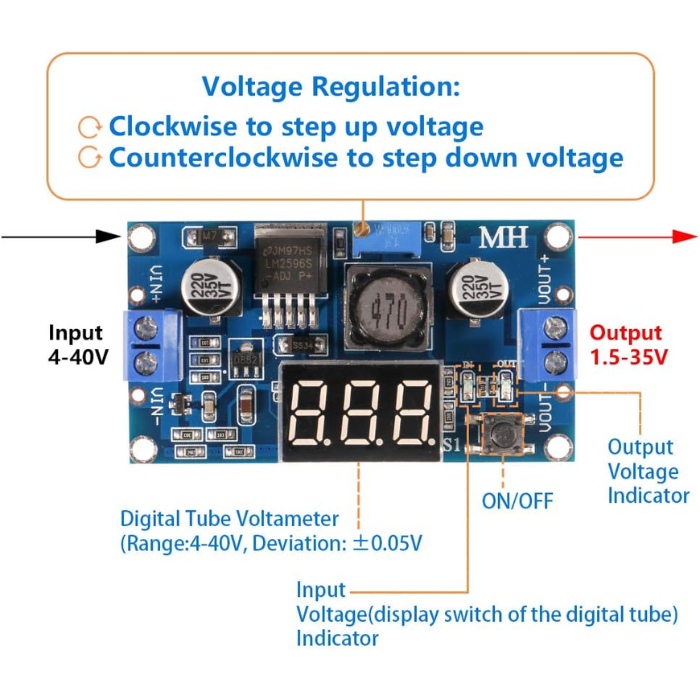

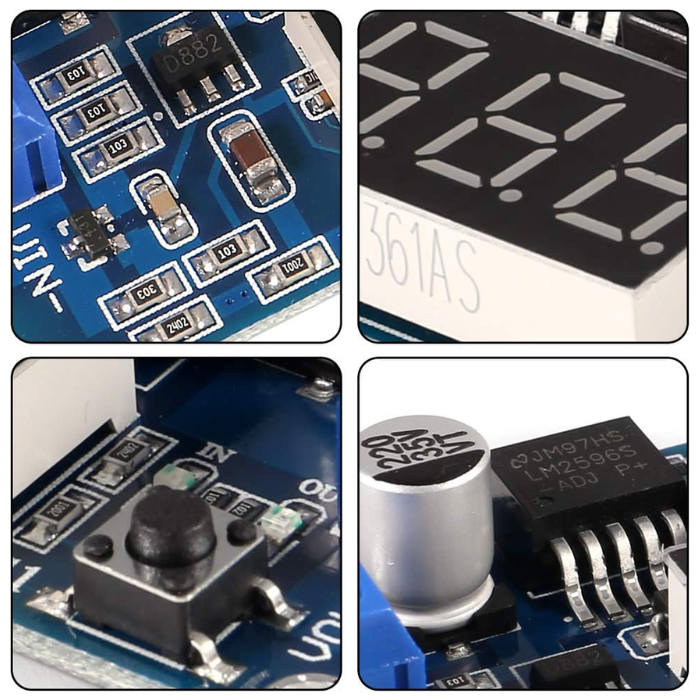

LM2596 DC-DC Step-down Buck Module with Display The LM2596 Step Down Module with LED Display, is a versatile and compact solution for your power needs. This adjustable buck converter allows you to regulate voltage between 1.25V to 37V with a maximum output current of 3A. The LED display ensures easy monitoring, making it perfect for experiments, outdoor activities, and car audio setups. Crafted with precision through high-Q inductance and superior capacitors, this converter is designed for reliability. Its compact size (623514mm) and the inclusion of 1 converters make it a go-to choice for various applications. Imported from China, it upholds Atnsinc's commitment to quality. Features: Adjustable Output: LM2596 Buck Converter with a voltage range of 1.25V to 37V. Maximum Output Current: 3A. LED Display: Allows for easy monitoring of voltage levels. Pinout Applications: Experiment Teaching: Suitable for educational purposes in learning about voltage regulation and power supply applications. DIY Projects: Versatile for use in do-it-yourself projects requiring adjustable power sources with monitoring capabilities. Electronics Prototyping: Useful in the prototyping phase of electronic projects, offering precision in regulating voltage levels. Battery Charging: Can be employed in battery charging circuits, providing a regulated and efficient charging voltage.

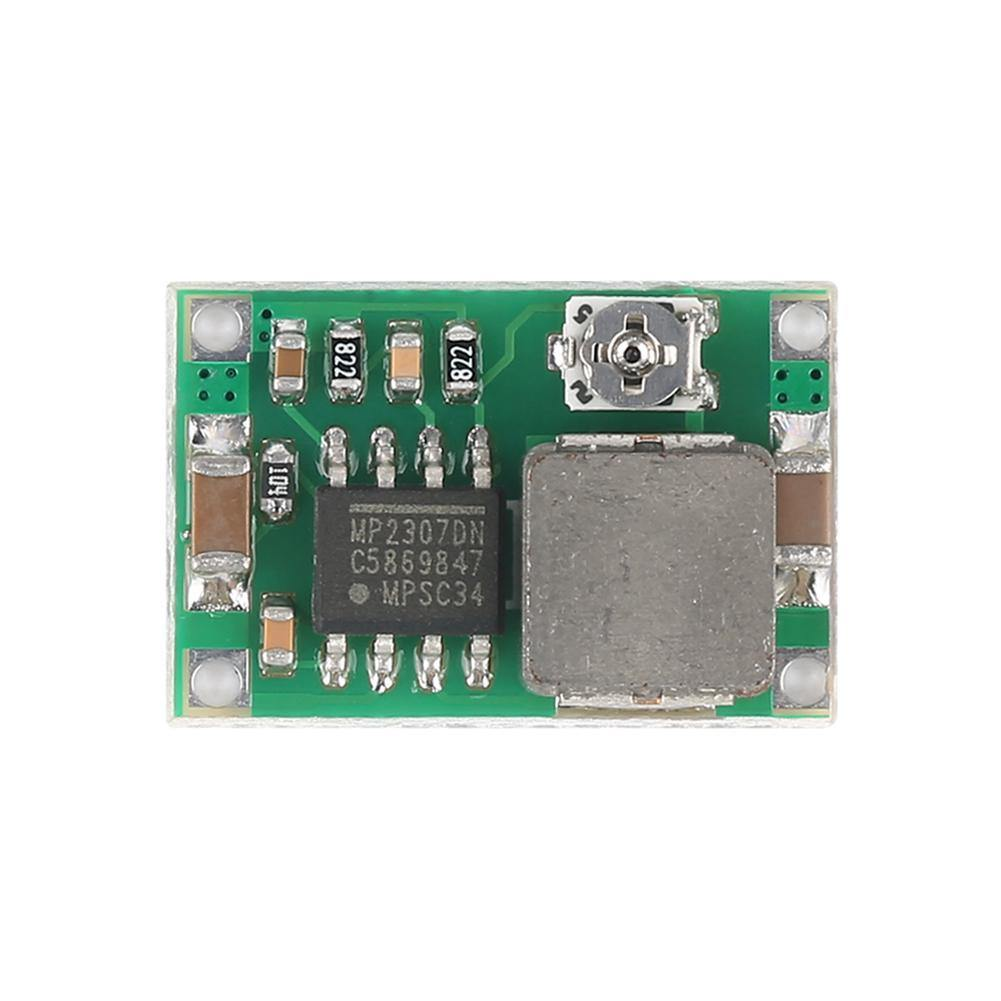

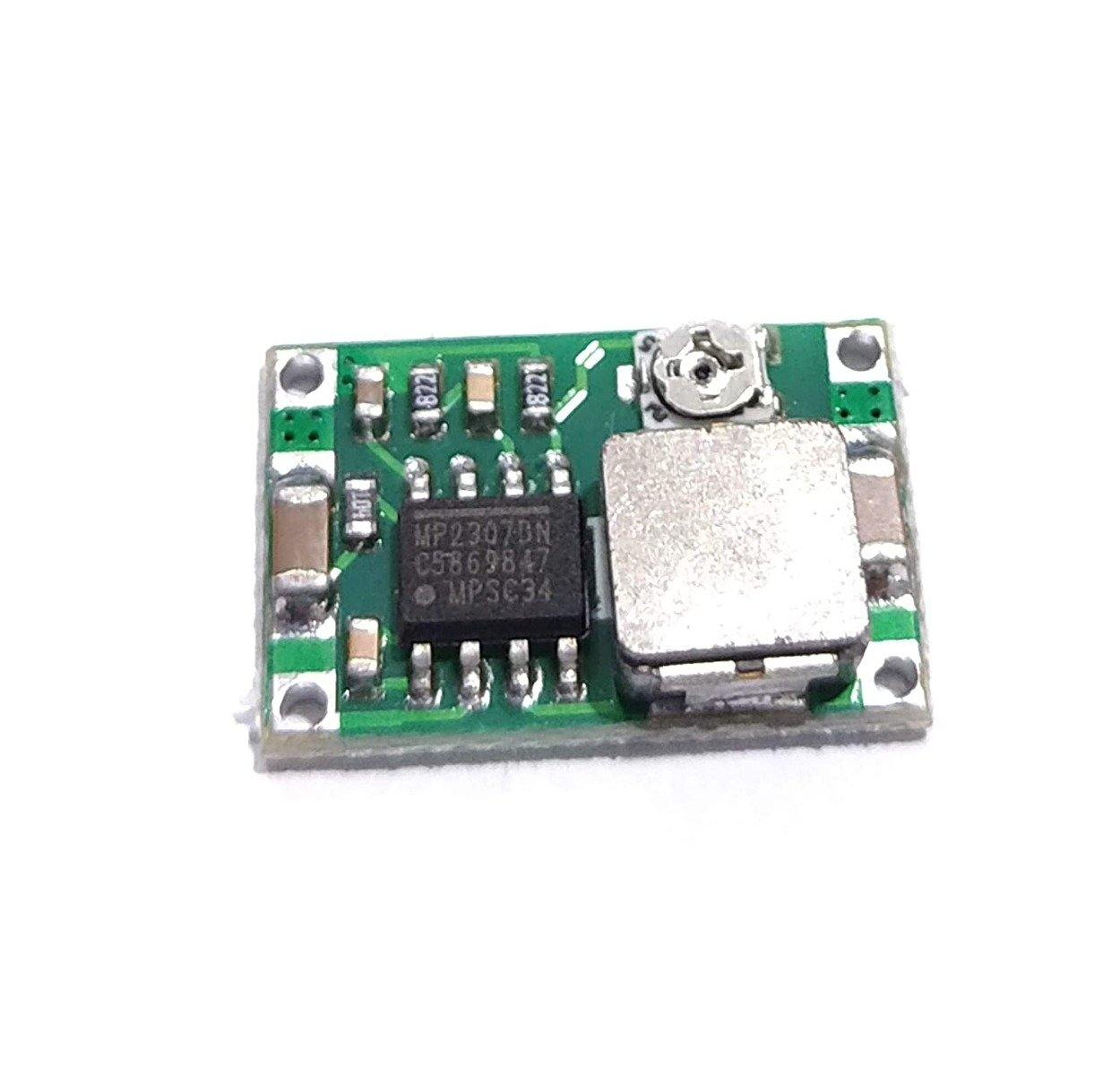

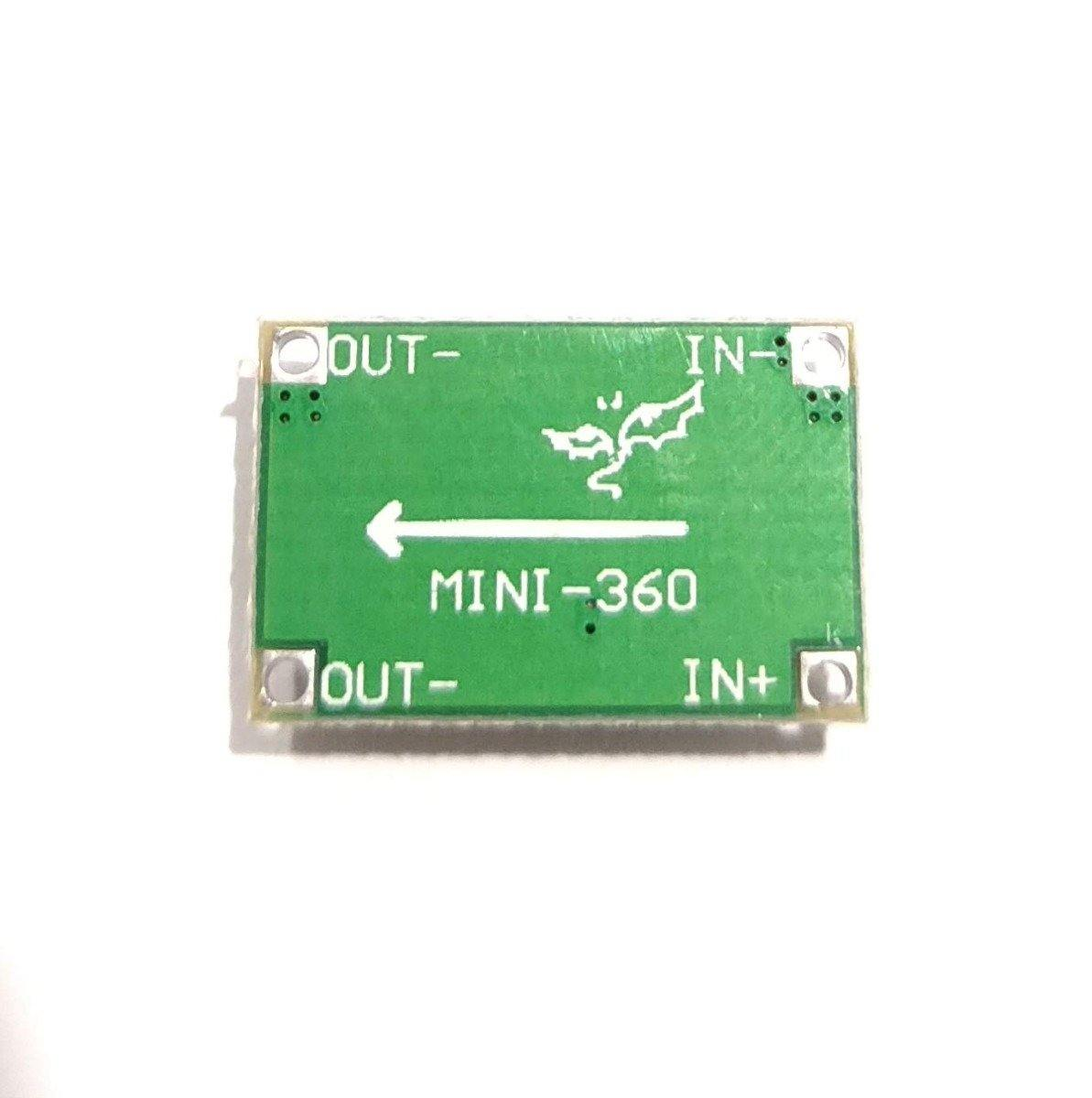

LM2596 Mini 360 Power Supply Step-down Module This product DC-DC step-down module can be used as DIY mobile power, monitor power supply, car power, camera power supply,  communications equipment supply, the various right size, and weight for demanding applications. Mini 360 Step-Down Buck Converter Power Module uses an integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient. This Module can be used as a DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply, various right size and weight for demanding applications (such as aviation models, etc Features Module: Non-isolated step-down module (BUCK) Rectification: Synchronous rectification Built-in 160°C thermal shutdown Output ripple: 30mV (no-load) Applications: DIY mobile power Car power Communications equipment supply Aviation model Package Included: 1 x mini 360 DC to DC buck converter step down module

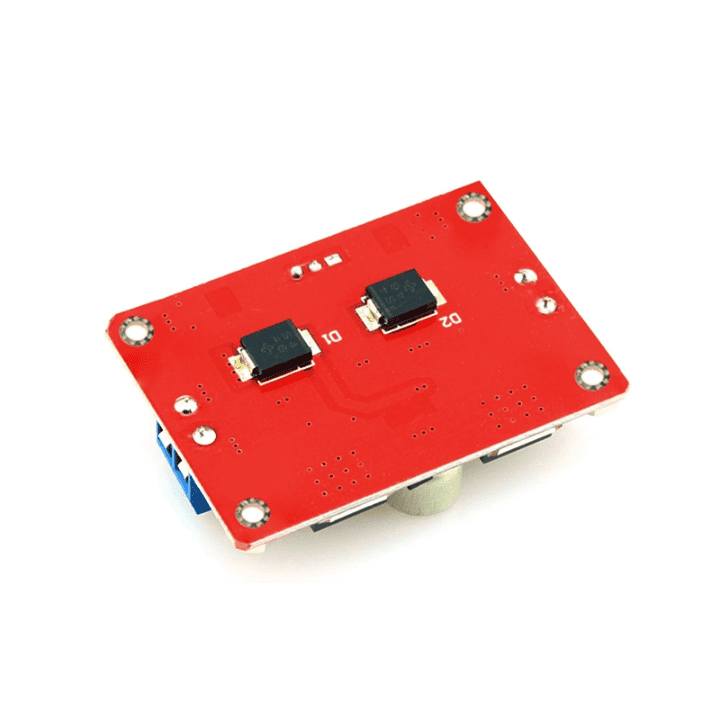

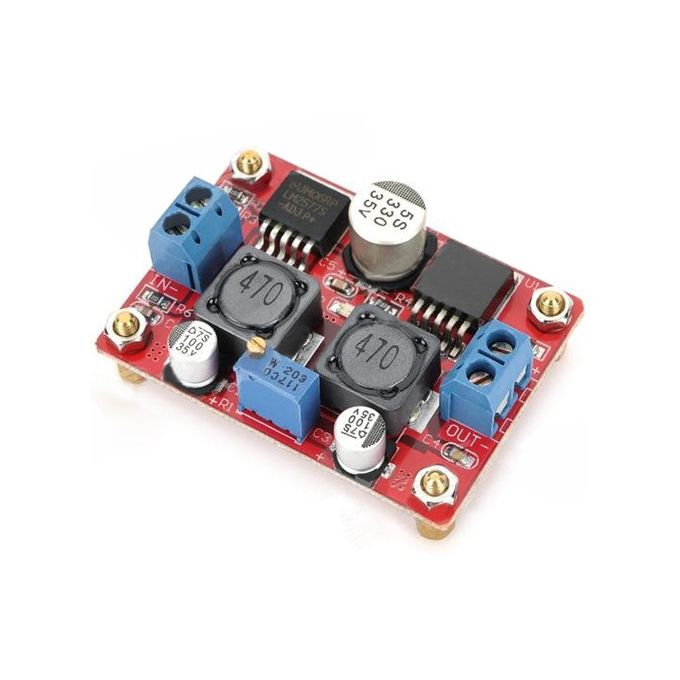

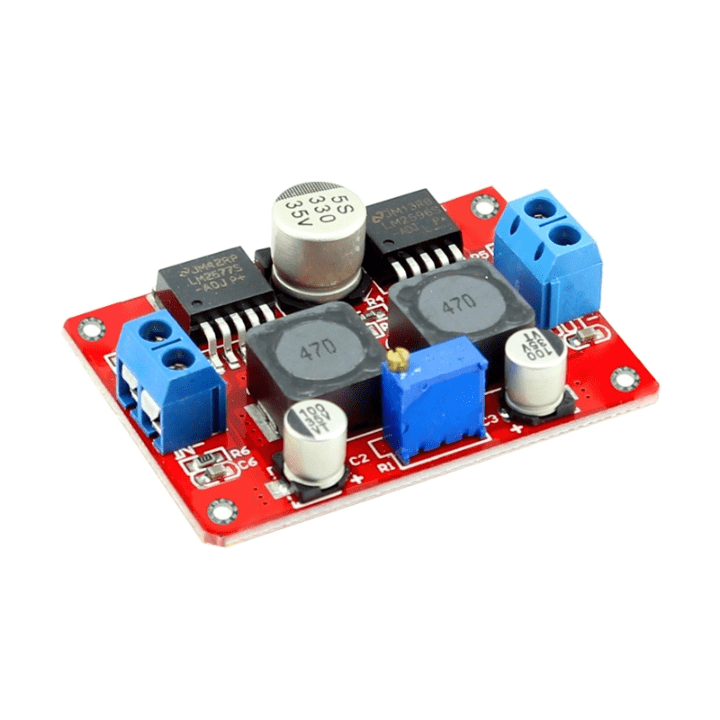

LM2596S & LM2577S DC-DC Adjustable Step-Up and step-down Power Supply Module This is a buck-boost converter with an output voltage greater or less than the input voltage. Compared to linear regulators, DC/DC converters are primarily focused on efficiency and can achieve efficiencies of over 95% when boosted, thus reducing power consumption. With this DC-DC Adjustable boost and buck voltage converter , you can change any other 3.5-28V power supply. The output voltage is adjusted from 1.25-26V. For example, your input voltage is 5V, you can adjust the output voltage from 1.25V to 26V any value. The max input and output rated current are 1A. This module integrates LM2596 and LM2577. It is very useful and easy to use. It would be a good assistant in your debugging. LM2596S + LM2577S dual chip. Step-up operation mode: Independent of the output voltage and input voltage (input for arbitrary values of 3.5V-28V output 1.25V-26V arbitrary value).

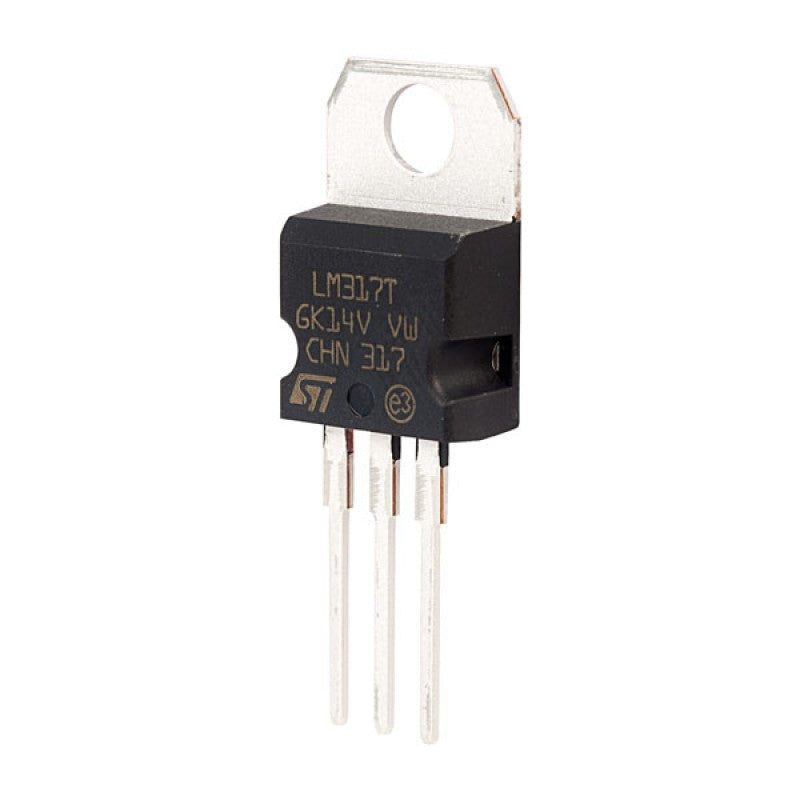

LM317 Adjustable Voltage Regulator IC LM317 is a type of adjustable voltage regulator IC (Integrated Circuit) that is commonly used to provide a stable, regulated output voltage from an input voltage source. It is a versatile and widely-used IC that can be used to regulate a wide range of output voltages, making it a popular choice for many electronic projects. The LM317 voltage regulator IC is designed to operate over a wide range of input voltages and can provide a regulated output voltage in the range of 1.2V to 37V. It has a number of features that make it easy to use, including built-in current limiting, thermal shutdown protection, and short-circuit protection. To use an LM317 voltage regulator, users connect the input voltage source to the appropriate connections on the IC and then use external resistors to set the desired output voltage. The LM317 IC will then regulate the output voltage to the desired level, regardless of variations in the input voltage or load. LM317 voltage regulator ICs are commonly used in a wide range of applications, including power supplies, battery chargers, and other electronic projects that require a stable, regulated output voltage. They are a convenient and easy-to-use solution for providing a regulated voltage in a variety of electronic projects. Applications: Power supplies Battery chargers Electronic projects Also check our 7812 voltage regulator , which is a commonly used linear regulator. It operates with an input voltage ranging from 12V to 35VDC.

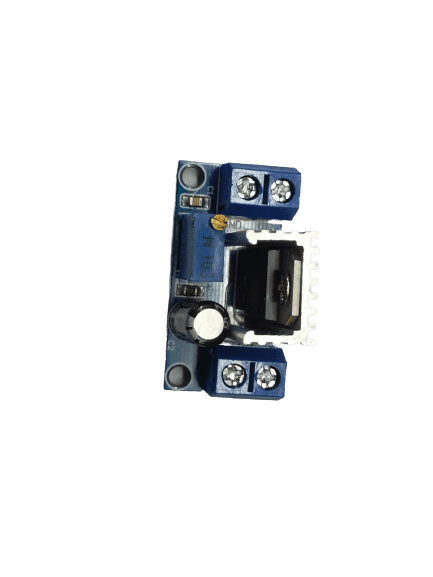

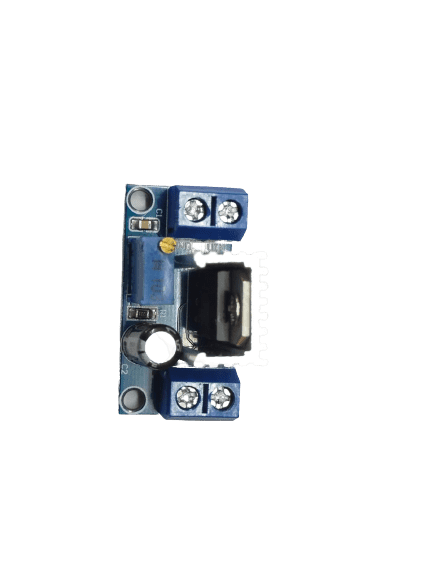

LM317 DC to DC Converter Step Down Power Supply The LM317 DC-DC converter is a crucial electronic circuit used to lower a DC source voltage from one level to another. It finds significance in portable electronic devices like laptops and cell phones that primarily rely on battery power. Instead of using multiple batteries to obtain the desired voltage level, this module allows for easy adjustment of the step-down voltage and results in higher efficiency.

Quad Operational amplifiers IC.

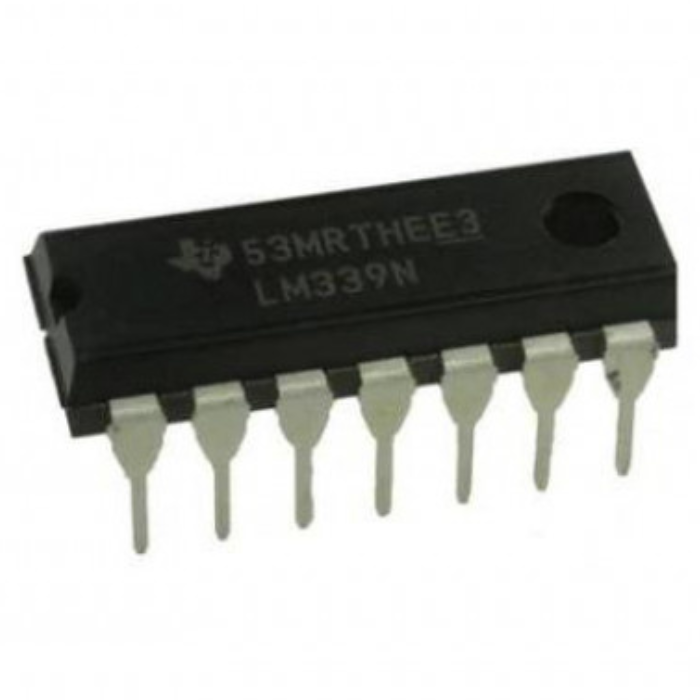

The LM139 series consists of four independent precision voltage comparators with an offset voltage specification as low as 2 mV max for all four comparators. These were designed specifically to the operation from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. These comparators also have a unique characteristic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage. The LM139 series was designed to directly interface with TTL and CMOS. When operated from both plus and minus power supplies, they will directly interface with MOS logic— where the low power drain of the LM339 is a distinct advantage over standard comparators. These devices consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships. The LM139 and LM139A are characterized for operation over the full military temperature range of –55°C to 125°C. The LM239 and LM239A are characterized for operation from –25°C to 125°C. The LM339 and LM339A are characterized for operation from 0°C to 70°C. The LM2901, LM2901AV, and LM2901V are characterized for operation from –40°C to 125°C.

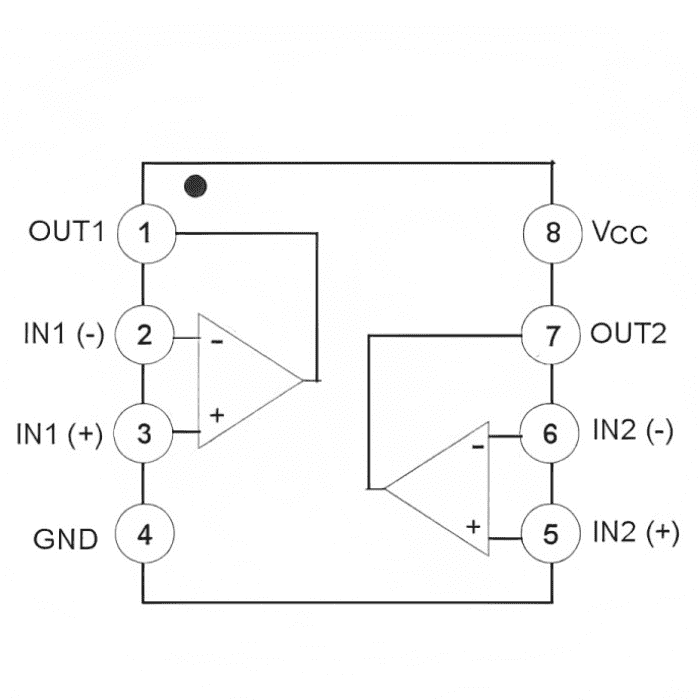

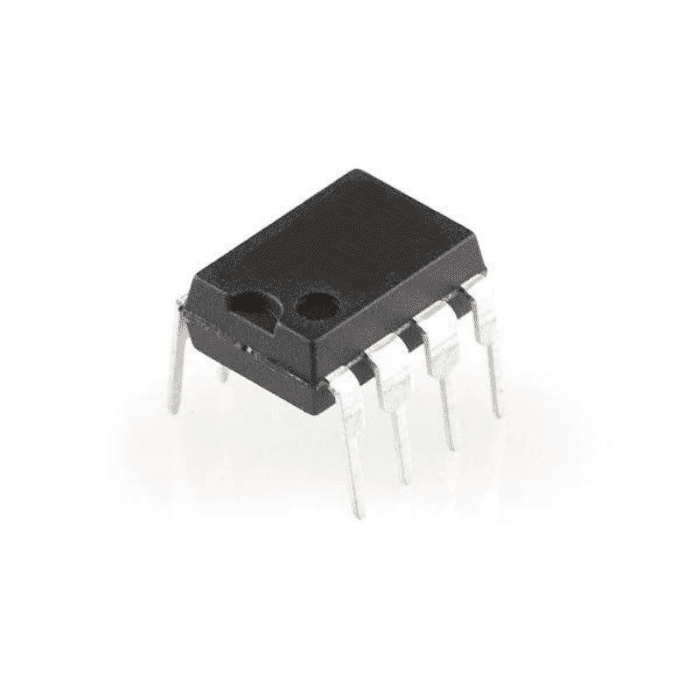

LM358 LM358 IC is a low-power dual-operational amplifier integrated circuit . It can support an operating voltage of +3 to +32 volts or ±1.5 to ±16 volts and input voltage can range from ?0.3 to +32 volts with a single power supply. LM 358B and LM2904B devices are the next-generation versions of LM 358 and LM2904 operational amplifiers which include two high-voltage (36 V) op-amps. The LM 358 and LM2904 are available in a chip-sized package (8-bump DSBGA) using TI's DSBGA package technology. Utilizing the circuit designs perfected for Quad Operational Amplifiers, these dual operational amplifiers feature low power drain, a common mode input voltage range extending to ground/VEE, and single supply or split supply operation. The LM358 IC series is compatible with industry-standard operational amplifiers, making it a popular choice in cost-sensitive applications. It consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. LM 358 IC can also be used for testing an LDR, a phototransistor, and a photodiode. When it comes to the LM 358 IC, we prioritize quality and affordability above all else. That's why we're excited to offer you not only the IC but also the best LM358 price available anywhere online! LM358 Pinout: LM358 Pin Diagram Applications: Transducer amplifiers Conventional op-amp circuits general signal amplification Low-power AC applications
