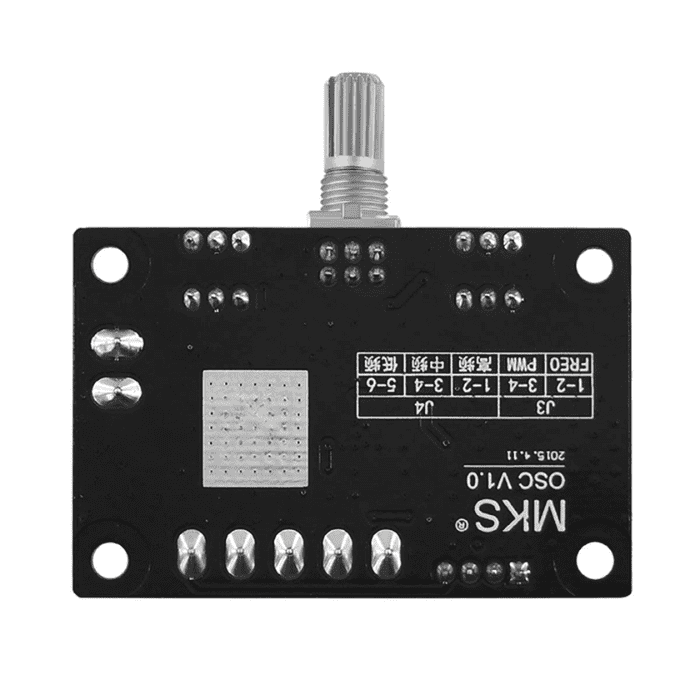

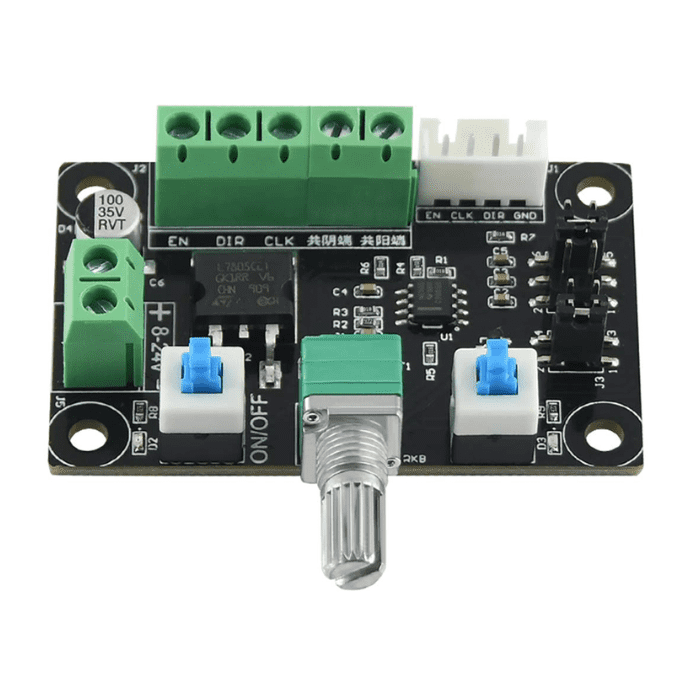

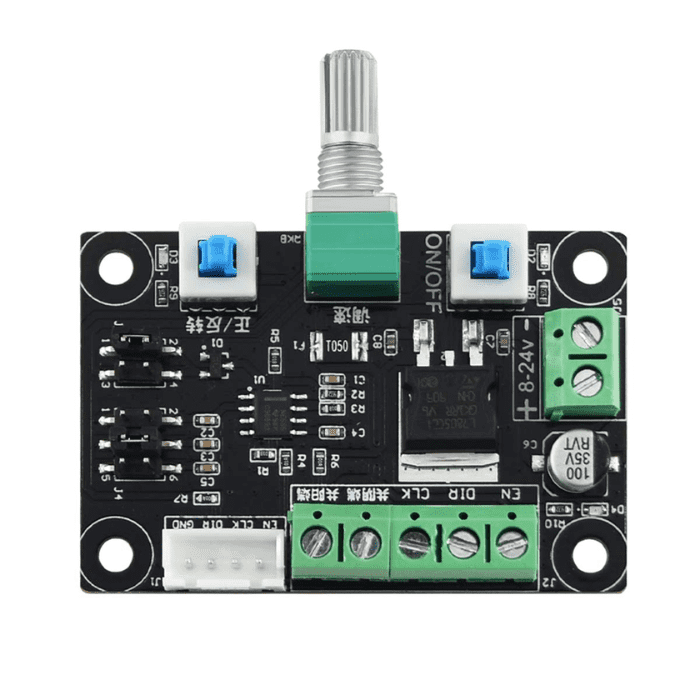

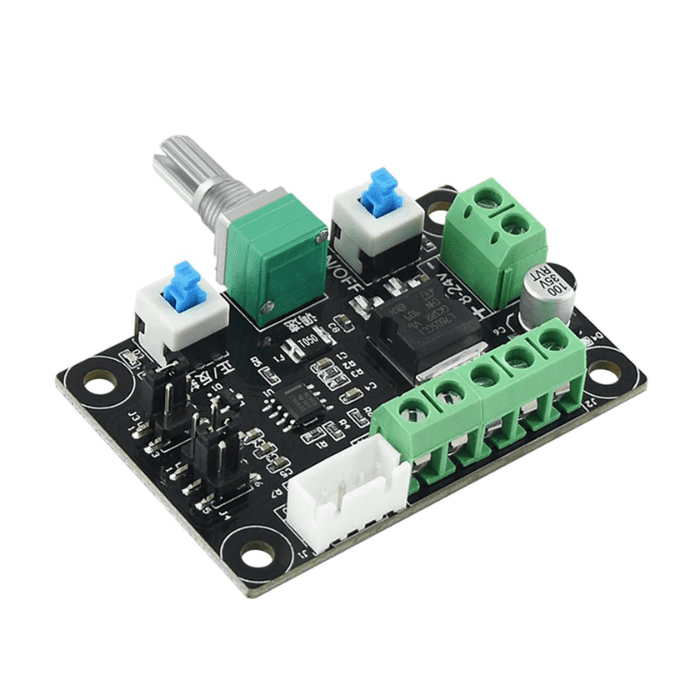

MKS OSC V1.0 Stepper Motor Drive Simple Controller Pulse PWM Signal Generator Module Speed Control 8-24V This MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module generates pulses that are used as a signal for stepper drivers. The stepper motor must be equipped with a driver in order to be controlled. The module can be used to create a simple control platform by combining an Easy controller, stepper driver ,stepper motor and DC power . This controller has three frequency modes; High mode goes from 5.4KHz to 160KHz, Medium mode goes from 540Hz to 16.6KHz and Low mode goes from 80Hz to 2.4KHz. It also has three PWM modes; High mode goes from 7.4 KHz to 11KHz, Medium mode goes from 780Hz to 1.2KHz and Low mode goes from 100Hz to 160KHz. Different stepping motor driver different port sign, but same function EN=ENA=FREE   Enable PUL=PULS=CLK  Pulse DIR=CW=CWW    Direction Common anode connection (connect with B) EN+  PUL+   DIR+  all link together  to common  anode port EN- connect to    EN PUL- connect to  CLK DIR- connect to   DIR Common cathode connection (connect with B) EN-  PUL-   DIR- all link together  to  common cathode port EN+  connect to    EN PUL+ connect to  CLK DIR+ connect to   DIR

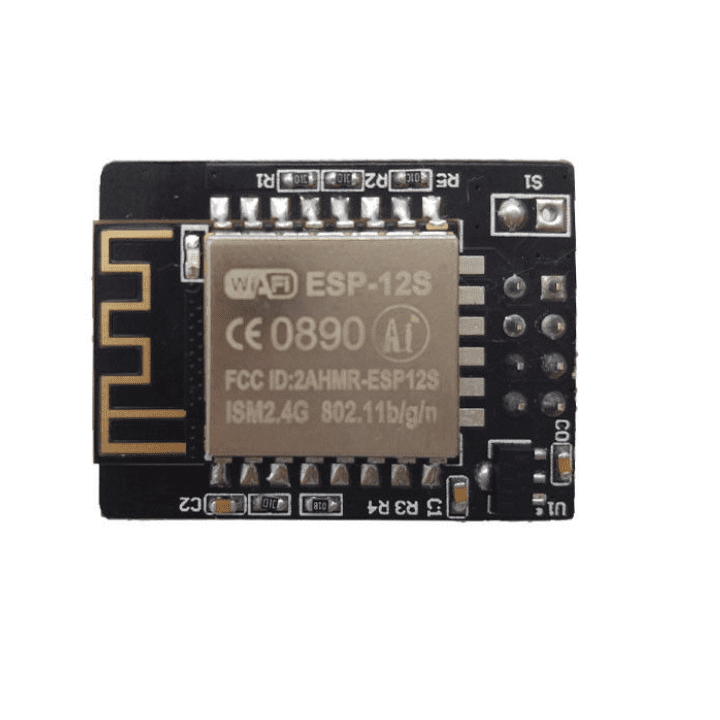

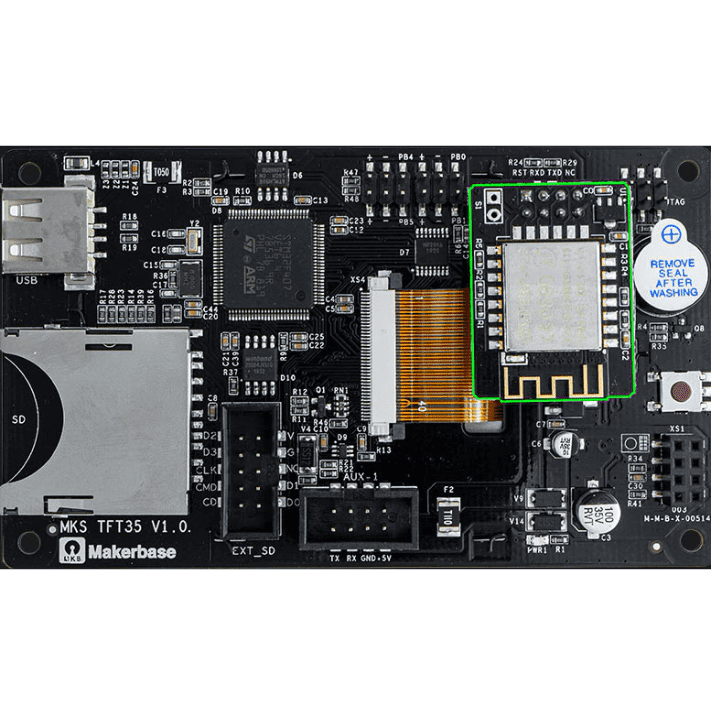

MKS TFT-WIFI V1.0 ESP8266 WIFI Module This Wifi module is created and developed by Makerbase team, It is capable of high transmission rate and stability . It is compatible greatly with MKS TFT24, MKS TFT28, MKS TFT32 display screen. It supports document transfer  via APP, and Cloud printing and firmware upgrading. How to Download APP for MKS TFT-WIFI V1.0? Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Ml8511 Ultra Violet Sensor Module This is GYML8511 Analog Output Ultra-Violet Light Sensor Module. The GYML8511 module is easy to use the ultraviolet light sensor. The GYML8511 Sensor works by outputting an analog signal in relation to the amount of detected UV light. This breakout can be very handy in creating devices that warn the user of sunburn or detect the UV index as it relates to weather conditions. This sensor detects 280-390nm light most effectively. This is categorized as part of the UVB (burning rays) spectrum and most of the UVA (tanning rays) spectrum. It outputs an analog voltage that is linearly related to the measured UV intensity (mW/cm2). Simply connect the output of the module to an ADC channel of the microcontroller to read UV Light intensity. Pinouts VIN: Power Connection (3V – 5V) 3.3V: Output of the onboard regulator GND: Ground OUT: Analog Output EN: Enable Input Applications Sunburn detectors Controlled UV Exposure chambers UV Detectors for the safety of Humans, and animals.

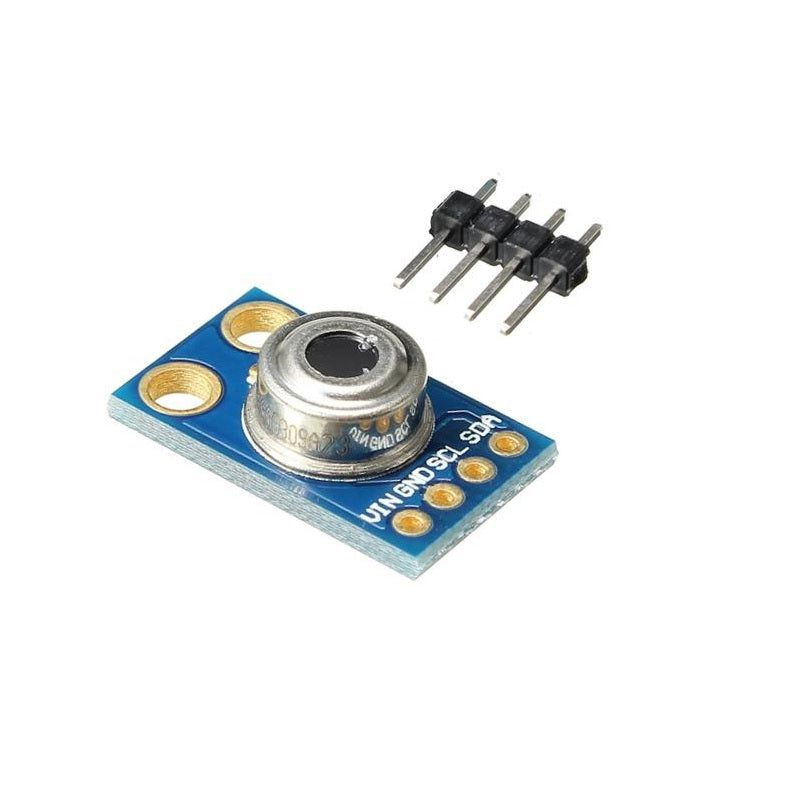

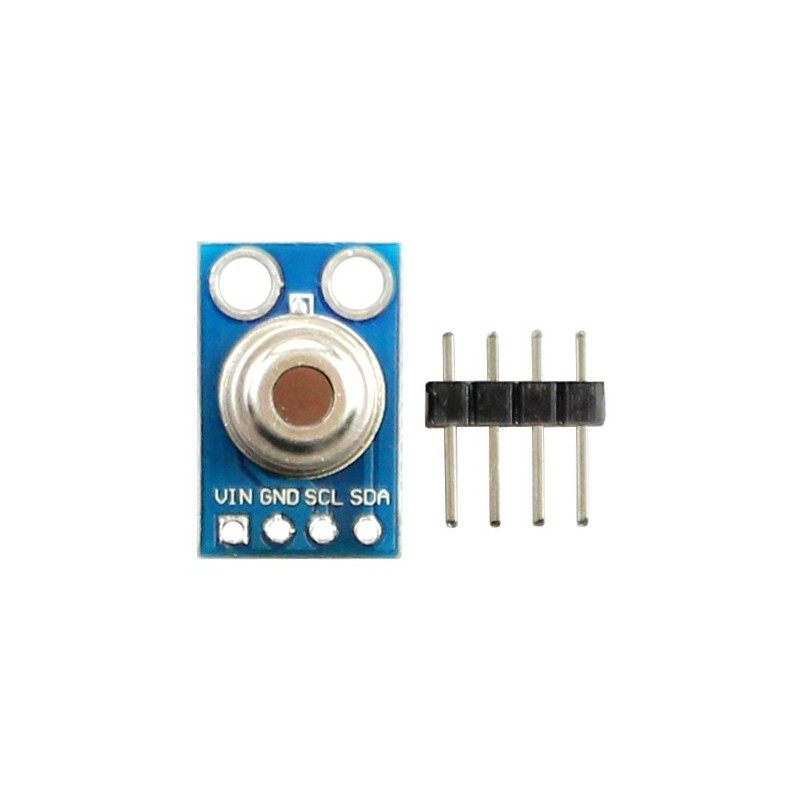

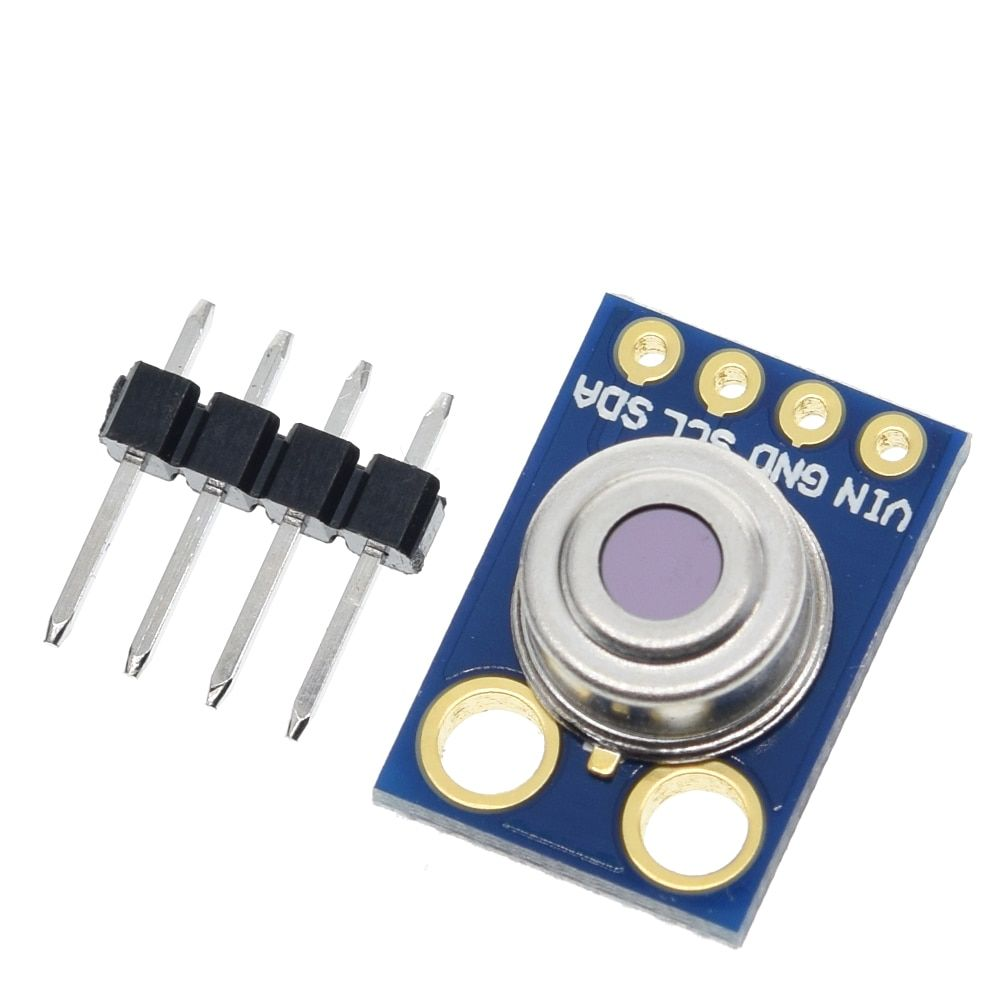

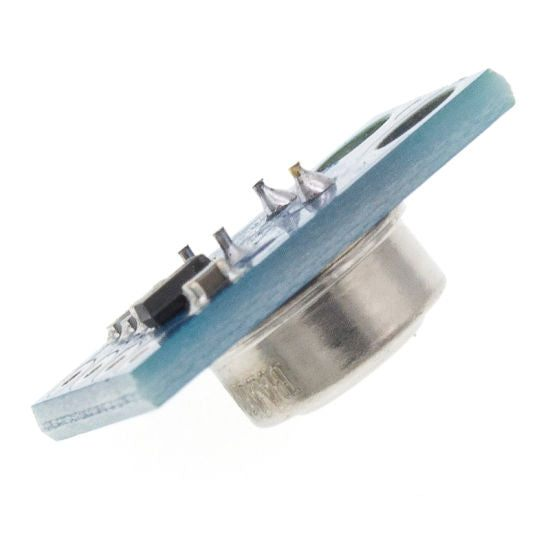

MLX90614ESF Infrared IR Temperature Sensor Module The MLX90614ESF is an infrared thermometer for non-contact temperature measurements. Both the IR-sensitive thermopile detector chip and the signal conditioning ASIC are integrated into the same TO-39 can. Integrated MLX90614 GY-906 is a low noise amplifier, 17-bit ADC, and powerful DSP unit thus achieving high accuracy and resolution of the thermometer. The user can configure the digital output to be PWM. As a standard temperature sensor , the 10-bit PWM is configured to continuously transmit the measured temperature in the range of -20 to 120 °C, with an output resolution of 0.14 °C. Read our blog on infrared sensors working and explore how infrared sensors work. Features: Infrared temperature measurement, no contact is needed. 0.14°C accuracy with 17-bit ADC and DSP. PWM output for -20°C to 120°C range. Operates on 3.3V-5V with 2mA current. I2C communication, microcontroller compatible. Combines a signal-filtering ASIC with a thermopile detector. Incorporates the IR-sensitive thermopile detector chip and signal Conditioning ASIC into a single TO-39 container.

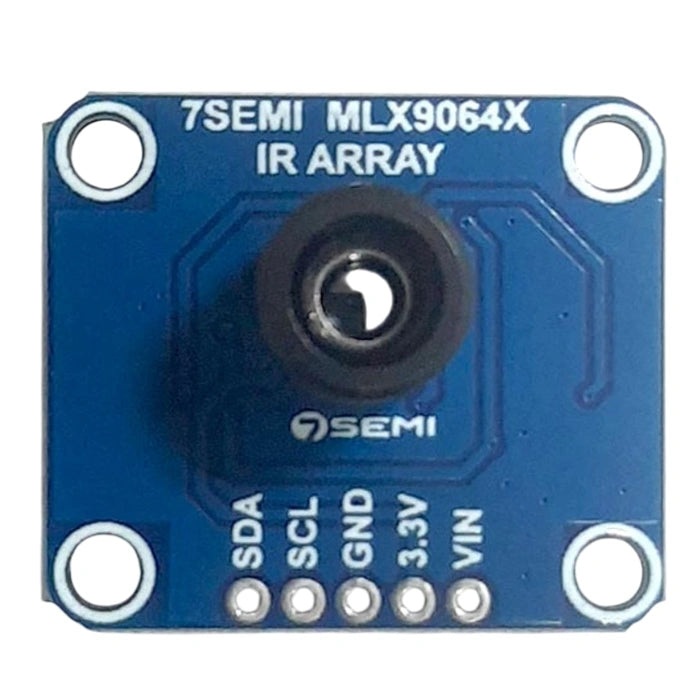

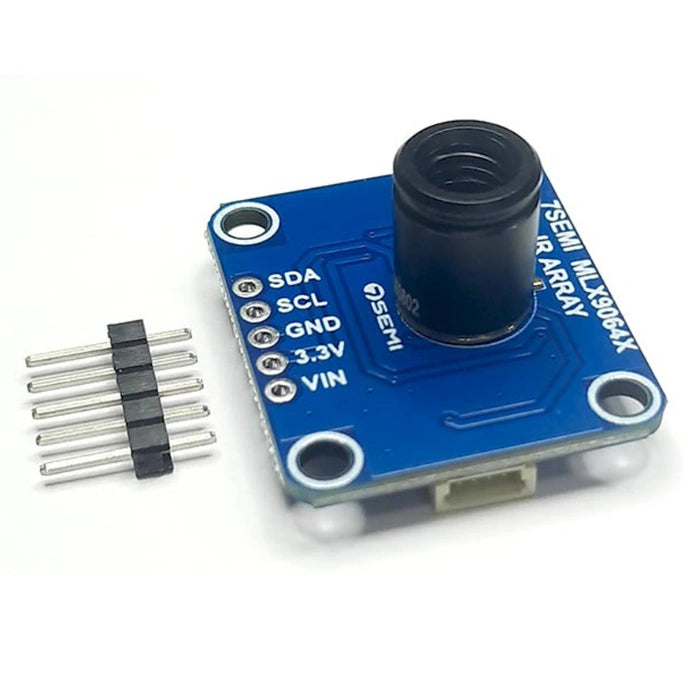

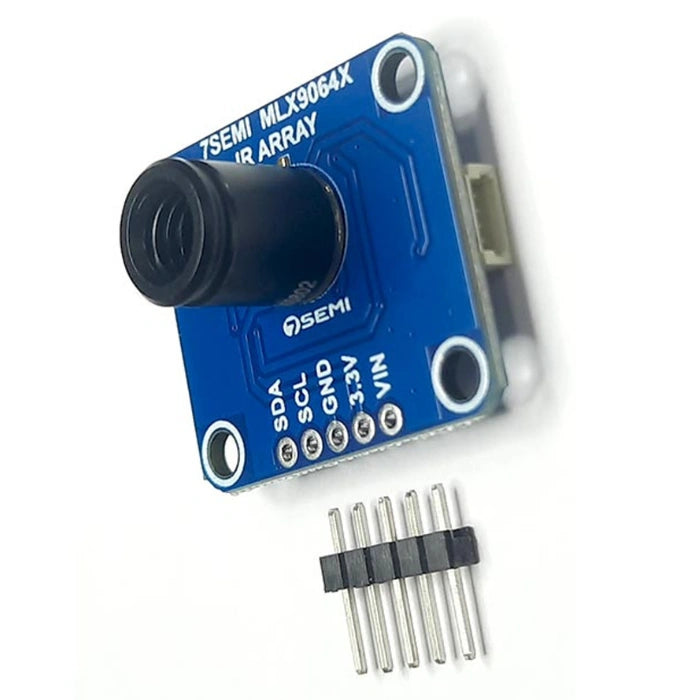

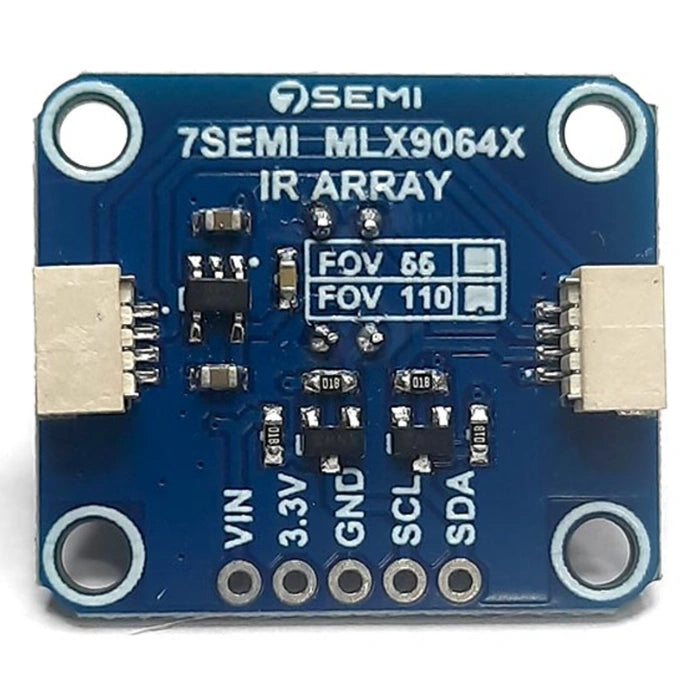

MLX90640 55° FOV Thermal Camera IR Array Breakout Qwiic Compatible - 7Semi Discover precise, real-time thermal imaging with the 7SEMI MLX90640 55° FOV Thermal Camera IR Array Breakout, Qwiic Compatible. Built around a powerful 32×24-pixel FIR sensor array, this breakout captures 768 temperature points simultaneously, delivering detailed infrared maps for industrial, diagnostic, and safety applications. Designed for seamless integration, the MLX90640 features a digital I2C interface, onboard ambient temperature sensor, and VDD supply monitoring. All critical data is stored in internal RAM for fast retrieval, enabling quick, efficient processing. With a broad target measurement range from -40°C to 300°C and reliable operation from -40°C to +85°C, this thermal camera thrives even in harsh conditions. Supporting popular programming environments like Python and C++, and bundled with a robust SDK, it’s ideal for embedded systems, PC applications, and portable solutions. Whether for smart homes, industrial automation, or security monitoring, the 7SEMI MLX90640 brings powerful thermal imaging to your fingertips. Connection with Raspberry Pi Features: High-Resolution Thermal Sensor: 32×24-pixel FIR array providing 768 thermal data points. Wide Temperature Measurement Range: Accurately measures from -40°C to 300°C. Factory Calibrated Sensor: Ready for immediate use without recalibration. Wide Field of View: 55° × 35° FOV captures large areas in a single frame. Low Power Consumption: Operates at less than 23mA, ideal for battery-powered devices. I2C Digital Interface: Compatible with both 3.3V and 5V systems; simplifies integration. Flexible Refresh Rate: Programmable frame rates from 0.5Hz to 64Hz for dynamic imaging. Advanced Thermal Sensitivity: NETD of just 0.1K RMS at 1Hz for fine thermal resolution. SDK Support: Comes with easy-to-use SDKs for Python and C++ to accelerate development. Compact and Portable Design: Suitable for space-constrained and mobile applications.

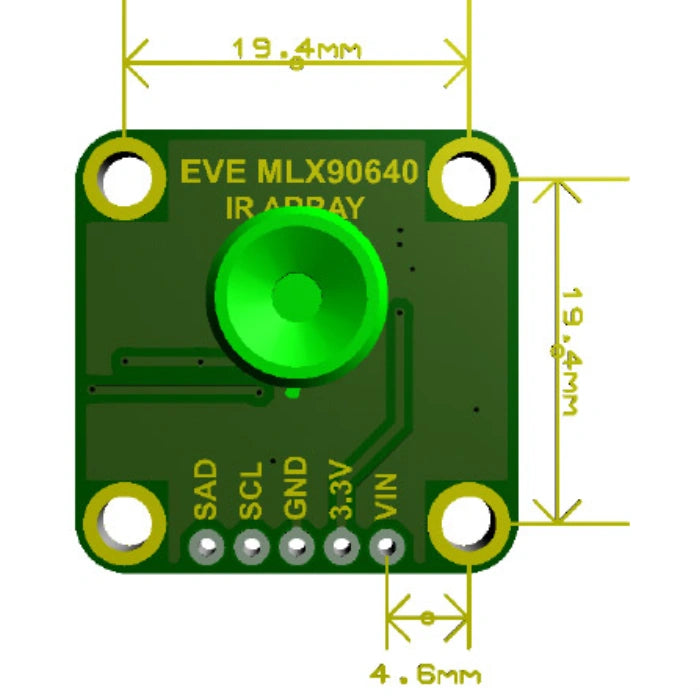

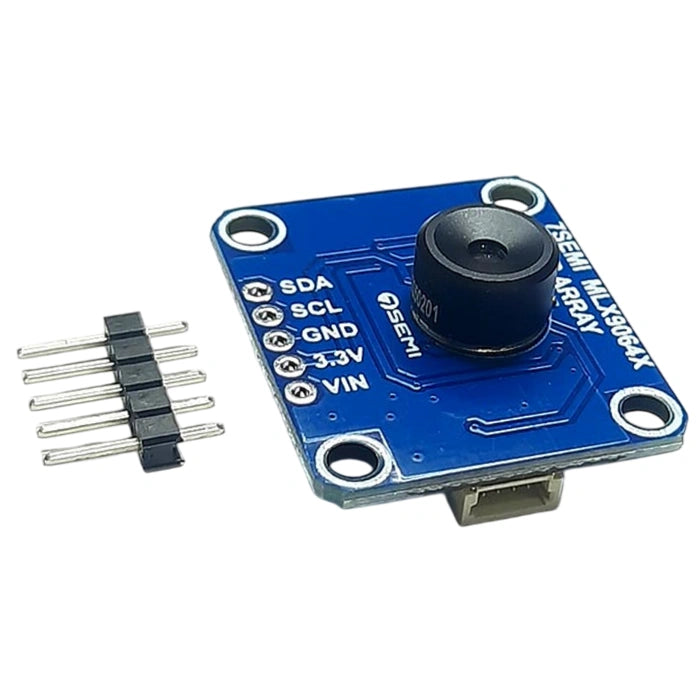

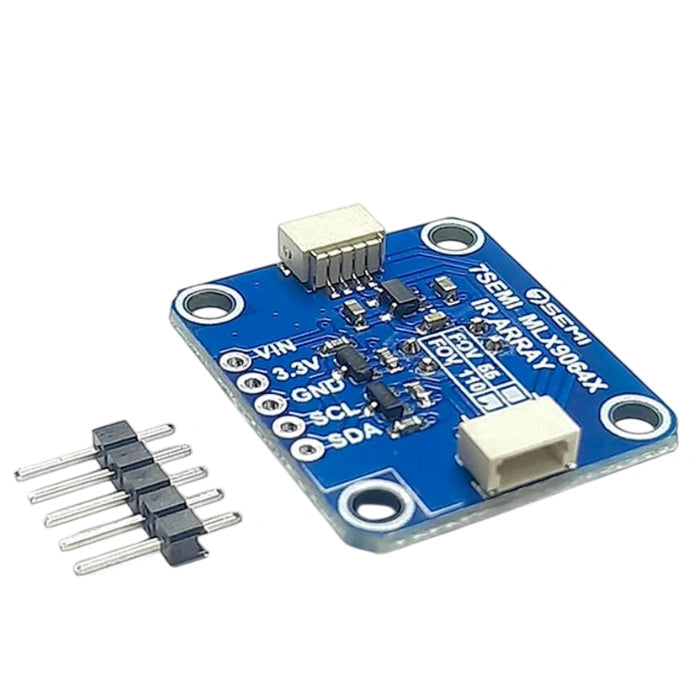

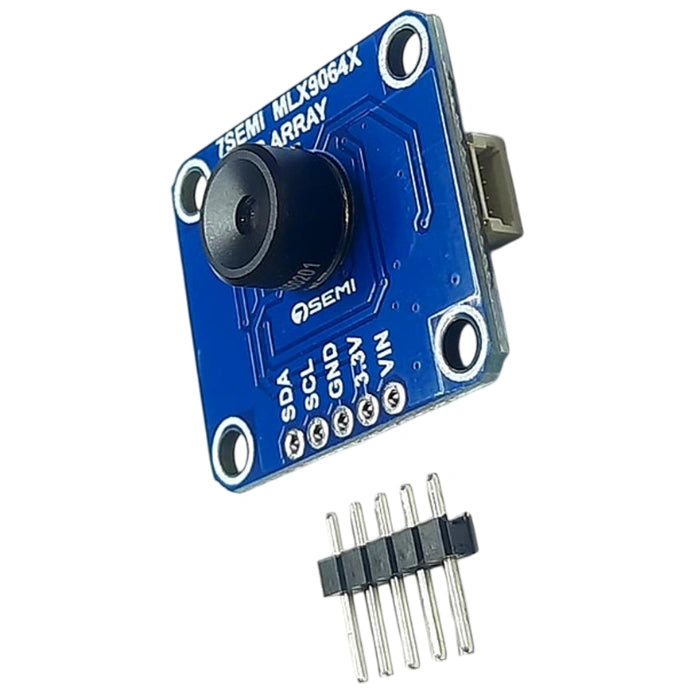

MLX90640 IR Thermal Camera Breakout 110° FOV I2C Interface - 7Semi Unlock professional-grade thermal imaging with the 7Semi MLX90640 IR Thermal Camera Breakout (110° FOV, I2C Interface). Featuring a high-resolution 32×24-pixel IR sensor array and an expansive 110-degree field of view, this compact module delivers accurate real-time thermal mapping over large areas in a single snapshot. Engineered for precision and reliability, the MLX90640 covers a temperature detection range of -40°C to 300°C, with an accuracy of ±2°C. Its factory-calibrated sensor ensures reliable performance right out of the box. Designed for seamless integration, the module operates via a standard I2C digital interface, making it compatible with a variety of microcontrollers and embedded platforms. With ultra-low current consumption under 23mA, this breakout is ideal for battery-powered and portable applications. Whether you're working on industrial diagnostics, research, IoT projects, or embedded systems, the MLX90640 110° FOV Thermal Camera provides a robust and versatile thermal sensing solution in a lightweight, easy-to-use form factor. MLX90640 Thermal Camera Breakout Captured Image Camera Connection with Raspberry PI Circuit Diagram 7Semi MLX90641 and MLX90640 Thermal Camera Breakout Comparison Table Features: High-Resolution IR Sensor Array: 32×24-pixel thermal grid for detailed heat mapping. Wide Field of View: 110° × 75° FOV covers expansive areas without repositioning. Accurate Temperature Sensing: Measures from -40°C to 300°C with ±2°C precision. Low Power Consumption: Efficient performance with current draw under 23mA. Compact and Lightweight Design: Easy to mount and integrate into space-limited projects. Factory Calibrated: Ready-to-use accuracy with no additional calibration required. Digital I2C Interface: Seamless communication with 3.3V or 5V microcontrollers. Programmable Refresh Rate: Adjustable from 0.5Hz to 64Hz for flexible performance. Robust Operating Range: Functions reliably in ambient temperatures from -40°C to 85°C. Low NETD Performance: 0.1K RMS at 1Hz enables detection of small temperature differences.

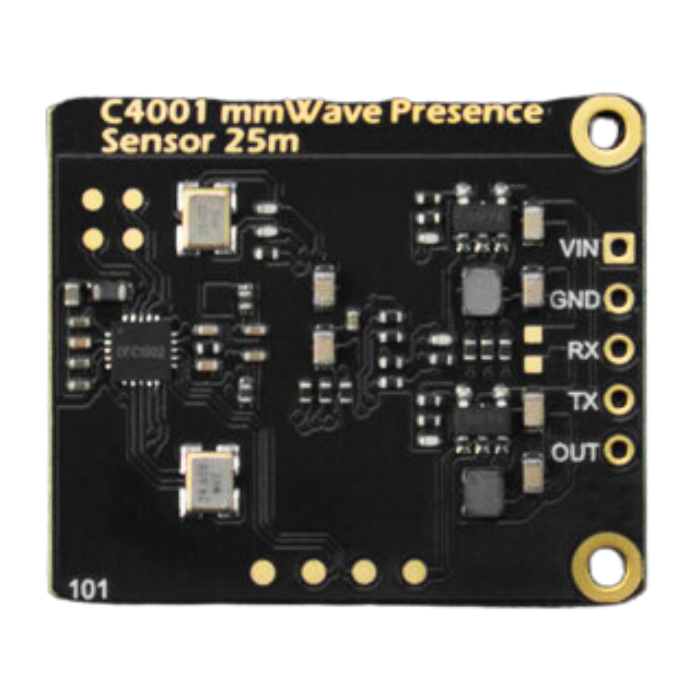

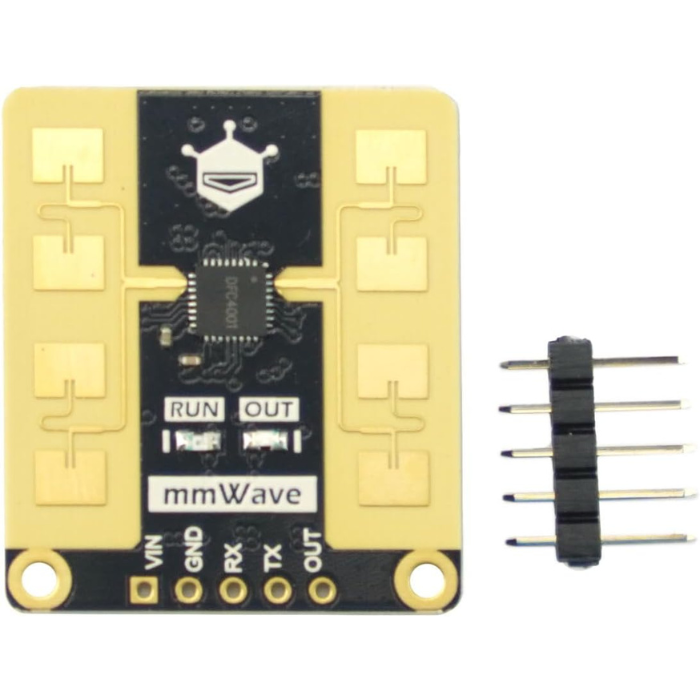

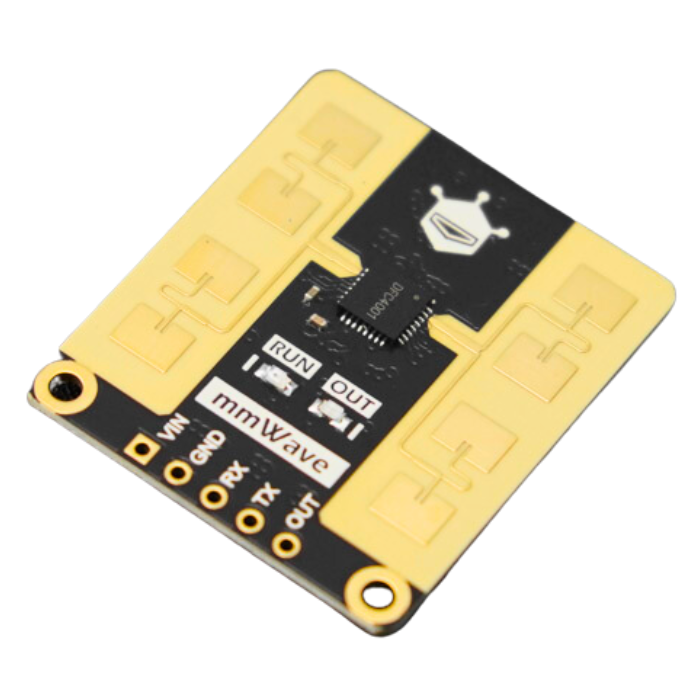

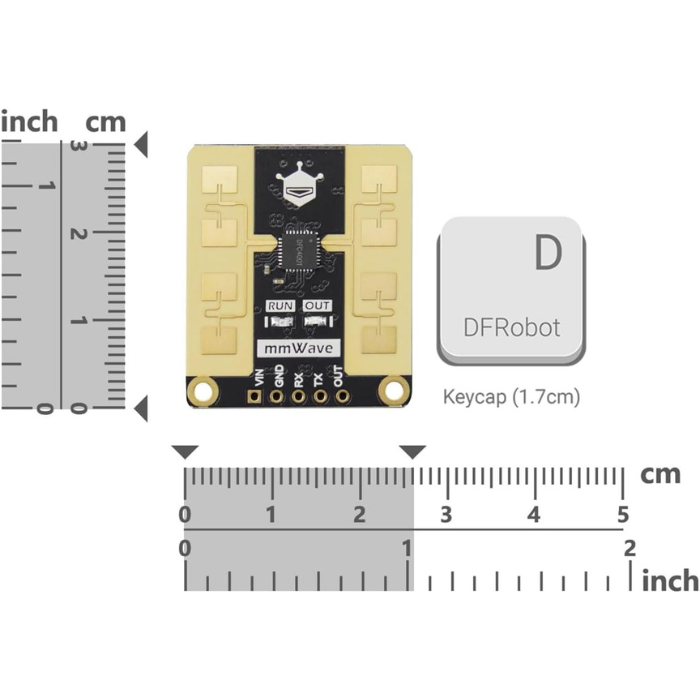

mmWave-C4001 24Ghz Human Presence Detection Sensor The DFRobot C4001 24GHz Millimeter-Wave FMCW Radar is the perfect solution for human presence detection. It features long-range measurement, high accuracy, advanced FMCW technology, durable build, easy integration, and strong anti-interference capabilities. Made with robust materials, this radar sensor ensures reliable performance in harsh conditions. Its state-of-the-art FMCW modulation provides superior accuracy, making it ideal for motion detection and proximity sensing. The compact design and versatile installation options simplify setup and enhance project capabilities. The C4001 radar sensor measures up to 25 meters and is suitable for real-time human presence detection. Available in various sizes. Features: Human detection: Detection range up to 16 meters and motion detection range up to 25 meters. Distance detection: Range from 1.2 meters to 25 meters. Velocity detection: Range from 0.1 meters per second to 10 meters per second. Strong anti-interference capability, unaffected by snow, haze, temperature, humidity, dust, light, noise, etc. High and low-level output control through I/O ports. Input and output control via serial port. Small size, easy to integrate. Applications: Human Detection Distance and Velocity Detection Environmental Monitoring Industrial Automation Real-time Monitoring and Tracking

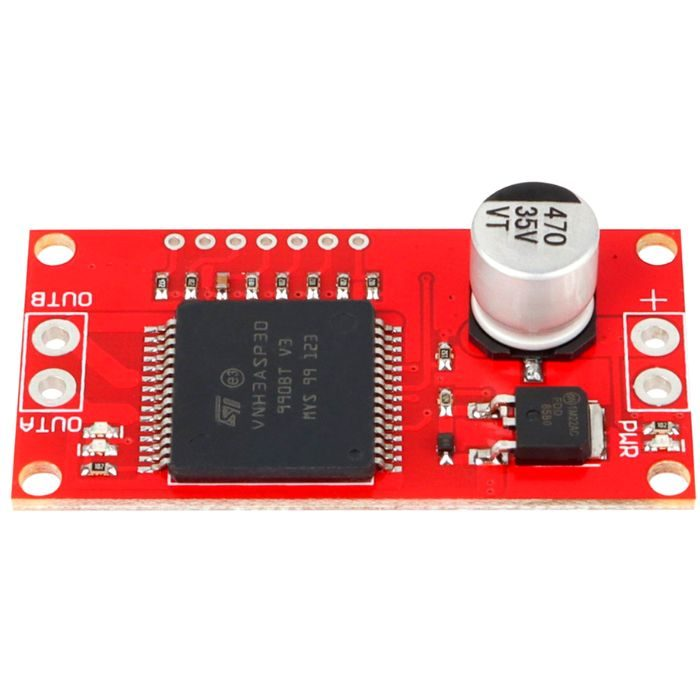

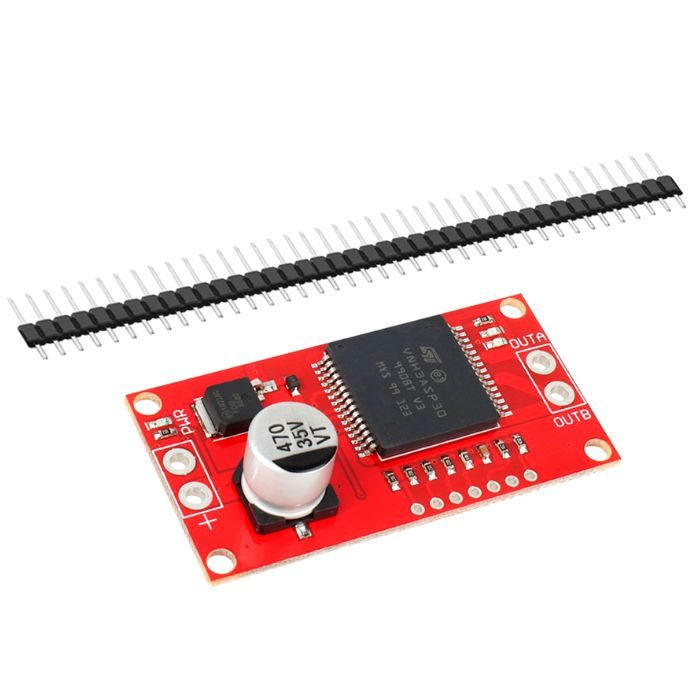

Monster Motor Driver Shield VNH2SP3014A (Peak 30A) The Monster Moto Shield VNH3SP30 Motor Driver is a more powerful version of our Ardumoto motor driver shield. We replaced the L298 H-bridge with a pair of VNH3SP30 full-bridge motor drivers for this Monster Moto Shield. We've also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires. Also, the difference between the standard Arduino Motor shield and Monster Motor shield is the change in the driving IC. In the standard Arduino Motor shield the IC used is L298 H bridge IC which has a current capacity of 1 A which is replaced by the VNH3DP30 chip with a 14A continuous current capacity with heat dissipation devices installed. This motor driver also has a thermal shutdown function possible as the thermal output is provided on the analog pin of Arduino. Note: When using this board in extremely high-demand applications it may be necessary to improve thermal performance with a heat sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system). However, when using the board at currents up to 6A the chips will barely become noticeably warm. check out : DC Motor Drive Module 2 Channel Reversing PWM Speed Dual H Bridge Stepper Controller Features: Current sensing available to Arduino analog pin MOSFET on-resistance: 19 m? (per leg) Maximum PWM frequency: 20 kHz Thermal Shutdown Undervoltage and Overvoltage shutdown

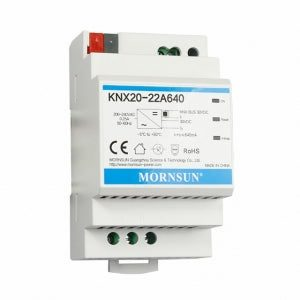

Mornsun KNX20-22A640 The KNX20-22A640 is a 20W AC-DC switching power supply that is suitable for use in home and building intelligent control in compliance with the KNX specification. It has a number of features that make it ideal for this application, including: A choke coil that provides a smooth output current A set of auxiliary power outputs for powering other devices An LED indicator that indicates multiple operating conditions A wide operating temperature range of -40°C to 75°C The KNX20-22A640 is also very easy to install and use. It can be mounted in any standard 19-inch rack and is compatible with a wide range of KNX devices.

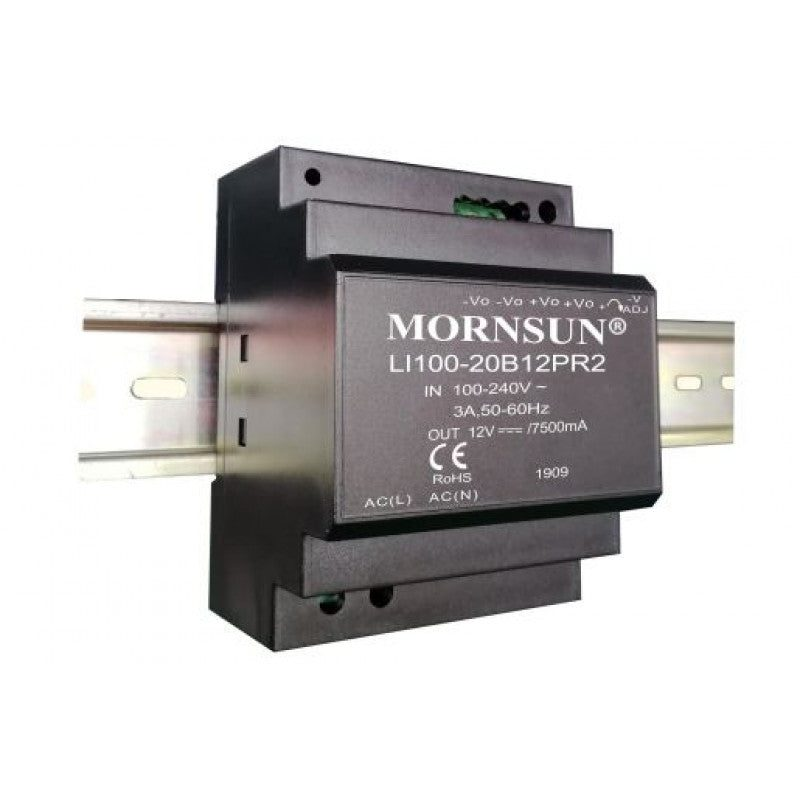

Mornsun LI100-20B12PR2 AC/DC 100W DIN-Rail Power Supply The LI100-20B12PR2 is a cost-effective, energy efficient AC-DC converter from Mornsun. It is compliant with international EMC standards and is safety approved to a variety of safety standards. The converter is lightweight and has a compact design, making it ideal for space-saving applications. It is also ideal for harsh environments, such as industrial control equipment machinery. Features Universal input voltage: 85-264VAC or 120-370VDC Accepts AC or DC input (dual-use of same terminal) Operating ambient temperature range: -40? to +70? High I/O isolation test voltage up to 4000VAC Industrial-grade design OVC III (EN61558-1 standards) Low standby power consumption, high efficiency Low ripple & noise Output short circuit, over-current, over-voltage protection Withstand 300VAC surge input for 5s DIN rail TS35X7.5/ TS35X15 mountable Safety according to EN61558 If you are looking for a cost-effective, energy efficient AC-DC converter that is compliant with international standards and is safe for use in harsh environments, then the LI100-20B12PR2 is a great option. Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
