CD4052 - Differential 4-channel Multiplexer/Demultiplexer IC The CD4052 analog multiplexers/demultiplexers IC are digitally controlled analog switches having low “ON” impedance and very low “OFF” leakage currents. Control of analog signals up to 15Vp-p can be achieved by digital signal amplitudes of 3−15V. For example, if VDD = 5V, VSS = 0V and VEE = −5V, analog signals from −5V to +5V can be controlled by digital inputs of 0−5V. The multiplexer circuits dissipate extremely low quiescent power over the full VDD−VSS and VDD−VEE supply voltage ranges, independent of the logic state of the control signals. When a logical “1” is present at the inhibit input terminal all channels are “OFF”. CD4052 is a differential 4-channel multiplexer having two binary control inputs, A and B, and an inhibit input. The two binary input signals select 1 or 4 pairs of channels to be turned on and connect the differential analog inputs to the differential outputs. Pinout: Pinout of CD4052 - Differential 4-channel Multiplexer/Demultiplexer IC  Pin Number Pin Name Description 16 Vdd Positive power input, maximum 20V 7 Vee Negative power rail, normally connected to ground. 8 Vss (Ground) Connected to ground of the circuit  6 INH Enable pin – Must be pulled to ground for normal operation 9,10 A,B Channel Select pins 1,12 Y0,X0 Channel 0 Input / Output 5,14 Y1,X1 Channel 1 Input / Output 2,15 Y2,X2 Channel 2 Input / Output 4,11 Y3,X3 Channel 3 Input / Output 3,13 Y,X Common Output / Input Package Includes: 1 x IC - CD4052 Specifications: Part number CD4052BC DC Supply Voltage (VDD) −0.5 VDC to +18 VDD Input Voltage (VIN) −0.5 VDC to VDD +0.5 VDC  Storage Temperature Range (TS) −65°C to +150°C   Power Dissipation (PD) Dual-In-Line 700 mW Lead Temperature (TL) 260°C

CD4053 - Triple 2-channel Multiplexer/Demultiplexer IC The CD4053 IC analog multiplexers demultiplexers are digitally controlled analog switches having low “ON” impedance and very low “OFF” leakage currents. Control of analog signals up to 15Vp-p can be achieved by digital signal amplitudes of 3−15V. For example, if VDD = 5V, VSS = 0V and VEE = −5V, analog signals from −5V to +5V can be controlled by digital inputs of 0−5V. The multiplexer circuits dissipate extremely low quiescent power over the full VDD−VSS and VDD−VEE supply voltage ranges, independent of the logic state of the control signals. When a logical “1” is present at the inhibit input terminal all channels are “OFF”. The CD4x Series CD4053 Integrated Circuits is a triple 2-channel multiplexer having three separate digital control inputs, A, B, and C, and an inhibit input. Each control input selects one of a pair of channels that are connected in a single-pole double-throw configuration. Pinout: Pin No Pin Name Description 1 Y1 Y1 Switch Input/Output 2 Y0 Y0 Switch Input/Output 3 Z1 Z1 Switch Input/Output 4 Z Input/Output Z 5 Z0 Z0 Switch Input/Output 6 INH Inhibit Input 7 VEE Emitter supply 8 VSS Source Supply 9 C Digital Control Input C 10 B Digital Control Input B 11 A Digital Control Input A 12 X0 X0 Switch Input/Output 13 X1 X1 Switch Input/Outputs 14 X Input/Output X 15 Y Input/Output Y 16 VDD Drain supply Applications: Analog multiplexing and demultiplexing Digital multiplexing and demultiplexing Signal gating Package Includes: 1x IC - CD4053 Specifications: Part number CD4053BC DC Supply Voltage (VDD) −0.5VDC to +18VDC Input Voltage (VIN)  −0.5VDC to VDD + 0.5VDC Storage Temperature Range (TS) −65°C to +150°C Power Dissipation (PD) Dual-In-Line 700 mW Lead Temperature (TL) 260°C

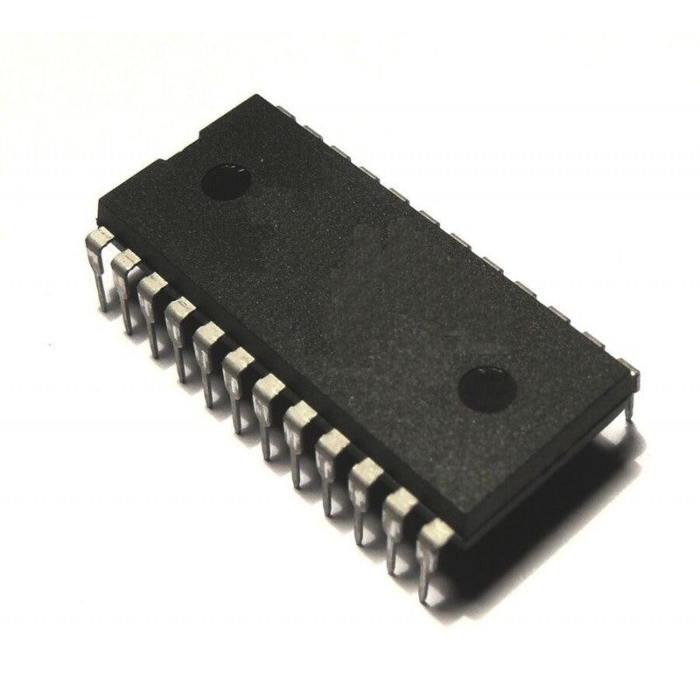

CD4059 - Programmable Divide-by-N Counter IC  The CD4x Series CD4059 standard "A" Series types are divide-by-N down-counters that can be programmed to divide an input frequency by any number "N" from 3 to 15,999. The output signal is a pulse one clock-cycle wide occurring at a rate equal to the input frequency divided by N. This single output has TTL drive capability. The down-counter is preset by means of 16 jam inputs. The three Mode-Select Inputs Ka, Kb, and Kc determine the modulus ("divide-by" number) of the first and last counting sections. Every time the first (fastest) counting section goes through one cycle, it reduces by 1 the number that has been preset (jammed) into the three decades of the intermediate counting section and into the last counting section, which consists of flip-flops that are not needed for operating the first counting section. For example, in the 2 modes, only one flip-flop is needed in the first counting section. Therefore the last counting section has three flip-flops that can be preset to a maximum count of seven with a place value of thousands. If 10 is desired for the first section, Ka is set to 1, Kb to 1, and Kc to 0. Jam Inputs J1, J2, J3, and J4 are used to preset the first counting section and there is no last counting section. The intermediate counting section consists of three cascaded BCD decade (10) counters presettable by means of Jam Inputs J5 through J16. This device is particularly advantageous in communication digital frequency synthesis (VHF, UHF, FM, AM, etc.) where programmable divide-by-"N" counters are an integral part of the synthesizer phase-locked-loop sub-system. The CD4059 can also be used to perform the synthesizer "Fixed Divide-by-R" counting function. It is also useful in general-purpose counters for instrumentation functions such as totalizers, production counters, and "time-out" timers. The CD4059B-series types are supplied in 24-lead dual-in-line plastic packages (E suffix), and 24-lead small-outline packages (M and M96 suffixes). Pinout: Pinout of CD4059 IC Applications: Communications digital frequency synthesizers: VHF, UHF, FM, AM, etc. Fixed or programmable frequency division "Time out" timer for consumer-application industrial controls Companion Application Note, ICAN-6374, "Application of the CMOS CD4059A Programmable Divide-by-N Counter in FM and Citizens Band Transceiver Digital Tuners" Package Includes: Selected qty of IC - CD4059 Specifications: Part number CD4059A-MIL Technology Family CD4000 VCC (Min) (V) 3 VCC (Max) (V) 18 Bits (#) 1 Voltage (Nom) (V) 10 F @ nom voltage (Max) (MHz) 8 ICC @ nom voltage (Max) (mA) 0.03 tpd @ nom Voltage (Max) (ns) 180 IOL (Max) (mA) 1.5 IOH (Max) (mA) -1.5 Function Counter Type Other Operating temperature range (C) -55 to 125 Package Group CDIP SB | 24

CD4060 - 14 stage Ripple Carry Binary Counter IC The CD4x Series CD4060 IC consists of an oscillator section and 14 ripple-carry binary counter stages. The oscillator configuration allows the design of either RC or crystal oscillator circuits. A RESET input is provided which resets the counter to the all-O's state and disables the oscillator. A high level on the RESET line accomplishes the reset function. All counter stages are master-slave flip-flops. The state of the counter is advanced one step in binary order on the negative transition. All inputs and outputs are fully buffered. Schmitt trigger action on the input-pulse line permits unlimited input-pulse rise and fall times. The CD4060-series types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (M, M96, MT and NSR suffixes), and 16-lead thin shrink small-outline packages (PW and PWR suffixes). check out : CD4015 - Dual 4-Stage Shift Register IC Pinout: Pinout of CD4060 IC Pin Name Pin # Type Description VDD 16 Power Supply Voltage (+3 to +15V) GND 8 Power Ground (0V) Q3-Q9 1-7 Output Counter outputs Q11-Q13 13-15 Output Counter outputs CEXT 9 Input Connection for an external capacitor REXT 10 Input Connection for external resistor CLK 11 Input Clock input/Oscillator pin RST 12 Input Resets the counter Applications: Control counters Timers Frequency dividers Time-delay circuits check out : CD4013 - Dual D Type Flip-Flop IC Package Includes: Selected qty of IC - CD4060 Specifications: Part number CD4060 Technology Family CD4000 VCC (Min) (V) 3 VCC (Max) (V) 18 Bits (#) 10 Voltage (Nom) (V) 10 F @ nom voltage (Max) (MHz) 8 ICC @ nom voltage (Max) (mA) 0.03 tpd @ nom Voltage (Max) (ns) 300 IOL (Max) (mA) 1.5 IOH (Max) (mA) -1.5 Function Counter Type Binary Operating temperature range (C) -55 to 125 Package Group PDIP|16

CD4066 - Quad Bilateral Switch IC The CD4066 device is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with the CD4016 device but exhibits a much lower on-state resistance. In addition, the on-state resistance is relatively constant over the full signal-input range. The CD4x Series CD4066 device consists of four bilateral switches, each with independent controls. Both the p and the n devices in a given switch are biased on or off simultaneously by the control signal. The well of the n-channel device on each switch is tied to either the input (when the switch is on) or to VSS (when the switch is off). This configuration eliminates the variation of the switch-transistor threshold voltage with the input signal and, thus, keeps the on-state resistance low over the full operating-signal range. The advantages over single-channel switches include peak input-signal voltage swings equal to the full supply voltage and more constant on-state impedance over the input-signal range. However, for sample-and-hold applications, the CD4016 device is recommended. check out : CD4016 - Quad Bilateral Switch IC Pinout: Pinout of CD4066 IC Package Includes: Selected qty of IC - CD4066 Specifications: Part number CD4066B Configuration 1:1 SPST Number of channels (#) 4 Ron (Typ) (Ohms) 125 Bandwidth (MHz) 40 Operating temperature range (C) -55 to 125 Package Group PDIP|14 Input/output continuous current (Max) (mA) 10 Supply current (Typ) (uA) 0.01 CON (Typ) (pF) 8

CD4069 - Hex Inverter IC The CD4069 IC device consists of six CMOS inverter circuits. These devices are intended for all general-purpose inverter applications where the medium-power TTL drive and logic-level-conversion capabilities of circuits such as the CD4009 and CD4049 hex inverter and buffers are not required.  check out : CD4049 - Hex Inverting Buffer/Converter IC Pinout: Pinout of CD4069 - Hex Inverter IC Package Includes: 1 x IC - CD4069 Specifications: Part number CD4069UB Technology Family CD4000 VCC (Min) (V) 3 VCC (Max) (V) 18 Channels (#) 6 Output type Push-Pull Input Type Standard CMOS ICC @ nom voltage (Max)(mA) 30 Features Balanced outputs, Standard speed (tpd > 50ns), Input clamp diode Unbuffered IOL (Max) (mA) 6.8 IOH (Max) (mA) -6.8 Data Rate 24 Package Group PDIP|14

CD4070 - Quad 2-Input Exclusive-OR (XOR) Gate IC The CD4070 IC contains four independent Exclusive OR gates inside a single package. It is oftentimes referred to as a quad package 2-Input XOR gate IC. All four gates share the same power rail and each gate has two input lines and one output line. This IC gives the system designer a way to directly implement the Exclusive-OR Boolean function. The CD4070 makes use of complementary MOS (CMOS) transistors to achieve a broad power supply operating range, low power consumption, and a high noise margin. The IC operates at 5V, 10V, 15V, and even 20V. When operating at 5V the maximum low-level input voltage is 0.5 and the minimum high-level input voltage is 4.5. check out : CD4078 - 8 Input NOR Gate IC Pinout: Pinout Of CD4070 IC Pin Name Pin # Type Description VDD 14 Power Supply Voltage (+3 to +15V) GND 7 Power Ground (0V) A1 to A4 1, 5, 8, 12 Input Inputs A of the four XOR gates B1 to B4 2, 6, 9, 13 Input Inputs B of the four XOR gates Q1 to Q4 3, 4, 10, 11 Output Outputs from the four XOR gates Package Includes: Selected qty of IC - CD4070 Specifications: LOGIC Circuit XOR Voltage Rating  3V to 15V Propagation Delay (tpd) 280ns Noise immunity 0.45 VDD Inputs 2

CD4078 - 8 Input NOR Gate IC  The CD4078 NOR/OR Gate IC provides the system designer with direct implementation of the positive logic 8-input NOR and OR functions and supplements the existing family of CMOS gates. The CD4078 types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes). check out : Quad 2-input OR gate IC - CD4071 Application: Mixer tank Memory circuits File registers Package Includes: 1 x IC - CD4078 Specifications: Part number CD4078B Technology Family CD4000 VCC (Min) (V) 3 VCC (Max) (V) 18 Channels (#) 1 Inputs per channel 8 Output type Push-Pull Features Standard Speed (tpd > 50ns) Data rate (Max) (Mbps) 8 IOL (Max) (mA) 6.8 IOH (Max) (mA) -6.8 Package size: mm2:W x L (PKG) 14PDIP: 181 mm2: 9.4 x 19.3 (PDIP|14) Operating temperature range (C) -55 to 125 Package Group PDIP|14

CD4081 - Quad 2 Input AND Gate IC CD4081 Quad 2 Input AND gates IC provides the system designer with direct implementation of the AND function and supplements the existing family of CMOS gates. The CD4081 types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes). check out : CD4532 - 8 Bit Priority Encoder IC (Original) Pinout: Pinout Of CD4081 IC   check out : CD4030 - Quad 2-Input Exclusive OR (EXOR) Gate IC Package Includes: Selected qty of IC - CD4081 Specifications: Part number CD4081B Technology Family CD4000 VCC (Min) (V) 3 VCC (Max) (V) 18 Channels (#) 4 Inputs per channel 2 Input type Standard CMOS Output type Push-Pull Features High Speed (tpd 10-50ns) Data rate (Max) (Mbps) 8 IOL (Max) (mA) 6.8 IOH (Max) (mA) -6.8 Package size: mm2:W x L (PKG) 14PDIP: 181 mm2: 9.4 x 19.3 (PDIP|14) Operating temperature range (C) -55 to 125 Package Group PDIP|14

CD4093 - Quad 2-Input NAND Schmitt Trigger IC CD4093 consists of four Schmitt-trigger circuits. Each circuit functions as a two-input NAND gate with Schmitt-trigger action on both inputs. The gate switches at different points for positive- and negative-going signals. The difference between the positive voltage (VP) and the negative voltage (VN) is defined as hysteresis voltage (VH) (see Fig. 2). The CD4093 types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes). check out : Dual 4-Input OR Gate IC - CD4072 Pinout: Pinout of CD4093 - Quad 2-Input NAND Schmitt Trigger IC Pin Name Pin # Type Description VDD 14 Power Supply Voltage (+3 to +15V) GND 7 Power Ground (0V) A1 to A4 1, 5, 8, 12 Input Inputs A of the four NAND gates B1 to B4 2, 6, 9, 13 Input Inputs B of the four NAND gates Q1 to Q4 3, 4, 10, 11 Output Outputs from the four NAND gates Applications: Wave and pulse shapers High-noise-environment systems Monostable multivibrators Astable multivibrators NAND logic Package Includes: 1 x IC - CD4093 Specifications: Part number CD4093B Technology Family CD4000 VCC (Min) (V) 3 VCC (Max) (V) 18 Channels (#) 4 Inputs per channel 2 Input type Schmitt-Trigger Output type Push-Pull Features Standard Speed (tpd > 50ns) Data rate (Max) (Mbps) 8 IOL (Max) (mA) 6.8 IOH (Max) (mA) -6.8 Package size: mm2:W x L (PKG) 14PDIP: 181 mm2: 9.4 x 19.3 (PDIP|14) Operating temperature range (C) -55 to 125 Package Group PDIP|14
