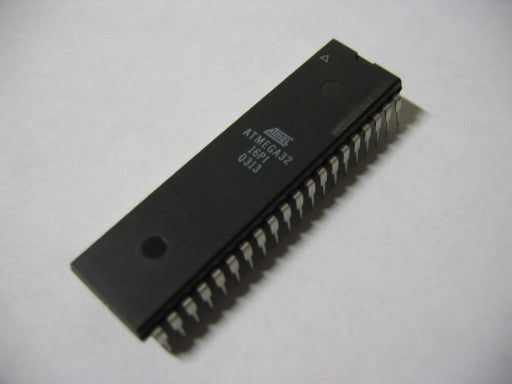

ATmega32
ATmega32
ATmega32
ATmega32
ATmega32
ATmega32
ATmega32
ATmega32
ATmega32

ATmega32

(0)
The high-performance, low-power Atmel 8-bit AVR RISC-based microcontroller combines 32KB of programmable flash memory, 2KB SRAM, 1KB EEPROM, an 8-channel 10-bit A/D converter, and a JTAG interface for on-chip debugging. The device supports a throughput of 16 MIPS at 16 MHz and operates between 4.5-5.5 volts. By executing instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed
Sale Accelerators
Hurry up! Only 7 left in stock
Condition: NEW
As low as ₹332.71   ₹651.00 Incl. GST (No Hidden Charges)
Backorder Available Delivery: Next Day Delivery
IN STOCK SKU#: IOT-2517
Delivery & Pickup Options
Get it Next Day on Order

Order now and we'll have it ready for delivery by the next business day.

For bulk orders or wholesale inquiries, please contact us at Email: support@iotcart.in or call/message us at Phone: 8050206487.

The high-performance, low-power Atmel 8-bit AVR RISC-based microcontroller combines 32KB of programmable flash memory, 2KB SRAM, 1KB EEPROM, an 8-channel 10-bit A/D converter, and a JTAG interface for on-chip debugging. The device supports a throughput of 16 MIPS at 16 MHz and operates between 4.5-5.5 volts. By executing instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed

  • Manufacturer : Atmel
  • Product Category : 8-bit Microcontrollers - MCU
  • RoHS : RoHS Compliant Details
  • Brand : Atmel
  • Core : AVR
  • Data Bus Width : 8 bit
  • Maximum Clock Frequency : 16 MHz
  • Program Memory Size : 32 kB
  • Data RAM Size : 2 kB
  • Operating Supply Voltage : 2.7 V to 5.5 V
  • Maximum Operating Temperature : + 85 C
  • Package / Case : PDIP-40
  • Mounting Style : Through Hole
  • Data RAM Type : SRAM
  • Data ROM Size : 1024 B
  • Data ROM Type : EEPROM
  • Interface Type : 2-Wire, SPI, USART
  • Minimum Operating Temperature : - 40 C
  • Number of I/Os : 32 I/O
  • Number of Timers : 3 Timer
  • On-Chip ADC : Yes
  • Packaging : Tube
  • Processor Series : megaAVR
  • Program Memory Type : Flash
  • Series : ATMEGA 32A
  • Factory Pack Quantity : 10
  • Supply Voltage - Max : 5.5 V
  • Supply Voltage - Min : 2.7 V
  • Tradename : ATMEGA

No FAQs available for this product yet.

To rate this product please login!

About ATmega32 by Iotcart

Shop ATmega32 by Iotcart at best price in India. Fast delivery, genuine quality, and secure checkout.
