8 Ohm 0.5W Speaker An 8 ohm 0.5 watt speaker is an electronic component that converts electrical signals into sound waves. It is typically used in small electronic devices, such as cell phones, portable speakers, and handheld radios, where space is limited and low power consumption is important. The resistance of a speaker, measured in ohms, determines its electrical characteristics and how it interacts with the amplifier or other electronic devices it is connected to. An 8 ohm speaker has a resistance of 8 ohms, which is a moderate impedance level that is suitable for use with a wide range of amplifiers. The power rating of a speaker, measured in watts, determines the maximum amount of power that the speaker can handle without being damaged. A 0.5 watt speaker has a relatively low power rating, which means that it is suitable for use with low-power amplifiers or in applications where high volume is not required. Speakers are used in a wide variety of electronic devices, including cell phones, portable speakers, handheld radios, home theater systems, and computer speakers. They are essential components of these devices, as they allow the user to hear the audio output of the device.

PAM 8403 Amplifier Module with Knob PAM8403 is a basic 5V input amplifier board that can drive two 3W + 3W stereo speakers. It’s a great option for anyone looking for a Class-D stereo audio amplifier with a tiny footprint. The user can get high-quality audio reproduction from a stereo input using this amplifier. It also has a unique function in that it can drive speakers directly from the output. . It offers low THD+N, allowing it to achieve high-quality sound reproduction. The new filter-less architecture allows the device to drive the speaker directly, requiring no low-pass output filters, thus saving system cost and PCB area. With the same numbers of external components, the efficiency of the PAM8403 is much better than that of Class-AB cousins. It can extend the battery life, which makes it well-suited for portable applications. This PAM8403 Amplifier module differs from the conventional PAM8403 Amplifier board in this module it allows us to have more control over the output provided by the IC. By control, we mean that this amplifier module board comes with a knob that allows you to adjust the output. The PAM8403 IC provides high-definition sound quality and highlights the benefits of digital chips. The circuit uses the most reasonable peripheral arrangement, and the power supply filter is increased to 470uf. read more : Types of Amplifiers with their Workings Note: Please make sure the power supply is not more than 5.5V and please don't do reverse polarity for "+" and "-", or else, it will burn the board. Applications: Bluetooth Stereo Audio hands free / headsets In robots that speak or generate sounds to indicate activities Portable Speakers LCD Monitors / TV Projectors Arduino or Raspberry Pi Game Machines Speaker Phones

AD8495 K-Type Analog Thermocouple Amplifier Breakout -7Semi The AD8495 K-Type Analog Thermocouple Amplifier Breakout by 7Semi is a high-performance module designed to simplify accurate temperature measurement using K-type thermocouples. Powered by the AD8495 precision instrumentation amplifier, this breakout board delivers a reliable analog output of 5 mV/°C, making it easy to interface with analog-to-digital converters or microcontrollers. It includes integrated cold junction compensation to ensure precise readings even with fluctuating ambient conditions. Operating on a wide voltage range of 2.7V to 36V, this compact and robust module is perfect for a wide array of applications, especially in industrial environments where accurate thermal monitoring and control are essential. Features: Optimized for K-Type Thermocouples: Provides precise temperature readings. Internal Cold Junction Compensation: Ensures consistent and reliable readings. Wide temperature range support: -250°C to +750°C with 5V power and -250°C to +410°C with 3.3V power. Easy Analog Output: With a simple calculation, you can quickly convert voltage to temperature. Durable and Versatile: Ideal for industrial, automotive, and consumer electronics applications.

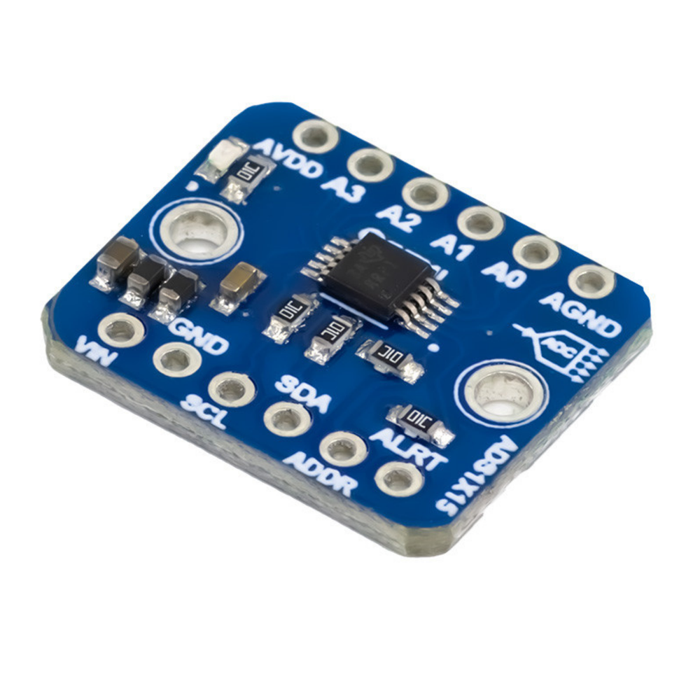

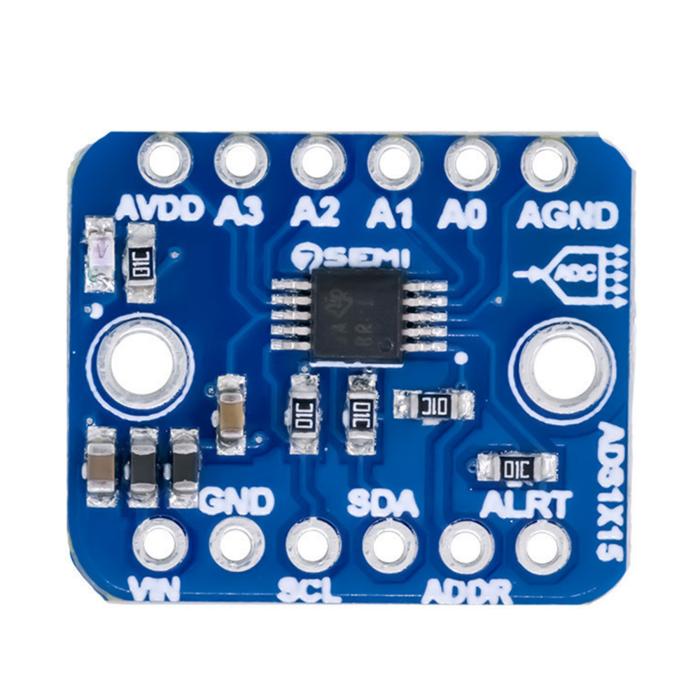

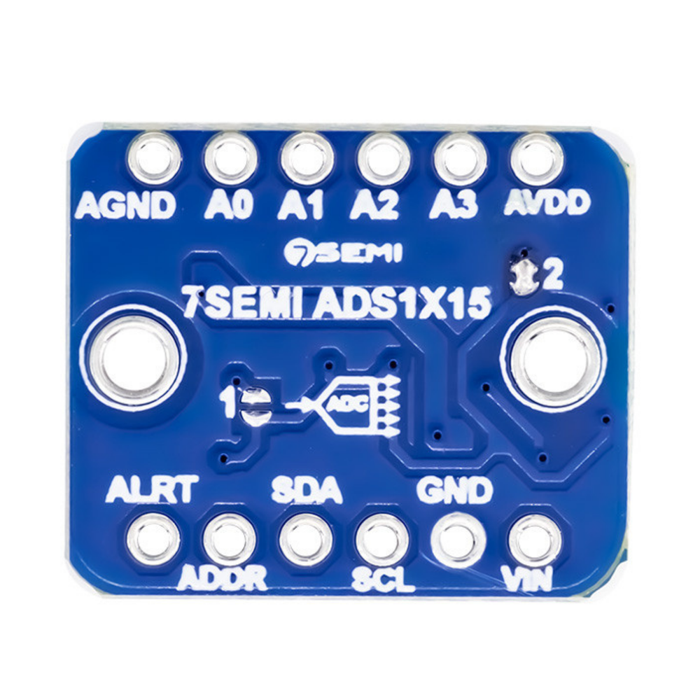

7Semi ADS1015 I2C 4-Channel 12bit ADC Breakout Board The 7Semi ADS1015 I2C 4-Channel 12bit ADC Breakout Board is built around the Texas Instruments ADS1015, offering high-precision 12-bit analog-to-digital conversion at speeds up to 3.3 kSPS. With its i2c ADC 4 channel interface, the board allows seamless integration with microcontrollers and single-board computers. The onboard programmable gain amplifier (PGA) ensures accurate readings across a range of sensor signals. Operating on a versatile 2.0V to 5.5V supply, this ADS1015 12-bit ADC board is perfect for electronics enthusiasts, IoT projects, and any application requiring reliable analog signal measurement. Features: 12-Bit Noise-Free Resolution: Achieve higher precision with little noise interference, resulting in exact readings under all settings. Wide Supply Range (2.0 V to 5.5 V): This board's flexible voltage options make it compatible with a variety of power sources. Low Power Consumption: Continuous conversion mode consumes only 150 µA, making it ideal for battery-powered applications with high energy efficiency. Programmable Data Rate: Change the sampling speed from 128 SPS to 3.3 kSPS to suit your measurement requirements. Internal low-drift voltage reference and oscillator: Provides stable and consistent performance throughout time, which is critical for long-term projects. I2C Interface with Four Pin-Selectable Addresses: Makes integration easier and enables multiple devices to connect seamlessly within your system. Four single-ended or two differential inputs provide diverse input possibilities for various measurement combinations. Programmable Gain Amplifier (PGA): Improves signal processing, allowing for precise readings over a wide range of input levels. Compact and Space-Saving Design: Ideal for applications with limited space, without sacrificing functionality. Connection Diagram with Arduino:

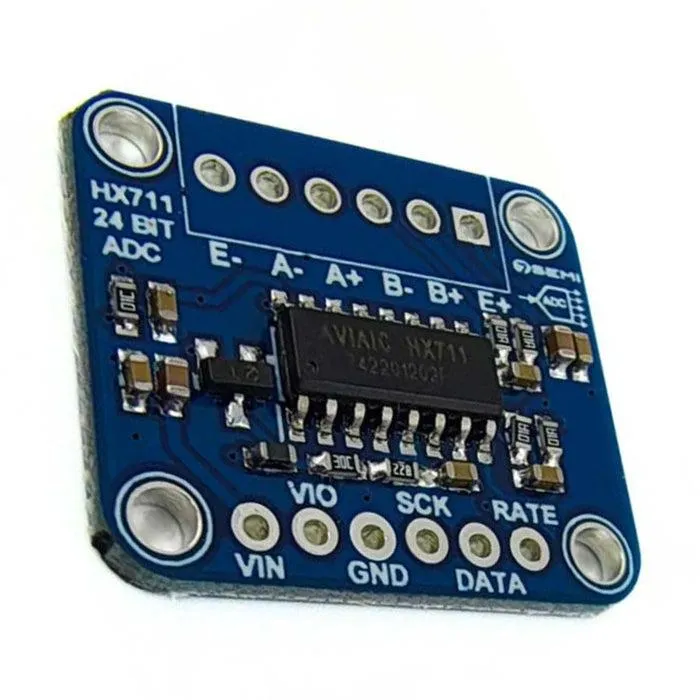

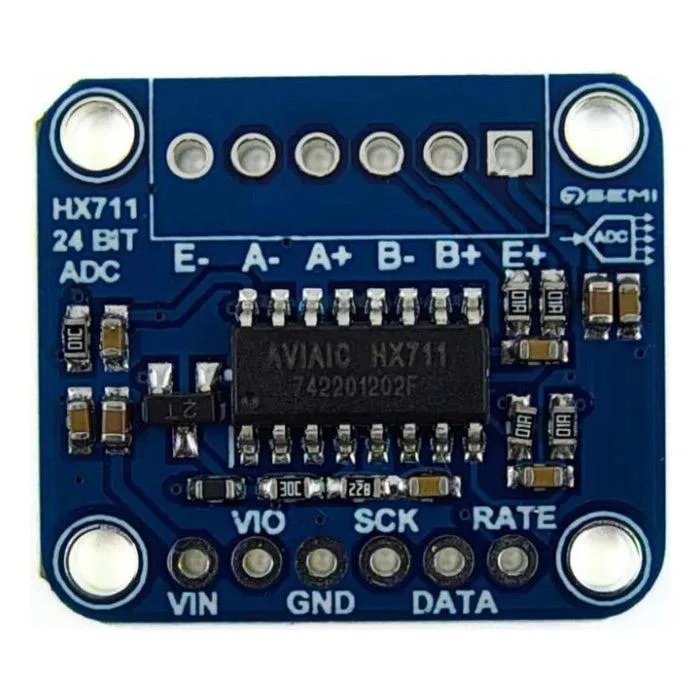

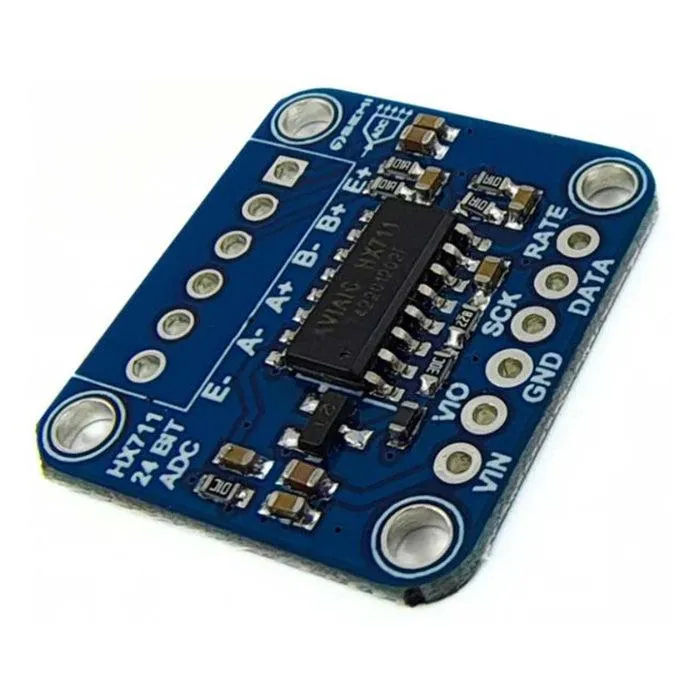

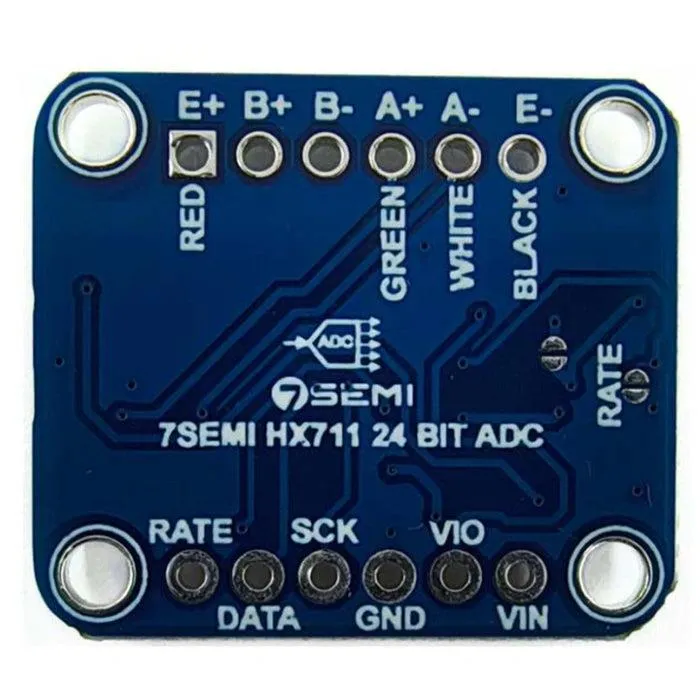

HX711 Load Cell Amplifier Module – 24-Bit ADC - 7Semi The 7Semi HX711 Load Cell Amplifier Module is a high-precision 24-bit analog-to-digital converter (ADC) tailored for weight measurement tasks such as industrial scales and process control applications. It features two selectable differential input channels and a built-in low-noise programmable gain amplifier (PGA) with gain options of 32, 64, and 128, ensuring accurate and flexible signal amplification. Thanks to its simple two-wire serial interface, the module is easy to integrate with microcontrollers like Arduino, Raspberry Pi, and others. Operating within a supply voltage range of 2.6V to 5.5V, it offers selectable output data rates of 10 samples per second (SPS) or 80 SPS, allowing users to balance between speed and accuracy according to their project needs. The 7Semi HX711 load cell sensor is an ideal choice for applications requiring precise, stable, and reliable weight sensing. Features: High Accuracy: 24-bit ADC for precise weight measurements. Easy Integration: Simple two-wire interface for microcontroller compatibility. Versatile Support: Works with four-wire Wheatstone bridge load cells. Low Power: Operates from 2.7V to 5V with <1.5mA current draw. Flexible Output Rates: Selectable 10SPS or 80SPS with 50/60Hz noise rejection. Color-Coded Connections: Red (VCC), Black (GND), White (Signal-), Green (Signal+).

HX711 Load Cell Amplifier Module – 24-Bit ADC - 7Semi The 7Semi HX711 Load Cell Amplifier Module is a high-precision 24-bit analog-to-digital converter (ADC) tailored for weight measurement tasks such as industrial scales and process control applications. It features two selectable differential input channels and a built-in low-noise programmable gain amplifier (PGA) with gain options of 32, 64, and 128, ensuring accurate and flexible signal amplification. Thanks to its simple two-wire serial interface, the module is easy to integrate with microcontrollers like Arduino, Raspberry Pi, and others. Operating within a supply voltage range of 2.6V to 5.5V, it offers selectable output data rates of 10 samples per second (SPS) or 80 SPS, allowing users to balance between speed and accuracy according to their project needs. The 7Semi HX711 load cell sensor is an ideal choice for applications requiring precise, stable, and reliable weight sensing. Features: High Accuracy: 24-bit ADC for precise weight measurements. Easy Integration: Simple two-wire interface for microcontroller compatibility. Versatile Support: Works with four-wire Wheatstone bridge load cells. Low Power: Operates from 2.7V to 5V with <1.5mA current draw. Flexible Output Rates: Selectable 10SPS or 80SPS with 50/60Hz noise rejection. Color-Coded Connections: Red (VCC), Black (GND), White (Signal-), Green (Signal+).

7Semi 5A Analog INA169 DC Current Sensor Breakout The 7Semi 5A Analog INA169 DC Current Sensor Breakout is a precision Analog DC current sensor designed for accurate current monitoring in electronic circuits. Powered by the trusted INA169 chip, it delivers consistent current readings up to 5A across a wide input range of 2.7V to 60V. Its low offset voltage and minimal quiescent current ensure reliable measurements, while adjustable gain and overcurrent protection add versatility for various applications. Compact and easy to integrate with microcontroller-based systems, this INA169 current sensor is perfect for IoT projects, battery management, power monitoring, and smart energy solutions, providing dependable performance for both hobbyists and professional engineers. Features: Wide Voltage Range Compatibility: Operates efficiently between 2.7V and 60V, making it suitable for both low and high-voltage applications. High-Side Current measuring: Enables unipolar high-side current measuring for safer and more accurate readings. Customizable Gain Control: Easily alter output sensitivity with a single resistor to meet your individual application requirements. Built-in Signal Amplifier: Provides clean and amplified output signals for accurate ADC conversion. Overcurrent detection protects connected components by detecting and responding to excessive current. Low Quiescent Current: Consumes only 60 µA, making it ideal for energy-sensitive projects. Microcontroller-Friendly: Fully compatible with Arduino, ESP32, STM32, Raspberry Pi, and other development boards. Compact Design: Small form factor excellent for embedded system integration and space constraints. Connection Diagram with Arduino:

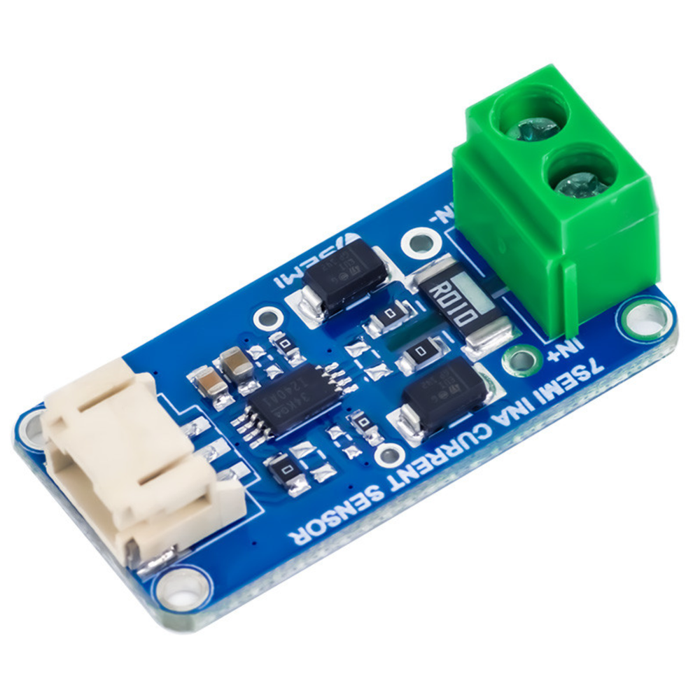

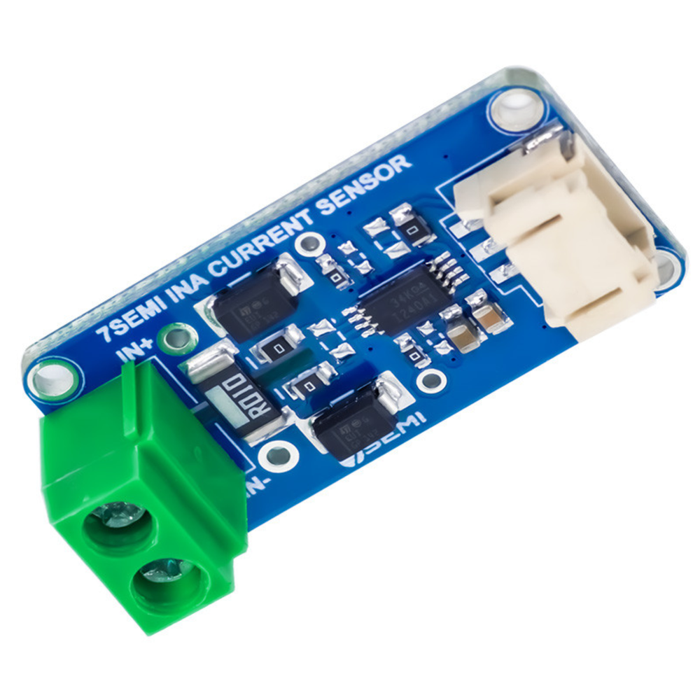

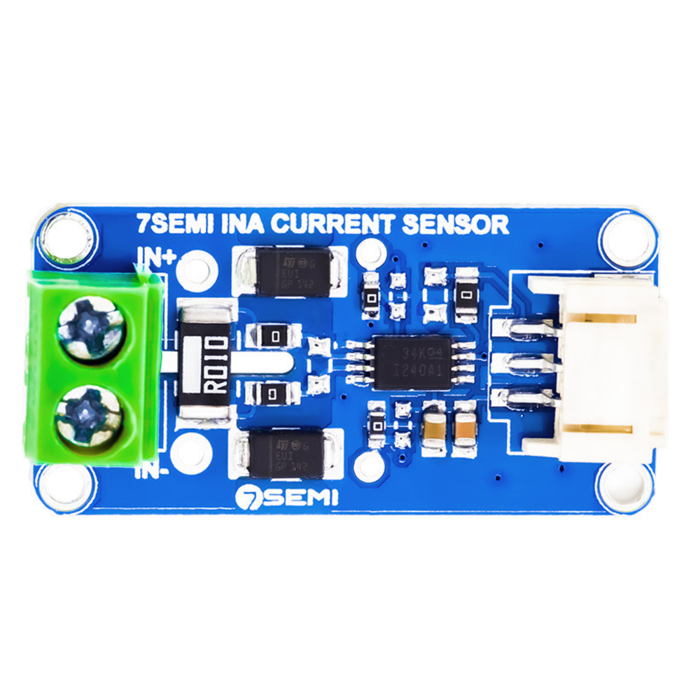

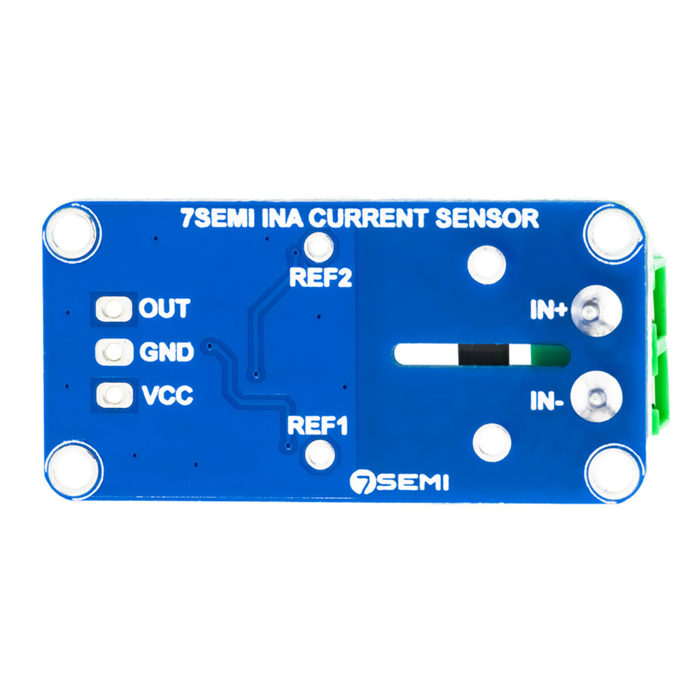

7Semi INA240 4V-80V Bidirectional Current Sensor Amplifier Breakout Board The 7Semi INA240 4V–80V Bidirectional Current Sensor Amplifier Breakout Board is built around the Texas Instruments INA240, designed for accurate and reliable current measurement in demanding electronic applications. This INA240 Current Sensor offers a fixed gain of 20 V/V and supports bidirectional current sensing across a wide –4V to 80V common-mode voltage range, making it ideal for high-side current monitoring. With advanced PWM rejection, it delivers stable and precise measurements even in electrically noisy environments such as motor control, power management, and DC load monitoring systems. Features: Gain: INA240A1: 20 V/V - Increase your current sensing precision. Wide Common Mode Voltage Range (-4V to 80V): Measure currents precisely, even in systems that operate below ground voltage. Enhanced PWM Rejection: Get reliable measurements in environments with PWM signals by filtering out noise for increased accuracy. High-Precision Voltage Output: The INA240A1PW's voltage output is proportionate to measured current, allowing you to seamlessly integrate it into your existing configuration. Compact and Convenient: The breakout board's design allows for easy integration into your projects while also providing convenient access to important pins. Versatile Applications: Suitable for a variety of projects, including motor drives, solenoid control, battery management, and power monitoring.

7Semi INA240 4-80V Bidirectional Current Sensor Amplifier Breakout Board The 7Semi INA240 4-80V Bidirectional Current Sensor Amplifier Breakout Board features the renowned Texas Instruments INA240, delivering precise bidirectional current measurements with a 50 V/V gain across a wide voltage range of -4V to 80V. With superior PWM rejection, it maintains accurate readings even in electrically noisy conditions, making it perfect for motor drives, power monitoring, and advanced electronics applications. Compact, reliable, and easy to integrate, this INA240 Current Sensor breakout board is an essential tool for engineers, makers, and hobbyists seeking high-precision current sensing in their projects. Features: Wide Voltage Range (-4V to 80V): Measure current seamlessly throughout a wide common mode voltage range, including applications that operate below earth. Enhanced PWM Rejection: Maintain precision in the presence of significant common mode transients, ensuring reliable measurements in systems that use PWM signals. High-Precision Voltage Output: The INA240A2 onboard delivers a proportional voltage output that integrates well with your existing configuration. Compact and Convenient: The breakout board's design simplifies integration into your projects while providing easy access to critical pins and connections. Various Applications: Suitable for motor drives, solenoid control, battery management, power monitoring, and a variety of other tasks.

7Semi MAX31855 K-Type Thermocouple Amplifier Breakout The 7Semi MAX31855 Thermocouple Amplifier Breakout is designed for creators, engineers, and industrial users who need reliable and highly accurate temperature readings from extreme environments. With its advanced MAX31855 converter IC, this breakout allows effortless digital temperature measurement using K-type thermocouples, making it a powerful choice for applications like 3D printing, HVAC monitoring, and high-heat industrial systems. The onboard cold-junction compensation ensures precision by automatically correcting any thermal offsets at the connector. Supporting temperatures from -270°C to +1372°C, it delivers 14-bit resolution with smooth 0.25°C read steps, providing dependable, noise-free readings for sensitive processes. Built-in fault detection helps identify open circuits or shorts, making the system easier to troubleshoot and safer for continuous operation. With its SPI-based digital interface and compatibility with 3.3V/5V logic microcontrollers, the module integrates cleanly with Arduino, ESP32, Raspberry Pi, and industrial controllers. Features: Supports a wide thermocouple measurement range from –270°C to +1372°C, making it suitable for extreme heat and cryogenic applications. Provides 14-bit high-resolution output with precise 0.25°C increments for accurate temperature monitoring. Includes built-in cold-junction compensation, ensuring reliable compensation for ambient temperature fluctuations. Offers a simple SPI digital interface, requiring minimal I/O pins for easy integration with most microcontrollers. Compatible with multiple thermocouple types including K, J, N, T, S, R, and E, providing versatility in system design. Features fault detection for open thermocouples and shorts to VCC/GND to enhance system safety. Supports both 3.3V and 5V logic levels, ensuring broad compatibility across development boards.
