Circuits requiring steady 6v supply

7812 Voltage Regulator IC The 7812 IC is a commonly used linear regulator.  Input voltage can range from 12 – 35VDC and it outputs a fixed 12V at over 1A of current and up to 2.2A of surge current. For basic operation, no external components are required. Just hook up the input voltage and ground of the 7812 voltage regulator and you have 5V available on the output. If you are using it at a fair distance from the supply that is providing the input voltage, then a .33uF or larger input filter capacitor is recommended. The part ideally should be a low ESR part such as a Tantalum or Mylar capacitor, but small electrolytic caps generally work fine. Pinout: Pinout of 7812 Voltage Regulator IC Applications: Electronic Communications. LEDs and Flashlights. Load Switches. Electrical Power Supplies. Also check the LM317 Adjustable Voltage Regulator IC available on Iotcart. The LM317 provides a stable, regulated output voltage in the range of 1.2V to 37V and can be adjusted using external resistors. It has a maximum continuous output current of 1.5A, a typical dropout voltage of 1.5V, and operates over a wide range of input voltages (3V to 40V) and temperatures (-40°C to 125°C). The IC features built-in current limiting, thermal shutdown protection, and short-circuit protection. Also check the 7806 Voltage Regulator IC available on the Iotcart website. It operates at an input voltage of 5V, with a maximum input voltage of 35V and a maximum output current of 1.5A. The standby current is 5mA.

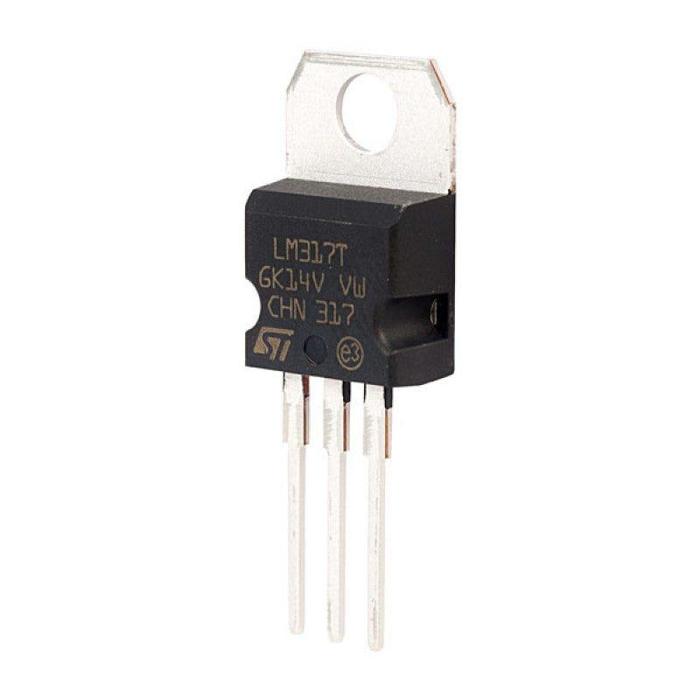

LM317 Adjustable Voltage Regulator IC LM317 is a type of adjustable voltage regulator IC (Integrated Circuit) that is commonly used to provide a stable, regulated output voltage from an input voltage source. It is a versatile and widely-used IC that can be used to regulate a wide range of output voltages, making it a popular choice for many electronic projects. The LM317 voltage regulator IC is designed to operate over a wide range of input voltages and can provide a regulated output voltage in the range of 1.2V to 37V. It has a number of features that make it easy to use, including built-in current limiting, thermal shutdown protection, and short-circuit protection. To use an LM317 voltage regulator, users connect the input voltage source to the appropriate connections on the IC and then use external resistors to set the desired output voltage. The LM317 IC will then regulate the output voltage to the desired level, regardless of variations in the input voltage or load. LM317 voltage regulator ICs are commonly used in a wide range of applications, including power supplies, battery chargers, and other electronic projects that require a stable, regulated output voltage. They are a convenient and easy-to-use solution for providing a regulated voltage in a variety of electronic projects. Applications: Power supplies Battery chargers Electronic projects Also check our 7812 voltage regulator , which is a commonly used linear regulator. It operates with an input voltage ranging from 12V to 35VDC.

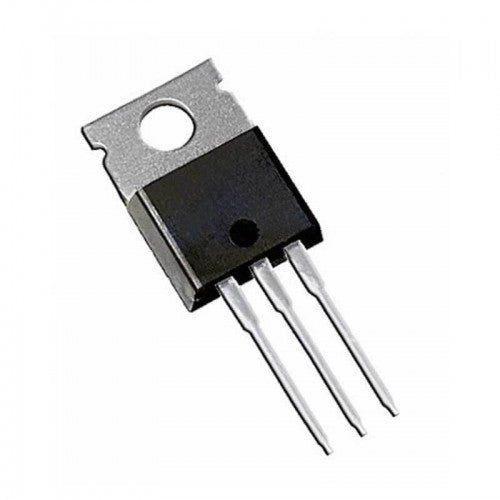

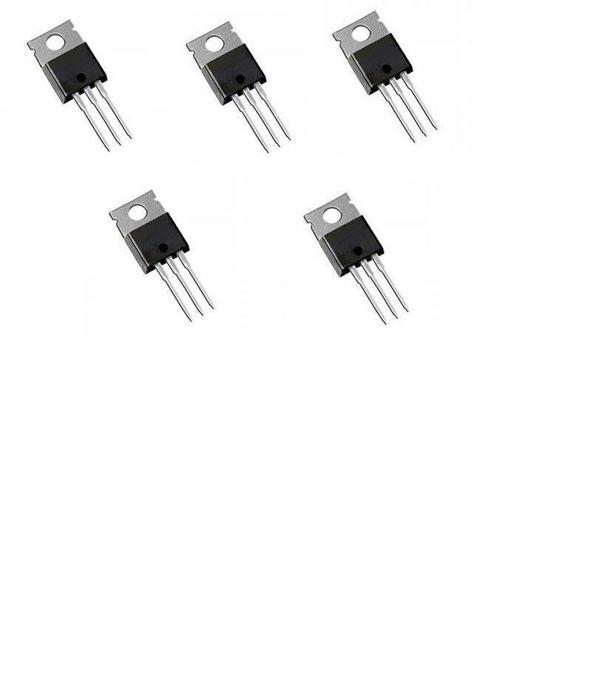

The LM350 is a high-performance, three-terminal adjustable voltage regulator IC capable of delivering up to 3A of output current. It offers an adjustable output voltage range from 1.25V to 33V, making it ideal for a wide variety of power supply applications in embedded systems, robotics, and industrial electronics. This pack includes 5 genuine LM350 ICs, ensuring reliability and consistent performance for prototyping or bulk projects. Designed for engineers, students, and OEM buyers, the LM350 features built-in thermal overload protection, short-circuit current limiting, and output transistor safe-area compensation. It operates efficiently with minimal external components and is compatible with standard TO-220 heat sinks for thermal management. Whether you're building a custom power supply, motor driver circuit, or sensor interface, the LM350 provides stable and precise voltage regulation. This IC is widely used in conjunction with microcontrollers like Arduino and Raspberry Pi, where clean and adjustable power rails are essential. Its ease of use, robust design, and wide input voltage range (up to 35V) make it a go-to choice for both hobbyists and professional developers. Order your pack today and power your next innovation with confidence.

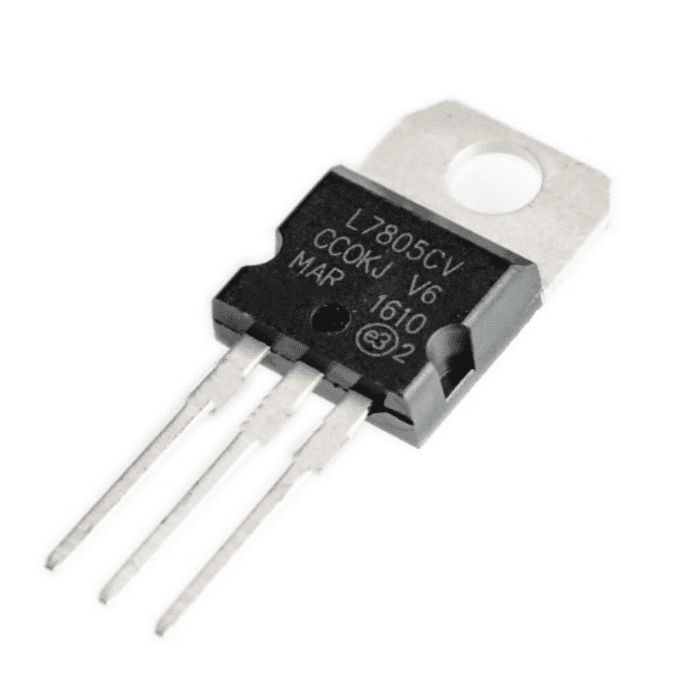

7805 Voltage Regulator IC The 7805 voltage regulator IC is a three-terminal voltage regulator IC . A 7805 voltage regulator with a fixed output voltage is used in various applications. This is available through various packages like SOT-223, TO-263, TO-220, and TO-3. Among these, the TO-220 is the most used one. The IC 7805 is available in the TO220 package. It employs built-in current limiting, thermal shutdown, and safe operating area protection which makes them virtually immune to damage from output overloads. 7805 voltage regulator , although designed primarily as a fixed voltage regulator can also be used with external components for adjustable voltages and currents. With adequate heatsinking, they can deliver more than 0.5A output current. read more: What is 7805 Voltage Regulator & Its Working Features: Three-terminal positive voltage regulator IC Available in TO220 package Built-in current limiting, thermal shutdown, and safe operating area protection Primarily designed as a fixed voltage regulator It can be used for adjustable voltages and currents with external components Can deliver over 0.5A output current with adequate heatsinking Know why the 7805 Voltage Regulator is essential in electronics. Pinout: Applications: Local (on-card) regulators IoT Also, check the 7812 Voltage Regulator IC with an operating output voltage of 12V.

7809 Voltage Regulator (Pack of 5) The LM7809 monolithic 3-terminal positive voltage regulators employ internal current-limiting, thermal shutdown and safe-area compensation, making them essentially indestructible. If adequate heat sinking is provided, they can deliver over 1.0A output current. They are intended as fixed voltage regulators in a wide range of applications including local (on-card) regulation for elimination of noise and distribution problems associated with single-point regulation. In addition to use as fixed voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents. Considerable effort was expended to make the entire series of regulators easy to use and minimize the number of external components. It is not necessary to bypass the output, although this does improve transient response. Input bypassing is needed only if the regulator is located far from the filter capacitor of the power supply Specification RoHS Compliant - Category : Linear Regulatr Package Type: TO-220
